The Address Resolution Protocol (ARP) is a fundamental Layer 2 utility used within the IPv4 suite to resolve a known network-layer (Layer 3) address to its corresponding physical media access control (MAC) or hardware address (Layer 2). In a typical Ethernet environment, when a Junos device needs to forward a packet to a next-hop on a local subnet, the Packet Forwarding Engine (PFE) requires the destination MAC address to properly encapsulate the frame.

The process begins with an ARP Request, which is broadcast to all hosts on the segment asking, " Who owns this IP address? " The host assigned that specific IP responds with an ARP Reply containing its MAC address. The Junos device then stores this mapping in its ARP cache (viewable via the show arp command) to avoid repeated broadcasts for subsequent packets. This resolution is essential because while IP addresses facilitate end-to-end logical routing, the actual delivery of data across a physical wire or switch fabric relies entirely on hardware addresses. Without successful ARP resolution, the device cannot complete the Layer 2 header, and the traffic will be dropped as " encapsulation failed. "

Physical layer connectivity for Junos devices involves a variety of media types, with fiber-optic cabling being the standard for high-speed, long-distance, or high-density uplink requirements. Two of the most prevalent connector types used in these environments are the LC (Lucent Connector) and the SC (Subscriber Connector) .

The LC connector is a small-form-factor (SFF) connector that uses a 1.25 mm ferrule. Due to its compact size and " push-and-latch " mechanism, it is the primary connector type found on SFP, SFP+, and XFP transceivers used in Juniper EX, MX, and QFX series hardware. Its high-density design allows for more ports in a limited space on a line card or chassis. The SC connector , often referred to as a " square connector, " utilizes a larger 2.5 mm ferrule and a " push-pull " snapping mechanism. While it was highly common in older legacy hardware and fiber patch panels, it has largely been superseded by the LC in modern data center and enterprise switching environments.

In contrast, the RJ-45 is a standard copper Ethernet connector (typically used with Category 5e/6 cables), and the BNC (Bayonet Neill–Concelman) is a miniature quick connect/disconnect RF connector used for coaxial cable. As a Senior Architect, distinguishing between these physical interfaces is critical when specifying the correct Small Form-factor Pluggable (SFP) modules and patch cables required to bring a Junos interface into an operational up/up state.

In Junos OS, the rescue configuration is a specifically designated file that stores a known-working configuration, intended to be used for emergency recovery when the device becomes unreachable or unstable due to recent changes. This configuration is not created automatically; an administrator must proactively save a stable state using the operational mode command request system configuration rescue save. This differs from the standard rollback archive, which automatically stores up to 50 previous configurations but can eventually rotate out the specific " last known good " state needed for recovery.

When a device loses network connectivity, console access becomes the only viable management path. To restore the rescue configuration, the administrator must enter configuration mode using the configure command. Once inside the candidate configuration buffer, the rollback rescue command is issued. This command directs the Junos OS to locate the designated rescue file and load its contents over the current candidate configuration. Upon receiving the " load complete " confirmation, the administrator must execute a commit to promote the candidate configuration to the active, running state. Sequence C correctly follows this logic. Sequence A is technically incorrect for standard rescue restoration as load override typically targets specific file paths or URLs, whereas rollback rescue is the built-in mechanism for this function. Sequences B and D are destructive or counter-productive, either deleting the rescue file or overwriting it with the current, non-functional configuration state. Reference: Operational Monitoring and Maintenance, Configuration Recovery, Rescue Configuration.

==========

When a network architect needs to completely sanitize a Junos device for redeployment or decommissioning, the request system zeroize command is the most thorough tool available. Unlike simply loading the factory default configuration, which only resets the configuration database, the zeroize command performs a deep wipe of the system.

Specifically, this command removes all user-created data, including all configuration files (active and rollback), log files, license keys, and any locally stored files in the /var/tmp or /home directories. It essentially restores the device to its " pristine " out-of-box state. Once the command is initiated, the device reboots and goes through a sanitization process. This is a critical security measure to ensure that sensitive information—such as encrypted passwords, proprietary routing policies, or SNMP community strings—does not leave the organization when hardware is transferred.

In contrast, the request system storage cleanup command is a maintenance utility used to delete temporary files and old log entries to free up disk space, but it does not affect the running configuration or user accounts. Therefore, for a total system reset that includes configuration deletion, zeroize is the mandatory operational command.

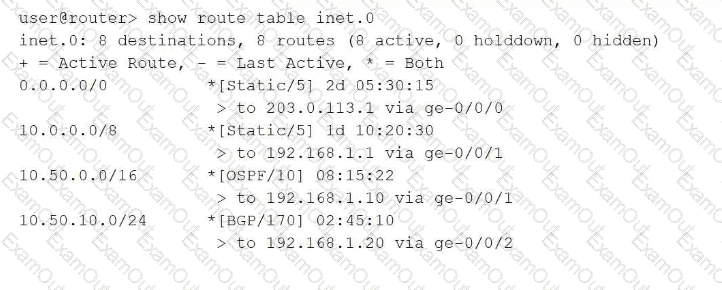

In Junos OS, the Routing Information Base (RIB) selection process follows a strict hierarchy where the Longest Prefix Match (LPM) is the absolute primary tie-breaker. When a packet is destined for 10.50.10.55 , the Routing Engine searches the inet.0 table for all matching entries. In this exhibit, four routes match: the default route ( 0.0.0.0/0 ), a general static route ( 10.0.0.0/8 ), an OSPF route ( 10.50.0.0/16 ), and a BGP route ( 10.50.10.0/24 ).

The LPM rule dictates that the router must select the most specific route available, which is defined as the entry with the highest number of matching bits in the subnet mask. The 10.50.10.0/24 route matches 24 bits of the destination address, making it more specific than the 16-bit, 8-bit, or 0-bit alternatives. It is critical to understand that route preference (e.g., Static at 5, OSPF at 10, or BGP at 170) is only evaluated if there are multiple paths to the exact same prefix and length. Because these prefixes vary in length, the length takes precedence over the protocol preference. Therefore, the BGP-learned route via 192.168.1.20 is selected as the active path, ensuring traffic follows the most granular routing information provided to the device. Reference: Routing Fundamentals, Routing Table Selection, Longest Prefix Match.

==========

Prefix lists in Junos OS are named collections of IP addresses or network prefixes defined under the [edit policy-options] hierarchy. One of their most powerful features is their versatility and reusability. Because they are defined as independent objects, a single prefix list can be referenced in multiple different routing policies across the device. This modularity ensures consistency; for instance, if a set of " internal " prefixes changes, an administrator only needs to update the list in one location for those changes to propagate to every policy that utilizes it.

Furthermore, prefix lists are designed to be used across different functional areas of the Junos architecture. They are equally valid for use in routing policies (to control the import or export of routes between protocols like BGP or OSPF) and in firewall filters (to match source or destination addresses for transit or management traffic). When used in a routing policy, the prefix list typically performs an exact match on the prefix length unless modified by a match type like orlonger. In a firewall filter, it acts as a high-speed lookup table for the Packet Forwarding Engine. This dual-purpose capability makes prefix lists a foundational tool for architects seeking to implement scalable, automated security and routing logic within a unified configuration framework.

In the Junos OS architecture, the configuration environment is strictly bifurcated to ensure system stability and integrity. The candidate configuration is a specific database that serves as a staging area, storing all proposed changes made by an administrator during a configuration session before they are finalized. Unlike other network operating systems where changes might take effect immediately upon entry, Junos utilizes this " sandbox " approach where modifications reside only in the candidate database until a commit command is explicitly executed.

Once the commit process is initiated, the Junos OS kernel validates the candidate configuration for syntax errors and logical consistency. If the validation check is successful, the candidate configuration is promoted and becomes the active configuration—the operational state currently running on the device hardware. This separation allows multiple administrators to work on complex changes without impacting live transit traffic or device stability prematurely. If a mistake is identified during the editing process, the candidate configuration can be easily discarded or compared against the active state to identify discrepancies. This workflow is a cornerstone of Junos OS, facilitating a " check-before-apply " methodology that is essential for carrier-grade reliability and minimizing the risk of accidental outages during critical maintenance windows. Reference: Junos OS Fundamentals, Configuration Databases, Candidate vs. Active.

==========

Securing the management plane is a core requirement for any Junos OS deployment. Secure Shell (SSH) is the industry-standard protocol used to provide encrypted, authenticated remote access to the Junos Command Line Interface (CLI). Unlike Telnet, which transmits both administrative credentials and command data in cleartext, SSH utilizes public-key cryptography to establish a secure tunnel, protecting the session from eavesdropping, man-in-the-middle attacks, and unauthorized interception.

In Junos OS, SSH is typically enabled within the [edit system services] hierarchy. Once active, it allows administrators to perform operational and configuration tasks with the assurance that their management traffic remains confidential. Beyond simple terminal access, SSH serves as the transport mechanism for other secure management functions, such as the NETCONF XML management protocol and Secure Copy (SCP) for file transfers. For high-security environments, Junos supports advanced SSH features including key-based authentication, strong cipher suites, and multi-factor authentication integration. Disabling insecure protocols like Telnet and FTP in favor of SSH and SFTP/SCP is a foundational best practice for hardening the Routing Engine against external threats.
