Option A is the incorrect statement and therefore the required answer. Under 2021 IBC Table 601, an exterior bearing wall in Type IV-C construction requires a two-hour fire-resistance rating , not one hour.

The tall mass timber classifications progressively vary the degree of noncombustible protection and allowable exposure, but the structural fire-resistance requirements remain substantial. Type IV-A exterior bearing walls require three hours. Type IV-B exterior bearing walls require two hours. Type IV-C exterior bearing walls also require two hours. Thus, options B, C, and D correctly reproduce the Table 601 values.

The special inspector must also recognize that Table 601 is not necessarily the only rating criterion affecting an exterior wall. Exterior walls are additionally subject to the requirements associated with fire separation distance, particularly Table 705.5. Where another IBC provision requires a higher rating, that more restrictive condition controls.

For mass timber construction, compliance also depends on the prescribed protective system, member dimensions, connections, joints, intersections, and exterior-side protection. A wall cannot be accepted as compliant solely because the timber cross section appears substantial; it must conform to the approved rated design.

References/Topics: 2021 IBC Section 601; Table 601; Section 602.4; Table 705.5.

===============

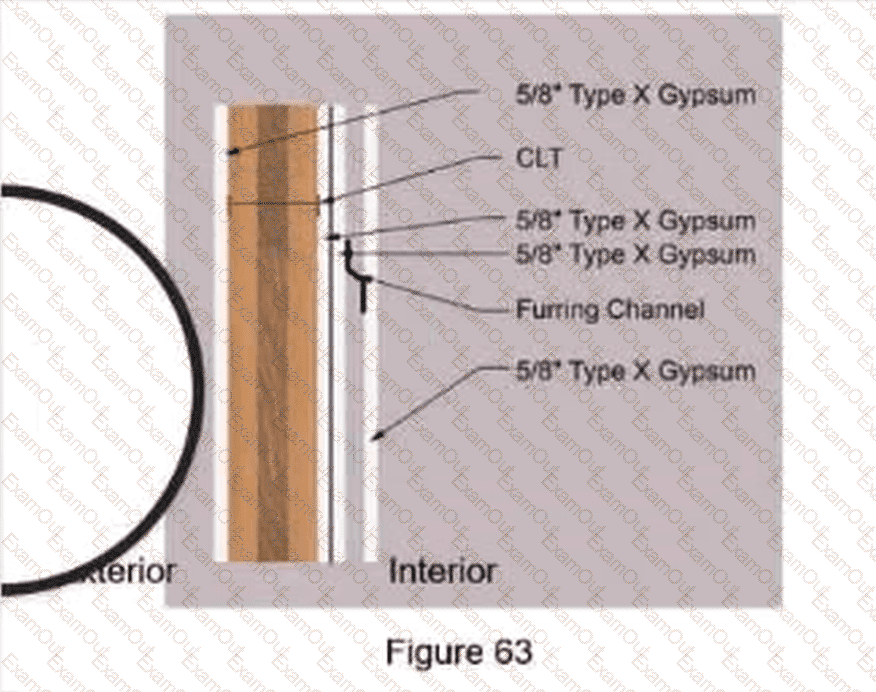

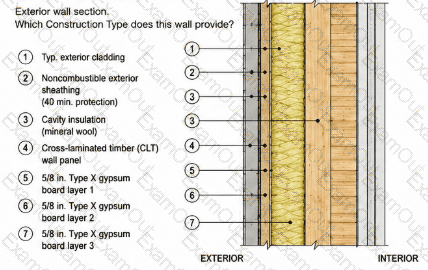

The illustrated wall corresponds to Type IV-A construction , making option A correct. The key indicator is the extensive Type X gypsum protection provided on the interior face of the CLT wall. Figure 63 shows multiple layers of 5/8-inch Type X gypsum board protecting the interior mass timber, together with the required exterior-side protection.

Type IV-A is the most comprehensively protected of the three tall mass timber construction classifications. IBC Section 602.4.1.2 requires the interior faces of all mass timber elements , including the inside face of exterior mass timber walls, to be protected with qualifying noncombustible material. Section 602.4.1.2.1 requires the protection contribution to satisfy Table 722.7.1(1) and never be less than 80 minutes. Type IV-A exterior walls also require at least 40 minutes of noncombustible protection on the outside face.

The three interior layers shown are consistent with a heavily protected Type IV-A rated wall. By contrast, Type IV-B permits limited exposed interior mass timber, while Type IV-C expressly permits mass timber interior elements to remain unprotected. Type IV-HT operates under fundamentally different heavy-timber provisions.

References/Topics: 2021 IBC Sections 602.4.1.1, 602.4.1.2 and 602.4.1.2.1; Tables 601 and 722.7.1(1)-(2).

===============

IBC Table 601 requires floor construction and associated secondary structural members in Types IV-A, IV-B, and IV-C construction to have a two-hour fire-resistance rating. Therefore, option B is correct.

This requirement applies to the complete floor assembly, not only the timber panel. The required two-hour performance may be established through the calculated fire resistance of the mass timber, the contribution of approved noncombustible protection, or a permitted combination of both. Any topping, protective membrane, connection protection, and edge condition that forms part of the approved rated design must be installed accordingly.

The ratings for other building elements should not be transferred to the floor. A three-hour rating applies to the primary structural frame and bearing walls of Type IV-A, but its floor construction remains two hours. Type IV-B and Type IV-C floors also require two hours, even though those construction types permit different degrees of exposed mass timber.

The special inspector must verify panel dimensions, approved layup, protection layers, joints, penetrations, connections, topping thickness, and other details that influence the floor’s rated performance.

References/Topics: 2021 IBC Sections 601 and 602.4; Table 601, floor construction and associated secondary structural members.

===============

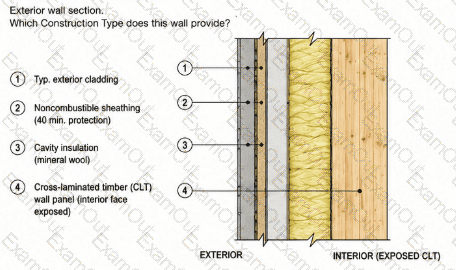

The illustrated configuration represents Type IV-C construction , so option C is correct. The distinguishing feature is the combination of noncombustible protection on the exterior face with an exposed CLT surface toward the interior.

IBC Section 602.4.3.1 requires the exterior side of combustible exterior walls in Type IV-C construction to have noncombustible protection providing a minimum assigned time of 40 minutes . Table 722.7.1(2) assigns exactly 40 minutes to one layer of 5/8-inch Type X gypsum board, matching the protection illustrated in Figure 66.

The decisive distinction is Section 602.4.3.2: mass timber elements in Type IV-C are permitted to be unprotected on the interior . This is fundamentally different from Type IV-A, where essentially all interior mass timber faces must be protected, and Type IV-B, where interior protection is generally required but limited areas may remain exposed under specific area and separation restrictions.

Type IV-HT does not use the Type IV-C protected-exterior/exposed-interior regulatory scheme.

References/Topics: 2021 IBC Sections 602.4.3, 602.4.3.1 and 602.4.3.2; Table 722.7.1(2), 5/8-inch Type X gypsum board = 40 minutes.

===============

ASTM E84 is not a test for establishing the fire-resistance rating of a structural member or building assembly. Therefore, option B is the exception.

The 2021 IBC establishes fire-resistance ratings primarily through testing conducted in accordance with ASTM E119 or UL 263. Those tests evaluate whether an element or assembly can maintain structural performance, limit flame passage, and control temperature rise for a specified duration under standardized fire exposure. ASTM E84 instead evaluates surface-burning characteristics, principally flame-spread and smoke-developed indices. An E84 classification cannot establish that a wall, floor, beam, column, or connection possesses a one-, two-, or three-hour fire-resistance rating.

The IBC also recognizes approved prescriptive designs under Section 721, calculated fire resistance under Section 722, and designs documented in approved sources or supported by permitted analytical methods. Those are valid methods represented by options A, C, and D.

For inspection purposes, the approved construction documents must identify the method used to establish the rating. The inspector must then verify that the installed materials, dimensions, loading assumptions, protective layers, fasteners, joints, and connection details match the tested, calculated, or prescriptive design.

References/Topics: 2021 IBC Sections 703.2, 703.2.1, 721 and 722; ASTM E119 and UL 263 fire-resistance testing.

===============

The required minimum fire-resistance rating is two hours , making option C correct. Table 601 assigns a two-hour fire-resistance rating to the primary structural frame in Type IV-C construction. The structural connection between members of that rated frame cannot become a premature failure point in the load path.

IBC Section 2304.10.1 specifically addresses structural connections in Types IV-A, IV-B, and IV-C mass timber construction. Connection protection must provide the fire-resistance performance required for the connected building element. This can be accomplished through protected connection configurations, approved fire testing, or engineering analysis satisfying the applicable code criteria.

The connection includes more than the visible steel plate or bolt. Fasteners, connectors, concealed steel, bearing zones, and portions of the timber participating structurally in the connection must collectively maintain the required performance. A one-hour or 1½-hour connection would undermine a structural frame required to remain functional for two hours. Three hours is the primary-frame rating associated with Type IV-A, not the Type IV-C condition specified here.

The inspector should verify protection thickness, wood cover, gypsum layers, hardware embedment, edge conditions, and approved connection geometry before concealment.

References/Topics: 2021 IBC Table 601; Section 2304.10.1; fire-resistant structural connections in Types IV-A, IV-B, and IV-C.

===============

The IFC does not require daily inspection documentation to be stored in a fire- and water-resistant safe. Therefore, option C is the exception.

The owner or the owner’s authorized agent must establish and maintain the required construction-site fire-prevention program and designate a site safety director. The site safety director is responsible for completing a daily fire-safety inspection covering the building and exterior project areas. The results must be documented, retained on-site until the certificate of occupancy is issued, and made immediately available to the fire code official upon request. Options A, B, and D accurately reflect these administrative requirements.

The purpose is not merely record retention. Daily inspections are intended to identify conditions such as obstructed fire apparatus access, blocked hydrants or fire department connections, exposed temporary wiring, improper hazardous-material storage, uncontrolled combustible debris, unavailable extinguishers, impaired standpipes, and deficient hot-work controls.

A special inspector is not automatically the site safety director. However, observations involving installed passive protection or unsafe construction conditions should be communicated through the approved reporting process. The owner remains accountable for implementing the site safety plan and maintaining the required documentation.

References/Topics: 2021 IFC Sections 3303.1 through 3303.3; site safety director and daily fire-safety inspection records.

===============

The calculation begins with 2021 IBC Table 506.2. Because the building is a Group B occupancy, has more than one story, and is protected throughout by an automatic sprinkler system complying with Section 903.3.1.1, the applicable tabular classification is “SM”—a multistory, fully sprinklered building.

For Group B and Type IV-A construction, Table 506.2 assigns an SM allowable area factor of 324,000 square feet. However, this is not the final total allowable building area. Section 506.2.1 requires a single-occupancy building with more than three stories above grade plane to use Equation 5-2. Where no frontage increase is stated, the calculation is:

324,000 square feet × 3 = 972,000 square feet.

The story-area multiplier is limited to three even though the building contains 15 stories. The code does not permit multiplying 324,000 square feet by all 15 stories. Additionally, the actual area of an individual story cannot exceed its calculated allowable area. Option A represents a different construction-type area factor, while option B does not result from the required IBC multistory calculation. The building is not automatically unlimited merely because it is Type IV-A and sprinklered.

References/Topics: 2021 IBC Sections 506.2 and 506.2.1; Equation 5-2; Table 506.2, Group B, Type IV-A, SM area factor.

===============

Steel plates are not themselves a fire-protective material for the connection; therefore, option A is the exception. Steel plates frequently form part of mass timber structural connections, but because steel is highly thermally conductive, exposed steel can rapidly transmit heat into fasteners and adjacent wood. Consequently, the steel connection components are normally the items that require protection , not the material relied upon to provide that protection.

AWC guidance recognizes wood cover, fire-rated gypsum board, and other approved protection materials as valid means of shielding structural connections. TR10 specifically provides calculation procedures and worked examples using sacrificial wood cover and Type X gypsum wallboard. An approved protective coating can also be used where its documented fire-performance characteristics establish the required endurance under the approved design.

The distinction is important for inspection. A concealed steel plate does not automatically mean a protected connection. The special inspector must verify whether sufficient wood cover, gypsum protection, approved coating, or another engineered protection system surrounds the steel for the required duration. Hardware geometry, exposed edges, gaps, and penetrations can all materially affect thermal performance.

References/Topics: AWC Technical Report No. 10, protection of structural connections; 2021 IBC Section 2304.10.1; AWC guidance that connection protection can be provided by wood cover, gypsum board, or other approved material.

===============
