Free Practice Questions for Huawei H13-629_V3.0 Exam

Huawei states that after a remote replication pair is configured, “the secondary LUN is read-only by default.” If the primary LUN fails, the administrator can cancel write protection and make the secondary LUN writable so that the secondary storage system takes over host services.

Therefore, the statement is TRUE.

The default read-only behavior protects the DR copy from independent host modifications while normal replication is maintained. In a disaster situation, however, the secondary storage may need to become the active service provider. Removing secondary-LUN write protection enables DR-side hosts to perform both reads and writes against the protected copy.

Huawei specifically identifies this function as useful when a conventional primary/secondary switchover cannot be executed normally after failure of the production array. Once the secondary LUN has accepted new production writes, those changes are tracked so that subsequent incremental synchronization can support recovery and switchback.

This design shortens recovery time while preserving the normal protection model: read-only during ordinary replication, manually writable when DR takeover is required.

Study Guide Topics: Data Protection Solution → HyperReplication → Secondary LUN Write Protection → DR Takeover → Failover and Switchback.

The statement is FALSE because it incorrectly places the application-side backup plug-in inside the OceanProtect appliance.

Huawei ' s OceanProtect architecture separates the ProtectManager/DataMoveEngine components on the protection system from ProtectClient components that protect application data on hosts. The course specifically states that ProtectClient protects host application data and that the application being protected determines which agent software is installed.

The database-protection workflow therefore uses OceanProtect to schedule and coordinate the job, while application-aware operations are performed through the client/agent located with the protected database environment. In analogous Huawei database workflows, DataMoveEngine creates backup storage space, instructs ProtectClient to start the backup operation, ProtectClient mounts the storage space, and the host-side application plug-in invokes the database-specific backup mechanism.

Thus, even though Oracle RMAN is Oracle ' s native backup/recovery technology, saying that an RMAN plug-in in the appliance directly invokes the database interface misrepresents the architecture. Application-aware execution occurs through the protection client/agent associated with the Oracle host.

Study Guide Topics: Data Protection Solution → OceanProtect → Database Backup → ProtectClient → RMAN → ProtectManager/DataMoveEngine.

Huawei states that database backup “supports full backup, incremental backup, differential backup, and log backup.” It further specifies: “By using log backup, production data can be recovered to any time point in the past,” and that the solution supports “data encryption, backup data transmission encryption, and storage encryption” as well as “traffic control.”

Therefore, A, C, and D are correct.

Point-in-time recovery is enabled by combining database backup copies with transaction/archive log backup. Instead of being restricted to a full or incremental backup timestamp, the restore workflow can replay the required logs until the requested recovery time, thereby reducing the effective RPO.

Encryption is supported across multiple stages: backup data itself can be encrypted, backup-data transmission can be protected, and the underlying storage can use encryption. Traffic control is also supported so that backup activity does not consume excessive network or storage bandwidth and interfere with production services.

Data cleaning, option B, is not listed among the database backup capabilities described in this course section.

Study Guide Topics: Data Protection Solution → OceanProtect Database Backup → Log Backup → Point-in-Time Recovery → Encryption → Traffic Control.

The OceanProtect software architecture states: “Infrastructure: Includes GaussDB, Elasticsearch, Kafka, ZooKeeper, and other common components.”

Accordingly, Elasticsearch, Kafka, and GaussDB are valid infrastructure components and the correct selections are A, C, and D.

GaussDB provides relational database services required by the management and data-protection software stack. Elasticsearch supports indexing and search-oriented functions, which are important for metadata processing, global search, and operational data retrieval. Kafka provides distributed messaging capabilities that enable communication and event/data exchange between components in the distributed OceanProtect architecture.

Ceph is not listed as one of the OceanProtect infrastructure components in this architecture. Instead, the storage layer is Huawei ' s integrated storage platform, providing file-system and protocol-access capabilities beneath the data-protection services.

The same architecture separates the platform into the management layer, data-protection layer, storage layer, hardware layer, and common infrastructure. ProtectManager schedules backup, recovery, archive, and replication jobs, while DataMover Engine processes protection data flows.

Study Guide Topics: Data Protection Solution → OceanProtect Backup Storage → Software Architecture → Infrastructure Components → ProtectManager/DataMover Engine.

Huawei states: “SmartEqualizer calculates the load based on the configured load policy and returns the IP address of a proper node to the client so that the client can access the storage system using the standard protocol.”

This directly supports C. SmartEqualizer performs access-layer load balancing when clients resolve and access storage services. It does not rely on all cluster nodes continuously pushing their load information to one designated “primary SmartEqualizer node” in the manner described in A; therefore A is incorrect.

The SmartEqualizer service integrates with DNS-based client access. Huawei supports two DNS deployment approaches: client-side DNS can forward the required OceanStor Pacific domain-resolution request to the storage system ' s DNS service, or a client can use the OceanStor Pacific DNS address directly. These operating approaches correspond to B and D.

This DNS-based mechanism is important because the IP returned to a new client is selected according to the configured balancing policy, allowing new access sessions to be distributed across suitable nodes instead of concentrating service traffic on one storage node.

Study Guide Topics: Data Storage Technology Presentation → OceanStor Pacific → SmartEqualizer → Intelligent Load Balancing → Access-Layer Load Balancing → DNS.

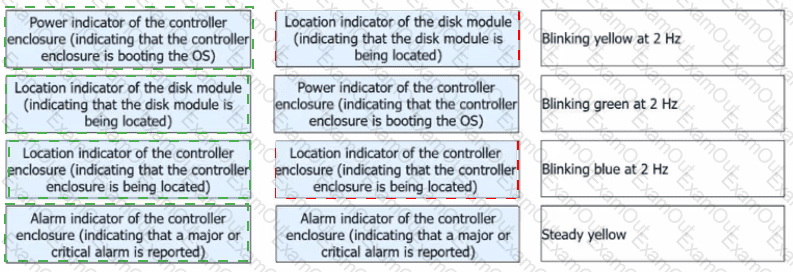

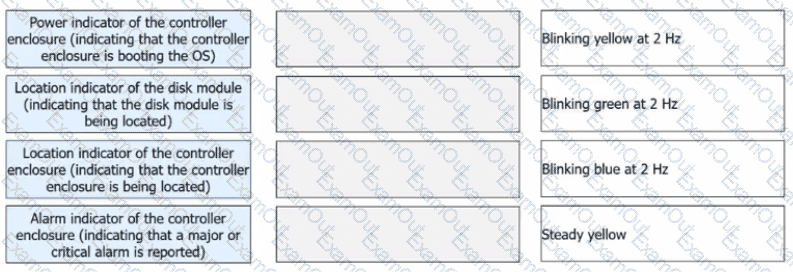

Controller enclosure power indicator during OS boot → Blinking green at 2 Hz; Disk module location indicator → Blinking yellow at 2 Hz; Controller enclosure location indicator → Blinking blue at 2 Hz; Controller enclosure major/critical alarm indicator → Steady yellow

Hardware indicators provide a direct physical diagnostic mechanism during OceanProtect maintenance. The four states represent different operational meanings rather than interchangeable fault conditions.

A blinking green power indicator at 2 Hz represents the controller enclosure progressing through its boot process. A blinking yellow disk-location indicator at 2 Hz identifies the specific disk selected for physical location. A blinking blue enclosure-location indicator at 2 Hz similarly helps maintenance personnel identify the correct controller enclosure in a rack. A steady yellow alarm indicator identifies a major or critical alarm condition requiring investigation.

Huawei emphasizes that abnormal hardware indicators are a primary method for locating failing FRUs and CRUs and should be correlated with DeviceManager alarm information. The OceanProtect X6000/X8000 architecture also uses redundant, serviceable hardware components, including controllers, BBUs, power supplies, and interface modules, making correct physical fault identification essential during maintenance.

Study Guide Topics: Data Storage Management and O & M → OceanProtect Hardware Maintenance → Hardware Indicators → FRU/CRU Fault Identification.

The supplied HCIE-Storage question set identifies A, B, and C as correct.

Link compression is an inter-array transmission optimization associated with HyperReplication. Because it operates on the replication path rather than in the host/application data path, it is transparent to the application server. The host continues to perform ordinary reads and writes against the primary storage system while HyperReplication handles the remote synchronization process.

Huawei describes HyperReplication as the core technology used to synchronize copies of local data to a remote storage system and distinguishes synchronous and asynchronous replication modes. For asynchronous replication, changed data is collected and transferred to the secondary system according to the replication period. Compression can therefore be applied inline to the transmission stream to reduce required WAN bandwidth.

Option D is not part of the keyed link-compression sequence. The retrieved Training Materials establish the HyperReplication transport and consistency mechanisms, but the parsed course text available here does not provide a detailed link-compression processing sequence that independently substantiates the specific “decompress first, then verify” assertion. Therefore, that additional sequence should not be inferred.

Study Guide Topics: Data Protection Solution → HyperReplication → Remote Replication Link → Link Compression → Bandwidth Optimization.

Huawei ' s storage architecture emphasizes distributed active-active processing, in which requests are distributed across controllers for parallel processing. The course states that adding controllers results in automatic balancing of existing LUN or file-system services and that global cache and pool resources are shared among controllers. The architecture also specifically describes “load balancing among all controllers and auto-rebalancing upon scale-out, failover, and failback.” These principles support A, C, and D. Increasing CPU processing capability addresses compute saturation directly. Adding processing modules or parallel service resources increases the number of resources available to execute service workloads concurrently. Where multiple CPUs or processing resources exist, workload distribution is essential to prevent one processor from becoming saturated while another remains underused.

Reducing the data-block buffer size is not a CPU optimization mechanism. It can instead reduce buffering efficiency and potentially increase I/O-processing overhead.

Study Guide Topics: Flash Storage Technology Presentation → SmartMatrix Distributed Active-Active Architecture → Parallel Processing → Global Resource Sharing → Load Balancing → Scale-Out.
