Free Practice Questions for Huawei H12-521_V1.0 Exam

The correct answers are A, C, and D because the documents prepared before IVS low-level design are the input materials used for design, deployment generation, and parameter definition, while the LLD report is an output of the LLD activity itself. The material emphasizes that network planning must be completed in advance, and the deployment process requires predefined addressing and parameter information. This is consistent with statements such as determining the network segment and IP address range for each network plane before deployment, and with the repeated use of fixed external service and management IP planning in domain and cluster configuration workflows .

From an engineering workflow perspective, the network plan file is required because network segments, IP ranges, and live-network planning must be decided in advance. A project configuration file is also needed because it carries deployment-specific parameters for the project. A JSON file is typically used as a structured import or export artifact generated by design tools and then consumed during planning or deployment preparation. However, the LLD report is not a prerequisite input document; it is the design deliverable produced after engineers complete the LLD work. Therefore, the required pre-LLD preparation documents are A, C, and D .

The correct answer is D. 71W . PoE++ is associated with the IEEE 802.3bt standard, which extends earlier PoE and PoE+ power delivery capabilities to support higher-power devices. In engineering practice, IEEE 802.3bt Type 4 PSE output power is generally recognized as being around 71 W at the source side, which is why 71 W is the best answer here. This aligns with the training material’s device-side description that the PowerCube service board includes ports where “two of the ports can be used to transmit P & E++ signals” while other ports transmit lower-level P & E signals

From a deployment perspective, this higher power class is important because intelligent vision sites may need to power cameras, illuminators, communication modules, and related edge equipment over Ethernet-linked interfaces. The lower values in the options correspond to earlier or lower-power classes: 15.4 W is associated with standard PoE, 30 W with PoE+, and 50 W is below the typical maximum associated with full 802.3bt Type 4 sourcing. Therefore, 71 W is the correct ceiling among the provided choices.

The correct answer is D because the iris directly controls the amount of light entering the lens, which has the most immediate effect on image brightness. When the iris opening is enlarged, more light reaches the image sensor, and the captured image becomes brighter. This makes iris adjustment the preferred action when the goal is simply to improve overall brightness. By contrast, resolution affects image detail, not light intake. Angle of view changes scene coverage, not exposure level. Focal length changes magnification and framing, but it does not function as the primary exposure control in this context.

This aligns with the exposure-centered logic emphasized throughout the training material, where Huawei highlights advanced imaging control and notes that “T-Shot, Huawei’s patented exposure technology, enables optimal imaging of targets and vehicles at the same time” and that traditional exposure methods cannot properly expose different targets in one image . In practical camera operation, brightness problems are first treated as an exposure issue, and among the listed options, the iris is the only parameter that directly regulates exposure by controlling incoming light.

The Open Network Video Interface Forum (ONVIF) provides a standardized framework for the interoperability of IP-based physical security products. These standards are organized into specific "Profiles" that define the features supported by devices and clients. Standard interfaces such as ONVIF are used to connect cameras to the IVS platform, facilitating a future-proof ecosystem where hardware from different vendors can communicate seamlessly.

Among the recognized standards, Profile S is the most common, used for basic video streaming and configuration. Profile T is a more modern standard designed for advanced video streaming, specifically supporting H.265 encoding and metadata reporting. Profile A is utilized for broader access control configurations, allowing for the integration of security management systems. Other profiles include Profile G for edge storage and Profile Q for quick installation. However, Profile B is not a recognized ONVIF standard profile. Adhering to these standardized formats ensures that recording streams can be accessed through external interfaces and that the system provides a channel for reporting metadata (structured data) for exchange with the platform, regardless of the underlying hardware differences.

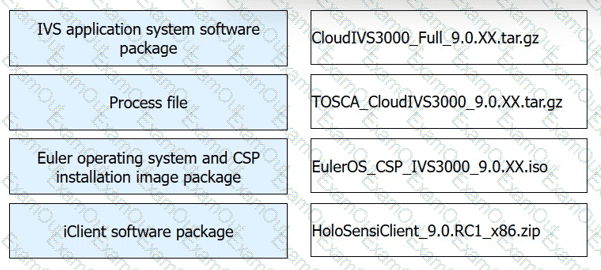

IVS application system software package → CloudIVS3000_Full_9.0.XX.tar.gz

Process file → TOSCA_CloudIVS3000_9.0.XX.tar.gz

Euler operating system and CSP installation image package → EulerOS_CSP_IVS3000_9.0.XX.iso

iClient software package → HoloSensiClient_9.0.RC1_x86.zip

The matching is determined by standard Huawei software package naming conventions used for IVS3800 and CloudIVS3000 deployment. The package named CloudIVS3000_Full_9.0.XX.tar.gz is the full IVS application system software package , because the keyword Full indicates the complete application deployment content. The TOSCA_CloudIVS3000_9.0.XX.tar.gz file corresponds to the process file , since TOSCA is used for orchestration and deployment workflow definition in Huawei platform installation. The EulerOS_CSP_IVS3000_9.0.XX.iso package is clearly the Euler operating system and CSP installation image package , as both EulerOS and CSP are explicitly named in the file. Finally, HoloSensiClient_9.0.RC1_x86.zip is the iClient software package , because HoloSens iClient is Huawei’s client-side operation and management application for the platform.

This mapping also follows the practical installation sequence. Engineers first prepare the operating system and CSP base image, then use the process file for orchestration, deploy the IVS application package, and finally install the iClient for platform access and configuration.

The correct answer is B because switching the secondary stream type is a stream configuration task, not an image-adjustment operation in the PTZ dome camera web interface. During image adjustment, the operator typically works with live-view and framing tools, such as directional control, local inspection, and capture assistance. That is why operations such as using a virtual joystick to move the PTZ direction, taking snapshots , and performing ePTZ for local image inspection fit naturally into image adjustment behavior.

The broader training content confirms that PTZ control belongs to live-view operation, stating that users can “perform PTZ controls … for example, control the PTZ direction, set PTZ preset positions, and set the home position” . That supports directional adjustment as a valid operation. A snapshot is also a live-view support function, while ePTZ is commonly used for image observation and local enlargement. However, secondary stream type belongs to video stream configuration, such as choosing or modifying stream properties, and is not part of direct image-adjustment handling. Therefore, the option that cannot be performed in image adjustment is B .

The correct answer is B because Lite Edge is designed as a container-based edge computing architecture that emphasizes service deployment, compute scheduling, and lightweight resource orchestration, rather than a storage-only deployment. The material explains that “The CSP and CSP Edge adopt a unified architecture to support the Central Cloud and Lite Cloud respectively” and further states that “The Lite Cloud integrates with the HASEN to implement container resource management and deployment” and “The container-based Lite Edge can schedule only CPU resources of single-node systems” . This makes it clear that compute capability is fundamental to Lite Edge scenarios.

From a solution-design perspective, Lite Edge can be deployed in integrated or combined modes, such as a fusion server or combinations involving compute and search , because intelligent services require application execution and scheduling resources. A storage-only server does not fit that functional model, since storage by itself cannot deliver edge-side intelligent service processing, search handling, or containerized application deployment. Therefore, while integrated and multi-role server combinations are valid Lite Edge configuration ideas, a standalone storage server is not considered a Lite Edge configuration scenario.

The correct answer is A. TRUE . In IVS3800 and Lite Edge network construction, the service plane relies on TOR switching for high-bandwidth service traffic, and link bundling is a standard design approach to provide bandwidth aggregation and redundancy. The material identifies the service-plane access layer explicitly: “Service TOR: TOR access switch on the service plane. The 10 GE optical port or GE port on the service plane is connected to the switch. CE6800 series switches are recommended” . This directly confirms that service TOR switches are a required part of the service-plane topology.

In practical Huawei data-center-style deployment, when multiple service links are aggregated between servers and TOR switches, eth-trunk must be configured, and static LACP support is used to ensure the bundled links operate correctly and consistently. That requirement aligns with standard network design logic for service-plane access in container-based edge environments, where stability and predictable uplink behavior are essential. Because Lite Edge depends on reliable service-plane connectivity and TOR-based aggregation, the statement that service TOR switches need to support static LACP mode and require eth-trunk configuration is correct.

Video structuring is the essential process of converting unstructured video content into searchable, organized data. This capability is integrated across the Huawei Intelligent Vision architecture, existing at both the front-end (cameras) and the back-end (platforms). Huawei's Software-Defined Cameras (SDC) are equipped with professional AI chips, such as the Ascend 310 or Hi3559A, which provide the high-performance processing required to perform this task locally. These AI chips can even replace backend servers to structure full video features, maximizing network-wide intelligent analysis efficiency. By performing structuring at the edge, the system reduces the bandwidth required to transmit full video streams to the central cloud while maintaining real-time awareness.

Simultaneously, Huawei’s intelligent video cloud and big data platforms provide robust back-end structuring capabilities for historical or live video analysis. These platforms utilize advanced algorithms to automatically generate structured data from massive video feeds. As noted in the documentation, video search intelligently analyzes unstructured original video data and automatically generates structured data based on the proper algorithms. This dual-layer approach allows for flexible deployment depending on whether real-time edge processing or high-volume centralized analysis is required for a specific security scenario.
