Free Practice Questions for HP HPE7-S02 Exam

B is correct. HPE ProLiant Compute XD685 is a purpose-built accelerated system for large AI training and tuning workloads. Current HPE configurations support eight NVIDIA Blackwell-family GPUs, including B200 and Blackwell Ultra options, in a dense direct-liquid-cooled 5U chassis. The platform also uses HPE Integrated Lights-Out (iLO) for secure server-level management, giving it the familiar HPE management and security foundation expected in enterprise deployments.

Option A is incorrect in processor count, GPU generation, and management characterization. The XD685 is not a four-processor/four-GPU Lovelace design with a choice between unrelated management controllers. Option C describes a multi-node scale-out chassis architecture that does not match the XD685; the 5U system is a single accelerated server platform with eight GPUs. Option D similarly invents an eight-processor, 8 TB scale-up design.

The exam objective is not merely to memorize a model name. The XD685 is positioned where workload requirements demand very high GPU density, large-model training capability, fast accelerator interconnects, and enterprise serviceability.

References/topics: Advanced HPE Compute Solutions, Rev. 26.21, Module 1 “HPE solutions for AI”; HPE ProLiant Compute XD685 product specifications and current HPE Blackwell platform materials.

D is correct. NVIDIA Spectrum-X is engineered for Ethernet-based AI fabrics where synchronized GPU traffic can create short, extremely large bursts. Its congestion-management architecture uses high-frequency telemetry and flow metering to identify the sources contributing to congestion and react with much finer control than conventional static Ethernet behavior. This is especially valuable for RDMA/RoCE AI traffic, where packet loss, tail latency, and uneven use of parallel paths can materially reduce GPU utilization.

Option A reverses the relationship between ECN and PFC. Spectrum-X does not simply replace ECN with Priority Flow Control; modern AI Ethernet designs combine congestion signaling and control mechanisms to avoid relying on broad pause behavior. Option B is also inaccurate because static ECMP hashing is not the defining fine-grained balancing mechanism; Spectrum-X uses adaptive routing and telemetry-aware decisions. Option C describes dedicated per-port buffering as the basis for losslessness, which is not the principal Spectrum-X innovation.

The exam objective is to understand why an AI network differs from ordinary data-center Ethernet: the network must react rapidly to elephant flows and collective-communication bursts while keeping accelerated nodes productive.

References/topics: Advanced HPE Compute Solutions, Rev. 26.21, AI/HPC networking objectives; NVIDIA Spectrum-X Ethernet networking documentation, congestion control and telemetry.

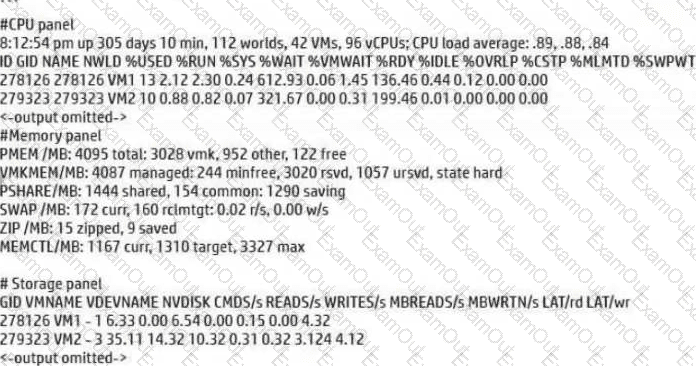

A is correct. The esxtop output indicates memory pressure rather than CPU or storage saturation. The host has only about 122 MB of free physical memory, the VMkernel memory state is shown as hard, ballooning is active, and swap is in use. Those are strong indicators that ESXi is reclaiming memory because demand is approaching or exceeding comfortable physical capacity. Reclamation can increase latency sharply, especially when guest memory is swapped to storage.

The CPU figures do not show the classic signature of CPU contention. The displayed VMs have low %RDY values, so they are not spending excessive time waiting for physical CPU scheduling. The storage panel also shows relatively low read/write latency for the displayed workloads, which does not support a storage-controller or storage-network bottleneck as the primary cause.

The appropriate remediation is therefore to add physical memory, reduce VM memory commitments, or evacuate some VMs to other hosts. The screenshot is a good example of why VMware troubleshooting should correlate multiple esxtop panels rather than infer the bottleneck from utilization alone.

References/topics: Advanced HPE Compute Solutions, Rev. 26.21, Module 8 “Troubleshooting HPE running VMware”; VMware ESXi esxtop memory-reclamation concepts.

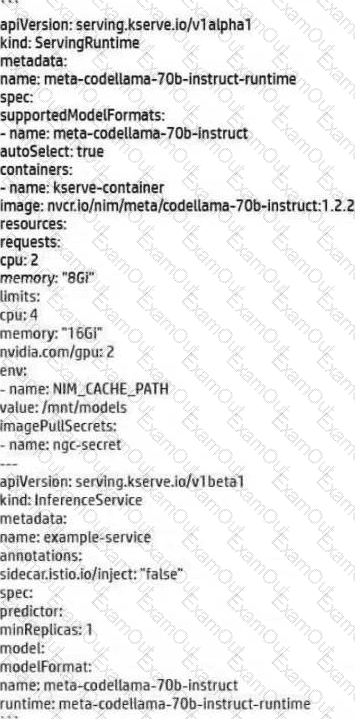

D is correct after correcting the YAML location to spec.predictor.model.storageUri. The ServingRuntime describes the runtime container capable of serving the model; the InferenceService describes the particular model instance to deploy. Because the CodeLlama model files already reside on a persistent volume claim named demo-model, the InferenceService must tell KServe where those model artifacts are stored. A PVC URI is therefore supplied through the model’s storageUri field, for example pvc://demo-model.

Option A is structurally wrong because modelFormat.name identifies the model format understood by the ServingRuntime; it is not a storage location. Option B incorrectly assigns model storage to the ServingRuntime specification. Option C changes the NIM cache directory inside the container but does not tell KServe to mount and initialize the requested model from the PVC. KServe’s v1beta1 schema places storageUri alongside modelFormat and runtime under the predictor’s model block.

This distinction is fundamental to reusable KServe design: a runtime can serve multiple compatible models, while each InferenceService supplies the model-specific location and deployment parameters.

References/topics: Advanced HPE Compute Solutions, Rev. 26.21, Module 5 “Other options for serving models on HPE Private Cloud AI”; HPE AI Essentials KServe documentation; KServe InferenceService v1beta1 schema.

C is correct. The Alerts view in HPE AI Essentials is designed to move an administrator from a detected condition to the evidence needed for diagnosis. From an alert, the administrator can open the logs for the pod associated with that alert. That is materially different from taking a remediation action such as restarting a pod: the Alerts interface provides observability and troubleshooting context, while restart or recovery actions are performed through the appropriate Kubernetes or platform-management workflow. Alert forwarding is separately configured in the platform’s observability settings rather than as a per-alert action, and HPE GreenLake does not provide an alert-correlation function from this local Alerts view.

This is an important operational distinction for the exam. HPE Private Cloud AI troubleshooting follows an evidence-first workflow: identify the alert, inspect the affected workload and its logs, and then determine the corrective action. Pod logs can expose image-pull failures, scheduling problems, resource exhaustion, application exceptions, or service communication errors without immediately changing system state.

References/topics: Advanced HPE Compute Solutions, Rev. 26.21, Module 7 “Troubleshooting HPE Private Cloud AI,” especially alerts and solution-provided tools; HPE AI Essentials Software documentation, “Viewing Alerts and Notifications.”

B is correct. HPE Slingshot is Ethernet-based and can interoperate with selected standard Ethernet adapters, so existing 200 GbE NICs do not automatically have to be replaced. The key requirement is that the adapters be on the HPE-qualified support list for the Slingshot switches and intended configuration. Qualification confirms interoperability for link behavior, firmware, drivers, performance, and supported operating modes.

Option A is incorrect because HPE Slingshot is not an InfiniBand fabric and therefore does not require NDR InfiniBand adapters. Option C is too absolute; HPE Slingshot NICs are not the only possible edge adapters where supported Ethernet NICs are qualified. Option D confuses storage networking with host attachment. LNet routers are used to bridge Lustre networking domains or provide routed access in certain HPC storage designs; they are not a general requirement for connecting 200 GbE server NICs to Slingshot top-of-rack switches.

The integrator’s task is therefore to validate the exact adapter, firmware, cable/transceiver, and switch-port combination against HPE support documentation before deployment.

References/topics: Advanced HPE Compute Solutions, Rev. 26.21, Module 10 “HPE HPC networking solutions”; HPE Slingshot QuickSpecs and qualified Ethernet-adapter guidance.

B is correct. HPE Slingshot uses fine-grained adaptive routing to make efficient use of available fabric paths. For traffic that can tolerate reordering, the network can make routing decisions at packet granularity, steering packets away from congested links and distributing high-bandwidth MPI or storage traffic across the fabric. This is particularly useful in HPC environments where compute collectives and Lustre I/O can create dynamic hotspots that are difficult to predict with static routing.

Option A is false because Slingshot is an Ethernet-based HPC interconnect, not InfiniBand NDR. Option C incorrectly characterizes its congestion management as primarily DiffServ-based; Slingshot uses specialized congestion-control and telemetry mechanisms designed for HPC traffic behavior. Option D overstates a topology requirement. HPC applications do not require every fabric to be constructed as a mathematically non-blocking network, and Slingshot’s value includes maintaining performance through adaptive routing and congestion management even under variable traffic.

The design goal is sustained application throughput, not merely peak link speed. Efficient path use keeps compute nodes from idling behind network congestion.

References/topics: Advanced HPE Compute Solutions, Rev. 26.21, Module 10 “HPE HPC networking solutions”; HPE Slingshot QuickSpecs and adaptive-routing documentation.

D is correct. A NIM image hosted in NVIDIA NGC is protected by NVIDIA registry authentication. To allow KServe in a user namespace to pull that image, the user needs a valid NGC API key and a Kubernetes secret containing the corresponding registry credentials in the namespace where the InferenceService will run. The workload can then reference that secret for the image pull or other required NGC access.

Option A describes registering NGC with HPE Machine Learning Inference Software. That is relevant when MLIS is the serving mechanism, but the scenario explicitly uses KServe. Option B is not how NVIDIA AI Enterprise is made available to HPE AI Essentials; it is not imported as a user Helm chart. Option C is also invalid because KServe does not require special “decorators” in application code to launch a NIM.

Namespace placement matters because Kubernetes secrets are namespace-scoped. A secret created elsewhere is not automatically available to the user’s KServe deployment.

References/topics: Advanced HPE Compute Solutions, Rev. 26.21, Module 5 “Other options for serving models on HPE Private Cloud AI” and NVIDIA AI Enterprise; HPE AI Essentials KServe guidance; NVIDIA NGC authentication documentation.

A is correct. VMware vSAN is designed to manage its storage devices directly so that it can create disk groups or storage pools, apply its own data-placement policies, and monitor device health and performance. On HPE ProLiant servers using a supported storage controller, vSAN data drives should therefore be presented in passthrough/HBA mode where the controller and vSAN design support it. This exposes the individual drives rather than hiding them behind a hardware RAID virtual disk.

RAID 1 and RAID 5 in options D and C would move redundancy and data placement into the controller, preventing vSAN from managing the devices as intended. Option B incorrectly treats erasure coding as a storage-controller mode. vSAN can apply software-defined RAID/erasure-coding policies at the datastore layer, but that is separate from configuring the physical controller.

The exact controller, firmware, driver, and device configuration must match the VMware Compatibility Guide and HPE vSAN design guidance. Passthrough is the architectural principle; supportability still depends on the validated hardware stack.

References/topics: Advanced HPE Compute Solutions, Rev. 26.21, Module 8 “VMware vSAN on HPE solutions”; HPE and VMware vSAN configuration guidance.
