Free Practice Questions for HP HPE7-J01 Exam

The HPE Alletra 4000 series (specifically the Alletra 4110 and 4120) are technically classified as Storage Servers. Unlike traditional "closed" storage arrays like the Alletra 6000 or 9000, the Alletra 4000s are open platforms derived from the HPE Apollo lineage, designed to run Software-Defined Storage (SDS) stacks such as HPE Ezmeral Data Fabric, Scality, or Qumulo.

Because these systems are fundamentally high-density servers, their lifecycle management—including firmware updates (BIOS, iLO, controllers), health monitoring, and remote configuration—is integrated into the HPE GreenLake for Compute Ops Management (COM) service. COM provides a cloud-native console designed specifically for server administrators to manage fleets of ProLiant and Alletra 4000 servers from a single pane of glass.

While the customer is building a storage solution, the Data Ops Manager (DOM) (Option D) is the control plane for HPE’s specialized block and file arrays (managed via DSCC) and is not the tool used for raw storage server hardware management. Similarly, the "File Storage" and "Block Storage" tiles in GreenLake refer to specific Storage-as-a-Service (STaaS) offerings rather than the underlying hardware management for SDS building blocks. For a partner designing an Ezmeral solution on Alletra 4000, Compute Ops Management is the correct tool to ensure the hardware stays compliant with the latest HPE Service Pack for ProLiant (SPP) and firmware baselines required for stable SDS operations.

The HPE Alletra MP B10000 (Block storage) represents a paradigm shift in HPE's high-end storage strategy by utilizing a modular, disaggregated architecture. One of the most significant technical advantages of this platform is its Advanced Erasure Coding and the way it handles data layout across the disaggregated NVMe capacity.

According to the HPE Alletra MP technical deep-dive documents, the system does not use traditional fixed RAID groups. Instead, it uses a massive, distributed stripe mechanism. The software is capable of varying the stripe width dynamically based on the number of available drives and nodes in the cluster. This allows the system to achieve industry-leading capacity efficiency. Specifically, the system can utilize stripe sizes ranging from a minimum of 16+3 to a maximum of 146+3. This high data-to-parity ratio (e.g., 146 data segments for every 3 parity segments) allows customers to realize significantly higher usable capacity from their raw NVMe investment compared to traditional RAID 6 (6+2 or 8+2) or even typical erasure coding in competitive mid-range arrays.

Option A is technically incorrect because, in the Alletra MP, data is typically committed to persistent NVMe media or SCM (Storage Class Memory) in a way that doesn't rely on legacy battery-backed volatile DRAM in the same manner as older controllers. Option C is incorrect because Locally Decodable Erasure Coding is actually designed to reduce rebuild times by requiring fewer IOPS to reconstruct a missing fragment. Option D, while "Workload Simulator" is a tool used in sizing (NinjaStars), the most "important" architectural feature listed that differentiates the Alletra MP’s efficiency is its unique and massive scaling stripe width.

Standard SCSI write operations are inherently sensitive to distance because they require multiple round-trip handshakes before data is actually transmitted. A typical write involves: 1) the Command, 2) a Transfer Ready (XFER_RDY) response from the target, 3) the Data, and 4) the Status. In a long-distance SAN, each of these round trips adds significant "latency wait time," severely degrading performance as distance increases.

To solve this, Brocade (HPE B-series) utilizes a protocol optimization feature known as FastWrite. FastWrite works by creating a Proxy Target (PT) local to the initiator host and a Proxy Initiator (PI) local to the target storage device. When the host issues a SCSI write command, the local Brocade switch (acting as the Proxy Target) immediately sends the XFER_RDY back to the host without waiting for the signal to travel across the long-distance link. This allows the host to send the data segment immediately.

By eliminating the need for every handshake message to traverse the distance multiple times, FastWrite significantly reduces the aggregate latency felt by the application. Architecturally, this enables customers to extend their SAN fabrics over double the distance (and often much further) while maintaining performance comparable to a significantly shorter link. This is critical for asynchronous replication and remote copy applications that issue large I/O blocks. Option C (Write Acceleration) is a generic term often used by other vendors, while FastWrite is the specific, validated Brocade feature name used in HPE Master ASE documentation for this protocol optimization.

Migrating data from a non-HPE (third-party) array to an HPE storage platform requires a specialized toolset designed for interoperability. For the HPE Alletra MP B10000 (Block), the primary tool for migrating from competitive systems like Dell EMC, HDS, or IBM is the HPE Online Import Utility (OIU).

The Online Import Utility is designed to simplify and automate the migration process with minimal disruption to the host applications. Architecturally, OIU leverages the "Peer Motion" technology foundation but is specifically packaged to support "Import" workflows from non-HPE sources. When using OIU over Fibre Channel, the HPE Alletra MP array essentially acts as a "Pass-Through" or proxy. The administrator zones the Dell EMC array to the Alletra MP, and the Alletra MP presents itself as a host to the Dell system.

Once the connection is established, the data is pulled from the source array to the destination array. Because it is an Online utility, the host's I/O is redirected through the Alletra MP during the migration process. This allows the data to be moved in the background while the application remains online. Once the data copy is complete, a "cutover" is performed, and the Dell EMC array can be decommissioned. Option D (Peer Motion Utility) is technically the underlying engine, but "Online Import" is the specific utility name used for multi-vendor migrations. Options B and C are incorrect as Remote Copy and Peer Persistence are proprietary HPE-to-HPE technologies used for ongoing replication and high availability, not for one-time migrations from third-party hardware.

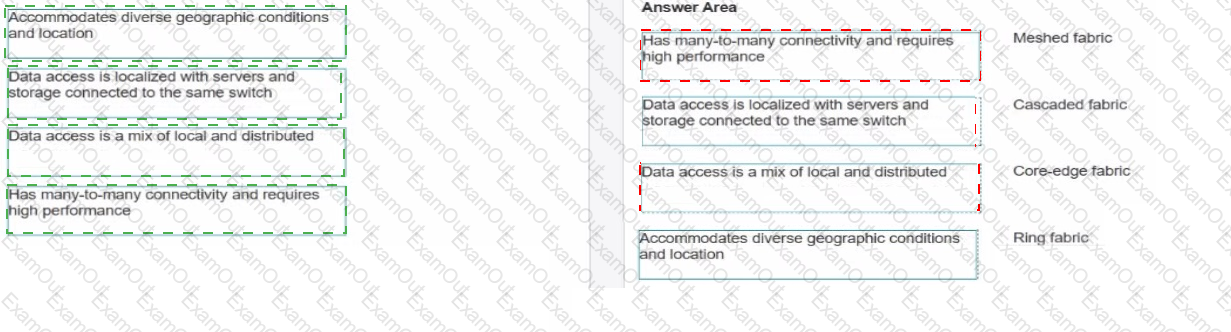

Meshed fabric: Has many-to-many connectivity and requires high performance.

Cascaded fabric: Data access is localized with servers and storage connected to the same switch.

Core-edge fabric: Data access is a mix of local and distributed.

Ring fabric: Accommodates diverse geographic conditions and location.

In the design of modern Storage Area Networks (SANs), selecting the right topology is critical for balancing performance, scalability, and cost. Each of these Brocade/HPE B-series architectures serves a specific workload profile:

Meshed Fabric: This design provides the highest level of redundancy and performance by connecting switches in an "any-to-any" pattern. Because every switch is connected to multiple other switches, it provides many-to-many connectivity and minimized "hop counts," making it ideal for high-performance environments where application traffic is unpredictable and widely distributed.

Cascaded Fabric: The simplest topology, where switches are connected in a serial or daisy-chain fashion. It is most effective in small environments where data access is localized—meaning the server and the storage it needs are physically connected to the same switch, minimizing Inter-Switch Link (ISL) traversal.

Core-Edge Fabric: The standard for enterprise data centers. Servers are connected to "Edge" switches, and storage is connected to a high-capacity "Core". This allows for a mix of local and distributed data access. Large enterprises use this to scale easily by adding edge switches without disrupting the core storage connectivity.

Ring Fabric: By connecting switches in a closed loop, this topology is designed to accommodate diverse geographic conditions. If a single link between two locations fails, traffic can be re-routed the other way around the ring. This provides a cost-effective way to link multiple sites or campus buildings while maintaining fabric integrity.

HPE GreenLake for File Storage is built upon a disaggregated, shared-everything (DASE) architecture powered by VAST Data software. The replication mechanism in this environment is fundamentally different from traditional block-based replication. Instead of replicating entire volumes or LUNs, HPE GreenLake for File Storage performs replication at the directory level.

According to the HPE GreenLake for File Storage Administrator Guide, the system utilizes a snapshot-based asynchronous replication engine. This allows for highly flexible topologies, including N:1 (fan-in) and 1:N (fan-out) configurations, which are essential for modern distributed data environments and centralized backup strategies. Because the solution is file-based, it leverages "Views" (or shares) that point to specific directory paths. Protection policies and snapshot schedules are applied directly to these paths, ensuring that only the specific datasets required for disaster recovery are replicated.

Option B is a common point of confusion; while the system is inherently "reduction-aware" and uses similarity-based data reduction (deduplication and compression) to save space on the physical media, the replication process itself focuses on the metadata and unique data blocks associated with the directory-level snapshots. Option A is incorrect because, in an asynchronous replication relationship, the destination is typically Read-Only until a failover or clone operation is initiated. Option D is incorrect as the management of protected paths follows strict pairing rules to prevent configuration conflicts. Thus, the support for flexible fan-in/fan-out topologies and granular directory-level protection (Option C) is the defining characteristic of this enterprise file solution.

The Zerto architecture for disaster recovery is designed as a scale-out solution that integrates directly into the hypervisor layer. The primary management component is the Zerto Virtual Manager (ZVM), which must be installed at each site (production and recovery) to manage the local resources and coordinate with its peer across the network. Data movement is handled by the Virtual Replication Appliance (VRA), a lightweight virtual machine installed on every hypervisor host where protected VMs reside.

When implementing Extended Journal Copy (formerly known as Long-Term Retention), Zerto leverages its unique Continuous Data Protection (CDP) stream. In a typical disaster recovery scenario, writes are captured at the production site and replicated asynchronously to the DR site. These writes are stored in the DR site journal, which provides a rolling history for short-term recovery. The Extended Journal Copy feature builds upon this by taking data directly from the DR site storage and moving it into a long-term repository. Because the "copies" are derived from the data already present at the recovery location, there is no impact on the production site performance and no requirement for additional storage space at the primary site for backup retention. This "off-host" backup approach eliminates the traditional backup window and ensures that the production environment remains lean while the DR site handles both short-term recovery (seconds to days) and long-term compliance (months to years).

The requirements provided point toward a "Secondary Storage" use case where the data must be more than just a "cold" backup; it needs to be "active" for DevOps and testing. The HPE Alletra 5000 (the successor to the HPE Nimble Storage Adaptive Flash arrays) is specifically engineered for this hybrid role.

Architecturally, the Alletra 5000 utilizes the CASL (Content Aware Storage Architecture) file system. This allows it to perform high-speed inline deduplication and compression, making it a cost-effective repository for long-term retention. Crucially for the customer's DevOps requirement, Alletra 5000 supports Zero-Copy Clones. This means the storage administrator can instantly create multiple copies of production datasets for development and testing without consuming additional storage space or impacting the performance of the primary backup repository.

When paired with Veeam Backup & Replication, the solution meets the "fast granular restore" and "instant recovery" requirements perfectly. Veeam’s vPower technology enables Instant VM Recovery, which allows a virtual machine to be started directly from the compressed and deduplicated backup file on the Alletra 5000. Because the Alletra 5000 includes a flash tier for metadata and frequently accessed data, it provides the necessary IOPS to run these recovered VMs or DevTest workloads with near-production performance.

In contrast, while Cohesity (Option B) is a strong secondary platform, HPE dHCI is a primary infrastructure solution and not just a backup repository. Scality RING (Option C) is an object storage solution geared toward massive scale and petabyte-level archives, but it lacks the performance characteristics for "instant recovery" and seamless DevOps cloning found in the Alletra 5000. HPE Alletra 4000 (Option D) is a high-density data server (formerly Apollo) which provides the raw hardware but lacks the integrated CASL-based intelligence and "Better Together" orchestration that the Alletra 5000/Veeam partnership offers for this specific customer profile.

The HPE Alletra MP is a modular, disaggregated storage platform designed to provide different storage personas (Block or File/Object) based on the software stack installed on the controller nodes. However, the minimum hardware "footprint" required to form a functional, supported cluster differs significantly between these personas.

For HPE GreenLake for File Storage (which utilizes the Alletra MP X10000 hardware and provides both File and Object protocols), the architecture is based on a disaggregated shared-everything (DASE) model. According to the HPE Alletra MP Installation and Architecture Guide, the minimum supported configuration for a File/Object cluster is three X10000 controller nodes. This 3-node minimum is a hard requirement to establish proper quorum and high availability for the V-Tree metadata and the distributed file system logic. A single X10000 node (as suggested in Options A and C) cannot function as a standalone file/object cluster in a production environment.

Furthermore, the Alletra MP X10000 persona is specifically optimized for high-density unstructured data (File and Object). While the B10000 persona (Options A, B, and C) is intended for Block storage, the question asks for a solution that covers file, object, and block. In many modern software-defined or unified scenarios, especially those aligned with the Alletra MP's future-proof roadmap, the X10000 hardware can serve multiple personas. However, strictly following the current architectural minimums for the File/Object requirement mentioned, you must have at least three nodes. Therefore, a 3-node cluster of X10000s is the foundational requirement to even begin providing the file and object services the customer needs. Options A and B fail the minimum cluster size requirement for the File/Object persona.
