BSS coloring is a mechanism that helps identify the BSS Basic Service Set. A BSS is a set of interconnected stations that can communicate with each other. BSS can be an independent BSS or infrastructure BSS. An independent BSS is an ad hoc network that does not include APs, whereas the infrastructure BSS consists of an AP and all its associated clients. on the same channel and differentiate them from other BSS on the same channel12. Each BSS is assigned a color code, which is a 6-bit value that is carried in the PHY header of the Wi-Fi frames12. By using BSS coloring, the APs and clients can reduce the threshold for interference detection and avoid unnecessary backoff or retransmissions when they detect frames from other BSS with different colors12. This can improve the spectral efficiency and throughput of the network12. The other options are incorrect because they do not describe the primary benefit of BSS coloring.

The Aruba CX 6400 switch is a modular switch that supports high-performance and high-density Ethernet switching for campus and data center networks. One of the features that distinguishes the Aruba CX 6400 switch from most typical campus switches is virtual output queueing (VOQ). VOQ is a technique that implements large ingress packet buffers on each port to prevent head-of-line blocking and packet loss due to congestion2. VOQ allows each port to have multiple queues for different output ports and prioritize packets based on their destination and QoS class2. VOQ enables the Aruba CX 6400 switch to achieve high throughput and low latency for various traffic types and scenarios. References: 2 https://www.arubanetworks.com/assets/ds/DS_CX6400Series.pdf

This is the appropriate solution for this scenario where wireless 802.1X authentication will be against a RADIUS server in the cloud and the security team is concerned that the traffic between the AP and the RADIUS server will be exposed. RadSec, also known as RADIUS over TLS, is a protocol that provides encryption and authentication for RADIUS traffic over TCP and TLS. RadSec can be configured on both the AP and the RADIUS server to establish a secure tunnel for exchanging RADIUS packets. The other options are incorrect because they either do not provide encryption or authentication for RADIUS traffic or do not involve RadSec. References: https://www.securew2.com/blog/what-is-radsec/ https://www.cloudradius.com/radsec-vs-radius/

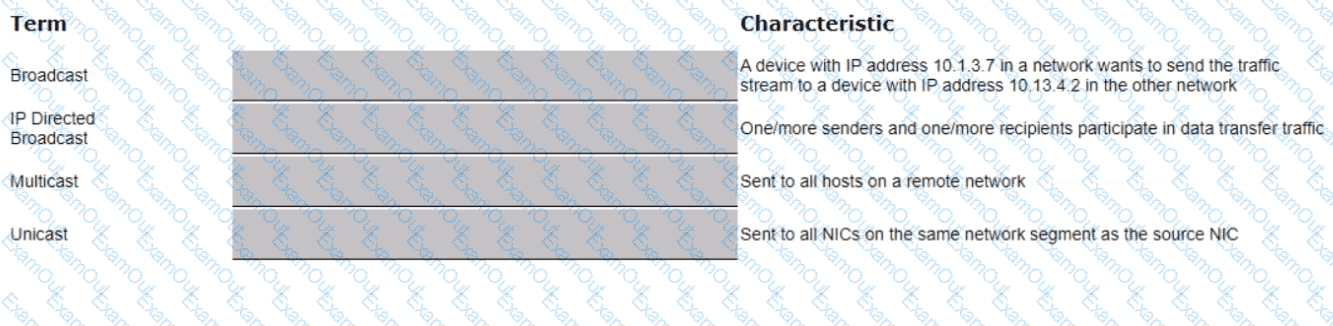

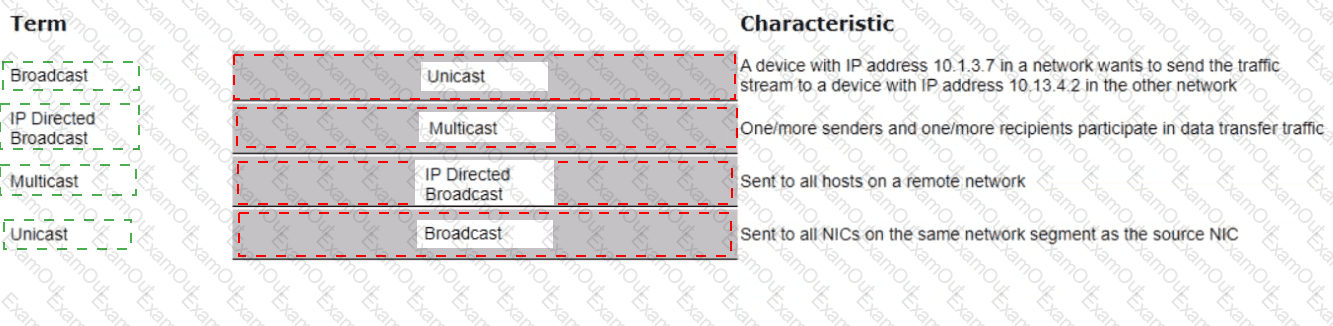

a) A device with IP address 10.1.3.7 in a network wants to send the traffic stream to a device with IP address 10.13.4.2 in the other network - >  Unicast

b) One/more senders and one/more recipients participate in data transfer traffic - >  Multicast

c) Sent to all hosts on a remote network - >  IP Directed Broadcast

d) Sent to all NICs on the same network segment as the source NIC - >  Broadcast

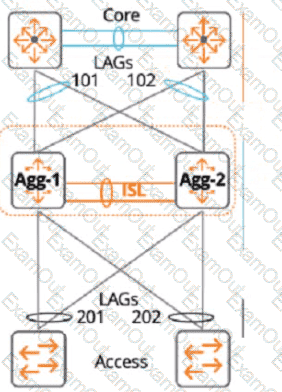

The reason is that the linkup delay timer is a feature that delays bringing downstream VSX links up, following a VSX device reboot or an ISL flap. The linkup delay timer has two phases: initial synchronization phase and link-up delay phase.

The initial synchronization phase is the download phase where the rebooted node learns all the LACP+MAC+ARP+STP database entries from its VSX peer through ISLP. The initial synchronization timer, which is not configurable, is the required time to download the database information from the peer.

The link-up delay phase is the duration for installing the downloaded entries to the ASIC, establishing router adjacencies with core nodes and learning upstream routes. The link-up delay timer default value is 180 seconds. Depending on the network size, ARP/routing tables size, you might be required to set the timer to a higher value (maximum 600 seconds).

When both VSX devices reboot, the link-up delay timer is not used.

Therefore, by configuring the linkup delay timer to include LAGs 101 and 102, which are part of the same VSX device as LAG 201, you can ensure that both devices have enough time to synchronize their databases and form routing adjacencies before bringing down their downstream links.

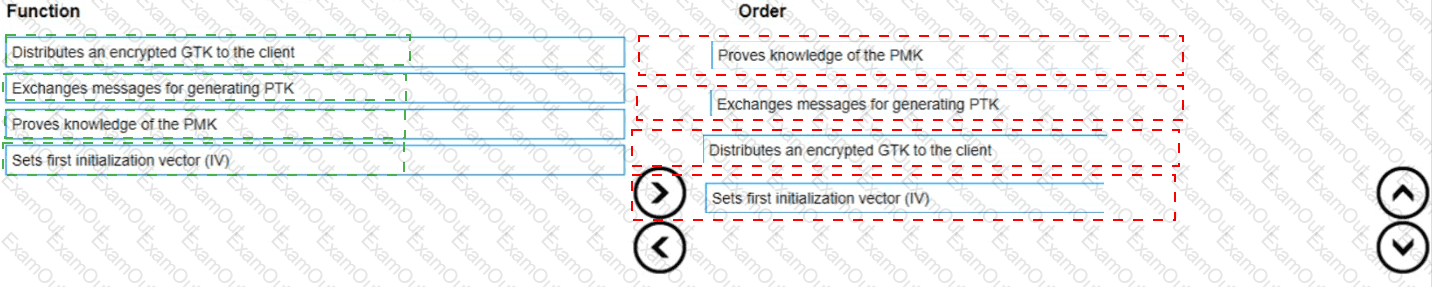

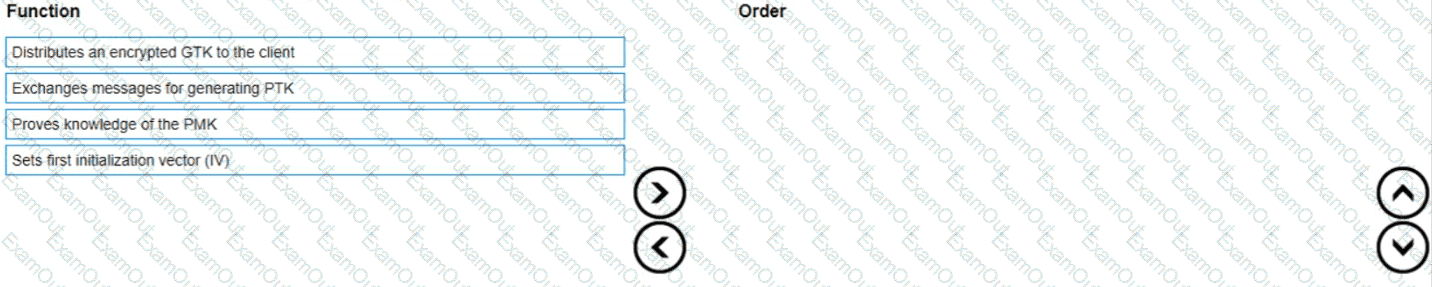

Proves knowledge of the PMK

Exchanges messages for generating PTK

Distributes an encrypted GTK to the client

Sets first initialization vector (IV)

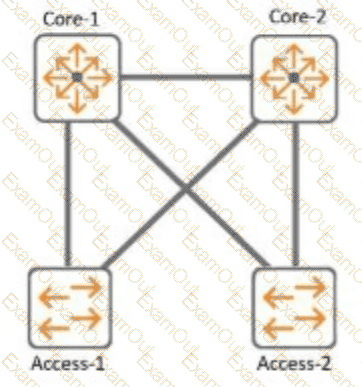

In MSTP, root-bridge priority is configured per MST instance , not directly per individual VLAN. Since Core-1 already has spanning-tree instance 1 priority 0, Core-1 is intended to become the preferred root for MST instance 1 . To make VLAN 10 use that spanning-tree topology, VLAN 10 must therefore be mapped into instance 1 with:

spanning-tree instance 1 vlan 10

HPE Aruba Networking documents this exact syntax and states that the command either creates an MST instance with the specified VLAN mapping or maps a VLAN to an existing instance. Aruba Networks

This is how MSTP provides VLAN load balancing. Different VLANs can be assigned to separate MST instances, and each instance can have a different root bridge. For example, VLAN 10 can belong to instance 1 with Core-1 as root, while VLAN 20 can belong to another instance whose root priority favors Core-2 . Aruba specifically describes this ability to forward different VLAN groups along separate paths as an MSTP load-sharing mechanism. Aruba Networks

Options B, C, and D are not the appropriate AOS-CX MSTP VLAN-to-instance mapping syntax. The required command is therefore A .

Study Guide Topics: MSTP, MST Instances, VLAN-to-Instance Mapping, Root Bridge Priority, VLAN Load Balancing, AOS-CX Spanning Tree.

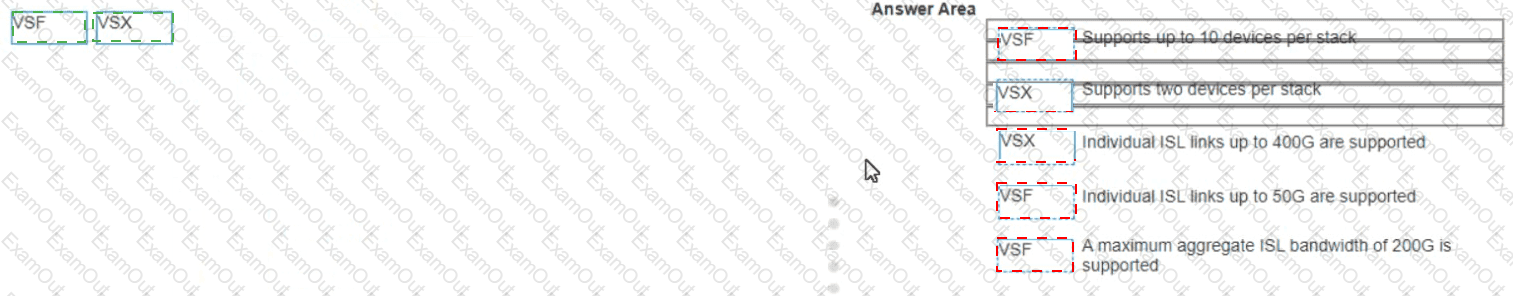

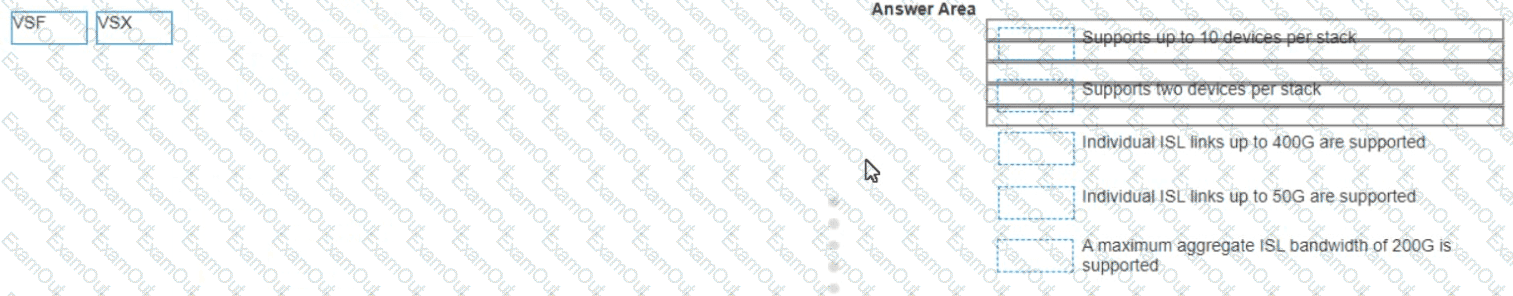

a) Support up to 10 devices per stack - >  VSF

b) Support two devices per stack - >  VSX

c) Individual ISL links up to 400G are supported - >  VSX

d) individual ISL links up to 50G are supported - >  VSF

e) A maximum aggregate ISL bandwidth of 200G is supported - >  VSF
