Free Practice Questions for HP HPE6-A85 Exam

The RADIUS message that you should look for to ensure a successful connection via 802.1X is Access-Accept. This message indicates that the RADIUS server has authenticated and authorized the supplicant (the device that wants to access the network) and has granted it access to the network resources. The Access-Accept message may also contain additional attributes such as VLAN ID, session timeout, or filter ID that specify how the authenticator (the device that controls access to the network, such as a switch) should treat the supplicant’s traffic.

The other options are not RADIUS messages because:

Authorized: This is not a RADIUS message, but a state that indicates that a port on an authenticator is allowed to pass traffic from a supplicant after successful authentication and authorization.

Success: This is not a RADIUS message, but a status that indicates that an EAP Extensible Authentication Protocol (EAP) is an authentication framework that provides support for multiple authentication methods, such as passwords, certificates, tokens, or biometrics. EAP is used in wireless networks and point-to-point connections to provide secure authentication between a supplicant (a device that wants to access the network) and an authentication server (a device that verifies the credentials of the supplicant). exchange has completed successfully between a supplicant and an authentication server.

Authenticated: This is not a RADIUS message, but a state that indicates that a port on an authenticator has received an EAP-Success message from an authentication server after successful authentication of a supplicant.

References: https://en.wikipedia.org/wiki/RADIUS#Access-Accept https://www.cisco.com/c/en/us/support/docs/security-vpn/remote-authentication-dial-user-service-radius/13838-10.html https://en.wikipedia.org/wiki/IEEE_802.1X#Port-based_network_access_control https://en.wikipedia.org/wiki/Extensible_Authentication_Protocol#EAP_exchange

Only: Daisy chain plus MAD and ring are the recommended VSF topologies for Aruba switches. They provide high availability and redundancy for the VSF stack. MAD (Multiple Active Detection) is a mechanism to detect and resolve split-brain scenarios in a VSF stack.References:https://www.arubanetworks.com/techdocs/AOS-CX/10.04/HTML/5200-6790/GUID-D6EF042E-EEEF-49F7-B67E-4CAC41CCB24D.html

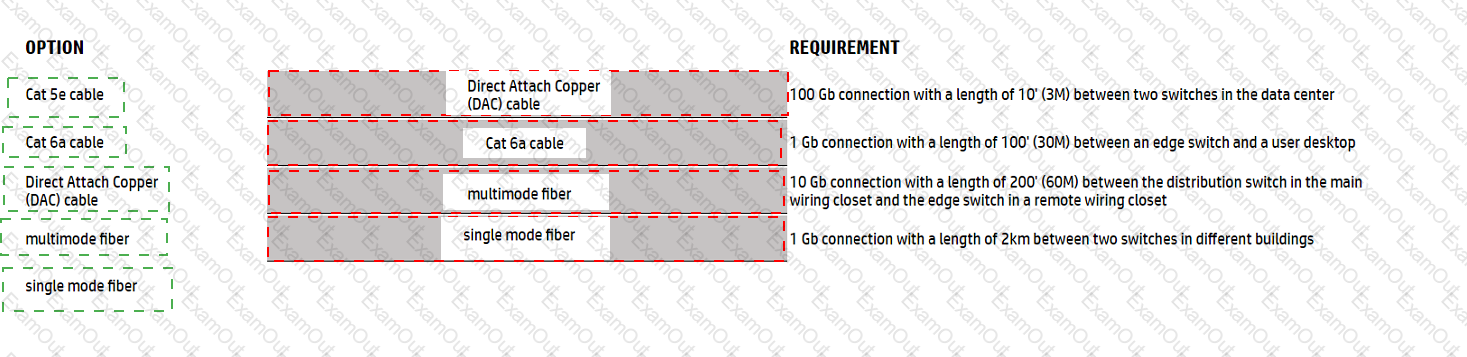

100 Gbps, 3M: Direct Attach Copper

1 Gbps, 30M: Cat Ga

10 Gbps, 60M: Multimode fiber

1 Gbps, 2km: Single mode fiber

Performing a hard reset on an Aruba CX switch typically involves pressing and holding the reset button for a specified amount of time, such as 5 seconds, and then releasing it. This action will initiate a reboot of the switch and return it to factory default settings, including the credentials.

EAP-TEAP is a tunnel-based authentication method that supports both device and user authentication within a single RADIUS session. ClearPass 6.9 supports EAP-TEAP as an authentication method for Windows 10 clients.References:https://www.arubanetworks.com/techdocs/ClearPass/6.9/Guest/Content/CPPM_UserGuide/EAP-TEAP/EAP-TEAP.htm

For the requirement to authorize both device and user credentials within one Radius session, the correct solution would be ClearPass 6.9 with EAP-TEAP (EAP-Tunneled Extensible Authentication Protocol). EAP-TEAP is a tunneling protocol that creates a secure communication channel between the client and the server, allowing for the transmission of multiple authentication transactions within a single session. This capability is particularly useful in scenarios where both user and device credentials need to be verified before granting access to network resources, providing an additional layer of security and ensuring that both the user and the device are authorized to access the network.

 A slow amber-flashing Stack-LED indicates that stacking mode is selected on the switch. This means that the switch is ready to join a stack or form a new stack if no other switches are present.References:https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/1-overview/stacking-leds.htm

Aruba AirMatch is a feature that optimizes RF Radio Frequency. RF is any frequency within the electromagnetic spectrum associated with radio wave propagation. When an RF current is supplied to an antenna, an electromagnetic field is created that then is able to propagate through space. performance and user experience by using machine learning algorithms and historical data to dynamically adjust AP power levels, channel assignments, and channel width. AirMatch performs live firmware upgrades on Aruba APs by partitioning all the APs based on RF neighborhood data and minimizing the impact on clients. AirMatch uses a rolling upgrade process that upgrades one partition at a time while ensuring that adjacent partitions are not upgraded simultaneously. References: https://www.arubanetworks.com/assets/ds/DS_AirMatch.pdf https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/arm/AirMatch.htm

On an Aruba CX 6300M switch, routing between Switch Virtual Interfaces (SVIs) is enabled by default. Therefore, traffic between SVIs, like 120 and 130, can be routed internally without the need for additional configuration such as route leaking or static routes, as long as there is no 'no routing' configuration present on the SVIs.

OSPF Open Shortest Path First. OSPF is a link-state routing protocol that uses a hierarchical structure to create a routing topology for IP networks. OSPF routers exchange routing information with their neighbors using Hello packets, which are sent periodically on each interface. To establish an adjacency Adjacency is a relationship formed between selected neighboring routers for the purpose of exchanging routing information., OSPF routers must agree on several parameters, including Hello timers, which specify how often Hello packets are sent on an interface. If the Hello timers do not match between neighboring routers, they will not form an adjacency and will not exchange routes. References:https://www.arubanetworks.com/techdocs/ArubaOS_86_Web_Help/Content/arubaos-solutions/osfp/osfp.htm

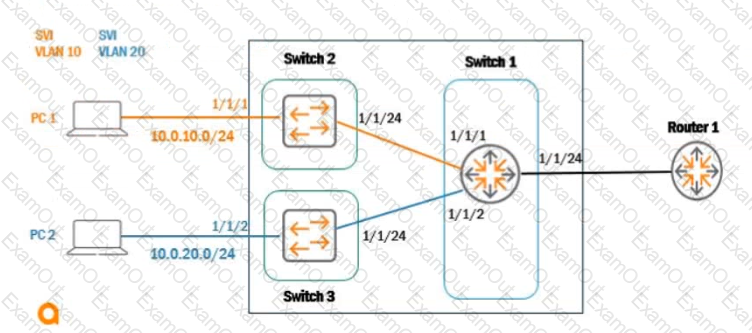

On Aruba switches, the Link Layer Discovery Protocol (LLDP) is enabled by default on all ports. This protocol is an industry-standard network discovery protocol that is used for network devices to advertise their identity, capabilities, and neighbors on a locally managed network, typical in an IEEE 802 network. This is beneficial for network mapping and troubleshooting purposes. Since LLDP is enabled by default, there is no need for any additional configuration on Switch 1 port 1/1/24 to receive LLDP messages from Router 1, as long as LLDP is not disabled on the port.
