Free Practice Questions for HP HPE6-A84 Exam

DNS tunneling is a technique that abuses the DNS protocol to tunnel data or commands between a compromised host and an attacker’s server. DNS tunneling can be used to establish a command and control channel, which allows the attacker to remotely control the malware or exfiltrate data from the infected host1

The traffic capture in the exhibit shows some signs of DNS tunneling. The source IP address is 10.1.7.2, which is likely an internal host behind a firewall. The destination IP address is 8.8.8.8, which is a public DNS resolver. The DNS queries are for subdomains of badsite.com, which is likely a malicious domain registered by the attacker. The subdomains have long and random names, such as 0x2a0x2a0x2a0x2a0x2a0x2a0x2a0x2a.badsite.com, which could be used to encode data or commands. The DNS responses have large sizes, such as 512 bytes, which could be used to carry data or commands back to the host2

A DNS SAN (Subject Alternative Name) is an extension of the X.509 certificate standard that allows specifying additional hostnames or IP addresses that the certificate can be used for. A DNS SAN is useful for validating the identity of the server or client that presents the certificate, especially when the common name (CN) field does not match the hostname or IP address of the server or client.

In this case, the certificate has a CN of mc41.site94.example.com, which is the fully qualified domain name (FQDN) of the standalone Aruba Mobility Controller (MC). However, this CN may not match the hostname or IP address that the MC uses for the Web UI or for implementing RadSec with Aruba ClearPass Policy Manager. For example, if the MC uses a different FQDN, such as mc41.example.com, or an IP address, such as 192.168.1.41, for these purposes, then the certificate would not be valid for them. Therefore, the certificate should have a DNS SAN that includes all the possible hostnames or IP addresses that the MC may use for the Web UI and RadSec.

The VIA web authentication profile is used to authenticate the users who want to download the VIA connection settings from the VPNCs. The VPNCs can use either an internal database or an external server (such as RADIUS or LDAP) as the authentication source for this profile. To ensure that only authorized users obtain VIA connection settings, you should use CPPM as the external server and configure a service on CPPM that uses AD as the authentication source. This way, you can leverage the role mapping and enforcement features of CPPM to check if the users belong to the “RemoteEmployees” AD group and grant or deny them access accordingly1

The other options are not correct because they do not allow you to verify the users’ AD group membership before providing them with VIA connection settings. Option B would only check the users’ credentials against AD, but not their group membership. Option C would only apply to the VPN connection phase, not the VIA connection settings phase. Option D would not work because the VPNCs do not support LDAP as an authentication source for VIA connection profiles2

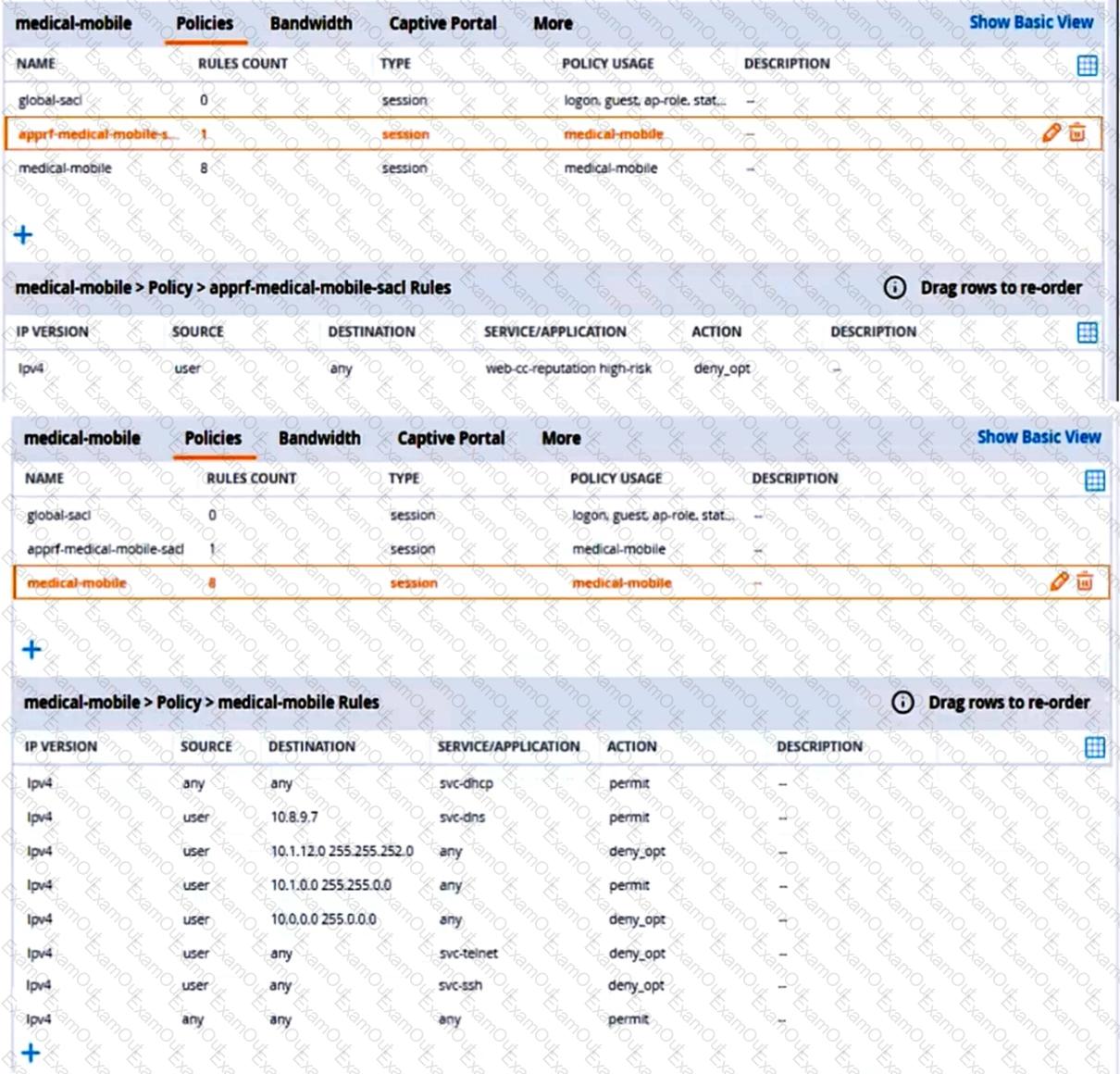

Rules 6 and 7 in the “medical-mobile” policy are used to deny access to the WLAN for a period of time if the clients send any SSH or Telnet traffic, as required by the scenario. However, these rules are currently placed below rule 5, which permits access to the Internet for any traffic. This means that rule 5 will override rules 6 and 7, and the clients will not be denied access to the WLAN even if they send SSH or Telnet traffic.

To fix this issue, rules 6 and 7 should be moved to the top of the list, before rule 5. This way, rules 6 and 7 will take precedence over rule 5, and the clients will be denied access to the WLAN if they send SSH or Telnet traffic, as expected.

The Fail Strategy is a configuration option for the IPS mode of inspection on Aruba gateways. It defines the action to be taken when the IPS engine crashes and cannot inspect the traffic. There are two possible options for the Fail Strategy: Bypass and Block1

If you set the Fail Strategy to Bypass, you are telling the gateway to allow the traffic to flow without inspection when the IPS engine fails. This option ensures that there is no disruption in the network connectivity, but it also exposes the network to potential threats that are not detected or prevented by the IPS engine1

If you set the Fail Strategy to Block, you are telling the gateway to stop the traffic flow until the IPS engine resumes inspection. This option ensures that there is no compromise in the network security, but it also causes a loss of network connectivity for the duration of the IPS engine failure1

The correct answer is B. Create a new VLAN on the AOS-CX switch and configure that VLAN as the UBT client VLAN.

User-based tunneling (UBT) is a feature that allows the AOS-CX switches to tunnel the traffic from wired clients to a mobility gateway cluster, where they can be assigned a role and a VLAN based on their authentication and authorization 1. To enable UBT, the switches need to have a UBT zone configured with the IP addresses of the gateways, and a UBT client VLAN configured with the ubt-client-vlan command 2.

The UBT client VLAN is a special VLAN that is used to encapsulate the traffic from the tunneled clients before sending it to the gateways. The UBT client VLAN must be different from any other VLANs used on the switch or the network, and it must not be assigned to any ports or interfaces on the switch 2. The UBT client VLAN is only used internally by the switch for UBT, and it is not visible to the clients or the gateways.

In this scenario, the customer wants to tunnel the clients that pass user authentication to the gateway cluster, where they will be assigned to VLAN 20. Therefore, the switch must have a UBT client VLAN configured that is different from VLAN 20 or any other VLANs on the network. For example, the switch can use VLAN 4000 as the UBT client VLAN, as shown in one of the web search results 3. The switch must also have a UBT zone configured with the system IP addresses of the gateways as the primary and backup controllers, as explained in question 3.

The other options are not correct or relevant for this issue:

Option A is not correct because assigning VLAN 20 as the access VLAN on any edge ports to which tunneled clients might connect would conflict with UBT. The access VLAN is the VLAN that is assigned to untagged traffic on a port, and it is used for local switching on the switch 4. If VLAN 20 is assigned as the access VLAN, then the traffic from the clients will not be tunneled to the gateways, but rather switched locally on VLAN 20. This would defeat the purpose of UBT and cause inconsistency in role and VLAN assignment.

Option C is not correct because VIA licenses are not required for UBT. VIA licenses are required for enabling VPN services on Aruba Mobility Controllers for remote access clients using Aruba Virtual Intranet Access (VIA) software . VIA licenses are not related to UBT or wired clients.

Option D is not correct because changing the port-access auth-mode mode to client-mode on any edge ports to which tunneled clients might connect would not affect UBT. The port-access auth-mode mode determines how a port handles authentication requests from multiple clients connected to a single port . Client-mode is the default mode that allows only one client per port, while multi-client-mode allows multiple clients per port. The port-access auth-mode mode does not affect how UBT works or how traffic is tunneled from a port.

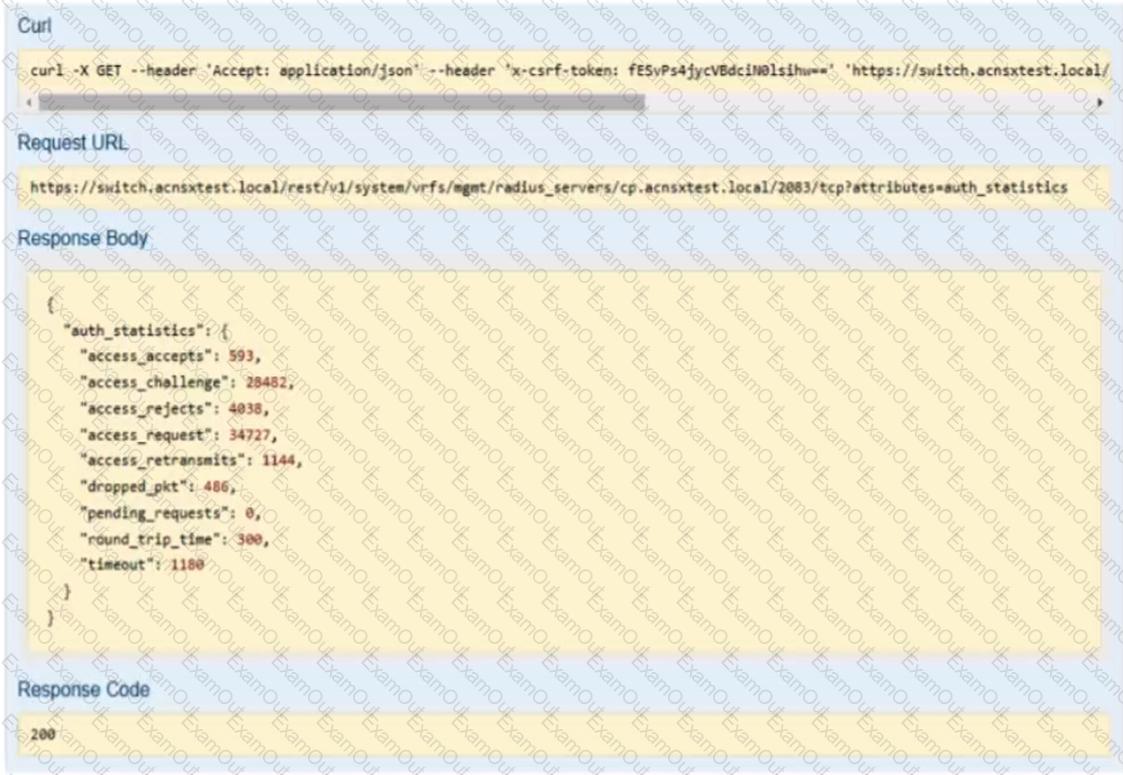

 This is because this URI specifies the exact attribute that contains the number of access rejects from the RADIUS server, which is the information that the NAE script needs to monitor and trigger an alert.

A. /rest/v1/system/vrfs/mgmt/radius/servers/cp.acnsxtest.local/2083/tcp?attributes=authstatistics. This is not the correct URI because it returns the entire authstatistics object, which contains more information than the access rejects, such as access accepts, challenges, timeouts, etc. This might make the NAE script more complex and inefficient to parse and process the data.

B. /rest/v1/system/vrfs/mgmt/radius/servers/cp.acnsxtest.local/2083/tcp?attributes=authstatistics?attributes=access_rejects. This is not a valid URI because it has two question marks, which is a syntax error. The question mark is used to indicate the start of the query string, which can have one or more parameters separated by ampersands. The correct way to specify multiple attributes is to use a comma-separated list after the question mark, such as ?attributes=attr1,attr2,attr3.

C. /rest/v1/system/vrfs/mgmt/radius/_servers/cp.acnsxtest.local/2083/tcp. This is not a valid URI because it has an extra underscore before servers, which is a typo. The correct resource name is servers, not _servers. Moreover, this URI does not specify any attributes, which means it will return the default attributes of the RADIUS server object, such as name, port, protocol, etc., but not the authstatistics or access_rejects.
