Which option correctly describes a WAN network?

A.

a group of computer resources that communicates between geographically separate location

B.

the connection between two separate buildings in the same campus

C.

a network of devices over long distances but limited to within a single ISP

D.

compute resources that are networked locally over wireless

Aruba Access Points tunnel traffic in a campus to the Mobility Controller using which protocol?

A.

Control and Provisioning of Wireless Access Points (CAPWAP)

B.

Generic Routing Encapsulation (GRE)

C.

Lightweight Access Point Protocol (LWAPP)

D.

Process Application Programming Interface (PAPI)

What are two mechanisms supported on AOS-CX 6300 switches used in Multi-active Detection to determine the status of the Primary member? (Choose two.)

A.

Management interface split detection

B.

Peer switch-based detection

C.

Loopback keepalives

D.

ARP-based

E.

BFD

What command will save your configuration on an Aruba AOS-CX switch so that your changes automatically load on next reboot?

A.

copy running-config checkpoint startup-config

B.

copy startup-config running-config

C.

copy running-config initial-checkpoint

D.

copy running-config default

What is an available command on an Aruba AOS-CX switch that would back up the secondary image to a secure remote repository?

A.

backup secondary sftp://admin@10.1.1.21/GL.10.04.0003.swi

B.

copy secondary sftp://admin@10.1.1.21/GL.10.04.0003.swi

C.

copy sftp://admin@10.1.1.21/GL.10.04.0003.swi secondary

D.

copy secondary tftp://admin@10.1.1.21/GL.10.04.0003.swi

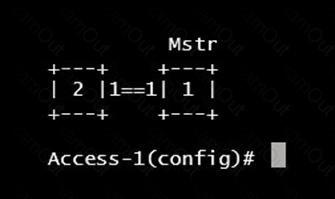

Refer to the exhibit.

What VSF command produces the above output?

A.

show vsf member

B.

show vsf link

C.

show vsf topology

D.

show vsf detail

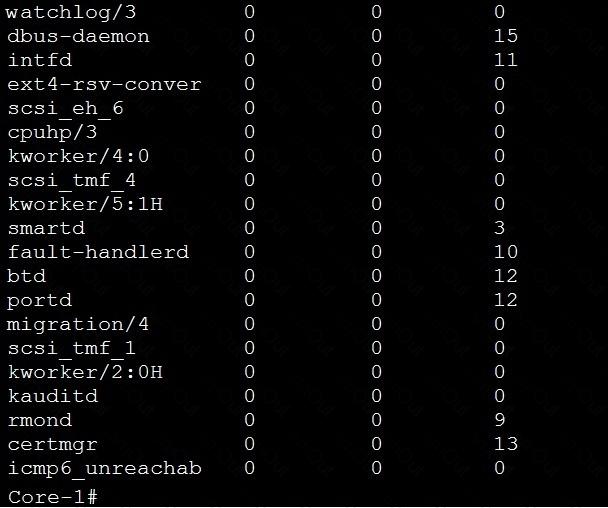

Refer to the exhibit.

The above output is the result of issuing the command show system resource-utilization. What command should be used to enable terminal output line by line or page by page?

A.

The command page

B.

The command terminal length 30

C.

The command more

D.

The command less

Refer to the exhibit.

All switches shown are CX 6300M. The links connecting SW3 to both SW1 and SW2 are broken. Multi-Active Detection has not been enabled. What are two results? (Select two.)

A.

A re-election will occur upon repairing the disabled links between SW2 and SW3. The switch with the highest priority will reclaim the Master role with the lowest bridge mac-address acting the tie-breaker

B.

The OSPF adjacency between the OSPF neighbor and the VSF stack switches SW2 and SW3 will remain up. Packets destined for SW3 that are received on SW2 are discarded.

C.

The stack will split with SW1 remaining an active VSF Master and SW3 becoming another active VSF Master. Switch 2 will remain a VSF member switch.

D.

Only the OSPF adjacency between SW3 and the OSPF neighbor will fail. All routed traffic will be redirected to SW2 instead.

E.

The stack will split resulting in SW1 remaining an active VSF Master and SW3 disabling all ports. SW2 will automatically take the VSF Standby role.

Which switches support Aruba Virtual Switching Extension (VSX)? (Choose two.)

A.

Aruba 6405

B.

Aruba 2930F

C.

Aruba 8400

D.

Aruba 5406R

E.

Aruba 8350

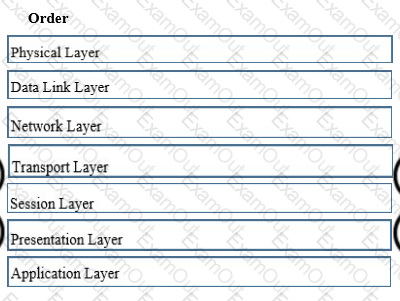

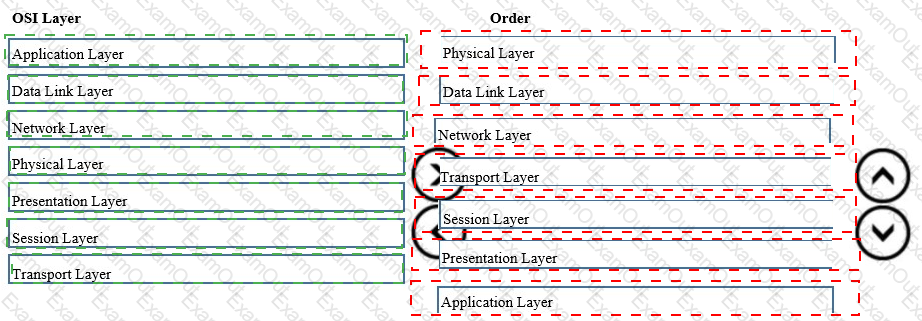

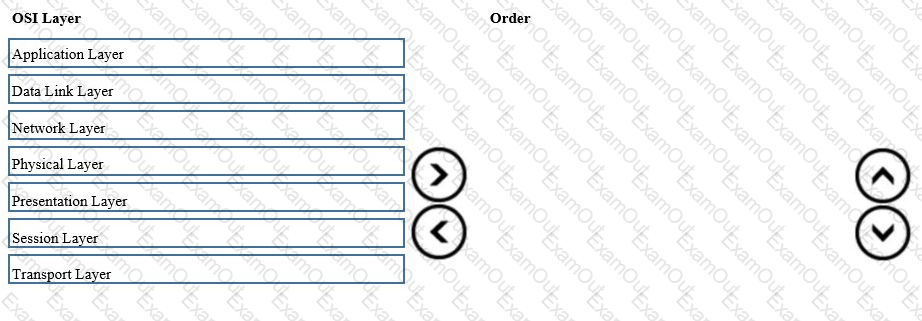

Place the OSI Layers in the correct order. Arrange them from least to greatest, starting with Layer 1 on the top, and progressing to Layer 7 on the bottom.
