You need to establish a baseline summary of an ArubaOS-CX switch resource utilization after enabling new NAE scripts. How should you define a baseline for switch resource consumption? (Select two.)

A.

show system cpu

B.

top memory

C.

show system memory

D.

top cpu

Which statement is true about NAE scripts'?

A.

The System Resource Monitor is the only script Installed on the system by default.

B.

The System Resource Monitor and Health Monitor a/e the only scripts installed on the system by default

C.

No script is installed on the system by default.

D.

The Health Monitor is the only script installed on the system by default.

What are two valid steps in a Proof of Concept plan? (Select two)

A.

Development of the items to Be tested

B.

Engineering a proposed solution

C.

Definition of success criteria

D.

Acceptance of the proposed solution

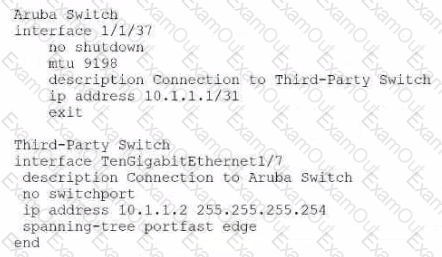

A customer wants to verify the proposed configuration snippets to create a point-to-point link between Aruba Switch and a third-party switch.

Will this configuration work with static routing?

A.

No, the configuration will not work, because the Aruba Switch has an MTU mismatch which will prevent IP communication.

B.

No. the configuration will not work, because the Aruba Switch does not have a locally reachable IP address from the third-party switch.

C.

No. the configuration will not work because the Aruba Switch does not have the "routing" command on it

D.

yes, the configuration should work fine and has no issues

A customer with an ArubaOS-CX 6300M switch is having a performance issue on the network and has received complaints about users experiencing intermittent connectivity. After performing troubleshooting it is determined that many of the local websites on the LAN that users are unable to reach are resolved to an invalid MAC address.

What are the minimum steps that should be performed to mitigate this condition? (Select two)

A.

Implement arp ACLs to define trusted MAC address to IP bindings

B.

Enable 'arp inspection' on the end-user physical ports

C.

Enable 'arp inspections on the end-user VLAN.

D.

Implement dhcpv4-snooping

E.

Enable 'arp inspection untrusted on the end-user physical pons

You are working with a customer whos has a paw of Aruba 8325 switches configured for Multi-Chassis Link Aggregation The customer is complaining that users are experiencing intermittent packet drops. Which action should be taken to quickly aid you in identifying the cause?

A.

Enable debug of vri with "console" set as the destination

B.

Setup a mirror session to generate a Tshark file.

C.

Setup a mirror session to niter packets for TCPDUMP analysis

D.

Check the configured VLANs using "show vsx config-consistency"

Which statements are true with regards to Strict Priority scheduling? (Select two.)

A.

Strict Priority scheduling protects against starvation of low priority queues.

B.

Under strict Priority, the port will never forward a packet in a tower priority queue if a higher priority queue includes even one packet.

C.

Strict Priority must be used with egress queue shaping to prevent starvation.

D.

Strict Priority works best when the network uses the higher priority queues for the majority of applications

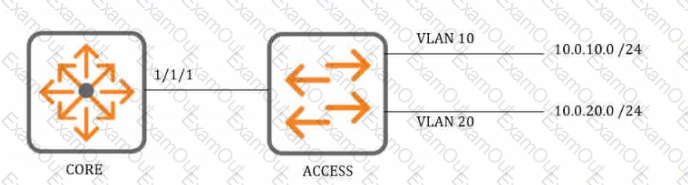

Refer to the exhibit.

• For all traffic within VLAN 10. a remark action or DSCP value EF must be set

• For all traffic exiting VLAN 10, a remark action of DSCP value AF41 must be set

Which is the correct configuration?

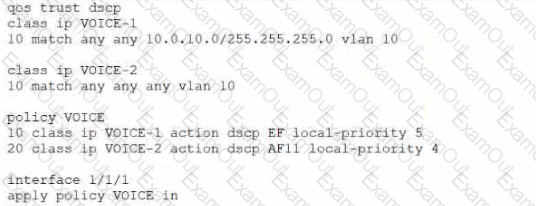

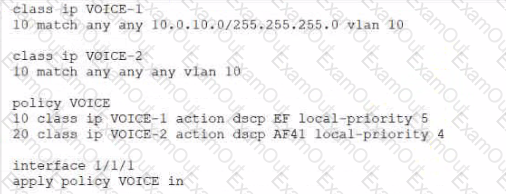

A)

B)

C)

D)

A.

Option A

B.

Option B

C.

Option C

D.

Option D

ArubaOS-CX 8325 VSX configuration has a Tailed ISL link between the switches with keepalive status established. While troubleshooting the condition, what is the expected behavior of the VSX traffic flow in the current condition?

A.

vsx tables are n sync

B.

VSX tables are out of sync

C.

VSX nodes Keep forwarding traffic over its interfaces

D.

VSX protection state is OK

E.

VSX peer is seen as down

A customer with an ArubaOS-CX 6300M switch is having a performance issue on the network and has received complaints about users experiencing intermittent connectivity. After performing troubleshooting it is determined that many of the local websites on the LAN that users are unable to reach are resolved to an invalid MAC address

What are the minimum steps that should be performed to mitigate this condition? (Select two.)

A.

implement dhcpv4-shooping.

B.

Implement ARP ACLs to define trusted MAC address to IP bindings

C.

Enable 'arp inspection’ on the end-user physical ports

D.

Enable 'arp inspection untrusted' on the end-user physical ports

E.

Enable 'arp inspection' on the end-user VLAN
