Free Practice Questions for Fortinet NSE6_OTS_AR-7.6 Exam

The correct answer is C. EtherCAT .

The study guide states that for industrial Ethernet protocols, “such as Ethernet/IP and Modbus/TCP, you can use VLANs to segment your physical LAN into multiple logical LANs.” This directly confirms that Ethernet/IP and Modbus/TCP support VLAN-based segmentation in the OT context.

By contrast, the guide explains that “EtherCAT skips layers 3 to 6 to deliver real-time communication” and describes it as an “Open-Software Modified-Ethernet” approach. Because it does not operate like the standard Ethernet/IP model used for normal VLAN-based segmentation, EtherCAT is the protocol identified here as not supporting VLANs in the way Ethernet/IP and Modbus/TCP do.

So, based on the study guide comparison, the verified answer is EtherCAT .

The correct answer is C. Industrial Control System (ICS) . The study guide states that “ICS is a main component of OT” and “consists of systems used for monitoring and controlling industrial processes.” It also explains that ICS includes various devices, systems, controls, and networks that manage industrial processes, and that the most common types are SCADA and distributed control systems (DCS) . This makes ICS the primary OT component for monitoring and controlling industrial processes.

The other options are related OT components, but they are not the best answer to this wording. SCADA collects real-time data and helps visualize and control the OT environment, but it is described as a system within the broader ICS structure. PLC devices collect and transmit real-time data and connect sensors and RTUs to SCADA, while IIoT refers to sensors, actuators, and other connected field devices. Therefore, the overarching main OT component for monitoring and controlling industrial processes is ICS .

According to the OT Security 7.6 Architect study guide regarding IEC 62443 Security Levels :

Security Level 4 (SL 4) Definition : This level provides "Protection against intentional violation using sophisticated means with extended resources, specific skills, and high motivation".

Real-World Application : The study guide specifically notes: "If you are facing a syndicate of cyber extortionists with extensive resources and capabilities, then you should strive for security level 4".

Comparison to other levels :

SL 1 : Protection against "casual or unintentional system violation".

SL 2 : Protection against "intentional violation using simple means with low resources".

SL 3 : Protection against "intentional violation using sophisticated means with moderate resources".

The correct answers are A and D . The study guide provides a direct use case called Attack Detection and Automated Alert . It states: “A downstream FortiGate detects an attack and sends logs to FortiAnalyzer. FortiAnalyzer parses the logs and notifies the root FortiGate. The root FortiGate triggers the action, which in this case, is a notification to the administrator.” The same slide also explicitly shows “Stitches configured on root FortiGate.” This confirms that to send the automated alert, you must configure the automation stitch on the root FortiGate .

The second required configuration is an event handler on FortiAnalyzer . The guide explains that “Event handlers generate events” and that “FortiAnalyzer uses event handlers to filter all incoming logs. If logs match the conditions configured in an event handler, FortiAnalyzer generates an event.” Since FortiAnalyzer must detect the attack from the received logs before notifying the root FortiGate, an event handler is required on FortiAnalyzer.

Option B is incorrect because the study guide does not identify a LOCALHOST task as the required configuration for this attack-alert flow. Option C is also incorrect because the question asks what must be configured to enable the automated alert workflow . An IPS profile may detect some attacks, but the required automation path in the study guide is specifically event handler on FortiAnalyzer + stitch on the root FortiGate .

The correct answers are A and B .

Option B is correct because the study guide states that “When a handler generates an event with the automation stitch option enabled, FortiAnalyzer sends a notification” to FortiGate. If Automation Stitch is not enabled in the FortiAnalyzer event handler, that handler will not be usable for the FortiGate automation-stitch workflow. The guide also explains that the configuration of each event handler can include “Automation stitches” and “Rules,” showing that this is a required part of the FortiAnalyzer-to-FortiGate automation path.

Option A is also correct. The study guide explains the automation flow in the Security Fabric: “FortiAnalyzer parses the logs and notifies the root FortiGate” and then “The root FortiGate triggers the action.” That means FortiGate must have the FortiAnalyzer connection configured through the Security Fabric side before it can consume FortiAnalyzer event handlers. The warning in the exhibit about configuring a FortiAnalyzer connection also points directly to that requirement.

Option C is incorrect because + Create is not the reason the existing event handler is missing; it is only an interface control. Option D is not the best answer for this item because the question is about why the event handler name list on FortiGate is empty for FortiAnalyzer-triggered automation. The study guide’s verified requirements for that workflow are the FortiAnalyzer-to-FortiGate Fabric connection and enabling Automation Stitch on the FortiAnalyzer event handler.

The correct answers are B. Real-time control and D. Determinism . The study guide defines industrial Ethernet as the “use of Ethernet and TCP/IP as transport mechanisms for industrial protocols” and states that it provides “real-time control,” “low latency,” and “determinism (meaning reliable and predictable data delivery)” in harsh environments. It further explains that industrial Ethernet “provides deterministic communication between machine controllers, actuators, sensors, and other units.” These statements directly confirm that the two key advantages are real-time control and determinism.

The other options are not supported by the study guide as core advantages of industrial Ethernet. Encryption is not listed as one of the benefits in this section, and remote access is discussed elsewhere in the OT architecture but not as a defining advantage of industrial Ethernet itself. The guide is explicit that the main benefits here are predictable delivery and real-time communication, which are essential in industrial control environments where timing and reliability matter.

According to the OT Security 7.6 Architect study guide regarding the Purdue Model :

Asset Location : The study guide states that "All critical physical assets are located on the plant floor and equipped with IIoT sensors."

Level Classification : The "plant floor" is further defined as the "control area zone," which consists of Levels 0, 1, and 2 .

Hierarchy : The "Operations & Control" zone is identified as Level 3 and Level 3.5 .

Direct Answer : In the "Introduction" lesson's Knowledge Check , the specific question "In the Purdue model, at which level are IIoTs placed?" is provided with the verified answer: Below Level 3.5 .

Based on the OT Security 7.6 Architect study guide regarding the Asset Identity Center and Asset Management :

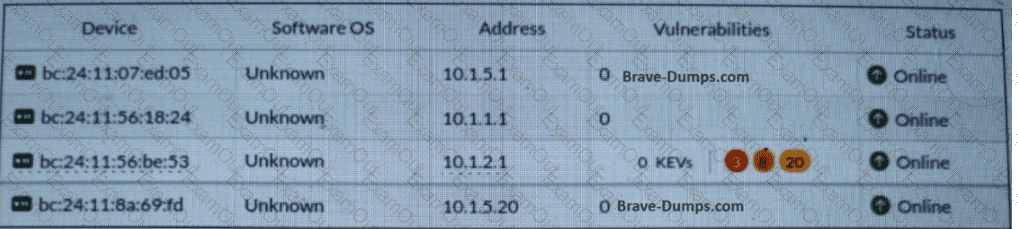

Vulnerability Visibility : The Asset Identity List tab displays key metadata for IT and OT devices, including detected addresses, users, and a specific column for Vulnerabilities .

Virtual Patching Feature : In the OT Security 7.6 architecture, the "Vulnerabilities" column is populated through the OT Security Service license, which includes " OT vulnerability correlation definitions & virtual patching signatures ".

Correlation Mechanism : FortiGate extracts metadata from OT traffic and uses these signatures to identify known vulnerabilities on the assets. For these vulnerabilities to be identified and correlated in the Asset Identity Center as shown in the exhibit (displaying a count of 8 vulnerabilities), the Virtual Patching feature must be active.

Architectural Implementation : Virtual patching is a critical component of the "Protection" layer in OT networks, allowing administrators to secure legacy or unpatchable PLCs and RTUs by blocking exploit attempts at the network level using IPS-based virtual patching signatures.

Exhibit Analysis : The presence of identified vulnerabilities (the number "8" in the red shield) in the Asset Identity List confirms that the FortiGate is actively performing vulnerability correlation, which is the operational result of having a Virtual Patching security profile applied to the relevant firewall policy.

Based on the exhibit and the OT Security 7.6 Architect standards for Secure Remote Access :

Secure Tunneling (Statement A) : The exhibit shows a Remote PC connecting through a VPN Cloud to the Edge-FortiGate . In the Fortinet architecture, IPsec VPN is the primary method for establishing a secure, encrypted tunnel for remote administrators or supervisors to access the internal OT segments (Level 2/3) from an external location.

Multi-Factor Authentication (Statement B) : Secure remote access in OT environments (aligned with IEC 62443 standards) requires strong authentication. The study guide emphasizes the use of FortiToken to provide Two-Factor Authentication (2FA) for VPN users, ensuring that compromised credentials alone are not enough to gain access to critical infrastructure.

FSSO (Statement D) : Fortinet Single Sign-On is generally used for identifying internal users already on the network to apply identity-based policies; it is not the primary mechanism for establishing the remote connection itself.

SD-WAN (Statement C) : While SD-WAN can manage the path of the VPN traffic, it is a WAN optimization and reliability feature, not a "secure remote access" feature for a supervisor in the context of authentication and encryption.
