Free Practice Questions for Fortinet NSE6_FMG_AD-7.6 Exam

Adding and managing FortiAnalyzer from FortiManager is recommended for handling a high volume of logs, as FortiAnalyzer is designed specifically for centralized log management, analysis, and reporting, which offloads this workload from FortiManager.

The correct answer is C. The FortiManager 7.6 Administrator Study Guide gives the exact extract: “If you need to move a device from one ADOM to another, run the Import Configuration wizard to import the policy package into the new ADOM.” It also states: “When you move devices from one ADOM to another ADOM, shared policy packages and objects do not move to the new ADOM. You will need to import policy packages from managed devices.”

That is exactly why the administrator cannot see the policy and object configuration after the move: the device itself moved, but its shared policy package and objects did not automatically move with it. The required corrective action is to manually import the policy package into the new ADOM using Import Configuration. Options A, B, and D are not the documented remedy in the uploaded FortiManager sources.

=========

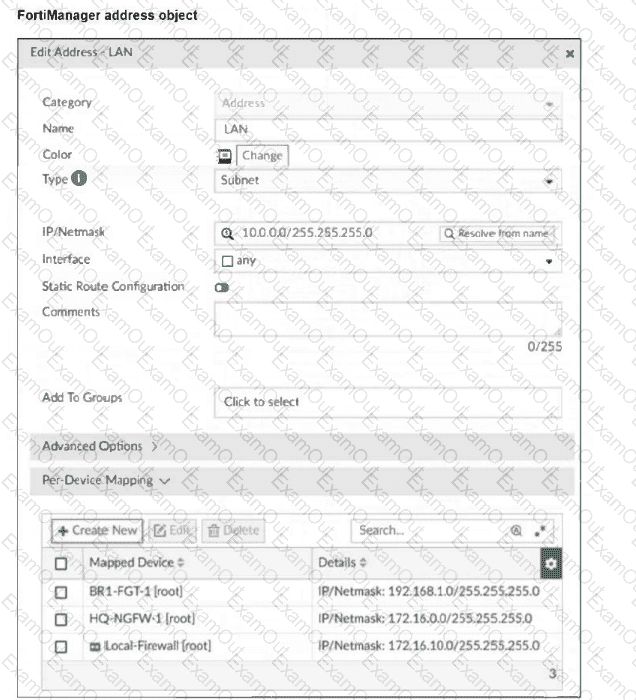

The correct answer is B. The LAN address object shown in the exhibit has a default value of 10.0.0.0/255.255.255.0, and it has per-device mappings only for BR1-FGT-1, HQ-NGFW-1, and Local-Firewall. There is no per-device mapping entry for Remote-Firewall.

The FortiManager 7.6 Administrator Study Guide gives the exact rule for this behavior: “The devices in the ADOM that do not have a dynamic mapping for LAN have a default value”. The same page also explains that dynamic objects let you map one logical object to unique values per device, but devices without a mapping use the object’s default definition.

Since Remote-Firewall is not listed in the Per-Device Mapping table, it inherits the default LAN value: 10.0.0.0/255.255.255.0.

=========

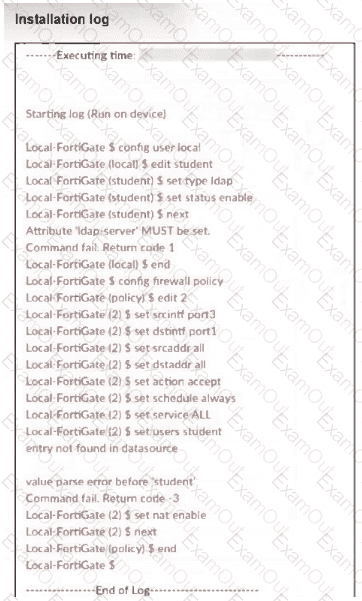

The correct answer is D. The lab guide explains that when an installation fails, the installation log shows the commands that the managed device received and accepted, as well as the commands that the managed device did not accept.

From the exhibit, FortiGate accepted the policy creation commands for policy ID 2 such as set srcintf port3, set dstintf port1, set srcaddr all, set dstaddr all, set action accept, and set schedule always. However, the line set users student failed with “entry not found in datasource” and “value parse error before ' student ' ”. That shows the user reference was not accepted, while the rest of the policy commands were processed. Therefore, policy ID 2 is still created, but without the remote user student. This rules out A, B, and C.

=========

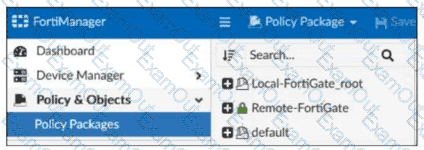

The exhibit shows Remote-FortiGate with a green closed lock icon, which indicates a locked policy package. The FortiManager 7.6 Administrator Study Guide states: “Policy locking is available in workspace normal and per-ADOM modes” and “Policy locking allows administrators to work on and lock a single policy package instead of locking the whole ADOM.” This confirms that a package such as Local-FortiGate_root can also be locked, so A is correct.

B is incorrect because the study guide and lab guide describe snapshots as ADOM revisions, not policy package snapshots: “An ADOM revision creates a snapshot of the policy and object configuration for the ADOM.”

D is incorrect because in workflow mode, sessions and approval are required before installation. The exhibit shows a normal save/lock state, not a workflow session state.

=========

FortiManager must have the NAT device ' s IP address and correct ports configured to communicate properly with the FortiGate behind NAT.

The NAT device must have the correct virtual IP address and ports configured to allow push updates to reach the FortiGate device.

Activating workspace mode in the ADOM settings allows multiple administrators to work concurrently in the same ADOM by isolating their configuration changes in separate workspaces, preventing conflicts and enabling effective collaboration.

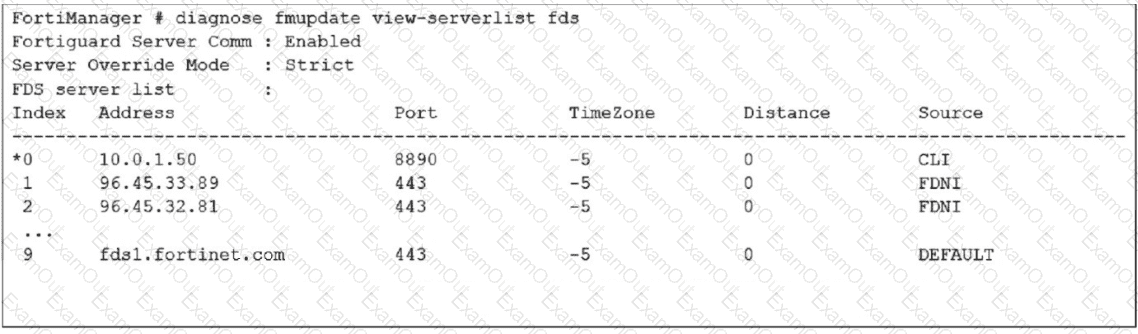

The exhibit shows diagnose fmupdate view-serverlist fds with Server Override Mode: Strict and the active entry marked with *0 as 10.0.1.50 on port 8890, with source CLI. In FortiManager, Strict override mode means the system can communicate only with the configured override server list and cannot fall back to public FDS servers. Therefore, FortiManager gets antivirus and IPS updates from 10.0.1.50, making B correct.

The study guide also explains that antivirus and IPS override addresses are specifically used when a downstream FortiManager must download updates from an upstream FortiManager or another designated server.

So even though FDNI and DEFAULT entries are listed, Strict mode prevents fallback, and only the CLI-defined override server is actually used.

=========

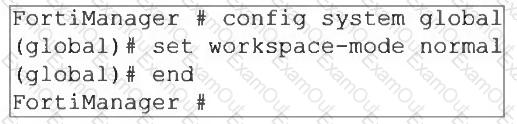

The command set workspace-mode normal enables Workspace (ALL ADOMs). The study guide states that in this mode “All ADOMs can be locked” and workspace mode lets administrators lock ADOMs, devices, policy packages, and objects. The lab guide then gives the exact behavior for ungraceful session closure: “If a session is not closed gracefully … FortiManager does not close the administrator session until it times out or the session is deleted. Until this time, the ADOM remains in a locked state.” That directly proves A.

C is also verified by the lab guide statement: “If an administrator locked one or more ADOMs, and then logs out of FortiManager, all of those ADOMs are unlocked.” The phrase “one or more ADOMs” confirms the same administrator can lock multiple ADOMs at once.

D is a workflow mode approval concept, not workspace normal.
