A FortiLink interface must be enabled on FortiGate (A): To manage a FortiSwitch stack, a dedicated FortiLink interface on the FortiGate is required. This interface is used to manage the communication between FortiGate and the FortiSwitch stack, enabling centralized control and configuration of the switches directly from the FortiGate.

The switch controller feature must be enabled on FortiGate (B): Enabling the switch controller feature on FortiGate allows it to manage connected FortiSwitch units. This feature provides tools and interfaces on the FortiGate for overseeing FortiSwitch configurations, monitoring switch status, and managing network policies across the stack.

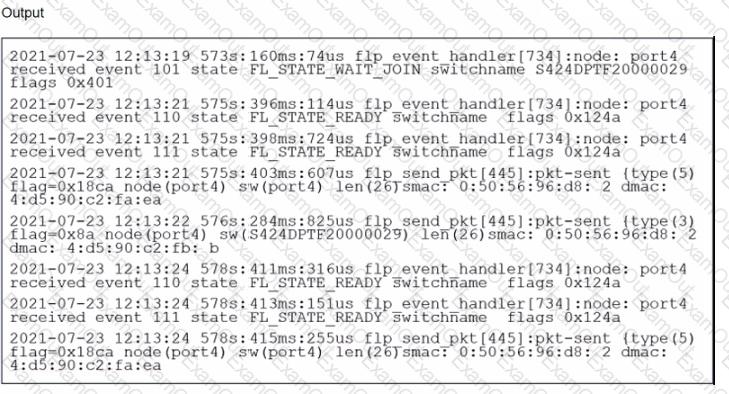

The provided debug output indicates that the FortiSwitch is sending FortiLink heartbeats to the FortiGate and is currently waiting to join the stack group. Here ' s a breakdown of the relevant lines:

Line 1:Shows the date, time, elapsed time since boot, and process ID for the FortiLink event handler.

573s:160ms: 74ustranslates to roughly 573 seconds, 160 milliseconds, and 74 microseconds since uptime.

Event 101:This indicates the FortiSwitch is in a " wait join " state (FL_STATE_WAIT_JOIN). This means it ' s discovered by the FortiGate and is awaiting further instructions to join the FortiLink stack group.

switchname S424DPTF20000029:This displays the serial number of the FortiSwitch.

flags 0x401:The specific flag meaning might depend on the FortiSwitch model and version, but it likely indicates general communication between the switch and FortiGate.

Lines 2 and onward:These lines show subsequent events with similar timestamps, suggesting a regular heartbeat interval. There are also instances of the FortiSwitch sending packets to the FortiGate (indicated bypkt-sent).

Why the Other Options Are Less Likely:

C. FortiSwitch is discovered and authorized by FortiGate.While discovery might have happened before these lines, the " wait join " state suggests authorization hasn ' t necessarily completed yet.

D. FortiSwitch is ready to push its new hostname to FortiGate.There ' s no explicit indication of hostname changes in this excerpt.The focus is on joining the stack group.

In Summary:

The key point is the " FL_STATE_WAIT_JOIN " state, which signifies the FortiSwitch is ready to be fully integrated but is waiting for further commands from the FortiGate to complete the process.

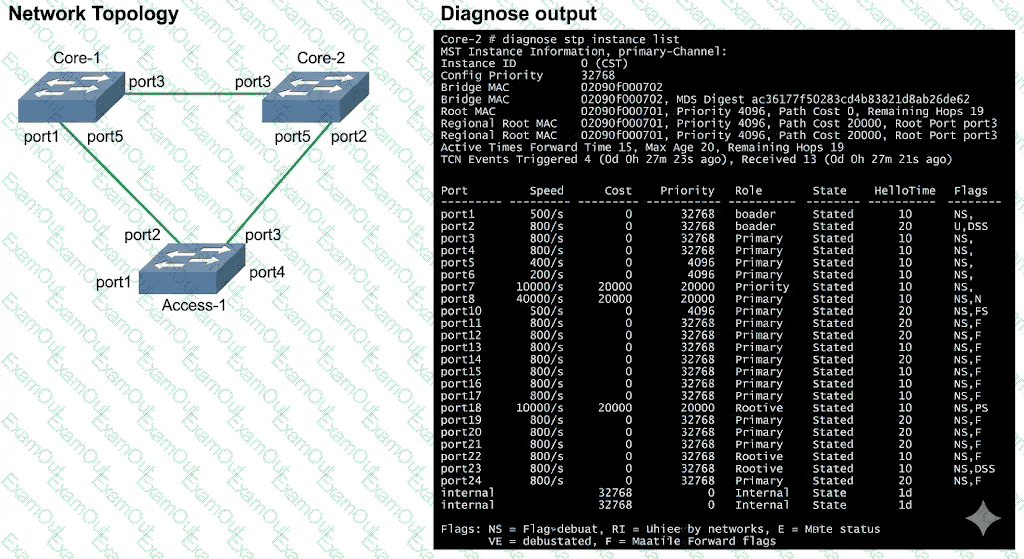

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the output of the diagnose stp instance list command provides critical information about the Spanning Tree Protocol (STP) state of a switch within a given instance. In the provided exhibit, the output forInstance ID 0 (CST)onCore-2shows several key indicators of its role and connectivity within the STP topology.

First, the output explicitly identifies aRootbridge with MAC address 02090f000701 and a priority of 4096. Core-2 itself has a MAC address of 02090f000702 and a priority of 32768. Because Core-2 knows the MAC address and priority of the Root bridge, it must have received this information viaBridge Protocol Data Units (BPDUs). Furthermore, the port table shows thatport3on Core-2 has been assigned the role ofROOTand is in theFORWARDINGstate. In STP/RSTP, a Root Port is the port on a non-root switch that has the lowest path cost to the root bridge. To elect a Root Port and maintain its state, the switch must continuously receive BPDUs from the root bridge (or a bridge closer to the root) on that port.

Option B is incorrect because Core-2 has aRoot Port, which is only present on non-root bridges. Option C is incorrect because ports 1, 2, 4, 5, and the internal port are all in theFORWARDINGstate. Option D is incorrect as the output does not show any ports in anALTERNATErole; all active ports are either ROOT or DESIGNATED. Therefore, the most accurate conclusion is that Core-2 has successfully received BPDUs to identify the root and determine its own port roles.

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the auto-network setting (configured via config switch auto-network) is a global feature introduced to simplify the initial deployment of switches. Starting inFortiSwitchOS 7.6.0and continuing through7.6, this feature isenabled by defaulton all new and factory-reset units.1

The primary function of theauto-networksetting is to facilitate theautomatic discovery of the FortiGate and the establishment of the FortiLink interface (Option B). When enabled, the switch automatically scans its physical ports to detect a management entity, such as a FortiGate controller. This " zero-touch " discovery mechanism allows the switch to identify the correct uplink ports and automatically configure them as members of theFortiLinkfabric without manual CLI or GUI intervention.

Furthermore, the documentation notes that auto-network also managesauto-topology, which allows two switches to automatically form anInter-Switch Link (ISL)trunk between them.2This includes setting the management VLAN (typically VLAN 4094) and ensuring that DHCP snooping is trusted on these discovered links.3If an administrator intends to use the switch in a strictly standalone mode without any auto-discovery or FortiLink features, the documentation specifies that they must manually disable the auto-network status and the auto-fortilink-discovery global settings to prevent the switch from attempting to join a managed fabric.4

Regarding other options:Option Arefers to Dynamic Port Policy or NAC features.Option Cis a standard STP configuration unrelated to the auto-network discovery suite.Option Dis a broader management capability that depends on successful network discovery but is not the specific control point for the auto-network setting.

The ' by VLAN redirect MAC address quarantine ' mode and the ' by redirect MAC address quarantine ' mode on FortiGate share specific similarities:

Quarantine VLAN Assignment (A):

Common Feature:Both modes utilize a designated quarantine VLAN to isolate quarantined devices. This helps in mitigating the risk of spreading potential security threats within the network.

Operational Impact:Moving devices to a specific quarantine VLAN restricts their network access, effectively isolating them until further action or remediation is taken.

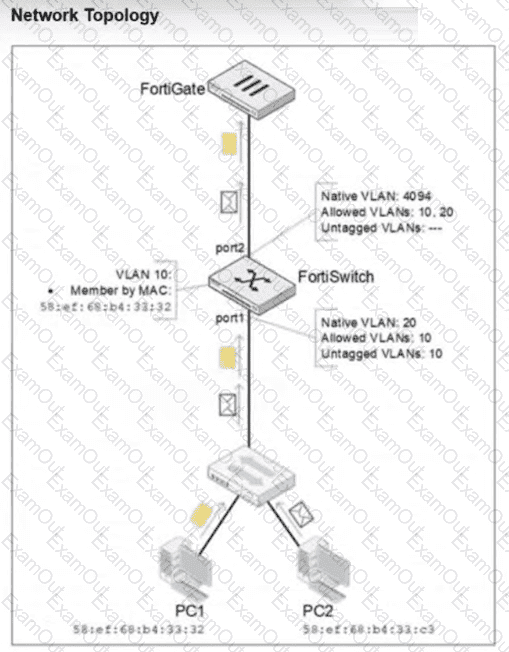

According to theFortiSwitchOS 7.6 Administration Guideand theFortiSwitch 7.6 Study Guide, the classification of untagged traffic entering a switch port is determined by the port ' s hierarchy of VLAN assignment rules.

For the traffic arriving atport1:

PC1 (MAC 58:ef:68:b4:33:32):The exhibit shows an explicitMAC-based VLAN assignmentrule for this specific MAC address, placing it intoVLAN 10. In FortiSwitchOS, dynamic assignments like MAC-based or protocol-based rules take precedence over the port ' s static native VLAN. Therefore, PC1 ' s traffic is internally associated with VLAN 10.

PC2 (MAC 58:ef:68:b4:33:c3):There is no MAC-based rule for this device. As a result, the switch falls back to the default behavior and assigns the traffic to the port ' sNative VLAN, which isVLAN 20.

For the traffic exiting port2:

The egress behavior depends on the VLAN tagging configuration of the outgoing interface. On port2, the Native VLAN is 4094, and VLANs 10 and 20 are listed as Allowed VLANs. According to Fortinet documentation, any traffic belonging to an allowed VLAN that does not match the native VLAN ID of the egress port must be sent as tagged 802.1Q frames. Since neither VLAN 10 nor VLAN 20 matches the native ID of 4094, the FortiSwitch will apply a VLAN 10 tag to PC1 ' s traffic and a VLAN 20 tag to PC2 ' s traffic as they are forwarded to the FortiGate.

According to theFortiSwitchOS 7.6 Administration Guideand theNSE 5 FortiSwitch 7.6 Administrator Study Guide, Access Control Lists (ACLs) are used to perform multiple actions on matching traffic as it passes through the switch pipeline. The documentation explicitly categorizes these valid actions into three distinct functional groups:Traffic processing,QoS (Quality of Service), andVLANmodifications.

Traffic Processing (Option C):This is a primary category of ACL actions. It includes operations that dictate how a frame is physically handled or monitored. Valid specific actions under this category includedrop(discarding the packet),count(incrementing a packet counter for statistics),redirect(sending the packet to a specific interface or CPU queue), andmirror(copying the traffic to a monitor port).

QoS (Option E):The QoS category allows the switch to manage traffic prioritization and bandwidth. ACLs can be configured toset the egress queue(assigning a frame to one of the eight priority queues),remark CoS (Class of Service)orDSCP (Differentiated Services Code Point)values in the frame header, and applypolicersfor rate limiting.

VLAN / Set outer VLAN tags (Option D):Under the VLAN category, the most notable action is the ability toset outer VLAN tagson frames. This is particularly useful in scenarios involving Q-in-Q tunneling or service provider environments where a secondary tag is required for transport across a managed fabric.

It is important to note thatAssign the VLAN ID (Option A)is typically a function ofNAC (Network Access Control)orDynamic VLAN Assignmentrather than a standard ACL action; within an ACL context, vlan-id is primarily used as aclassifier(to match traffic) rather than an action.Quarantine devices (Option B)is a high-level security response triggered by the FortiGate NAC engine and is not a direct action available within the FortiSwitch ACL configuration menu.

In FortiSwitch, Access Control Lists (ACLs) are used to enforce security rules on both ingress and egress traffic:

ACL Evaluation Order (D):

Operational Function:FortiSwitch processes ACL entries from top to bottom, similar to how firewall rules are processed. The first match in the ACL determines the action taken on the packet, whether to allow or deny it, making the order of rules critical.

Configuration Advice:Careful planning of the order of ACL rules is necessary to ensure that more specific rules precede more general ones to avoid unintentional access or blocks.

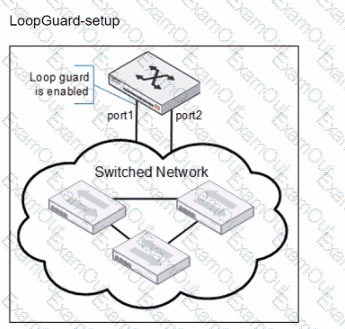

When loop guard is enabled on port1 and port2 configured with the same native VLAN (VLAN 10), there are specific scenarios under which port1 can be shut down due to loop guard operation:

A.port1 was shut down by loop guard protection.Loop guard is a specific feature used in network environments to prevent alternative or redundant loops. When loop guard is active, it can shut down a port if it stops receiving BPDU (Bridge Protocol Data Units) on a port that is expected to receive them, assuming a loop or link failure and putting the port into an inconsistent state to prevent potential loops.

B.STP triggered a loop and applied loop guard protection on port1.If the Spanning Tree Protocol (STP) detects a loop or loss of BPDU transmissions while loop guard is enabled, it will proactively shut down the port to prevent network instability or a broadcast storm. This is an essential function of loop guard within the context of STP, providing additional protection against topology changes that could introduce loops.

Pag 232, FortiSwitch_7.6_Study_Guide-Online " However, if you want to authenticate each device behind a port, and optionally, grant each device a different access level based on the credentials provided, then MAC-based is required. "

According to theFortiSwitchOS 7.6 Administration Guideand theFortiLink Guide (FortiOS 7.6), FortiSwitch supports two primary modes for 802.1X authentication:port-basedandMAC-based.

In802.1X port-based authentication, once a single supplicant (user or device) successfully authenticates, the physical port is transitioned to an " authorized " state, allowing all traffic from any device connected to that port (e.g., through a hub or unmanaged switch) to pass through. This is summarized by Option D, which is incorrect for MAC-based mode.

In contrast,802.1X MAC-based authentication(Option B) treats each device ' s MAC address as a distinct session. The switch maintains a table of authenticated MAC addresses for each port and applies security policies to each one individually. This granular approach allows the FortiSwitch to grantdifferent access levelsto different devices on the same physical port. For example, a laptop might be assigned to a corporate VLAN with a specific Dynamic Access Control List (DACL), while an IP phone on the same port is assigned to a Voice VLAN.

Furthermore, FortiSwitchOS 7.6 documentation specifies that MAC-based mode can support up to20 devices per port. Each device must provide its own credentials (or be validated via MAC Authentication Bypass), enabling the switch to enforce specific security attributes—such as VLAN IDs, QoS marking, and ingress ACLs—tailored to each uniquely identified device. While the switch typically communicates with aRADIUS server(Option C) for these credentials, MAC-based mode ' s primary functional advantage is this individual session management and authorization flexibility.
