Free Practice Questions for Fortinet NSE5_FSM-6.3 Exam

 Rules Engine in FortiSIEM: The rules engine evaluates incoming events based on defined conditions to detect incidents and anomalies.

 Aggregation Condition: The aggregation condition instructs FortiSIEM to summarize and count the matching evaluated data.

Function: Aggregation is used to group events based on specified criteria and then perform operations such as counting the number of occurrences within a defined time window.

 Purpose: This allows for the detection of patterns and anomalies, such as a high number of failed login attempts within a short period.

 References: FortiSIEM 6.3 User Guide, Rules Engine section, which explains how aggregation is used to summarize and count matching data.

 Process Monitoring in FortiSIEM: FortiSIEM can monitor critical processes on managed devices, such as an SMTP process on a Linux server.

 Event Generation: When a critical process stops, FortiSIEM generates an event to alert administrators.

 Event Types: Specific event types correspond to different monitored conditions. For a stopped process, the event typePH_DEV_MON_PROC_STOPis used.

 Reasoning: The namePH_DEV_MON_PROC_STOP(Device Monitoring Process Stop) is a generic event type used by FortiSIEM to indicate that any monitored process, including SMTP, has stopped.

 References: FortiSIEM 6.3 User Guide, Event Types section, explains the predefined event types and their usage in different monitoring scenarios.

 Syslog Configuration in FortiSIEM: For FortiSIEM to receive syslog messages from network devices, those devices need to be properly configured to send syslog data to FortiSIEM.

 Manual Configuration Requirement: FortiSIEM does not automatically configure network devices to send syslog messages. Instead, this configuration must be performed manually by the network administrator.

 Process Overview: The network administrator must access each device and set up the syslog parameters to direct log data to the FortiSIEM collector's IP address.

 Discovery Process: While FortiSIEM can discover network devices using SNMP, WMI, and other protocols, the configuration of syslog on these devices is beyond its scope and requires manual intervention.

 References: FortiSIEM 6.3 User Guide, Device Configuration and Syslog Integration sections, which explain the requirements and steps for setting up syslog forwarding on network devices.

 Syslog Ports: Syslog messages can be sent over different ports using TCP or UDP protocols.

 Common Ports for Syslog:

UDP 514: This is the default port for sending syslog messages over UDP.

TCP 514: This is the default port for sending syslog messages over TCP, providing a more reliable transmission.

TCP 1470: This port is often used for secure or alternative syslog transmission.

 Usage in FortiSIEM: FortiSIEM can be configured to receive syslog messages on these ports to ensure the logs are collected from various network devices.

 References: FortiSIEM 6.3 User Guide, Syslog Integration section, which details the supported ports for syslog transmission.

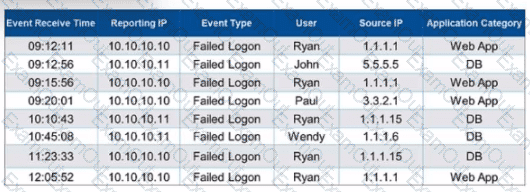

 Grouping Events in FortiSIEM: Grouping events by specific attributes allows administrators to aggregate and analyze data more efficiently.

 Grouping Criteria: In this case, the events are grouped by "Event Type" and "User" attributes.

 Unique Combinations: To determine the number of results displayed, identify the unique combinations of the "Event Type" and "User" attributes in the provided data.

Failed Logon by Ryan(appears multiple times but is one unique combination)

Failed Logon by John

Failed Logon by Paul

Failed Logon by Wendy

 Unique Groupings: There are four unique groupings based on the given data: "Failed Logon" by "Ryan", "John", "Paul", and "Wendy".

 References: FortiSIEM 6.3 User Guide, Event Management and Reporting sections, which explain how events are grouped and reported based on selected attributes.

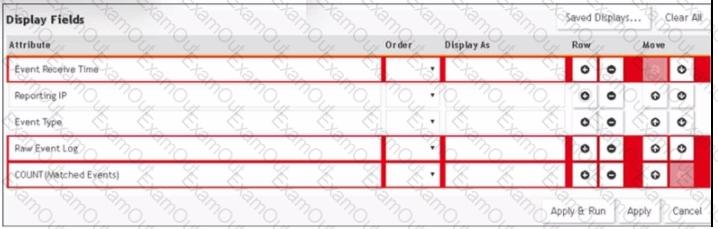

 Grouping Attributes in Reports: When creating reports in FortiSIEM, certain attributes can be grouped to summarize and organize the data.

 Unique Attributes: Attributes that are unique for each event cannot be grouped because they do not provide a meaningful aggregation or summary.

 Red Highlighting Explanation: The red highlighting in the exhibit indicates attributes that cannot be grouped together due to their unique nature. These unique attributes includeEvent Receive Time,Reporting IP,Event Type,Raw Event Log, andCOUNT(Matched Events).

 Attribute Characteristics:

Event Receive Timeis unique for each event.

Reporting IPandEvent Typecan vary greatly, making grouping them impractical in this context.

Raw Event Logrepresents the unprocessed log data, which is also unique.

COUNT(Matched Events)is a calculated field, not suitable for grouping.

 References: FortiSIEM 6.3 User Guide, Reporting section, explains the constraints on grouping attributes in reports.

 Rule Evaluation in FortiSIEM: Rules in FortiSIEM are evaluated periodically to check if the defined conditions or subpatterns are met.

 Frequency Field: The Frequency field in a rule determines the interval at which the rule's subpattern will be evaluated.

Evaluation Interval: This defines how often the system will check the incoming events against the rule's subpattern to determine if an incident should be triggered.

Impact on Performance: Setting an appropriate frequency is crucial to balance between timely detection of incidents and system performance.

 Examples:

If the Frequency is set to 5 minutes, the rule will evaluate the subpattern every 5 minutes.

This means that every 5 minutes, the system will check if the conditions defined in the subpattern are met by the incoming events.

 References: FortiSIEM 6.3 User Guide, Rules and Incidents section, which explains the Frequency field and how it impacts the evaluation of subpatterns in rules.
