Free Practice Questions for Fortinet FCSS_SDW_AR-7.4 Exam

For a large-scale SD-WAN deployment (such as 1000 spokes) where ADVPN shortcut routing is required and some remote sites connect via FortiSASE, the recommended overlay routing configuration is BGP running on loopback interfaces, combined with dynamic BGP for ADVPN shortcut routing. This design leverages the scalability and resilience of BGP, allowing dynamic discovery and route exchange necessary for shortcut tunnels between spokes in ADVPN environments. Using loopback interfaces for BGP peering is considered best practice because it decouples routing protocol stability from physical link status, ensuring that if a physical underlay interface fails, the BGP session remains up as long as there’s an alternate path. With dynamic BGP, each spoke can efficiently learn the routes to other spokes and dynamically establish shortcuts, which is critical at this scale. This method also integrates smoothly with FortiSASE for remote connectivity to the SD-WAN hub, providing flexibility and centralized management.

For SD-WAN deployments that span multiple regions—where most traffic is intra-region and there is no requirement for inter-region ADVPN—the best practice is to use IBGP with BGP on loopback interfaces for routing within each region and EBGP between the regions. This approach ensures robust and scalable routing, isolates regional routing domains, and enables policy control at region boundaries. BGP on loopback is preferred for its reliability and flexibility, as it enables peering that is not tied to specific physical interfaces. EBGP between regions allows each region to maintain independent routing policies and summarization, optimizing performance and manageability. By separating IBGP (intra-region) and EBGP (inter-region), you create a modular architecture that scales easily and simplifies fault isolation and troubleshooting.

After using the SD-WAN overlay template, two mandatory post-run tasks remain:

"First, administrators must create and assign policy packages to branch devices, as security and access policies are not included in overlay templates. Second, SD-WAN rules must be configured so that traffic can be matched and steered appropriately through the established overlays. Neglecting either task results in ungoverned traffic or inefficient routing, undermining the benefits of SD-WAN."

Templates automate topology, but policy and rule definition are critical for operational effectiveness.

Application-based SD-WAN rules enable intelligent traffic steering. The guide specifies:

"If a flow is identified as belonging to a defined application category (such as social media), FortiGate will match it to the corresponding service rule (rule 2) and route it through the specified interface, such as port2. However, if the application is not recognized during the session setup, the system defaults to load balancing the traffic using the available tunnels according to the policy for unclassified traffic, ensuring continuous connectivity while waiting for application classification."

This guarantees both performance and resilience.

When you enable SD-WAN and add interfaces as SD-WAN members, those interfaces are no longer referenced directly in routing. You must replace routing configuration references (e.g., static routes, policy routes) with the SD-WAN zone. Firewall policies, however, can still point to the SD-WAN zone without requiring replacement of individual member interfaces.

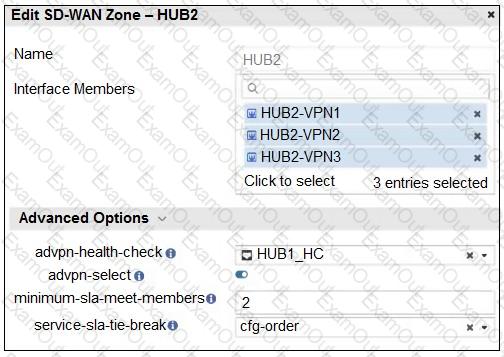

This is because the setting minimum-sla-meet-members = 2 requires at least two SD-WAN zone members (in this case, HUB2-VPN1, HUB2-VPN2, and HUB2-VPN3) to pass the defined SLA health check (HUB1_HC) before the FortiGate will establish ADVPN shortcuts. If fewer than two members meet the SLA, shortcuts will not be created.
