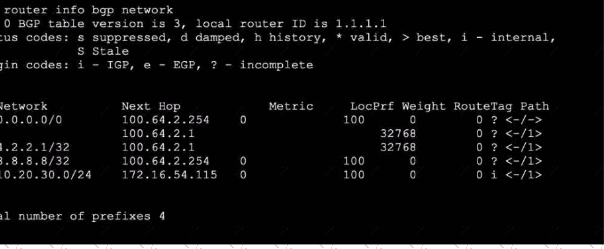

Refer to the exhibit, which shows the output o! the BGP database.

Which two statements are correct? (Choose two.)

A.

The advertised prefix of 10.20.30.0'24 was configured using the network command.

B.

The first four prefixes are being advertised using a legacy route advertisement.

C.

The advertised prefix of 10.20.30.0'24 is being advertised through the redistribution of another routing protocol.

D.

The output shows all prefixes advertised by all neighbors as well as the local router.

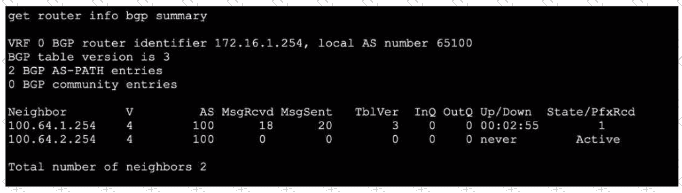

Refer to the exhibit, which shows the output of get router info bgp summary.

Which two statements are true? (Choose two.)

A.

The local ForliGate has received one prefix from BGP neighbor 100.64.1.254.

B.

The TCP connection with BGP neighbor 100.64.2.254 was successful.

C.

The local FortiGate has received 18 packets from a BGP neighbor.

D.

The local FortiGate is still calculating the prefixes received from BGP neighbor 100.64.2.264

In which two slates is a given session categorized as ephemeral? (Choose two.)

A.

A UDP session with only one packet received

B.

A UOP session with packets sent and received

C.

A TCP session waiting for the SYN ACK

D.

A TCP session waiting for FIN ACK

Which statement about parallel path processing is correct (PPP)?

A.

PPP chooses from a group of parallel options lo identity the optimal path tor processing a packet.

B.

Only FortiGate hardware configurations affect the path that a packet takes.

C.

PPP does not apply to packets that are part of an already established session.

D.

Software configuration has no impact on PPP.

In IKEv2, which exchange establishes the first CHILD_SA?

A.

IKE_SA_INIT

B.

INFORMATIONAL

C.

CREATE_CHILD_SA

D.

IKE_Auth

The local OSPF router is unable to establish adjacency with a peer.

Which two things should the administrator do to troubleshoot the issue? (Choose two.)

A.

Check whether TCP port 179 is blocked.

B.

Check if there is an active static route to the peer.

C.

Check whether both peers have an IP address within the same subnet.

D.

Check if IP protocol 89 is blocked.

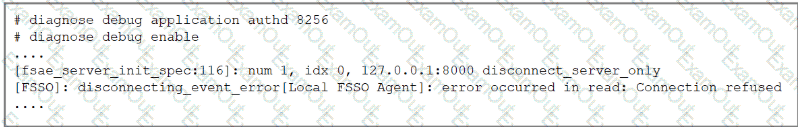

Refer to the exhibit showing a debug output.

An administrator deployed FSSO in DC Agent Mode but FSSO is failing on FortiGate. Pinging FortiGate from where the collector agent is deployed is successful.

The administrator then produces the debug output shown in the exhibit.

What could be causing this error message?

A.

The TCP port 445 is blocked between FortiGate and collector agent.

B.

The collector agent preshared password is mismatched.

C.

The FortiGate cannot resolve the active directory server name.

D.

The FortiGate and the collector agent are using different TCP ports.

Exhibit.

Refer to the exhibit, which shows the output of diagnose automation test.

What can you observe from the output? (Choose two.)

A.

The automation stitch test is not being logged.

B.

The automation stitch test failed but the HA failover was successful.

C.

An HA failover occurred.

D.

The test was unsuccessful.

Exhibit.

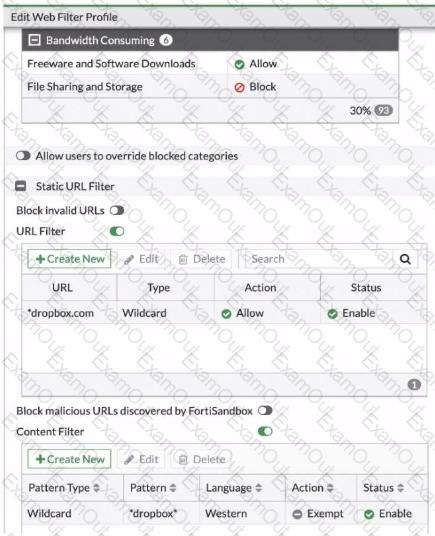

Refer to the exhibit, which shows a partial web fillet profile configuration.

Which action does FortiGate lake if a user attempts to access www. dropbox. com, which is categorized as File Sharing and Storage?

A.

FortiGate allows the connection, based on the URL Filter configuration.

B.

FortiGate blocks the connection as an invalid URL.

C.

FortiGate exempts the connection, based on the Web Content Filter configuration.

D.

FortiGate blocks the connection, based on the FortiGuard category based filter configuration.
