Using the MAC 8c-ec-4b-5b-61-9d, what is a valid EUI-64 link local address?

A.

2001::a9:8eec:4bff:fc5b:619d

B.

fe80::a9:8cec:4bff:fe5b:619d

C.

ff80:a9:8eec:4bff:fe5b:619d

D.

fe80::a9:8eec:4bff:fe5b:619d

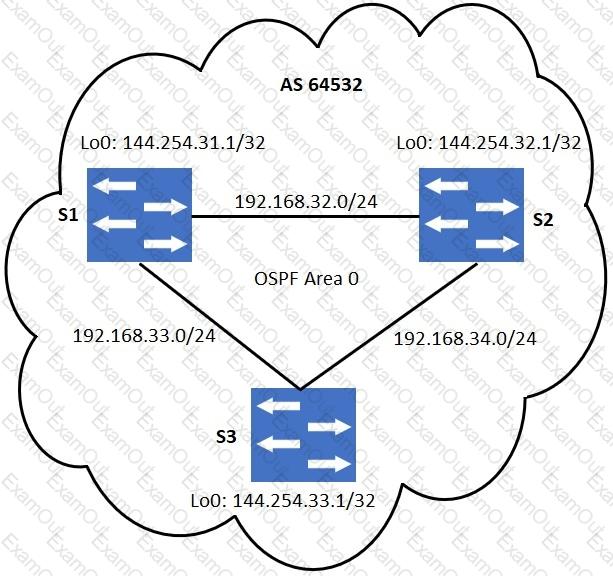

Refer to the exhibit.

No static routing has been configured. For iBGP loopback-based peering, which statement is correct?

A.

It is not necessary for the routing table on S1 to have an entry for the loopback network of S3.

B.

S1 should have the Loopback network of S3 in its routing table for loopback-based peering.

C.

For iBGP peering, physical interface addresses must be used.

D.

A static route on S1 to 144.254.32.1/32 will eliminate the need for loopback-based peering with S3.

When the show ip bgp neighbors command is issued, which BGP state reflects a successfully created adjacency with another BGP peer?

A.

ESTABLISHED

B.

PEERING

C.

ACTIVE

D.

CONNECTED

A customer reports they can no longer access their services and a network administrator has been assigned to investigate. A UFD disabled error status appears on all ports. What caused the issue?

A.

Spanning tree Loop-guard was implemented on the uplink-state group.

B.

One of the upstream interfaces is an uplink-state group went down.

C.

There was no issue; this is normal behavior.

D.

Both a port channel and its members were assigned to an uplink-state group.

When configuring VRRP in tandem with VLT, what is the default VRRP mode?

A.

active-active

B.

primary-standby

C.

active-standby

D.

master-backup

What is the default PIM-SSM IP range?

A.

224.0.0.0/4

B.

224.0.0.0/24

C.

232.0.0.0/8

D.

232.0.0.0/4

What benefit does VRRP version 3 provide over VRRP version 2 in OS10?

A.

Provides preemption capability.

B.

Provides MD5 authentication.

C.

Allows subsecond timers.

D.

Allows multiple masters in the topology.

What is a valid OS10 iBGP configuration?

A.

S2(config)# router bgp 64507

S2(config-router-bgp-64507)# peer-as 64507

S2(config-router-bgp-64507)# neighbor 192.168.32.1 S2(config-router-neighbor)# update-source loopback 0 S2(config-router-neighbor)# no shutdown

B.

S2(config)# router bgp 64507

S2(config-router-bgp-64507)# neighbor 192.168.32.1

S2(config-router-bgp-64507)# remote-as 64507 S2(config-router-bgp-64507)# update-source loopback 0 S2(config-router-bgp-64507)# no shutdown

C.

S2(config)# router bgp 64507

S2(config-router-bgp-64507)# neighbor 192.168.32.1

S2(config-router-neighbor)# remote-as 64507 S2(config-router-neighbor)# update-source loopback 0 S2(config-router-neighbor)# no shutdown

D.

S2(config)# router bgp 64507

S2(config-router-bgp-64507)# remote-as 64507

S2(config-router-bgp-64507)# neighbor 192.168.32.1 S2(config-router-neighbor)# update-source loopback 0 S2(config-router-neighbor)# no shutdown

An administrator is implementing VLT in OS10. What type of port-channel must they configure for the VLTi?

A.

Administrator needs to configure a LACP Port-Channel.

B.

Trunking and one (1) native VLAN need to be defined on the port-channel.

C.

None, a port-channel is created automatically during VLT discovery.

D.

Administrator needs to configure a static Port-Channel.

Which switch mode is used to manage files and display switch information?

A.

Interface

B.

Network

C.

Exec

D.

Configuration
