What is a benefit of using scalable fabric architecture in the MX7000?

A.

Management of all servers and fabrics is done from the last chassis in the fabric

B.

Management of all fabrics is done from the third fabric in the chassis

C.

Management of all servers and fabrics is done from the lead chassis

D.

Management of all fabrics is done from the last chassis in the fabric

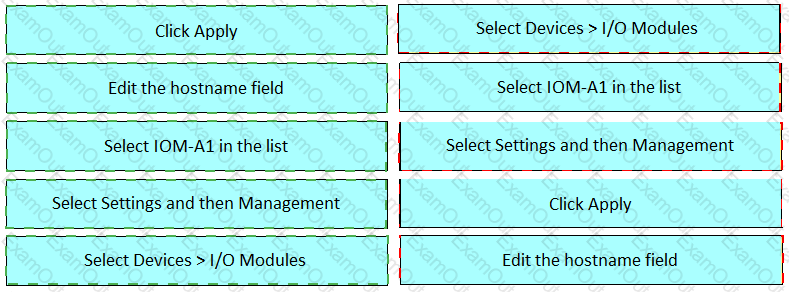

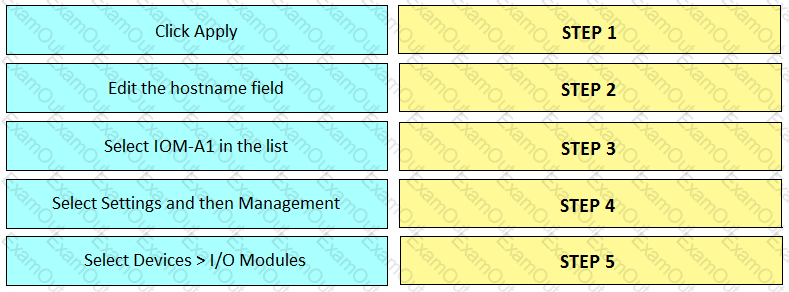

An administrator is using the OME-M GUI to change the hostname on an unconfigured I/O module inserted in slot A1. They log on to the MX7000 chassis home page.

What is the correct order of steps the administrator should take to set the management IP address?

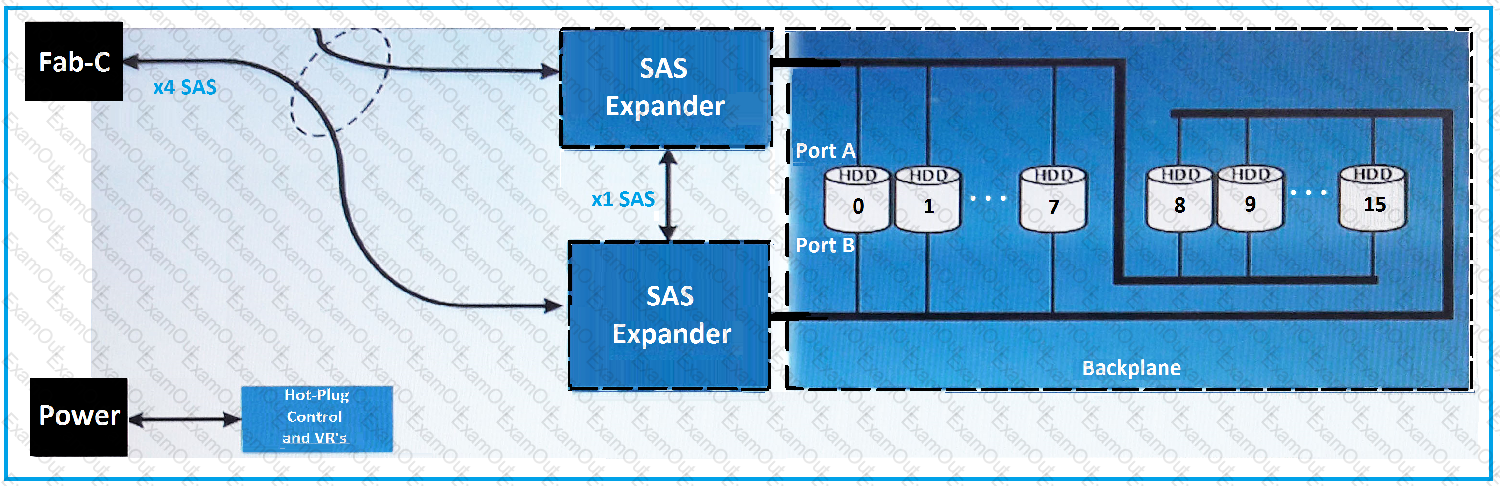

Refer to the exhibit.

What is shown?

A.

MX5000s

B.

MX5108n

C.

MX5016s

D.

MXG610s

Which I/O module is supported for Fabric B?

A.

MX5016s

B.

MSG610s

C.

MX5000s

D.

MX5108n

What type of connection is used by QuickSync 2?

A.

Bluetooth

B.

NFC

C.

QuickAssist

D.

LTE

What is a characteristic of MX7000 networking in Scalable Fabric Mode?

A.

Enabled by default, all switch-specific OS10EE capabilities are available.

B.

Layer 2 bridging is disabled be default and interfaces must join a bridge domain (VLAN) before being to forward frames.

C.

All switch interfaces are assigned to VLAN 1 by default and are in the same Layer 2 bridge domain.

D.

Available on MX9116n FSE and MX7116n FEM but not on the MX5108n.

What is a characteristic of MX7000 networking in Full Switch Mode?

A.

Layer 2 bridging is disabled by default and interfaces must join a bridge domain (VLAN) before being able to forward frames.

B.

Networking is enabled by default and all switch-specific OS10EE capabilities are available.

C.

Networking is available on MX9116n FSE and MX7116n FEM but not on the MX5108n.

D.

Switches operate as layer 2 I/O aggregation devices and are managed through OME-M.

What is the maximum possible weight of a fully populated MX7000 chassis?

A.

250 Ibs (114 kg)

B.

300 Ibs (136 kg)

C.

400 Ibs (182 kg)

D.

500 Ibs (227 kg)

An administrator is about to perform a firmware update on an MX9116n switch OS 10 from the CLI. The latest OS 10 switch firmware image has been downloaded and their TFTP server is set up.

Upon logged in with administrator credentials on the switch, which command should be used to start the update procedure?

A.

firmwaredownload tftp://server-ip/imagename

B.

install tftp://server-ip/imagename

C.

fwupdate tftp://server-ip/imagename

D.

upgrade tftp://server-ip/imagename

What is the benefit of C22 power inlet connectors on the MX7000 chassis?

A.

Meet higher power requirements

B.

C22 connectors are now standard on PowerEdge

C.

Allow for higher exhaust temperatures

D.

Enable linking together power supplies
