Free Practice Questions for EMC D-XTR-MN-A-24 Exam

This performance metric is derived from the system’s ability to deliver linear scalability, meaning that two X-Bricks can deliver twice the IOPS of a single X-Brick configuration2.

The calculation for this is based on the performance of a single X-Brick, which can achieve up to 300,000 IOPS under the same workload conditions.Therefore, with two X-Bricks, the system can achieve double that amount, resulting in 600,000 IOPS1.

This information is crucial for planning and sizing purposes, ensuring that the storage array meets the performance requirements of the applications it supports2.

=========================

The Technician Advisor can be found on SolVe Desktop. SolVe Desktop is a comprehensive tool provided by Dell EMC that includes installation, maintenance, and troubleshooting procedures for various Dell EMC products, including XtremIO. It is an essential resource for technicians working with these systems.

When connected to the Tech port on a Dell XtremIO Storage Controller, the login name "xinstall" should be used to test the Storage Controller cabling. This special login is designated for installation and configuration tasks, including testing and verifying cabling connections to ensure proper setup and functionality of the storage system.

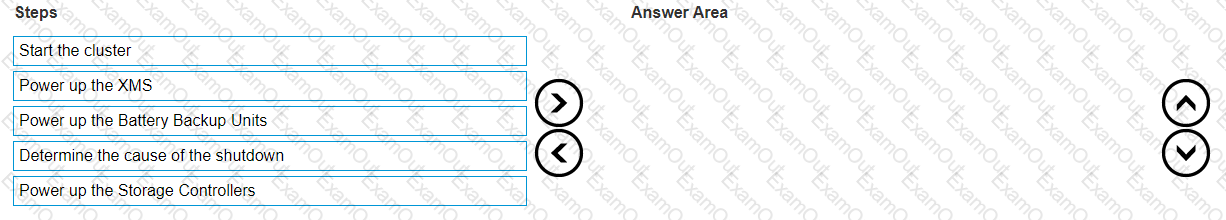

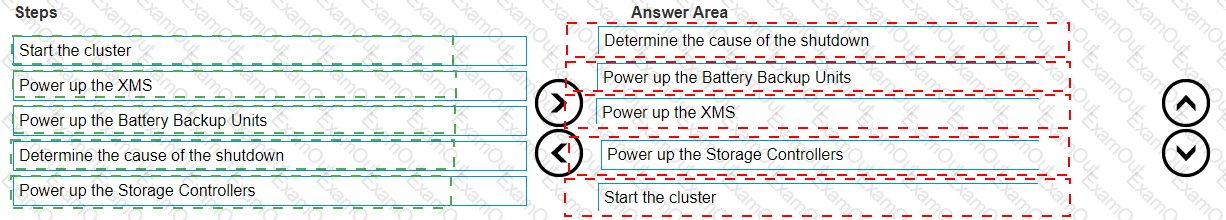

The correct sequence of steps to power up an XtremIO X1 cluster after an emergency shutdown is as follows:

Determine the cause of the shutdown

Power up the Battery Backup Units

Power up the XMS

Power up the Storage Controllers

Start the cluster

Detailed Explanation with References:

Determine the cause of the shutdown: Before powering up the system, it is essential to understand why the emergency shutdown occurred to prevent reoccurrence.

Power up the Battery Backup Units: The BBUs provide the necessary power to the storage controllers during power-up.

Power up the XMS: The XtremIO Management Server must be powered up to manage and monitor the storage system.

Power up the Storage Controllers: Once the BBUs and XMS are operational, power up the storage controllers.

Start the cluster: Finally, start the cluster to bring the XtremIO system back online and resume normal operations.

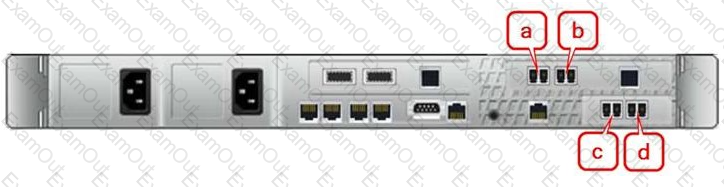

Based on the provided exhibit, ports "b" and "d" are used for FC2 (Fibre Channel 2) and iSCSI1 connections on an XtremIO X1. These ports are designated for specific connection types to ensure optimal performance and correct configuration of the storage network.

In a multi X-Brick XtremIO X1 cluster, the failure of more than half of the COM (communication) cables forces the cluster into a degraded mode. This degraded mode is a protective measure to ensure that the cluster can continue operating with reduced performance and redundancy until the issues with the COM cables are resolved.

In the event of a power failure, the XtremIO X2 array is designed to protect the journal data using a combination ofSupercapacitorandNVRAM. The NVRAM (Non-Volatile Random Access Memory) ensures that the data remains intact without power, while the supercapacitor provides the necessary energy to maintain the power to the NVRAM during the outage.This design allows the XtremIO X2 array to preserve the integrity of the journal data until normal power can be restored1.

=========================

The XtremIO X2 WebUI is based on HTML5 technology. HTML5 is the latest version of the Hypertext Markup Language, the code that describes web pages.It’s actually three kinds of code: HTML, which provides the structure; Cascading Style Sheets (CSS), which take care of presentation; and JavaScript, which makes things happen1.

HTML5 is designed to deliver almost everything you’d want to do online without requiring additional software such as browser plugins. It does everything from animation to apps, music to movies, and can also be used to build complicated applications that run in your browser.

XtremIO X2’s use of HTML5 allows for a more interactive and responsive WebUI that is compatible with a wide range of devices, including tablets and smartphones, providing a better user experience and easier management of the storage array1.

=========================

The Eaton 1550 Evolution BBU (Battery Backup Unit) uses 1 DB9 and 1 RJ50 connector. These connectors are used for communication and management purposes, ensuring that the BBU can interface correctly with other components of the system.
