Free Practice Questions for EMC D-VPX-OE-A-24 Exam

The SNMP management station connects to the VPLEX Management Server to gather statistics. The Management Server acts as the central point for managing and monitoring the VPLEX environment, including the collection of SNMP statistics.

Management Server Role: The VPLEX Management Server provides a centralized interface for system administration and monitoring.It is responsible for managing the VPLEX clusters and all associated components1.

SNMP Statistics Collection: SNMP (Simple Network Management Protocol) is used for collecting performance and health data from networked devices.The VPLEX Management Server supports SNMP and can be configured to send SNMP traps to a management station1.

Configuration: To enable SNMP monitoring, the VPLEX administrator must configure the Management Server with the appropriate SNMP settings, including the community string and the remote host (management station) details1.

Monitoring with SNMP: Once configured, the SNMP management station can connect to the VPLEX Management Server to collect statistics, which can include a wide range of metrics such as CPU utilization, memory usage, and I/O rates1.

Troubleshooting: If there are issues with SNMP data collection, such as the inability to ping the remote host from the VPLEX Management Server, the administrator may need to check network configurations, such as firewall settings, to ensure proper connectivity1.

By connecting to the VPLEX Management Server, the SNMP management station can effectively gather statistics for monitoring the health and performance of the VPLEX system.

The maximum number of virtual volumes that can be placed into a single consistency group in a Dell VPLEX environment is800. This limit is set to ensure the manageability and performance of the consistency group within the VPLEX system.

Here’s a detailed explanation:

Consistency Group Capacity:A consistency group in VPLEX is a collection of virtual volumes that are managed together to maintain write-order fidelity, which is crucial for applications requiring strong consistency guarantees.

Limit Rationale:The limit of 800 virtual volumes is determined based on the VPLEX system’s ability to handle the overhead associated with managing a large number of volumes in a consistency group, including the coordination of writes and snapshots.

Operational Management:By capping the number of virtual volumes in a consistency group, VPLEX ensures that the group can be managed effectively without compromising the performance of the storage system.

Documentation Reference:The Dell VPLEX Operate Achievement documents outline the specifications and limitations of VPLEX systems, including the details of consistency group capacities1.

Best Practices:Administrators are advised to follow best practices and guidelines provided by Dell when configuring and managing consistency groups to avoid exceeding the recommended limits and to ensure optimal system performance.

It’s important for storage administrators to be aware of these limitations when planning and implementing VPLEX storage solutions to ensure they are operating within the supported configurations.

In VPLEX, a storage volume is a logical representation of physical storage, and it can be divided into multiple extents.An extent is a contiguous range of block addresses within a storage volume that VPLEX manages as a single unit1.

Storage Volume: This is the physical storage presented to VPLEX from the backend storage arrays.It represents the total capacity available for use in VPLEX1.

Extent: An extent is a subset of a storage volume.It is a logical division within a storage volume that VPLEX uses to create virtual volumes1.

Division into Extents: A storage volume can be split into multiple extents, allowing for more granular management of storage resources.This is useful for creating multiple virtual volumes from a single storage volume1.

Virtual Volume Creation: Extents are used by VPLEX to create virtual volumes.By splitting a storage volume into extents, VPLEX can combine extents from different storage volumes to create a virtual volume1.

Management Flexibility: The ability to split a storage volume into multiple extents provides flexibility in storage management, enabling VPLEX to optimize storage utilization and performance1.

By splitting a storage volume into multiple extents, VPLEX can efficiently manage and allocate storage resources, creating virtual volumes that meet the specific needs of applications and workloads.

A VPLEX RAID-0 device is a configuration where data is striped across multiple storage volumes to improve performance. Here’s a detailed explanation:

RAID-0 Definition: RAID-0 is a disk array configuration that involves striping data across multiple disks without redundancy.This increases performance because I/O operations can be performed concurrently on all disks1.

Device Stripes Data: In the context of VPLEX, a device refers to a logical unit that is created from physical storage volumes.When a VPLEX device is configured as RAID-0, it stripes data across the underlying storage volumes1.

Top-Level Device: The term ‘top-level device’ refers to the logical device that is presented to hosts and applications.In VPLEX, this top-level device is the virtual volume that is created from one or more RAID-configured devices1.

Striping Beneath Top-Level Device: The striping occurs beneath the top-level device, meaning that it is handled within the VPLEX system and is transparent to the host.The host sees a single logical unit, while the VPLEX system manages the distribution of data across the physical volumes1.

Performance Considerations: RAID-0 devices provide better performance since data is retrieved from several storage volumes at the same time. However, RAID-0 devices do not include a mirror to provide data redundancy.They are used for non-critical data that requires high speed and low cost of implementation1.

By configuring a VPLEX device as RAID-0, administrators can leverage the performance benefits of striping for applications that require high throughput and do not need the redundancy provided by other RAID levels.

A VPLEX device is a logical construct that represents storage in the VPLEX environment. The statement that applies to a VPLEX device is:

Application of a RAID Topology: A VPLEX device can have a RAID topology applied to one or more extents.This means that the VPLEX system can take multiple extents, which are segments of storage from an underlying array, and organize them into a RAID configuration for redundancy and performance purposes1.

Extent Definition: An extent in VPLEX is a contiguous range of block addresses presented to VPLEX from a storage volume.It is the basic unit of storage that VPLEX manages1.

Device Composition: A VPLEX device is composed of one or more extents.When these extents are combined and a RAID topology is applied, it creates a VPLEX device that can be presented as a virtual volume to hosts1.

RAID Topologies: VPLEX supports various RAID configurations, such as RAID-1 (mirroring) and RAID-C (concatenation), allowing for flexibility in how data is protected and accessed1.

VPLEX Virtualization: The VPLEX system virtualizes the storage from underlying arrays, allowing for the creation of these devices without being tied to the physical RAID configurations of the arrays themselves1.

By understanding the role of RAID topologies and extents in the creation of VPLEX devices, storage administrators can effectively manage and provision storage in a VPLEX environment.

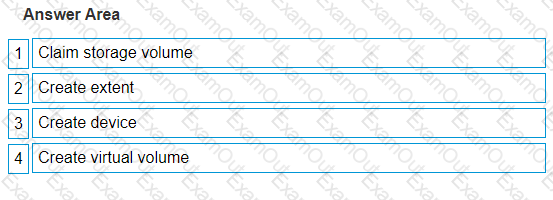

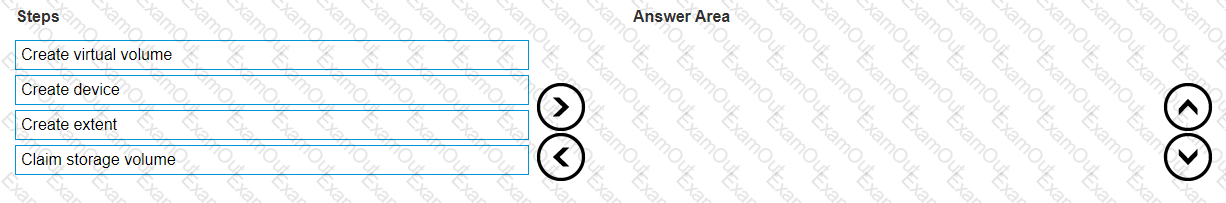

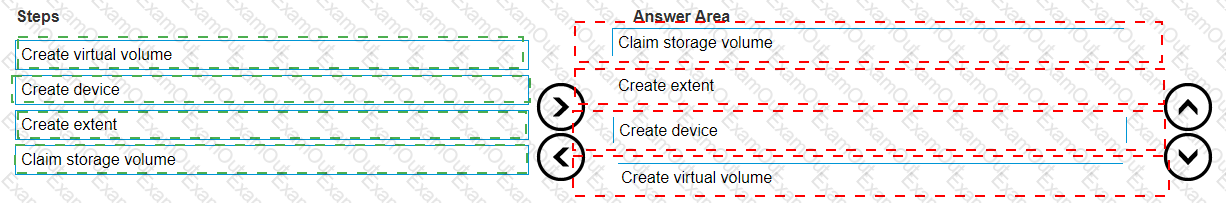

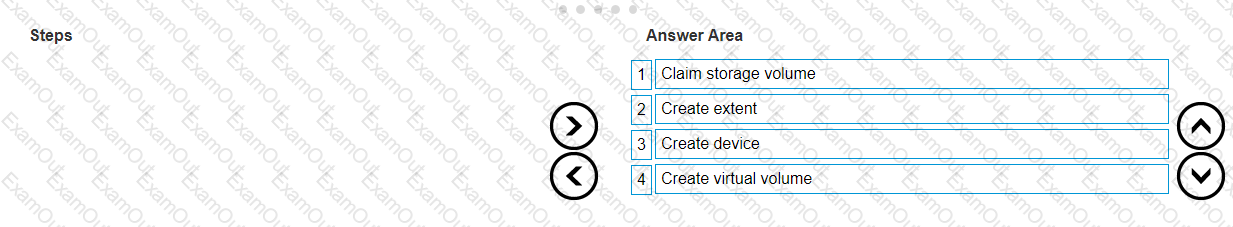

The correct order of steps to create a virtual volume is:

Claim storage volume

Create extent

Create device

Create virtual volume

Claim Storage Volume: The first step involves claiming a storage volume from the underlying storage array. This is where you identify and allocate the physical storage that will be used.

Create Extent: Once the storage volume is claimed, the next step is to create an extent. An extent is a specific range of block addresses within a storage volume.

Create Device: After creating an extent, you then create a device. A device in VPLEX terminology is a logical representation of storage that can be used by hosts.

Create Virtual Volume: The final step is to create a virtual volume from the device. A virtual volume is what is presented to hosts; it’s the logical unit that they will access for storage.

This process ensures that storage is properly allocated and managed within the VPLEX environment, allowing for flexibility and efficiency in storage utilization.

For detailed procedures and best practices, it’s recommended to consult the official Dell VPLEX documentation and training materials, which provide in-depth guidance on managing and configuring VPLEX systems.

When using VPLEX Metro, the supported round trip time (RTT) between clusters is 5 milliseconds (ms). This is the maximum latency that is supported to ensure proper synchronization and performance of the VPLEX Metro system.

VPLEX Metro: VPLEX Metro is a storage virtualization solution that allows for the creation of distributed virtual volumes across two geographically separated clusters1.

Round Trip Time (RTT): RTT is the time it takes for a signal to travel from one cluster to another and back again.It is a critical factor in the performance of distributed systems like VPLEX Metro1.

5 ms Limitation: The 5 ms RTT limitation is set to ensure that the clusters can maintain synchronization without significant performance degradation.Latencies higher than this can lead to issues with data consistency and application performance1.

Network Considerations: When planning a VPLEX Metro deployment, it is important to consider the network infrastructure and ensure that the RTT between clusters does not exceed the 5 ms threshold1.

Performance Impact: Adhering to the 5 ms RTT is crucial for maintaining the high availability and data mobility features of VPLEX Metro, as it affects the ability to perform real-time data mirroring and failover between clusters1.

By ensuring that the RTT between VPLEX Metro clusters does not exceed 5 ms, organizations can achieve the desired level of performance and reliability from their VPLEX Metro deployment.
