When expanding a VPLEX virtual volume using the storage volume method, it is essential that the virtual volume is mapped 1:1 to a storage volume. This means that each virtual volume corresponds to a single storage volume on the back-end array.

1:1 Mapping: A 1:1 mapping ensures that there is a direct relationship between the virtual volume in VPLEX and the underlying storage volume. This is necessary for the VPLEX system to correctly expand the virtual volume when the back-end storage volume is expanded1.

Expansion Process: To expand the virtual volume, the corresponding back-end storage volume is first expanded using the array’s native tools or interfaces. Once the back-end volume is expanded, VPLEX can recognize the additional capacity and expand the virtual volume accordingly1.

Consistency with Back-End: The expansion of the virtual volume must reflect the actual physical expansion of the storage volume to maintain data integrity and consistency1.

Storage Volume Method: The storage volume method refers to the process of expanding the physical storage volume on the back-end array, which is then reflected in the virtual volume presented by VPLEX1.

Documentation Reference: For detailed instructions on expanding virtual volumes using the storage volume method, administrators should refer to the SolVe Desktop Procedure Generator document on ‘How to Expand a virtual volume’ provided by Dell1.

In summary, the prerequisite for expanding a VPLEX virtual volume using the storage volume method is that the virtual volume must be mapped 1:1 to the storage volume. This mapping is crucial for the expansion process to be carried out successfully.

When VPLEX Metro is added to an existing HP OpenView network monitoring environment and only the remote VPLEX cluster is reporting performance statistics, the likely cause is a misconfiguration of the SNMP agent on the local VPLEX cluster management server.

SNMP Agent Configuration: The SNMP (Simple Network Management Protocol) agent on the VPLEX management server must be correctly configured to communicate with the HP OpenView monitoring system. If the local cluster’s SNMP agent is misconfigured, it may not report performance statistics correctly1.

Troubleshooting Steps: To resolve this issue, the following steps should be taken:

Verify the SNMP configuration on the local VPLEX cluster management server.

Check for any discrepancies in the SNMP version, community strings, and allowed hosts between the local and remote clusters.

Ensure that the SNMP service is running and properly configured to send traps and fetches to the HP OpenView system1.

Firewall and Network Checks: Although TCP Port 443 is important for secure communications, it is not typically used for SNMP, which usually operates over UDP ports 161 and 162. Therefore, a blockage of TCP Port 443 would not directly affect SNMP reporting1.

HP OpenView Compatibility: While HP OpenView running SNMP version 2C could potentially cause issues with performance statistic reporting, if the remote cluster is reporting correctly, it suggests that the version of SNMP is not the issue in this case1.

VPLEX Witness Configuration: The VPLEX Witness is not directly involved in the reporting of performance statistics to HP OpenView, so a misconfiguration of the VPLEX Witness’s SNMP agent would not cause this specific issue1.

In summary, the cause of the issue where only the remote VPLEX cluster is reporting performance statistics to HP OpenView is likely due to a misconfigured SNMP agent on the local VPLEX cluster management server.

When using the Virtual Integrated Aggregate Storage (VIAS) method of storage provisioning in Dell VPLEX, the set of arrays available for provisioning storage is determined by the Array Management Provider (AMP) registered for each cluster. The AMP is responsible for managing the communication between the VPLEX and the back-end storage arrays.

Array Management Provider (AMP): The AMP is a software component that interfaces with the storage arrays to facilitate storage provisioning, monitoring, and management. It must be registered with each VPLEX cluster to manage the arrays1.

VIAS Provisioning: VIAS is a feature in VPLEX that simplifies the provisioning process by integrating with the AMP to provide a single interface for storage provisioning across multiple heterogeneous arrays1.

Cluster Selection: After selecting a cluster in the VIAS interface, the AMP registered for that particular cluster determines which arrays are available for provisioning. This ensures that storage is provisioned from arrays that are managed by the cluster’s AMP1.

Provisioning Process: The administrator can then select the appropriate array from the list provided by the AMP and proceed with the storage provisioning process using the VIAS interface1.

Best Practices: It is recommended to follow Dell EMC’s best practices for registering and configuring the AMP with VPLEX to ensure seamless storage provisioning and management1.

In summary, when using the VIAS method of storage provisioning in Dell VPLEX, the set of arrays available from which to provision storage is determined by the Array Management Provider registered for each cluster only.

To identify the port indicated by the black arrow, we can refer to the standard VPLEX director port WWN breakdown provided by Dell:

Director Identification: Determine whether the director is A or B. Director B’s WWN is always +1 of Director A’s number1.

Port Numbering: VPLEX director port WWNs are broken down as follows: 0x5001442 [num][seed][IOmodule][port number], where the [port number] is one of {0,1,2,3}1.

Front-End Ports: For VS2 hardware, the front-end ports are typically numbered 0, and the back-end ports are numbered 11.

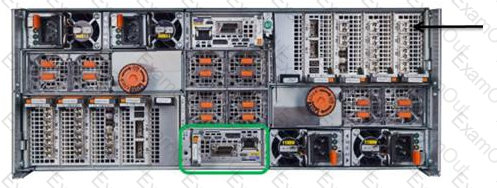

Exhibit Analysis: If the exhibit shows the standard layout of a VPLEX system and the black arrow points to the first port on Director B, it would be the front-end port 01.

Verification: To confirm the identification, one would typically refer to the official Dell EMC VPLEX documentation for hardware installation and setup, which would provide clear labeling of each port1.

In summary, based on the standard VPLEX port numbering and layout, the port indicated by the black arrow in the exhibit is likely Director B - front-end port 0, assuming that the exhibit follows the standard orientation and labeling conventions.

When using the EZ Setup wizard for VPLEX, the correct interface and port to SSH into is the Management Server’s eth1 interface. This is typically the interface configured for management access and is used during the initial setup process.

Management Server Access: The Management Server is the primary interface for managing and configuring the VPLEX system. It is through this server that the EZ Setup wizard is accessed1.

eth1 Interface: The eth1 interface on the Management Server is usually dedicated to management traffic. This interface is configured with an IP address that allows SSH access for configuration purposes1.

EZ Setup Wizard: The EZ Setup wizard is a guided setup tool that simplifies the initial configuration of the VPLEX system. It prompts the user for necessary information to configure the system1.

SSH Protocol: Secure Shell (SSH) is a network protocol used to securely access network services over an unsecured network. When configuring VPLEX, SSH is used to connect to the Management Server and run the EZ Setup wizard1.

Configuration Steps: To SSH into the Management Server, the customer engineer would use an SSH client, input the IP address assigned to the eth1 interface, and connect using the appropriate credentials provided during the VPLEX installation1.

In summary, to use the EZ Setup wizard for configuring VPLEX, the customer engineer should SSH into the Management Server using the eth1 interface. This interface is set up during the initial installation and is used for management access to the system.

For connecting the MMCS-A to the customer management network in a Dell VPLEX system, it is essential to use the correct port that is designated for management traffic. According to the Dell EMC VPLEX documentation1, each MMCS (Management Module Control Station) has two network connections that connect to the customer’s network. One of these is used for system monitoring and remote connectivity for Dell Technologies Customer Support, and the other is for use by the Network Address Translation (NAT) Gateway.

In the context of the VS6 VPLEX cluster, the management ports are located on MMCS-A and MMCS-B, and both must be configured and connected to the customer network. MMCS-A is the management port that will be accessed for all management and monitoring purposes1. Therefore, the cable that should be connected to the customer management network is the one associated with MMCS-A.

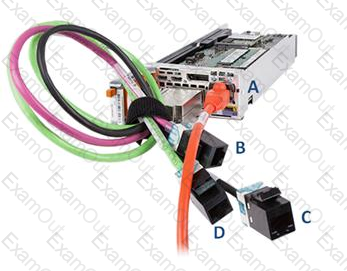

Based on the information provided in the search results and the description of the image, the correct cable to connect to the customer management network for MMCS-A is indicated by the letter B in the exhibit. This connection is crucial for enabling management and monitoring access to the VPLEX system.

When configuring a VPLEX Metro cluster, especially for a company planning to create distributed volumes with a large amount of storage like 200 TB, it is essential to adhere to EMC best practices for the size of logging volumes.

Purpose of Logging Volumes: Logging volumes in VPLEX are used to store write logs that ensure data integrity and consistency across distributed volumes. These logs play a critical role during recovery processes1.

Size Considerations: The size of the logging volumes should be proportional to the amount of active data being written to ensure that all write operations are captured in the logs. For 200 TB of distributed storage, a minimum size of 10 GB for each logging volume is recommended to handle the logging requirements1.

Configuration: The logging volumes should be configured on each cluster to provide redundancy and high availability. This means that both clusters in a VPLEX Metro configuration should have logging volumes of at least the minimum recommended size1.

Best Practices: EMC best practices suggest that the logging volume should be sized appropriately to support the operational workload and to ensure that there is sufficient space to capture all write operations without any loss of data1.

Verification and Monitoring: After setting up the logging volumes, it is important to monitor their utilization to ensure they are functioning correctly and to adjust their size if necessary based on the actual workload1.

In summary, consistent with EMC best practices, the minimum size for logging volumes at each cluster in a VPLEX Metro cluster being installed for creating distributed volumes with 200 TB of storage should be 10 GB. This size ensures that the logging volumes can adequately support the write logging requirements for the amount of storage being used.

=========================

When troubleshooting performance issues on a Microsoft SQL Server application hosted on a VPLEX virtual volume, adjusting the data mobility job transfer rate can have a significant impact on the application’s performance. A higher transfer rate can help improve performance by allowing data to be moved more quickly, reducing the impact on the application’s I/O operations.

Assessing Current Performance: The current transfer rate of 32 MB may be insufficient for the workload of the SQL Server application, leading to performance issues1.

Recommended Transfer Rate: Increasing the transfer rate to 120 MB can help alleviate these performance issues by accelerating the data mobility process, thus minimizing the time during which the SQL Server application’s performance is impacted1.

Implementing the Change: To change the transfer rate, the administrator would use the VPLEX CLI to adjust the settings for the data mobility jB. This involves modifying the transfer rate parameter to the new value of 120 MB1.

Monitoring the Impact: After making the change, it’s important to monitor the SQL Server application’s performance to ensure that the new transfer rate is having the desired effect and not causing any additional issues1.

Best Practices: It is recommended to follow best practices for data mobility and performance tuning as outlined in the Dell VPLEX documentation, which includes considering the impact of data mobility jobs on application performance1.

In summary, changing the data mobility job transfer rate to 120 MB is recommended to help improve the performance of the Microsoft SQL Server application hosted on a VPLEX virtual volume.

=========================

Questions no: High I/O volume type during WAN COM failure

Verified Answer:B. Logging volume

Step by Step Comprehensive Detailed Explanation with References:During a WAN COM failure in a VPLEX Metro environment, logging volumes are subjected to high levels of I/O. This is because the logging volumes are used to store write logs that ensure data integrity and consistency across distributed volumes. These logs play a critical role during recovery processes, especially when there is a communication failure between clusters.

Role of Logging Volumes: Logging volumes in VPLEX are designed to capture write operations that cannot be immediately mirrored across the clusters due to network issues or WAN COM failures1.

WAN COM Failure: When a WAN COM failure occurs, the VPLEX system continues to write to the local logging volumes to ensure no data loss. Once the WAN COM link is restored, the logs are used to synchronize the data across the clusters1.

High I/O Levels: The high levels of I/O on the logging volumes during a WAN COM failure are due to the accumulation of write operations that need to be logged until the link is restored and the data can be synchronized1.

Recovery Process: After the WAN COM link is restored, the VPLEX system uses the data in the logging volumes to rebuild and synchronize the distributed volumes, ensuring data consistency and integrity1.

Best Practices: EMC best practices recommend monitoring the health and performance of logging volumes, especially during WAN COM failures, to ensure they can handle the increased I/O load and maintain system performance1.

In summary, logging volumes experience high levels of I/O only during a WAN COM failure as they are responsible for capturing and storing write operations until the communication between clusters can be re-established and data synchronization can occur.
