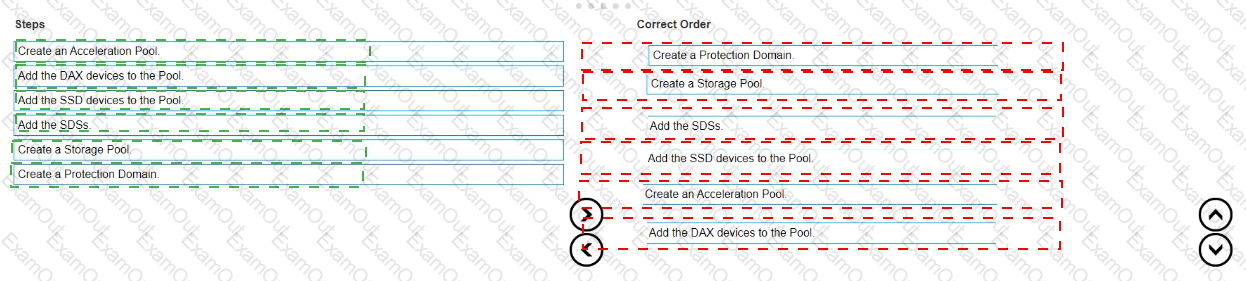

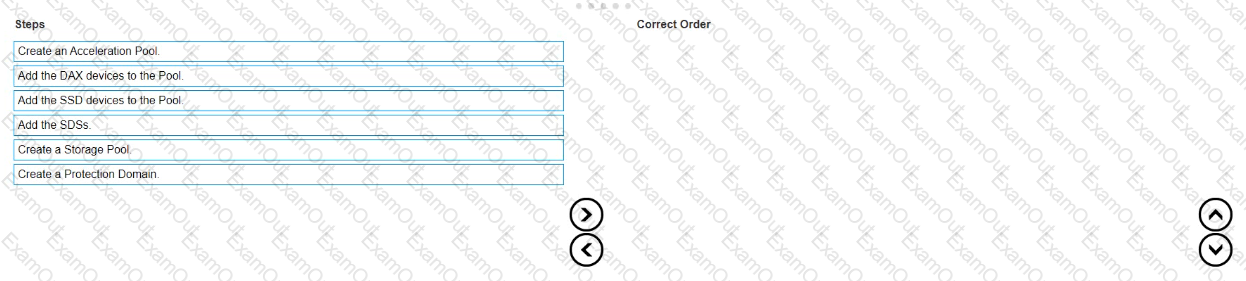

The correct sequence of steps to create an FG (Fine Granularity) Storage Pool within a PowerFlex system is as follows:

Create a Protection Domain: This is the first step, where you define a logical grouping of storage resources that share the same protection policy and fault tolerance settings1.

Create a Storage Pool: After establishing a Protection Domain, you create a Storage Pool within it. This pool will contain the physical storage resources1.

Add the SDSs (Storage Data Servers): The next step is to add SDSs to the Storage Pool. SDSs are the servers that contribute storage capacity to the pool1.

Add the SSD (Solid-State Drive) devices to the Pool: Once the SDSs are added, you then add the SSD devices to the Storage Pool to provide the actual storage capacity1.

Create an Acceleration Pool: This step involves creating an Acceleration Pool, which is used for caching to enhance the performance of the storage system1.

Add the DAX (Direct Access) devices to the Pool: Finally, you add the DAX devices to the Acceleration Pool. DAX devices are typically high-speed storage devices like NVMe drives that serve as cache

The process of creating an FG Storage Pool in a PowerFlex system involves a series of steps that establish the necessary components and configurations for the storage environment. The sequence starts with the creation of a Protection Domain, which sets the stage for defining how storage will be protected and managed. Within this domain, a Storage Pool is created, which is essentially a collection of storage resources. The SDSs are then added to this pool, contributing their storage capacity to the overall system. SSD devices are included next to provide the actual storage space. An Acceleration Pool is created to improve performance through caching, and DAX devices are added to this pool to serve as the cache, completing the setup of an FG Storage Pool1.

This sequence ensures that the storage system is configured for optimal performance and data protection, following the guidelines and best practices outlined in the PowerFlex documentation1. It’s important to follow these steps in order to maintain the integrity and efficiency of the PowerFlex storage system.

The PowerFlex component that provides the information application servers require to connect to the cluster’s virtualized storage is the Storage Data Client (SDC). The SDC is installed on application servers and is responsible for translating standard block I/O requests from the server’s operating system into network I/O requests that can be understood and processed by the PowerFlex storage cluster.

Here’s a detailed explanation:

SDC Role: The SDC acts as the interface between the application servers and the PowerFlex storage system. It allows servers to access the virtualized storage as if it were local to the server1.

Connection Process: When an application server needs to connect to the PowerFlex cluster, the SDC communicates with the Meta Data Manager (MDM) to understand the layout of the storage and then interacts with the Storage Data Server (SDS) to perform I/O operations1.

Virtualized Storage Access: Through the SDC, application servers can perform read and write operations on the virtualized storage volumes provided by the PowerFlex cluster, ensuring seamless integration with the existing applications and services1.

The SDC is a critical component in the PowerFlex architecture, enabling the connection and communication between application servers and the PowerFlex storage cluster, thus facilitating the use of virtualized storage resources1.

For a large enterprise environment planning to deploy hundreds of internally supported third-party nodes, the most suitable PowerFlex platform is the “Software only” option. This deployment model provides the flexibility needed for such a large-scale and customized deployment.

Here’s the rationale behind this choice:

Scalability: The software-only option allows for the greatest level of scalability, which is necessary when deploying a large number of nodes over time1.

Flexibility: It offers the flexibility to use third-party hardware, which is likely a requirement in this scenario where the enterprise is using internally supported nodes1.

Customization: This option provides the ability to customize the deployment to meet specific enterprise requirements, which is essential when integrating a large number of diverse nodes1.

Integration: The software-only model facilitates easier integration with existing systems and processes within the enterprise, allowing for a more seamless deployment1.

The software-only deployment model is designed for environments that require a high degree of customization and control over the hardware and infrastructure, making it the ideal choice for this customer’s needs as per the information provided in the Dell PowerFlex specification sheet1.

The policy that determines the priority of reconstructing data after a failure in a PowerFlex system is the Rebuild throttling policy. This policy is designed to manage the speed and resources allocated to the rebuild process, which is critical for restoring data redundancy and integrity after a failure occurs1.

The rebuild process in PowerFlex is a high-priority operation that ensures data is reconstructed across the remaining nodes and drives in the storage pool to maintain the desired levels of protection. The Rebuild throttling policy allows administrators to configure the impact of rebuild operations on the overall performance of the system, ensuring that while data reconstruction is prioritized, it does not significantly degrade the performance of production workloads1.

Rebalance throttling (Option A) is related to the process of redistributing data across the storage pool to maintain balance but is not directly concerned with the immediate reconstruction of data after a failure. Checksum Implementation (Option C) and Checksum Protection (Option D) are related to data integrity verification methods but do not determine the priority of data reconstruction.

Therefore, the correct answer is B. Rebuild throttling, as it is the policy that specifically governs the prioritization and management of data reconstruction activities following a failure in the PowerFlex system.

Secure snapshots in PowerFlex are controlled by policies that define their retention and expiration periods. If a snapshot has a lock enabled, it cannot be deleted until the lock is disabled. The lock is a security feature that prevents accidental or unauthorized deletion of the snapshot before its intended retention period1.

To delete a secure snapshot that is still within its expiration period but needs to be removed, the administrator must first disable the snapshot policy lock. Here are the general steps to do so:

Access PowerFlex Manager.

Navigate to the Snapshots section.

Locate the specific snapshot that needs to be deleted.

Disable the lock on the snapshot policy associated with the snapshot.

Once the lock is disabled, the snapshot can be deleted manually.

Changing the snapshot expiration period to 30 days (Option C) would not affect the ability to delete the snapshot if the lock is still enabled. The Dual Signature Policy agreement with Dell (Option A) is not a standard procedure for deleting snapshots within PowerFlex and is not related to the administrative controls of snapshot policies.

Therefore, the correct answer is B. Disable the snapshot policy lock on the snapshot, as this action will allow the administrator to delete the snapshot before the expiration period, provided that the snapshot is no longer needed and can be safely removed from the system1.

To track total usage on a PowerFlex File system without imposing any restrictions on users, an administrator can create a tree quota and set both the soft and hard limits to zero. This method allows the administrator to monitor usage without enforcing any quota limits, thus not restricting user behavior.

Here’s how it can be accomplished:

Access the PowerFlex Management Console: Log in to the PowerFlex Management Console where you can manage quotas.

Navigate to the File System: Locate the file system for which you want to track usage.

Create a Tree Quota: Choose to create a new tree quota for the file system.

Set Limits to Zero: When setting up the quota, input zero for both the soft and hard limits. This effectively means there are no limits enforced on the users.

Apply the Quota: Save and apply the quota settings to the file system.

By setting both limits to zero, the administrator can use the quota system purely for monitoring purposes, without affecting user operations. The users will not encounter any quota warnings or limits, but the system will still track and report on the total usage, which the administrator can review.

The rationale behind using a tree quota rather than a user quota is that tree quotas are associated with a directory tree, allowing the tracking of usage across a broader scope, which is more suitable for monitoring overall file system usage.

This approach is consistent with best practices for administering PowerFlex systems as described in the Dell PowerFlex Administration Guide1, which provides detailed procedures for managing storage, including the configuration of quotas for monitoring purposes.

In a PowerFlex appliance environment, Fault Sets are used to group Storage Data Servers (SDSs) that are managed together as a single fault unit. When Fault Sets are employed, the distributed mesh-mirror copies of data are never placed within the same fault set1. This means that each Fault Set must have enough SDSs to ensure that data can be mirrored across different Fault Sets for redundancy.

Given that there are only five Storage Only nodes available in the described environment, and considering that each node runs an SDS, it may not be possible to create Fault Sets using all available servers if the number of Fault Sets or the distribution of SDSs across those Fault Sets does not allow for proper mirroring of data. The architecture requires a certain number of SDSs to be available to form a Fault Set that can be used for data mirroring and redundancy1.

The other options, such as requiring more than one Management node (Option A) or not having enough Compute Only nodes (Option C), are not directly related to the creation of Fault Sets. The Management node’s primary role is to manage the cluster, not to participate in Fault Sets, and Compute Only nodes do not contribute storage resources to Fault Sets.

Therefore, the correct answer is B. There are not enough Storage Only nodes, as this would prevent the architect from creating Fault Sets that meet the redundancy requirements of the PowerFlex appliance environment.

To configure Storage Data Targets (SDTs) for I/O operations with hosts using the NVMe over Fabric protocol, the following requirements are necessary:

The Storage port must be configured with the host role: The storage port, which is part of the SDT, needs to be configured to communicate with the host systems. This involves setting the port to operate in the host role, which allows it to handle input/output operations with the hosts1.

The NVMe Qualified Name (NQN) of the hosts is known: The NQN is a unique identifier used in NVMe over Fabrics to identify both NVMe targets and hosts. Knowing the NQN of the hosts is essential for proper configuration and communication between the SDTs and the hosts1.

A minimum of two NVMe targets must be assigned to a Protection Domain: For redundancy and to ensure continuous availability, it is recommended to have at least two NVMe targets assigned to a Protection Domain. This allows for failover capabilities and load balancing across multiple paths1.

These requirements are based on the best practices for setting up NVMe over Fabric protocols as outlined in the PowerFlex documentation and resources. Proper configuration of the storage ports, knowledge of the NQN, and assignment of NVMe targets to a Protection Domain are crucial steps in ensuring successful I/O operations with NVMe over Fabrics1.

The default value of paths per volume when adding an NVMe host to a PowerFlex system is 8. This setting is relevant for the configuration of multipathing, which is a method used to provide redundancy and increase availability for storage environments. When you add an NVMe host, the system allows up to 8 paths per volume to be configured by default. This is particularly important in VMware ESXi environments, where multipathing can be configured to handle failover and load balancing of storage traffic.

The reference for this information is found in the Dell PowerFlex specification sheet, which outlines the maximum paths in the multipathing driver per volume as 8 for ESXi 7.0u31. This document provides detailed specifications and configurations for the PowerFlex system, ensuring that the information is aligned with Dell’s official documentation and design guidelines for PowerFlex systems.
