External hosts connect to the Dell EMC PowerStore cluster for data access through theStoragenetwork.

The Storage network is designed to handle the data traffic between the PowerStore system and the external hosts.

For optimal performance and availability, it is recommended to configure dual redundant fabrics in Fibre Channel configurations, ensuring that each PowerStore node and each external host have connectivity on each of the fabrics12.

This setup minimizes the number of hops between the host and PowerStore, which is crucial for maintaining high-speed data access and reducing latency12.

The Management network, on the other hand, is used for managing and configuring the PowerStore system, not for data access3.

The Service network is typically used for service tasks and is not intended for regular data access by external hosts3.

The Internal network is used for communication within the PowerStore cluster itself and is not accessible by external hosts.

For more detailed information on network considerations and best practices for Dell EMC PowerStore, you can refer to the Dell PowerStore: Best Practices Guide4.

The default log collection schedule for Dell PowerStore is set to a weekly basis. This schedule is designed to balance the need for regular monitoring with the storage and processing considerations of collecting logs. Collecting logs on a weekly basis provides a sufficient overview of the system’s performance and any potential issues that may arise, without overwhelming the system administrators with too much data.

The log collection process includes gathering various logs that may be required for troubleshooting PowerStore issues, such as Support Materials, Performance Metrics Archives, Dump Files, and others.The process can be initiated through the PowerStore Manager user interface or using the CLI in an SSH session1.

For more detailed information on log collection schedules and procedures, administrators should refer to the official Dell PowerStore documentation, which provides comprehensive instructions on how to generate, collect, and manage logs for effective system maintenance and troubleshooting1.

In Dell PowerStore systems, IPsec is used to encrypt traffic for the management network. IPsec (Internet Protocol Security) is a suite of protocols designed to ensure the integrity, confidentiality, and authentication of data communications over an IP network.Encrypting the management network traffic with IPsec is a best practice to secure communication between the management console and the storage system, protecting against potential eavesdropping and unauthorized access1.

The management network is responsible for the overall administration and operation of the storage system, including configuration management, performance monitoring, and system updates. By encrypting this traffic, Dell PowerStore ensures that sensitive management operations are secured.

For detailed information on configuring IPsec for the management network and other best practices for network security within Dell PowerStore environments, users should refer to the official Dell PowerStore documentation, such as the Deployment KB: PowerStore: User Network Firewall Rules Tool and the Dell PowerStore Best Practices Guide12. These documents provide comprehensive guidelines on network configurations, including firewall rules and encryption settings, to maintain the highest levels of security and system integrity.

The SolVe Tool is the reference source that provides service information and Field Replaceable Unit (FRU) procedures for Dell EMC PowerStore.The SolVe Tool is an online resource that offers step-by-step guidance for various procedures, including servicing and replacing hardware components, also known as FRUs1.

The tool is designed to help users and service technicians perform maintenance tasks accurately and efficiently. It includes detailed instructions, diagrams, and other helpful information that can assist in troubleshooting and resolving issues with Dell EMC PowerStore systems.

For accessing the SolVe Tool and finding the service information and FRU procedures for PowerStore, users can visit the Dell Support website and navigate to the SolVe Online section.Additionally, the PowerStore Info Hub provides a collection of product documentation and videos that can be useful for understanding the system’s operation and maintenance2.

It is important to use the SolVe Tool and follow the provided instructions carefully to ensure that any service actions are performed correctly and safely, maintaining the integrity and performance of the PowerStore system.

Configuring the Top of Rack (ToR) data switches for a Dell EMC PowerStore T involves several steps to ensure proper network setup and connectivity. One of the essential steps is to configure a port for the discovery laptop. This step is necessary for the initial discovery and configuration of the PowerStore appliances.

The process typically includes:

Identifying an unused port on the ToR switch that will be dedicated to the discovery laptop.

Configuring the identified port with the appropriate VLAN settings that match the network design of the PowerStore environment.

Ensuring that the port has the correct speed and duplex settings to communicate effectively with the discovery laptop.

Connecting the discovery laptop to the configured port to begin the discovery process of the PowerStore appliances.

This step is crucial as the discovery laptop is used to run the PowerStore Discovery Utility, which helps in identifying PowerStore appliances on the network and assists with the initial configuration1.For detailed instructions on configuring ToR switches and other networkingcomponents for PowerStore T, refer to the Dell PowerStore Networking Guide for PowerStore T Models2.

When the error “-bash: pstcli: command not found” appears after running a PSTCLI command on a Linux host, it typically means that the shell cannot locate the pstcli executable in the directories listed in the PATH environment variable. To resolve this issue, the installation directory of pstcli needs to be added to the PATH variable. This can be done by editing the shell initialization file (such as .bashrc or .bash_profile for Bash shell) and appending the installation directory to the PATH variable.

Here are the steps to resolve the problem:

Locate the installation directory of PSTCLI. If you followed the default installation, it should be in /opt/dellemc/pstcli-version/bin/.

Open the shell initialization file in a text editor. For example, if using Bash, you might edit ~/.bashrc or ~/.bash_profile.

Add the following line to the file: export PATH=$PATH:/opt/dellemc/pstcli-version/bin/. Replace /opt/dellemc/pstcli-version/bin/ with the actual installation directory if it is different.

Save the file and reload the shell configuration by running source ~/.bashrc or source ~/.bash_profile, or simply close and reopen the terminal.

Verify that pstcli can be found by running echo $PATH and ensuring the directory is listed.

Try running the pstcli command again to confirm that the issue is resolved.

By adding the PSTCLI installation directory to the PATH variable, the shell will be able to locate the pstcli executable when the command is run1. It is important to ensure that the PATH variable is correctly set to include all necessary directories for command-line tools to function properly.If the issue persists, it may be necessary to check the installation of PSTCLI or consult the Dell EMC PowerStore documentation for further troubleshooting steps1.

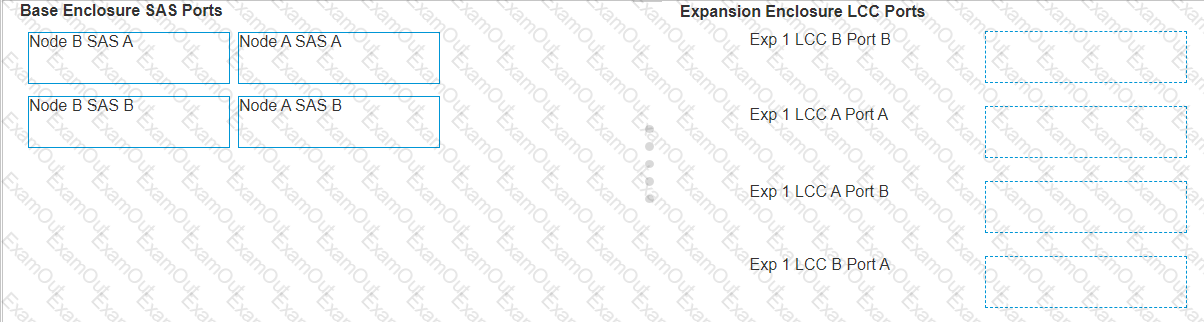

To match the base enclosure SAS ports in column A to their correspondingexpansion enclosure LCC ports in column B for a Dell PowerStore base enclosure connected to a single expansion enclosure, the correct configuration is:

Node B SAS A to Exp 1 LCC A Port B

Node A SAS A to Exp 1 LCC B Port A

Node B SAS B to Exp 1 LCC A Port A

Node A SAS B to Exp 1 LCC B Port B

Step by Step Comprehensive Detailed Explanation with References

Identify the SAS ports on the base enclosure and the LCC ports on the expansion enclosure.

Match the ports according to the configuration provided above.

Connect the cables between the corresponding SAS and LCC ports.

Secure the connections to ensure there is no loose cabling.

Verify the configuration using the PowerStore Manager to ensure all connections are recognized and functioning properly.

For detailed instructions, diagrams, and best practices, refer to the Dell PowerStore Installation and Service Guide1, as well as the Dell EMC PowerStore Quick Start Guide2. These documents provide essential information on the proper setup and maintenance of the storage system, ensuring optimal performance and reliability.

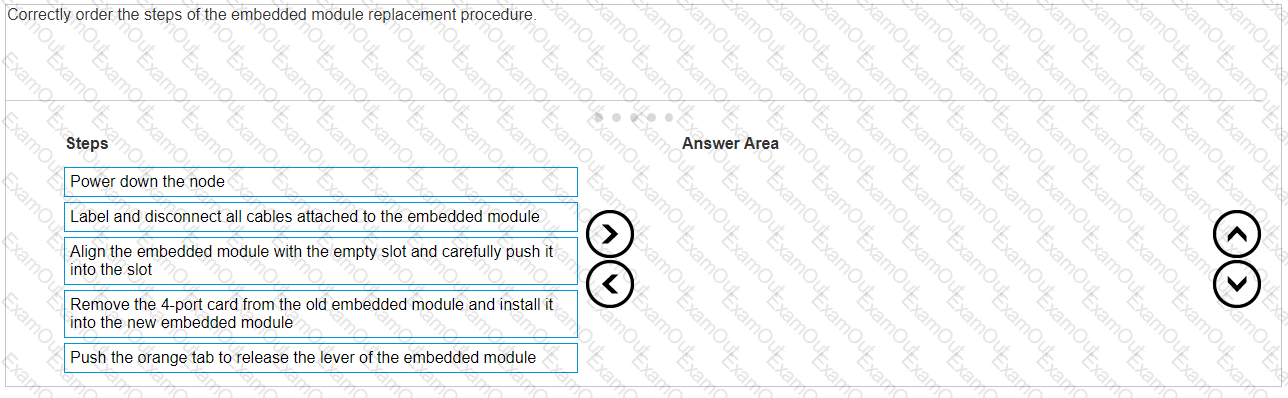

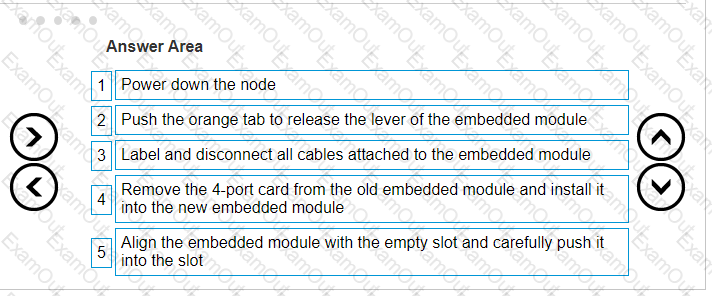

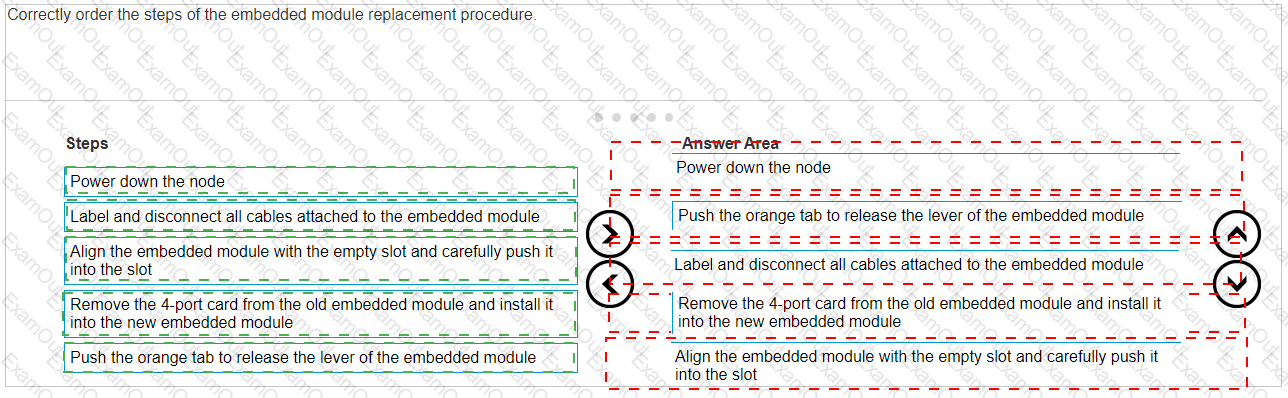

The correct order of steps for the embedded module replacement procedure is:

Power down the node

Push the orange tab to release the lever of the embedded module

Label and disconnect all cables attached to the embedded module

Remove the 4-port card from the old embedded module and install it into the new embedded module

Align the embedded module with the empty slot and carefully push it into the slot

The procedure for replacing an embedded module in a Dell PowerStore system is a critical task that should be performed with care. Here is a detailed explanation of each step:

Power down the node: Ensure that the node is properly powered down to avoid any electrical hazards or data corruption.This step is crucial for the safety of both the technician and the system1.

Push the orange tab to release the lever of the embedded module: Locate the orange tab on the embedded module and push it to release the lever.This action will unlock the module from its slot1.

Label and disconnect all cables attached to the embedded module: Before removing the embedded module, label all cables for easy reconnection later.Then, carefully disconnect each cable to free the module1.

Remove the 4-port card from the old embedded module and install it into the new embedded module: Transfer the 4-port card from the old module to the new one.Handle the card with care to avoid damage to the electronic components1.

Align the embedded module with the empty slot and carefully push it into the slot: Carefully align the new embedded module with the guides in the empty slot and gently push it into place until it is securely seated1.

After completing these steps, reconnect the cables as per the labels, and power up the node to verify the operation of the new embedded module.For detailed instructions and safety information, refer to the Dell PowerStore Installation and Service Guide2. It is important to follow these guidelines closely to ensure the replacement is performed correctly and the system operates smoothly after the procedure.

When two fans in a Dell EMC PowerStore system are faulted, the system’s behavior is to send an increased fan speed signal to the surviving fans to compensate for the loss and continue normal operations.This is a part of the system’s design to ensure redundancy and maintain cooling within operational parameters even when one or more fans are not functioning1.

The system monitors the health of all fans continuously. If a fan fault is detected, the system will:

Generate an alert to notify the administrator of the fault.

Increase the speed of the remaining fans to prevent overheating.

Continue to operate normally unless the temperature exceeds safe operating limits.

The administrator should then take the following steps:

Acknowledge the alert in the PowerStore Manager.

Plan for the replacement of the faulted fans as soon as possible to restore full redundancy.

Follow the replacement procedures as outlined in the Dell PowerStore Installation and Service Guide2.

It is important to address fan faults promptly to ensure the long-term health and performance of the PowerStore system. The increased fan speed is a temporary measure to maintain operations until the faulted fans can be replaced.
