Since the switch supports only 10Gbps per port, achieving 40Gbps throughput requires link aggregation (LACP), which combines multiple 10Gbps links into one logical interface for higher bandwidth.

Breakdown of Options:

A. 802.1Q tagging – VLAN tagging helps segment traffic but does not increase throughput.

B. Jumbo frames – Jumbo frames reduce overhead but do not increase bandwidth.

C. Half duplex – Half duplex restricts communication, reducing performance instead of improving it.

D. Link aggregation – Correct answer. LACP combines multiple 10Gbps links to provide a 40Gbps connection.

In a fiber patch panel, the SC (Subscriber Connector or Standard Connector) is commonly used because of its push-pull design and reliability in enterprise environments.

Breakdown of Options:

A. F-type – Used for coaxial cables (e.g., cable TV), not fiber.

B. RJ11 – Used for telephone lines, not fiber.

C. BNC – Used for coaxial connections, not fiber.

D. SC – ✅ Correct answer. A standard fiber optic connector used in patch panels.

A transceiver is the correct answer because it is the Layer 1 (Physical Layer) component that physically terminates and converts fiber-optic signals on an SFP-capable switch. In CompTIA Network+ N10-009 objectives, transceivers—such as SFP, SFP+, QSFP, and QSFP+ modules—are explicitly identified as physical interface components that handle signal transmission and reception. These modules convert electrical signals from the switch into optical signals for fiber cabling (and vice versa), enabling communication over different media types and distances.

A modem is also a Layer 1 device, but its purpose is to modulate and demodulate signals for WAN technologies such as DSL or cable—it does not terminate fiber connections on switches. An Ethernet NIC provides network access for end devices like computers and servers and typically terminates copper Ethernet, not modular fiber interfaces on switches. A repeater regenerates and amplifies signals to extend cable distances but does not provide fiber termination or media conversion at a switch port.

According to Network+ standards, SFP transceivers are essential for flexible network design, allowing administrators to select appropriate fiber types (single-mode or multi-mode), wavelengths, and distances while remaining compliant with physical layer requirements.

Definition of SD-WAN:

Software-Defined Wide Area Network (SD-WAN) is a technology that simplifies the management and operation of a WAN by decoupling the networking hardware from its control mechanism. It allows for centralized management and enhanced security.

Benefits of SD-WAN:

Reduced Provisioning Time: SD-WAN enables quick and easy deployment of new sites with centralized control and automation.

Security: Incorporates advanced security features such as encryption, secure tunneling, and integrated firewalls.

Scalability: Easily scales to accommodate additional sites and bandwidth requirements.

Comparison with Other Technologies:

VXLAN (Virtual Extensible LAN): Primarily used for network virtualization within data centers.

VPN (Virtual Private Network): Provides secure connections but does not offer the centralized management and provisioning efficiency of SD-WAN.

NFV (Network Functions Virtualization): Virtualizes network services but does not specifically address WAN management and provisioning.

Implementation:

SD-WAN solutions are implemented by deploying edge devices at each site and connecting them to a central controller. This allows for dynamic routing, traffic management, and security policy enforcement.

Least privilege network access is a principle that restricts users ' access rights to only what is necessary for them to perform their job functions. In this case, the accountant ' s access is limited to only the financial department ' s shared folders, ensuring that they cannot access other parts of the network unnecessarily. This reduces the risk of unauthorized access and potential data breaches. References: CompTIA Network+ Exam Objectives and official study guides.

An evil twin attack is when an attacker sets up a rogue access point (AP) with the same SSID as a legitimate one to trick users into connecting. Once users connect, attackers often present fake login pages or capture unencrypted session data to steal login credentials.

A. DNS poisoning manipulates DNS resolution but is not inherent to evil twin.

C. ARP spoofing is a Layer 2 attack involving MAC/IP mapping manipulation.

D. Denial of service can be a side effect but is not the primary objective of evil twin attacks.

The main purpose of an evil twin is credential theft, enabling further unauthorized access to networks or systems.

References (CompTIA Network+ N10-009):

Domain: Network Security — Wireless attacks, rogue APs, evil twins.

EIGRP (Enhanced Interior Gateway Routing Protocol) has a default administrative distance (AD) value of 90 for internal routes. The administrative distance is used to rate the trustworthiness of routing information received from different routing protocols. EIGRP, developed by Cisco, has an AD of 90, which is lower than that of RIP (120) and OSPF (110), making it more preferred if multiple protocols provide a route to the same destination.References: CompTIA Network+ study materials.

A captive portal is a web page that users must view and interact with before being granted access to a network. It is commonly used in guest networks to enforce terms of use agreements. When a user connects to the network, they are redirected to this portal where they must accept the terms of use before proceeding. This method ensures that users are aware of and agree to the network ' s policies, making it the best choice for this scenario. References: CompTIA Network+ Exam Objectives and official study guides.

The tracert (Traceroute) command is used to determine the path packets take from the source to the destination. It helps in identifying routing issues by showing each hop the packets pass through, along with the time taken for each hop. This command can pinpoint where the connection is failing or experiencing delays, making it an essential tool for troubleshooting routing issues.References: CompTIA Network+ study materials and common network troubleshooting commands. ​

Twinaxial (Direct Attach Copper / DAC) cables can plug directly into QSFP ports without needing separate optical transceivers. They are cost-effective for short-distance, high-speed connections (commonly in data centers).

A. Multimode fiber requires SFP/QSFP transceivers to convert electrical signals to optical.

C. RG11 is coaxial cable for broadband/cable TV, not used in QSFP ports.

D. Category 6 is twisted-pair Ethernet cabling, not directly compatible with QSFP ports.

References (CompTIA Network+ N10-009):

Domain: Network Infrastructure — Cable types, QSFP, DAC (Twinaxial), transceiver requirements.

To locate a specific access point (AP), the most reliable identifier to view is the BSSID. In 802.11 networks, the BSSID is the radio interface identifier for the AP (typically the AP radio’s MAC address). Unlike an SSID, which can be shared across many APs in the same wireless network (especially in an enterprise deployment using the same SSID across multiple APs), the BSSID uniquely distinguishes one AP radio from another. This is critical during an 802.11ax (Wi-Fi 6) migration, where multiple APs may broadcast identical SSIDs and operate on the same channels in different areas.

While RSSI is useful for physically walking toward the strongest signal (a technique used in locating RF sources), RSSI alone does not confirm you are tracking the correct AP—only that you are near an RF transmitter. Channel number also does not uniquely identify the AP because multiple APs can share the same channel (and channels may overlap depending on band and width). SSID similarly is not unique. Therefore, viewing the BSSID on the analyzer (or Wi-Fi analyzer mode) allows the administrator to confirm the exact AP being measured and located.

Network segmentation involves dividing a network into smaller segments or subnets. This is particularly important when integrating OT (Operational Technology) devices to ensure that these devices are isolated from other parts of the network. Segmentation helps protect the OT devices from potential threats and minimizes the impact of any security incidents. It also helps manage traffic and improves overall network performance.References: CompTIA Network+ study materials.

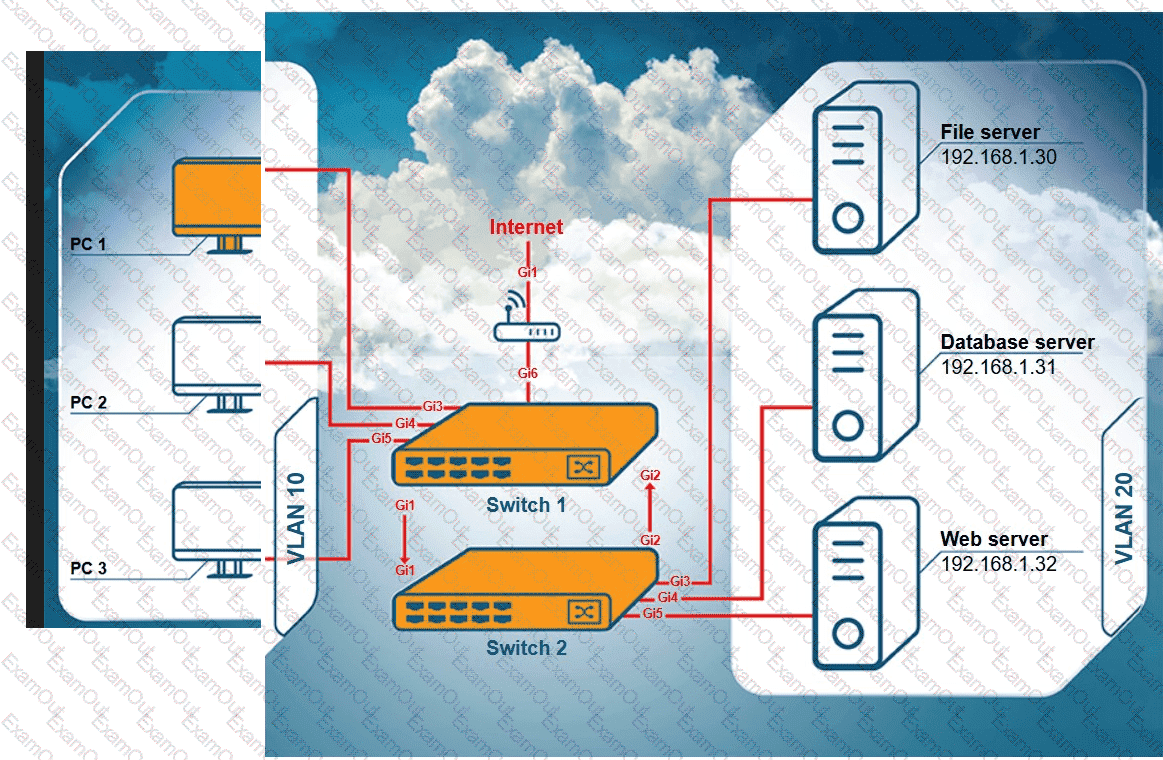

The user’s inability to access the marketing department’s shared drives, despite having internet access, suggests a network segmentation issue. The most likely cause is an incorrect VLAN assignment. The computer is physically located on the accounting department floor, and the switchport is likely configured for the accounting VLAN, not the marketing VLAN. VLANs segment network traffic, and if the computer is in the wrong VLAN, it cannot communicate with the marketing department’s resources.

Why not Mismatched switchport duplex? Duplex mismatches cause performance issues (e.g., packet loss) but not specific access denials to shared drives.

Why not Misconfigured gateway settings? Incorrect gateway settings would prevent internet access, which the user has.

Why not SVI is assigned to the wrong IP address? A Switch Virtual Interface (SVI) with an incorrect IP address affects inter-VLAN routing, but this would likely impact multiple users, not just one.

An API (Application Programming Interface) is the best choice when a development team needs to integrate a device’s reporting data directly into custom software. In Network+ (N10-009) objectives, network operations commonly include device management, monitoring, and automation, and APIs are a key method for programmatic access to operational data (often via REST/HTTPS with structured formats like JSON). This enables the internal support application to pull dashboards, health metrics, events, configuration details, and reporting outputs in a controlled, developer-friendly way.

SNMPv2c is primarily used for network monitoring and polling counters/alerts, but it is less secure (community strings) and is not as flexible for modern application integration as an API. A MIB is not a data-access “feature” by itself; it’s the schema/definitions SNMP uses to describe managed objects. A SIEM is a separate security analytics platform that collects and correlates logs/events—useful for security operations, but not the direct interface a custom support tool would typically call to retrieve device reporting data.

In data centers, hot aisle/cold aisle configurations are used to manage airflow and cooling efficiency. Port-side exhausts should be oriented towards the warm aisle to expel hot air and maintain optimal cooling. The document clarifies:

“Equipment with port-side exhausts should be oriented towards the warm aisle to ensure that hot air is properly directed away from the cold air intake areas. This alignment supports effective cooling in data center environments.”
