A split-tunnel VPN allows some traffic to be routed through the VPN while other traffic goes directly to the internet. This setup offers several advantages, with a primary one being cost-effectiveness due to cloud-based traffic not consuming company bandwidth.

Bandwidth Utilization: Split-tunnel VPNs reduce the amount of traffic passing through the company's network, freeing up bandwidth for other uses.

Performance: By allowing internet-bound traffic to bypass the VPN, it can reduce latency and improve the performance for users accessing cloud services directly.

Cost Savings: Reduced load on the company's VPN infrastructure can lead to lower costs in terms of both hardware and bandwidth.

Network References:

CompTIA Network+ N10-007 Official Certification Guide: Covers VPN types, including split-tunnel configurations and their advantages.

Cisco Networking Academy: Discusses VPN technologies and the benefits of split-tunneling.

Network+ Certification All-in-One Exam Guide: Provides detailed information on VPN setups, including the cost-effectiveness of split-tunnel VPNs.

By allowing cloud-based traffic to flow outside the company’s network, a split-tunnel VPN optimizes resource usage and enhances the overall network performance without incurring extra costs for bandwidth.

(Note: Ips will be change on each simulation task, so we have given example answer for the understanding)

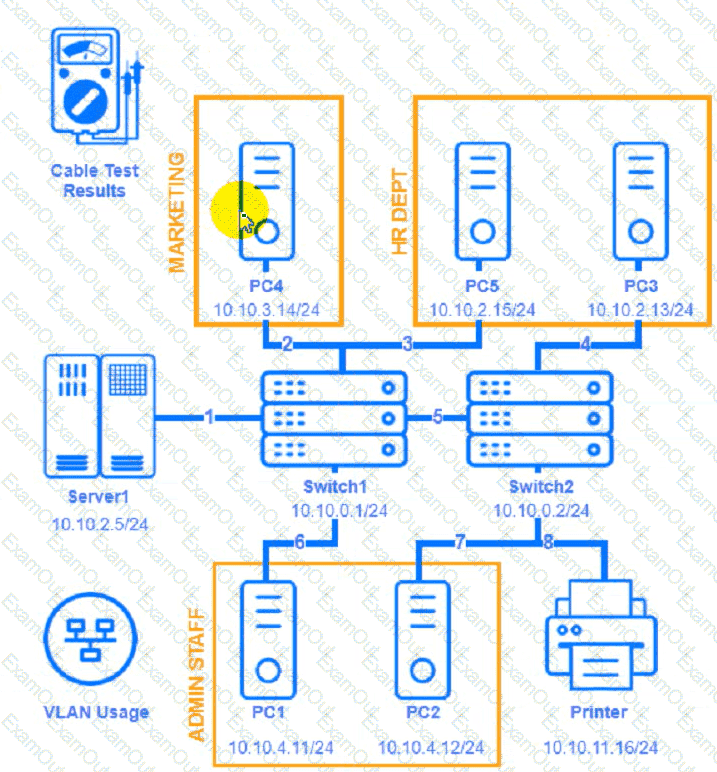

To troubleshoot all the network components and review the cable test results, you can use the following steps:

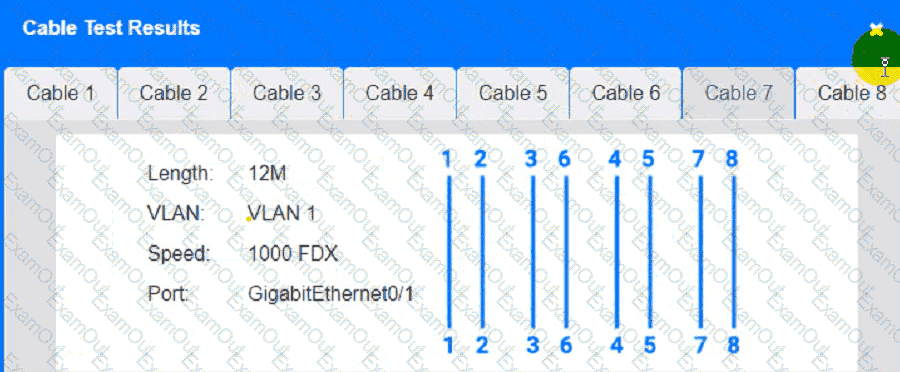

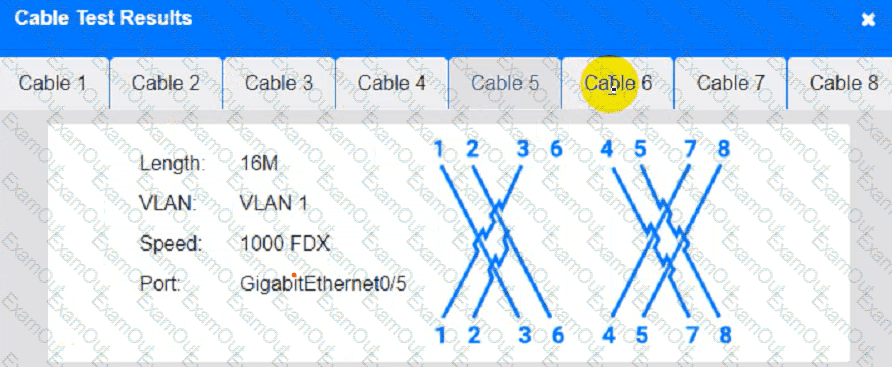

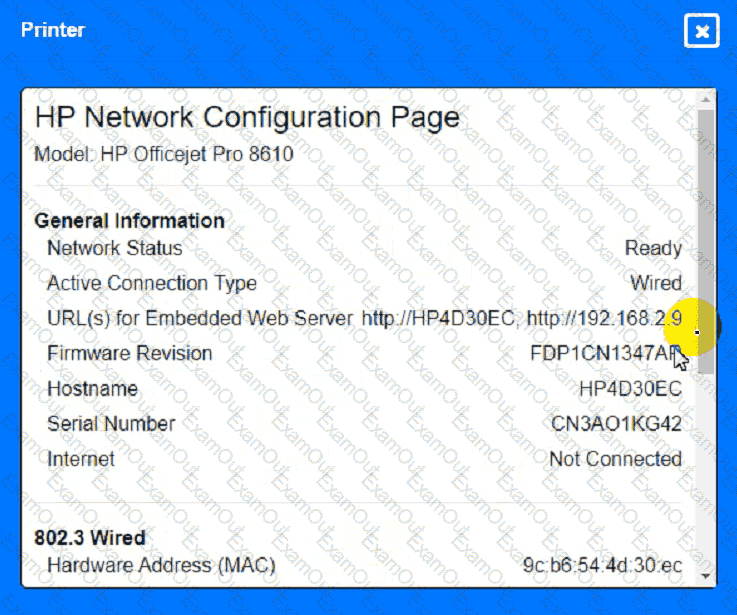

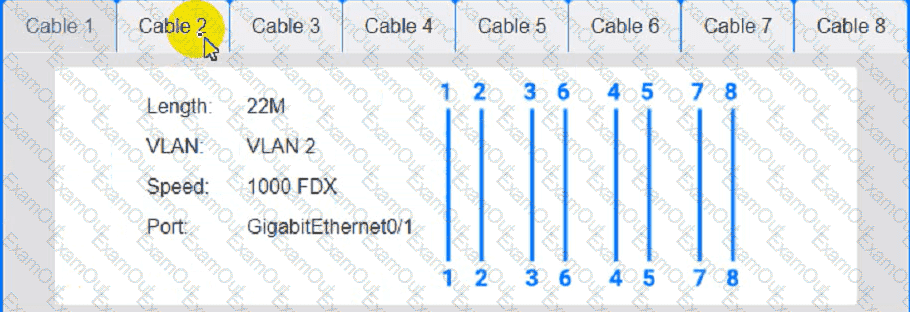

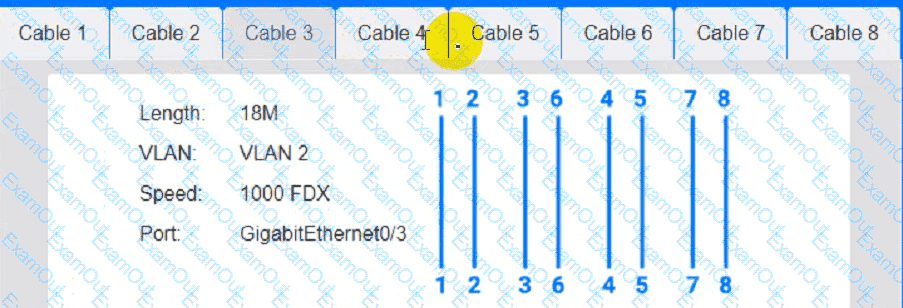

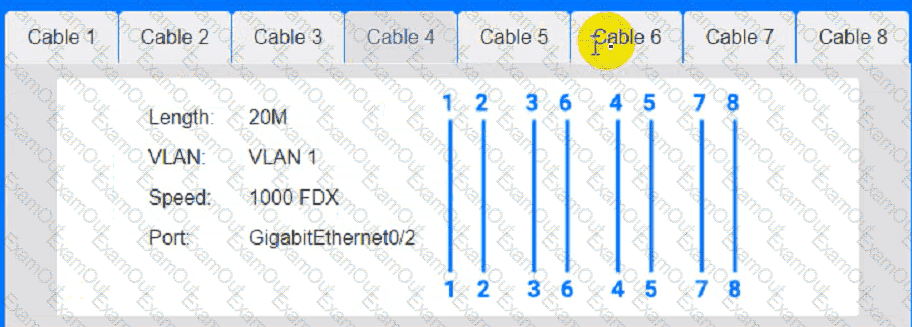

Click on each device and cable to open its information window.

Review the information and identify any problems or errors that may affect the network connectivity or performance.

Diagnose the appropriate component(s) by identifying any components with a problem and recommend a solution to correct each problem.

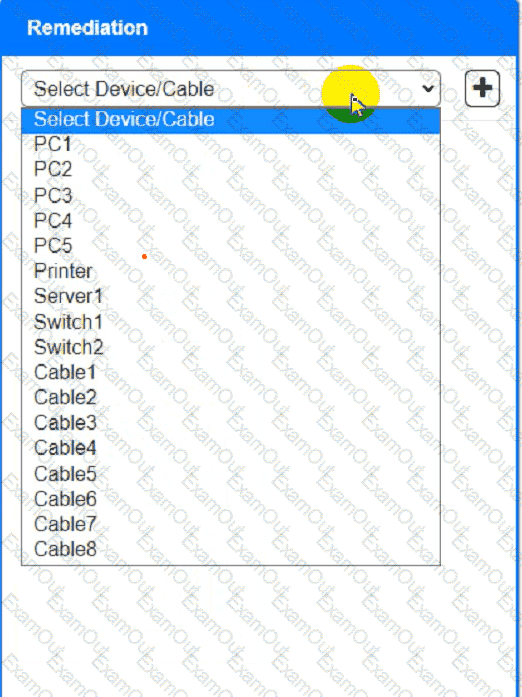

Fill in the remediation form using the drop-down menus provided.

Here is an example of how to fill in the remediation form for PC1:

The component with a problem is PC1.

The problem is Incorrect IP address.

The solution is Change the IP address to 192.168.1.10.

You can use the same steps to fill in the remediation form for other components.

To enter commands in each device, you can use the following steps:

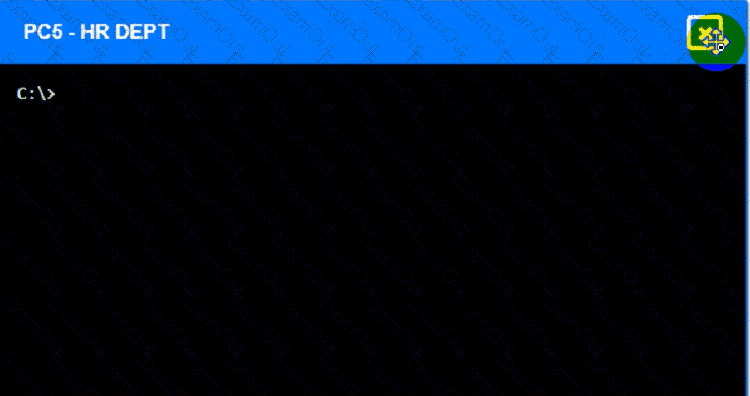

Click on the device to open its terminal window.

Enter the command ipconfig /all to display the IP configuration of the device, including its IP address, subnet mask, default gateway, and DNS servers.

Enter the command ping  to test the connectivity and reachability to another device on the network by sending and receiving echo packets. Replace with the IP address of the destination device, such as 192.168.1.1 for Core Switch 1.

Enter the command tracert  to trace the route and measure the latency of packets from the device to another device on the network by sending and receiving packets with increasing TTL values. Replace with the IP address of the destination device, such as 192.168.1.1 for Core Switch 1.

Here is an example of how to enter commands in PC1:

Click on PC1 to open its terminal window.

Enter the command ipconfig /all to display the IP configuration of PC1. You should see that PC1 has an incorrect IP address of 192.168.2.10, which belongs to VLAN 2 instead of VLAN 1.

Enter the command ping 192.168.1.1 to test the connectivity to Core Switch 1. You should see that PC1 is unable to ping Core Switch 1 because they are on different subnets.

Enter the command tracert 192.168.1.1 to trace the route to Core Switch 1. You should see that PC1 is unable to reach Core Switch 1 because there is no route between them.

You can use the same steps to enter commands in other devices, such as PC3, PC4, PC5, and Server 1.

An on-path attack (formerly known as a man-in-the-middle (MITM) attack) involves intercepting and potentially altering communications between two parties without their knowledge. This can be done via techniques like ARP poisoning, rogue access points, or SSL stripping.

Breakdown of Options:

A. Self-signed certificate – These are untrusted SSL certificates but do not intercept traffic.

B. VLAN hopping – VLAN hopping exploits VLAN misconfigurations but does not necessarily intercept communications.

C. On-path attack – Correct answer. This intercepts and modifies traffic between two endpoints.

D. Phishing – Phishing tricks users into revealing credentials rather than intercepting network traffic.

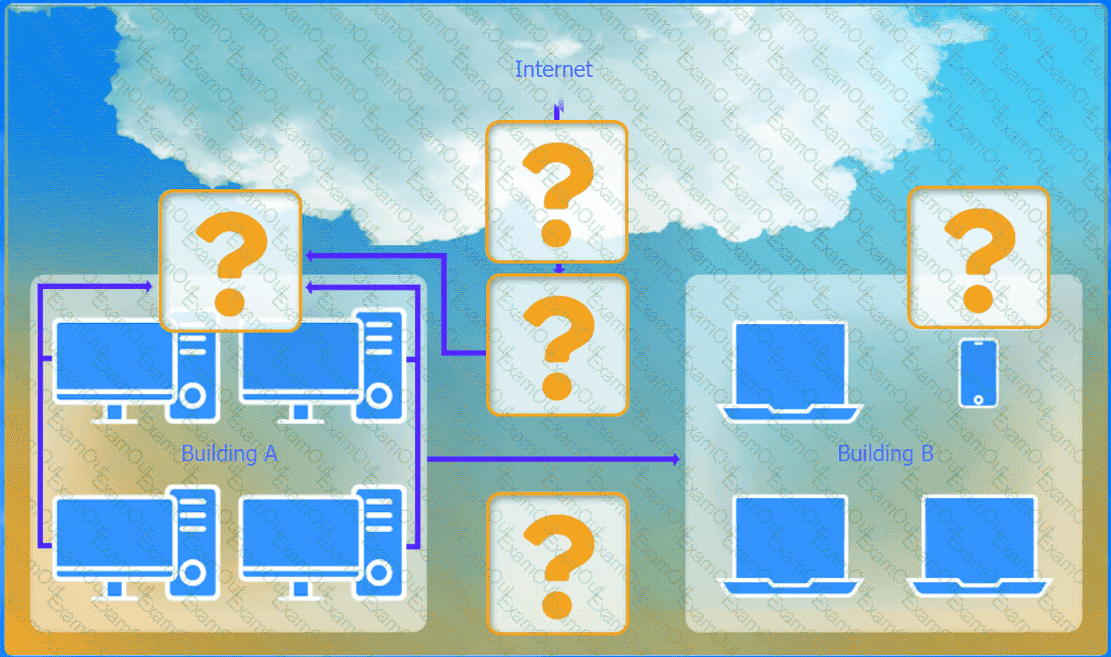

Devices in both buildings should be able to access the Internet.

Security insists that all Internet traffic be inspected before entering the network.

Desktops should not see traffic destined for other devices.

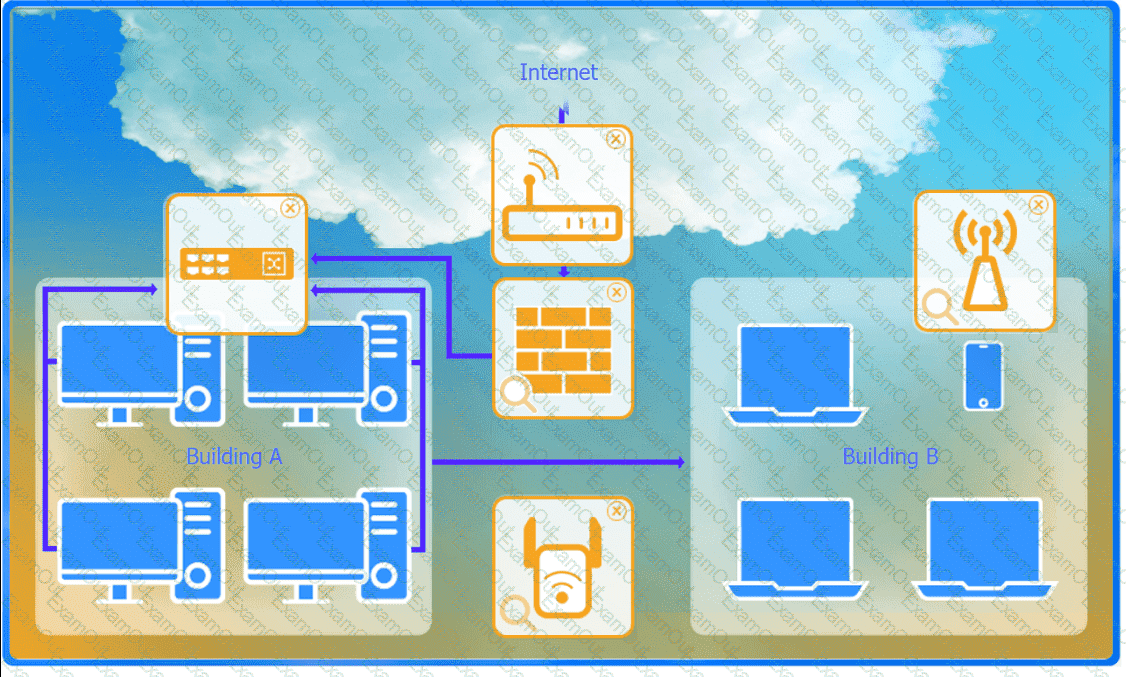

Here is the corrected layout with explanation:

Building A:

Switch: Correctly placed to connect all desktops.

Firewall: Correctly placed to inspect all incoming and outgoing traffic.

Building B:

Switch: Not needed. Instead, place a Wireless Access Point (WAP) to provide wireless connectivity for laptops and mobile devices.

Between Buildings:

Wireless Range Extender: Correctly placed to provide connectivity between the buildings wirelessly.

Connection to the Internet:

Router: Correctly placed to connect to the Internet and route traffic between the buildings and the Internet.

Firewall: The firewall should be placed between the router and the internal network to inspect all traffic before it enters the network.

Corrected Setup:

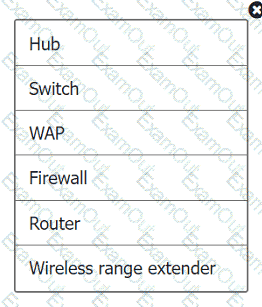

Top-left (Building A): Switch

Bottom-left (Building A): Firewall (inspect traffic before it enters the network)

Top-middle (Internet connection): Router

Bottom-middle (between buildings): Wireless Range Extender

Top-right (Building B): Wireless Access Point (WAP)

In this corrected setup, the WAP in Building B will connect wirelessly to the Wireless Range Extender, which is connected to the Router. The Router is connected to the Firewall to ensure all traffic is inspected before it enters the network.

Configuration for Wireless Range Extender:

SSID: CORP

Security Settings: WPA2 or WPA2 - Enterprise

Key or Passphrase: [Enter a strong passphrase]

Mode: [Set based on your network plan]

Channel: [Set based on your network plan]

Speed: Auto

Duplex: Auto

With these settings, both buildings will have secure access to the Internet, and all traffic will be inspected by the firewall before entering the network. Desktops and other devices will not see traffic intended for others, maintaining the required security and privacy.

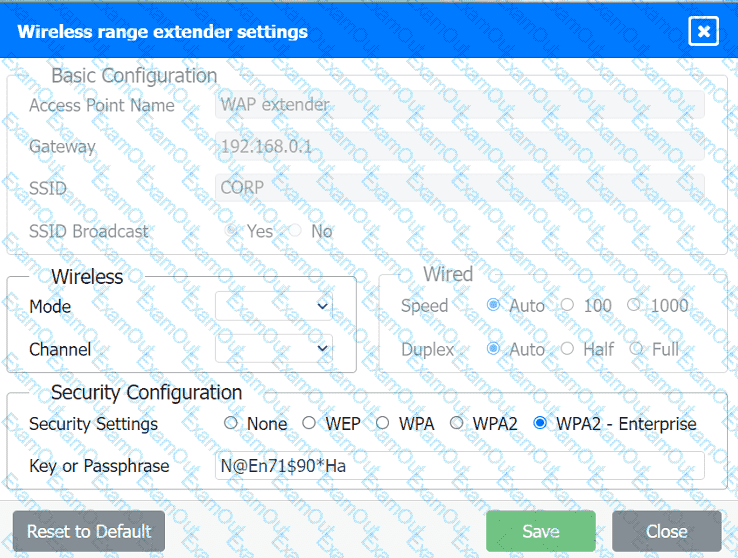

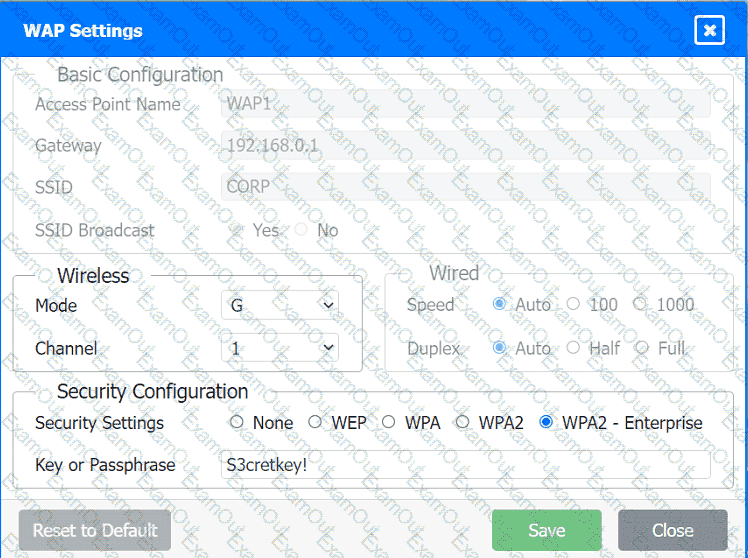

To configure the wireless range extender for security, follow these steps:

SSID (Service Set Identifier):

Ensure the SSID is set to "CORP" as shown in the exhibit.

Security Settings:

WPA2 or WPA2 - Enterprise: Choose one of these options for stronger security. WPA2-Enterprise provides more robust security with centralized authentication, which is ideal for a corporate environment.

Key or Passphrase:

If you select WPA2, enter a strong passphrase in the "Key or Passphrase" field.

If you select WPA2 - Enterprise, you will need to configure additional settings for authentication servers, such as RADIUS, which is not shown in the exhibit.

Wireless Mode and Channel:

Set the appropriate mode and channel based on your network design and the environment to avoid interference. These settings are not specified in the exhibit, so set them according to your network plan.

Wired Speed and Duplex:

Set the speed to "Auto" unless you have specific requirements for 100 or 1000 Mbps.

Set the duplex to "Auto" unless you need to specify half or full duplex based on your network equipment.

Save Configuration:

After making the necessary changes, click the "Save" button to apply the settings.

Here is how the configuration should look after adjustments:

SSID: CORP

Security Settings: WPA2 or WPA2 - Enterprise

Key or Passphrase: [Enter a strong passphrase]

Mode: [Set based on your network plan]

Channel: [Set based on your network plan]

Speed: Auto

Duplex: Auto

Once these settings are configured, your wireless range extender will provide secure connectivity for devices in both buildings.

Firewall setting to to ensure complete compliance with the requirements and best security practices, consider the following adjustments and additions:

DNS Rule: This rule allows DNS traffic from the internal network to any destination, which is fine.

HTTPS Outbound: This rule allows HTTPS traffic from the internal network (assuming 192.169.0.1/24 is a typo and should be 192.168.0.1/24) to any destination, which is also good for secure web browsing.

Management: This rule allows SSH access to the firewall for management purposes, which is necessary for administrative tasks.

HTTPS Inbound: This rule denies inbound HTTPS traffic to the internal network, which is good unless you have a web server that needs to be accessible from the internet.

HTTP Inbound: This rule denies inbound HTTP traffic to the internal network, which is correct for security purposes.

Suggested Additional Settings:

Permit General Outbound Traffic: Allow general outbound traffic for web access, email, etc.

Block All Other Traffic: Ensure that all other traffic is blocked to prevent unauthorized access.

Firewall Configuration Adjustments:

Correct the Network Typo:

Ensure that the subnet 192.169.0.1/24 is corrected to 192.168.0.1/24.

Permit General Outbound Traffic:

Rule Name: General Outbound

Source: 192.168.0.1/24

Destination: ANY

Service: ANY

Action: PERMIT

Deny All Other Traffic:

Rule Name: Block All

Source: ANY

Destination: ANY

Service: ANY

Action: DENY

Here is how your updated firewall settings should look:

Rule Name

Source

Destination

Service

Action

DNS Rule

192.168.0.1/24

ANY

DNS

PERMIT

HTTPS Outbound

192.168.0.1/24

ANY

HTTPS

PERMIT

Management

ANY

192.168.0.1/24

SSH

PERMIT

HTTPS Inbound

ANY

192.168.0.1/24

HTTPS

DENY

HTTP Inbound

ANY

192.168.0.1/24

HTTP

DENY

General Outbound

192.168.0.1/24

ANY

ANY

PERMIT

Block All

ANY

ANY

ANY

DENY

These settings ensure that:

Internal devices can access DNS and HTTPS services externally.

Management access via SSH is permitted.

Inbound HTTP and HTTPS traffic is denied unless otherwise specified.

General outbound traffic is allowed.

All other traffic is blocked by default, ensuring a secure environment.

Make sure to save the settings after making these adjustments.

Understanding Rack Size Determination:

The size of a rack for installation is determined by the dimensions of the equipment to be housed in it, primarily focusing on the depth and height of the devices.

Switch Depth:

Depth of Equipment: The depth of network switches and other rack-mounted devices directly influences the depth of the rack. If the equipment is deeper, a deeper rack is required to accommodate it.

Industry Standards: Most racks come in standard depths, but it is essential to match the depth of the rack to the deepest piece of equipment to ensure proper fit and airflow.

Server Height:

Height of Equipment: The height of servers and other devices is measured in rack units (U), where 1U equals 1.75 inches. The total height of all equipment determines the overall height requirement of the rack.

Rack Units: A rack's height is typically described in terms of the number of rack units it can accommodate, such as 42U, 48U, etc.

Why Other Options are Less Relevant:

KVM Size: While important for management, KVM (Keyboard, Video, Mouse) switches do not typically determine rack size.

Hard Drive Size: Individual hard drives are installed within servers or storage devices, not directly influencing rack dimensions.

Cooling Fan Speed: Fan speed affects cooling but not the physical size of the rack.

Outlet Amperage: Power requirements do not determine rack dimensions but rather the electrical infrastructure supporting the rack.
