What is the advantage of using multicast instead of unicast to transport the camera video stream in the Cisco Video Surveillance solution?

A.

When the video stream is viewed on multiple operator workstations, the network is taxed only with single multicast stream.

B.

Multicast configuration on switching and routing infrastructure is less complex than the configuration for unicast traffic.

C.

You can configure one camera to stream to two media servers at the same time, for data redundancy purposes.

D.

Multicast is not supported in the Cisco Video Surveillance solution.

Per Cisco best practices, how should you bulk upgrade the firmware of the multiple Cisco IP cameras that are deployed in a Cisco VSM system?

A.

via the web interface of each camera only

B.

via Cisco VSOM - System Settings - System

C.

via Cisco VSMC - Maintenance - Server Upgrade

D.

via Cisco VSMC - Maintenance - Manage Drivers

Which four camera configurations are valid? (Choose four.)

A.

CIVS-IPC-3530:1280x720 at 30 fps

B.

CIVS-IPC-3530:1280x800 at 30 fps

C.

CIVS-IPC-3530:1920x1080 at 5 fps

D.

CIVS-IPC-6030:1280x720 at 30 fps

E.

CIVS-IPC-6030:1280x800 at 30 fps

F.

CIVS-IPC-6030:1920x1080 at 15 fps

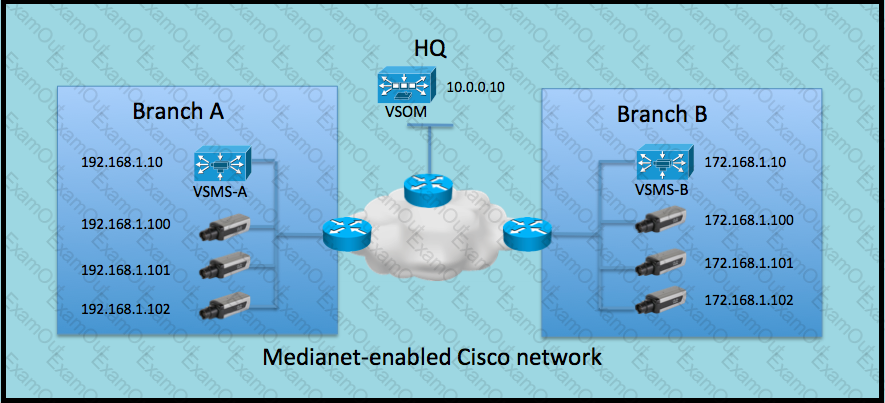

Refer to the exhibit.

Cisco VSOM, Cisco VSMS servers, and IP cameras in the shown Cisco VSM deployment are utilizing default NTP behavior to ensure that time settings are synchronized across all devices. What is the IP address of the pointed-to NTP server for the device with IP address 172.168.1.101?

A.

10.0.0.10

B.

172.168.1.10

C.

172.168.1.101

D.

192.168.1.101

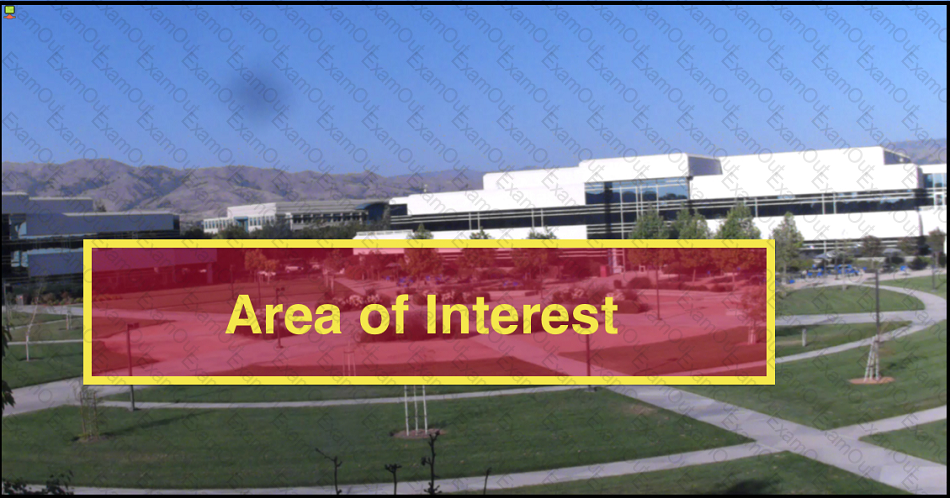

Refer to the exhibit.

You have installed a Cisco 4500E IP camera to monitor the area of interest near the center of an outdoor courtyard area 24 hours a day. Which three actions help to focus in on the area of interest and improve overall image quality? (Choose three.)

A.

Use a wider angle lens to increase field of view.

B.

Enable Day/Night mode on the camera.

C.

Reposition the camera to minimize exposure of the sky.

D.

Avoid placing the camera near trees and other objects that could obstruct the view.

E.

Enable PTZ functionality to focus on the area of interest.

Which four Cisco IP camera families natively support medianet? (Choose four.)

A.

Cisco 2900 Series IP Cameras

B.

Cisco 3000 Series IP Cameras

C.

Cisco 4000 Series IP Cameras

D.

Cisco 5000 Series IP Cameras

E.

Cisco 6000 Series IP Cameras

F.

Cisco 7000 Series IP Cameras

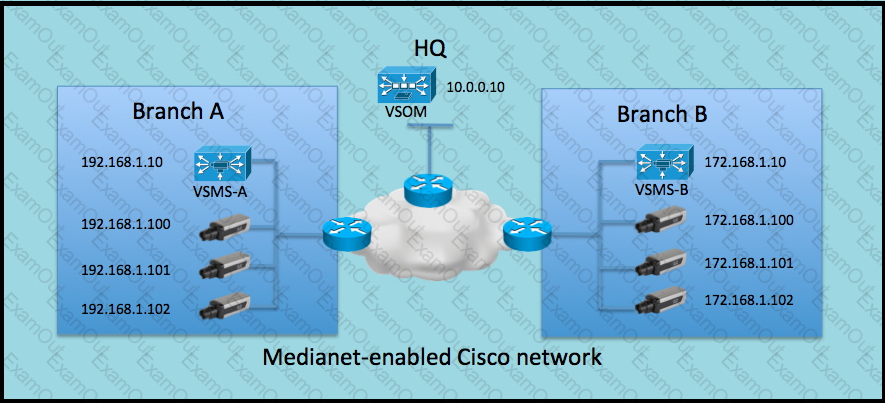

Refer to the exhibit.

You are the system administrator for a newly deployed Cisco Video Surveillance solution. Branch A cameras are streaming to Cisco VSMS-A and Branch B cameras are streaming to Cisco VSMS-B. Cisco VSOM is reporting a "Timed out waiting for server response" error when trying to load video from camera 192.168.1.102, but network pings are being responded to from your workstation at HQ. All other cameras from the 192.168.1.0 network are working as expected. Which three options could have caused the error message? (Choose three.)

A.

There is a network configuration issue with the switch and switch port that camera 192.168.1.102 is connected to.

B.

Media server 192.168.1.10 is down and not responding.

C.

The Branch A and HQ routers are updating their routing tables and they have not yet converged.

D.

There is an IP address conflict on the 192.168.1.0 network.

E.

The password on the camera was changed.

Choose the two operating system and browser combinations below that are supported for viewing video by Cisco VSM 6.3.2. (Choose two.)

A.

Windows XP SP3 and Internet Explorer 8

B.

Mac OS X 10.6.x and Safari 5.x

C.

SUSE Linux 10 SP1 and Firefox 6 or higher

D.

Windows 7 (64-bit) and Firefox 6 or higher

E.

Windows 7 (64-bit) and Internet Explorer 8

Which statement about virtualization support for Cisco VSM version 7.0.0 is true?

A.

Cisco VSM 7 can be installed on any hypervisor, such as VMware vSphere, Microsoft Hyper-V, and Citrix XenServer

B.

Cisco VSM 7 OVA can be deployed and ready to use right away, without additional configuration steps.

C.

When using internal storage of Cisco UCS C-Series server for storing media repositories, external storage (such as SAN arrays) cannot be used.

D.

Each Cisco UCS B- or C-Series server can run several instances of Cisco VSM VM at the same time, as long as the resources of the server are sufficient.

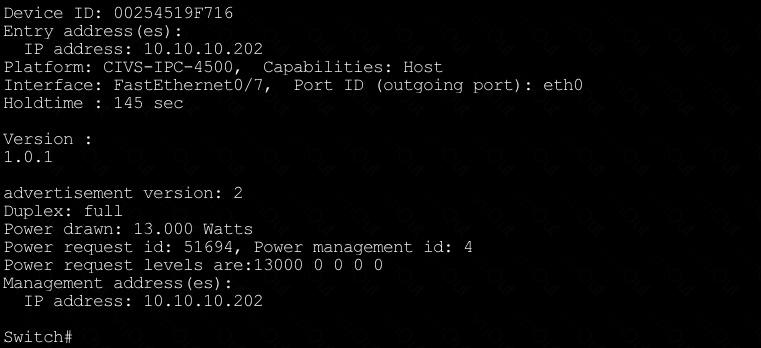

Refer to the exhibit.

Which Cisco IOS switch command will provide information such as the IP camera model and firmware, connected switch port, IP address, and PoE power consumption?

A.

switch# show power inline

B.

switch# show ip cameras

C.

switch# show interface DeviceID

D.

switch# show cdp neighbors detail
