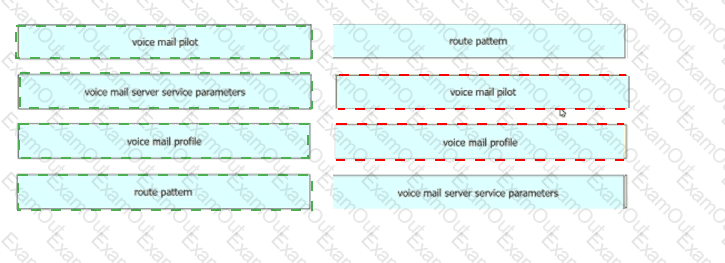

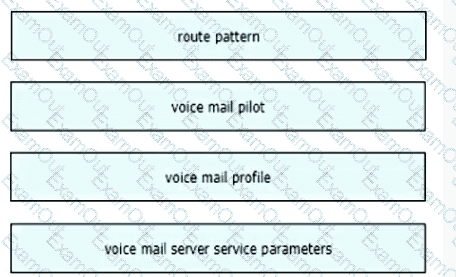

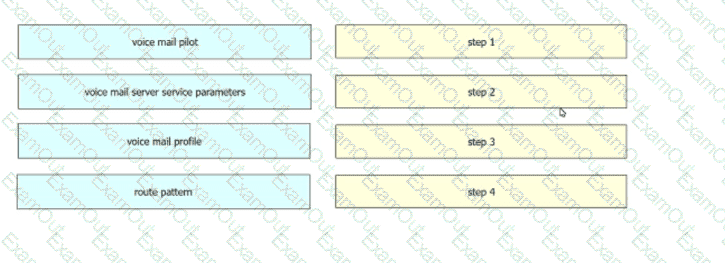

An engineer must configure a SIP integration between cisco UCM and cisco Unity Connection. These components are configured already:

Drag and drop the components from the left into the order they must be configured on the right.

A customer is deploying a SIP IOS gateway for a customer who requires that in-band DTMF relay is first priority and out-of-band DTMF relay is second priority. Which 10$ entry sets the required priority?

A.

dtmf-relay cisco-rtp

B.

dtmf-relay sip-kpml cisco-rtp

C.

sip-notify dtmf-relay rtp-nte

D.

dtmf-relay rtp-nte sip-notify

The security department will audit an IT department to ensure that the proper guidelines are being followed. The reports of the call detail records show unauthorized access to PSTN. Which two actions should an administrator check to prevent the unauthorized use of the telephony system? (Choose two.)

A.

Ensure that ad hoc conference calls are dropped if an external user is add.

B.

Call forward settings (ALL/Busy/No Answer) are restricted to internal extensions in the network

C.

Add an additional firewall between the Cisco UCM server and the Expressway Core server.

D.

For extension mobility, logged-out CSS is restricted to internal extensions and emergencies.

E.

Forced authorization code is used to recognize a dialing extension and authorize an international call.

Which two parameters influence the total number of supported conference participants on a Cisco IOS XE router that has DSP modules? (Choose two.)

A.

voice codec

B.

session capacity of the PVDM module

C.

number of protocol data units

D.

software version Of the router

E.

license types

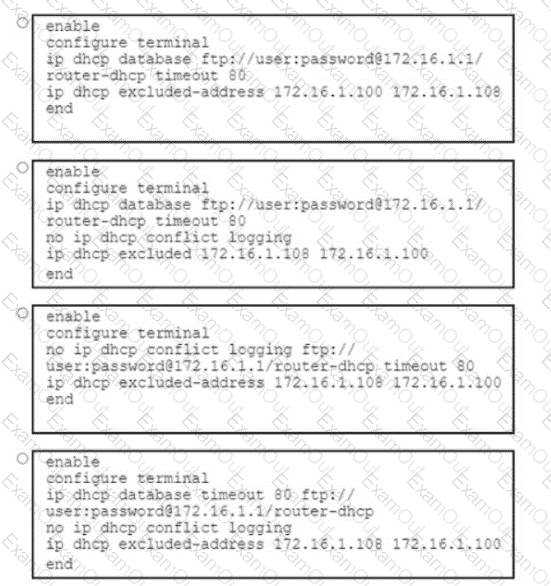

An engineer must configure a DHCP server to save automatic bindings on a remote host that has an IP address of 172.16.1.1. The IP address range of 172.16.1.100 to 172.16.1.108 must be blocked from the DHCP server. Which set of commands must the engineer run?

A.

Option A

B.

Option B

C.

Option C

D.

Option D

What is a capability of Cisco Expressway?

A.

It functions as an analog telephony adapter.

B.

It has remote endpoint enrollment with Certificate Authority Proxy Function.

C.

It gives directory access for remote users via Cisco Directory Integration.

D.

It provides access to on-premises Cisco Unified Communications infrastructure for remote endpoints.

A network engineer at Cisco.com has 30 video endpoints registered to Cisco UCM 12.5.x. Which type of pattern must the engineer create to allow the video endpoints to dial meet.cisco.com?

A.

Translation pattern with the pattern: meet.cisco.com, choose the correct partition and route list.

B.

Route pattern with the pattern: meet.cisco.com, choose the correct partition and route list.

C.

SIP route pattern with the pattern: meet.cisco.com, and choose the correct partition and route list.

D.

Route group with the pattern: meet.cisco.com, choose the correct partition and route list.

According to the QoS Baseline Model, drag and drop the applications from the left onto the Per-Hop Behavior values on the right.

Which action must an administrator take to provide a method that plays prerecorded messages when setting up a voicemail server in a Cisco collaboration on-premises system?

A.

Create a recording that is applied to a service voicemailbox in Cisco UCM.

B.

Configure a directory handler to respond to the calls in Cisco UCM.

C.

Create a call handler template to apply to a call handler in Cisco Unity Connection.

D.

Configure a telephony service in Cisco Unity Connection to play prerecorded messages applying this service to a number.

Which call flow matches traffic from a Mobile and Remote Access registered endpoint to central call control?

A.

Endpoint>Expressway-C>Expressway-E>Cisco UCM

B.

Endpoint>Expressway-E>Expressway-C> Cisco UCM

C.

Endpoint>Expressway-E> Cisco UCM

D.

Endpoint>Expressway-C> Cisco UCM
