Free Practice Questions for Cisco 350-501 Exam

 The Network Services Orchestrator (NSO) is designed to allow service providers to automate network operations efficiently. It provides a single, well-defined API that enables integration across various network environments. NSO’s capabilities include zero-touch telemetry, machine learning intuition, open APIs, and automated actions, which facilitate a simpler and more efficient network operation experience. This makes it an ideal choice for service providers looking to plan, optimize, and achieve closed-loop operations within their networks.

References := The information is based on the Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) training and certification resources, which offer a deep dive into service provider technologies, including core architecture, services, networking, automation, quality of services, security, and network assurance123.

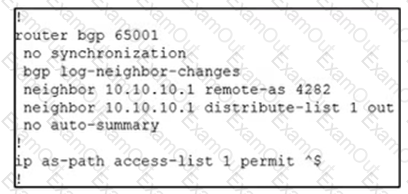

The configuration snippet shows a BGP router with AS number 65001. It has a neighbor at IP address 10.10.10.1 with remote AS number 4282, and there is an outbound distribute-list applied to this neighbor relationship (distribute-list 1 out).

The distribute list refers to access list 1, which permits any route with an AS path that starts with the local ASN (permit ^$). This means that only local routes will be advertised to the neighbor at IP address 10.10.10.1; routes from other Autonomous Systems (ASNs) will not be advertised because they would have an AS path starting with another ASN.

References: Implementing and Operating Cisco Service Provider Network Core Technologies source documents or study guide.

The configuration shown in the exhibit is used to disable IP directed-broadcasts on a specific interface of a network device. This is typically done to mitigate smurf attacks, which involve sending a large amount of ICMP echo (ping) traffic to IP broadcast addresses, all having a spoofed source address of the victim’s IP. By disabling IP directed-broadcasts, the network device will not forward packets that are sent to broadcast addresses, thus mitigating this type of DDoS attack. References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) - Module on Security in the Service Provider Network

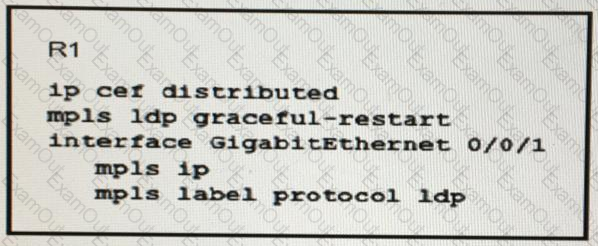

 The configuration in the exhibit shows that R1 is configured with “mpls ldp graceful-restart”, which enables LDP Graceful Restart on the router. This means that R1 can support a graceful restart operation on the peer, even if graceful restart is disabled on the peer. This feature allows LDP to recover from failures without affecting the forwarding plane, ensuring network stability and minimal packet loss during failovers.

References: Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) - Cisco SPCOR Training & Certification

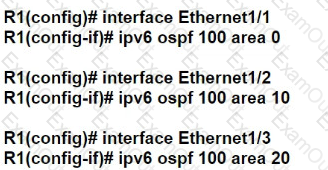

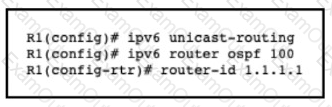

OSPFv3 is used for routing IPv6 prefixes and requires that each interface intended to participate in OSPFv3 has the protocol enabled. This involves specifying the OSPF process ID and the area ID that the interface belongs to. The process ID links the interface to a specific OSPFv3 process running on the router, and the area ID determines the area within the OSPF topology that the interface is part of. Without this configuration, the interfaces will not actively participate in OSPFv3 route advertisement or neighbor relationships12.

References :=

Implementing and Operating Cisco Service Provider Network Core Technologies (SPCOR) course materials3.

Cisco OSPFv3 configuration guides and examples

In an EVPN operation, the PE (Provider Edge) router determines and advertises Ethernet segment reachability by discovering remote ESIs (Ethernet Segment Identifiers) and determining their redundancy mode (all-active or single-active). This is crucial in multihoming scenarios where the PE needs to auto-discover remote PEs and the corresponding redundancy mode. In case of segment failures, PEs withdraw the routes used at this stage to trigger fast convergence by signaling a MAC mass withdrawal on remote PEs3.

References:

Cisco, “EVPN Configuration Guide for Cisco 8000 Series Routers, IOS XR Release 7.11.x”

Huawei, “Overview of EVPN - New IP Technologies”
