An engineer must configure Mobile and Remote Access. One of the requirements is to expect Cisco Jabber users to enter username@cisco.com as the login userid. Which DNS record must the engineer modify to start implementing this requirement?

A.

_cuplogin._tcp.cisco.com

B _collab-edge._tls.cisco.com

B.

_cisco-uds._tls.cisco.com

C.

_cisco-uds._tcp.cisco.com

An organization has a domain name of example.com. Which two SRV records are valid for a SIP and H 323 communication? (Choose two)

A.

_collab-edge._tls.example.com

B.

_sips_tcp.example.com

C.

_h323ls_tcp.example.com

D.

_h323ls._udp.example.com

E.

_sips._udp.example.com

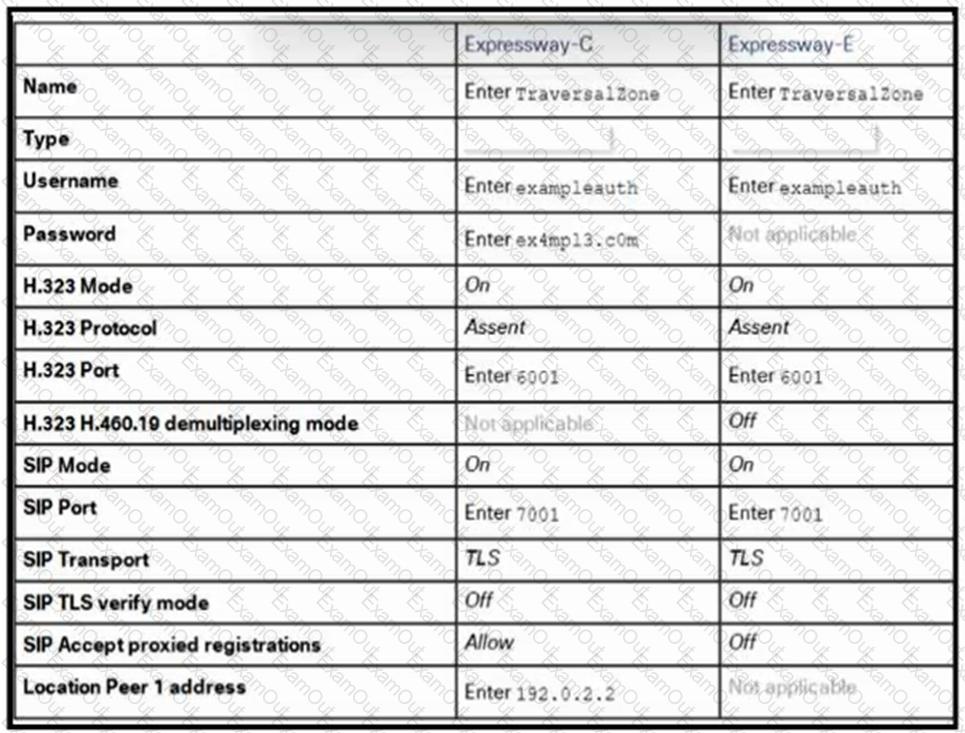

Refer to the exhibit. What are “Type” field values for this Expressway servers zone configuration?

A.

Expressway-C "DNS", Expressway-E Traversal server'

B.

Expressway-C Traversal server', Expressway-E Traversal client*

C.

Expressway-C "Neighbor'. Expressway-E 'Neighbor'

D.

Expressway-C Traversal client", Expressway-E Traversal server'

An engineer must configure the zone to connect to an Expressway-E using Single NIC with NAT. The internal IP address is 192.168.10.63, and the NAT address is 203.0.113.5. What must the engineer configure on the Expressway-C to meet this requirement?

A.

traversal zone with the peer address 192.168.10.63

B.

neighbor zone with the peer address 192.168.10.63

C.

traversal zone with the peer address of 203.0.113.5

D.

neighbor zone with the peer address of 203.0.113.5

Which step is required when configuring Cisco Webex Hybrid Message Service?

A.

Add Expressway-C and Cisco UCM to the Cisco Webex Cloud.

B.

Register Expressway-C Connector Hosts to the Cisco Webex Cloud.

C.

Add Cisco Unity Connection to Expressway-E.

D.

Register Expressway-C to Cisco UCM.

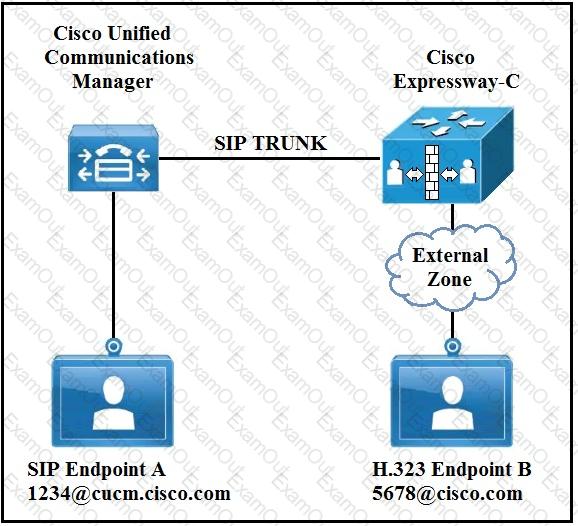

Refer to the exhibit.

In an environment SIP devices are registered to CUCM and H.323 devices to VCS. What would be required to enable these calls to setup correctly?

A.

Create a presearch transform.

B.

Change the domain of SIP endpoint A to cisco.com.

C.

Disable SIP in the external zone.

D.

Change the interworking mode to On.

How is the communication routed in a Hybrid deployment so that people on Cisco Cloud-Based IM are able to communicate with Cisco Jabber users in the on-premises environment?

A.

The Expressway-C enables a connection directly with the Cisco Webex Cloud to enable the hybrid service and allow the two services to communicate.

B.

The Expressway-E located in the DMZ establishes a connection with the Cisco Webex Cloud to enable the hybrid service and allow the two services to communicate.

C.

The Cisco Unified IM and Presence server establishes a connection using the outgoing path through the Cisco Expressways that terminates in the Cisco Webex Cloud to create the hybrid environment that links the two services together.

D.

The Cisco UC server establishes a connection using the outgoing path through the Cisco Expressways that terminates in the Cisco Webex Cloud to create the hybrid environment that links the two services together.

Which step is required when configuring cloud and hybrid deployments for Cisco Jabber?

A.

Add the Jabber user to Cisco Unity Connection.

B.

Add the Jabber user to Expressway-E.

C.

Add the Jabber user to Expressway-C.

D.

Add Jabber Users to the Cisco Webex Administration Tool.

Which step is taken when configuring a Cisco Expressway solution?

A.

Configure the Expressway-E by using a non-traversal server zone.

B.

Enable static NAT on the Expressway-E only.

C.

Disable H.323 mode on the Expressway-E.

D.

Enable H.323 H.460.19 demultiplexing mode on the Expressway-C.

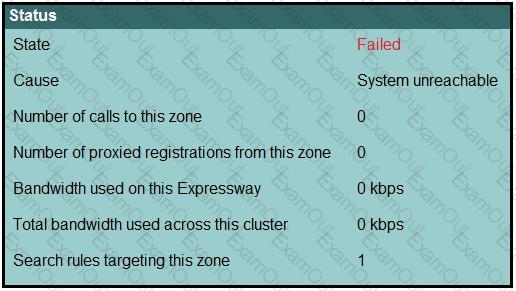

Refer to the exhibit. A company has a Cisco collaboration infrastructure that contains Cisco UCM and Cisco Expressway-C and Expressway-E for Mobile and Remote Access. When the engineer sets up the environment to support B2B calling, they discover that the zone stale between Expressway-C and Cisco UCM failed. What must the STEP Trunk Security Profile setting be changed to in Cisco UCM to resolve the issue?

A.

UDP for the outgoing transport type

B.

value other than the default listening port for outgoing SIP connections on Cisco UCM

C.

value other than the default listening port for incoming SIP connections on Cisco UCM

D.

TCP for the incoming transport type
