Refer to the exhibit.

A collaboration engineer has integrated Cisco Unity Express with Cisco Unified Communications Manager Express and is experimenting with the MWI feature. With the current configuration, no MWI change occurs when leaving new messages or after playing new messages. Which two changes are needed to correct the configuration? (Choose two.)

A.

ccn subsystem sip

mwi sip outcall

B.

ccn subsystem sip

mwi envelop-info

C.

sip-ua

no mwi-server

mwi-server ipv4:172.16.1.254 expires 3600 port 5060 transport udp

D.

ccn subsystem sip

mwi sub-notify

E.

sip-ua

no mwi-server

mwi-server ipv4:172.16.1.253 expires 3600 port 5060 transport tcp notify

F.

sip-ua

no mwi-server

mwi-server ipv4:172.16.1.253 expires 3600 port 5060 transport udp unsolicited

Users report issues while logging in to their voicemail using the Voicemail tab in their Cisco Jabber clients. The issue occurs after users provide valid Cisco Unified Communications credentials, but they receive a failure message. What is the cause of this issue?

A.

A proper service profile is not configured on Cisco Unified Communications Manager.

B.

The voicemail users are not configured in the Cisco Unity Connection server.

C.

The web application voicemail password is set “User Must Change at Next Sign-in”.

D.

The voicemail password is not set for all users.

Which HTTP response code does Cisco UCM use to redirect a client to the identity provider for authentication?

A.

300

B.

301

C.

302

D.

304

An organization wants to run on-premises instant messaging (IM), and resilience is important because this is a business-critical application for them. The organization has three locations with Cisco UCM clusters in each location. Which additional configuration is needed to meet these requirements?

A.

Expand the Cisco UCM cluster with Cisco IM and Presence nodes in each location

B.

Configure IMP functionality in Cisco UCM with failover. Cisco IM and Presence servers are not needed from systems release 14 X and newer.

C.

Deploy a central Cisco IM and Presence server at one central location because users will log in to Cisco UCM in case of a failover

D.

Deploy a minimum of two Cisco IMP servers per location, with one publisher and one subscriber connected to the existing local cluster.

Which description of an IdP server is true?

A.

authenticates user credentials

B.

provides user authorization

C.

is an authentication request that is generated by a Cisco Unified Communications application

D.

consists of pieces of security information that are transferred to the service provider for user authentication

How is automatic fallback enabled on a Cisco IM and Presence server?

A.

In IM and Presence Service Parameter Configuration > Cisco Server Recovery Manager, change the Failover parameter to True.

B.

In Communications Manager Service Parameter Configuration > Cisco Server Recovery Manager, change the Enable Automatic Fallback parameter to True.

C.

Automatic fallback is enabled by default.

D.

In the Presence Redundancy Group Configuration > Cisco Unified Communications Manager, check the Enable Automatic Fallback parameter.

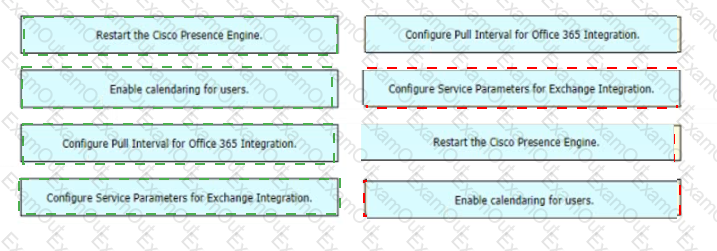

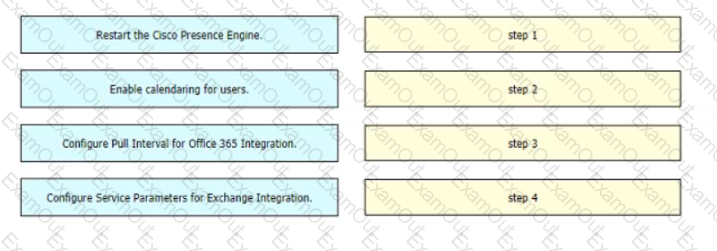

An engineer must configure Microsoft Office 365 calendar integration with Cisco IM and Presence The engineer has already configured the presence gateway Drag and drop the remaining configuration steps from the left into the correct order on the right to complete the configuration

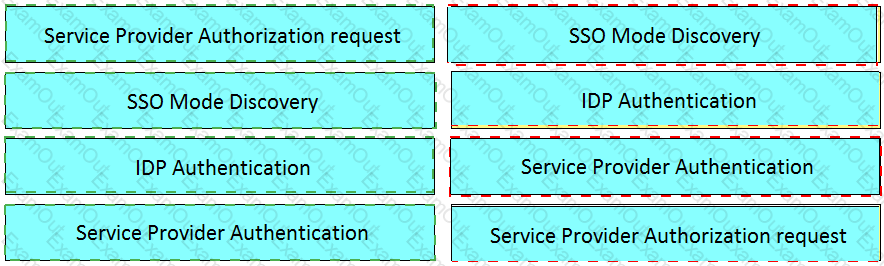

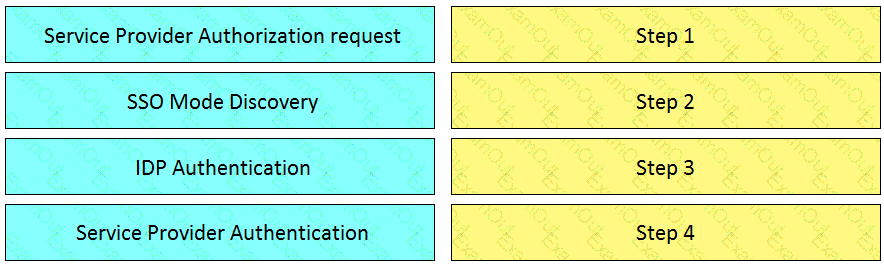

Drag and drop the events for an on-premises Jabber SAML SSO flow from the left into the correct order on the right.

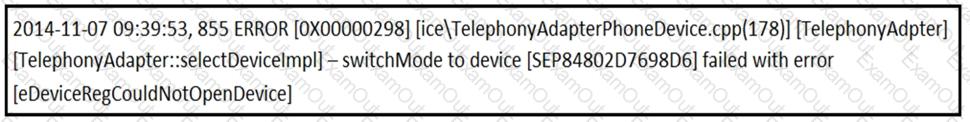

Refer to the exhibit.

Which end-user option can resolve this issue?

A.

Standard CTI Reception of SRTP Key Material

B.

Standard CTI Allow Calling Number Modification

C.

Standard CTI Allow Control of Phones Supporting Rollover Mode

D.

Standard CTI Allow Call Monitoring

After integrating Cisco Unity Express with Cisco Unified Communications Manager Express, users report that the system does not respond to their digit presses. Which two configuration snippets resolve this issue? (Choose two.)

A.

dial-peer voice 6800 voip

destination-pattern 5...

session protocol sipv2

session target ipv4:10.3.6.127

dtmf-relay sip-kpml

codec g729r8

B.

dial-peer voice 6800 voip

destination-pattern 5...

session protocol sipv2

session target ipv4:10.3.6.127

dtmf-relay sip-notify

codec g711ulaw

C.

dial-peer voice 6800 voip

destination-pattern 5...

session protocol sipv2

session target ipv4:10.3.6.127

dtmf-relay rtp-nte

codec g711ulaw

D.

dial-peer voice 6800 voip

destination-pattern 5...

session protocol sipv2

session target ipv4:10.3.6.127

dtmf-relay sip-kpml

codec g711ulaw

E.

dial-peer voice 6800 voip

destination-pattern 5...

session protocol sipv2

session target ipv4:10.3.6.127

dtmf-relay sip-notify

codec g729r8
