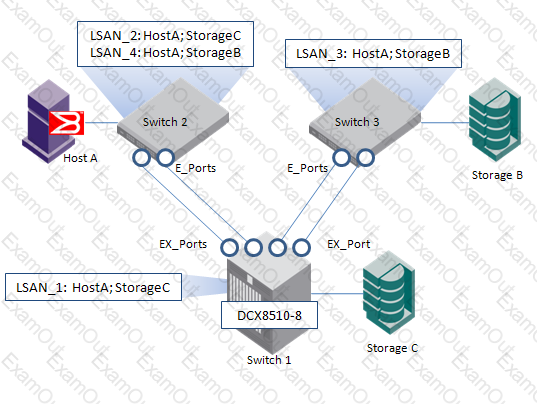

Refer to the Exhibit.

In the exhibit, using all Gen 5 16 Gbps switches, how many Domain IDs will be shown in the fabric show output on Switch 2?

A.

2

B.

3

C.

4

D.

5

You have configured the edge fabric and backbone fabric devices to communicate.

Which two conditions are true? (Choose two.)

A.

The backbone fabric must not have any phantom domain for edge fabrics.

B.

The shared devices must be presented to each other’s native fabric.

C.

The shared devices must be presented to the backbone fabric.

D.

At least one translate phantom domain is created in the backbone fabric.

You need to implement FC routing in your Gen 5 fabric. The backbone fabric will contain a factory default Brocade 7800 Extension Switch and a Brocade DCX 8510-8 with two FC16-32 blades. VEX_Port connectivity to the edge fabrics will be needed in the final configuration.

Which two statements describe how to enable the final configuration? (Choose two.)

A.

An Integrated Routing license must be installed on the Brocade 7800 Extension Switch.

B.

LSAN zones must be configured in the backbone.

C.

VEX_Ports must be configured on the Brocade DCX 8510-8.

D.

VEX_Ports must be configured on the Brocade 7800 Extension Switch.

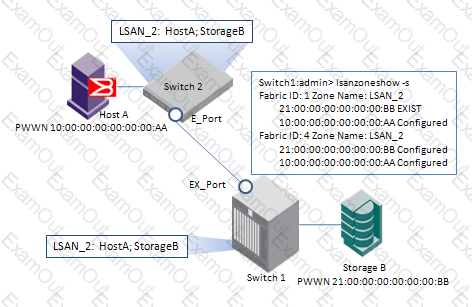

Refer to the Exhibit.

As shown in the exhibit, the translate domain is not present in the FC-FC routed fabric. LSAN definitions have been confirmed.

What is the cause?

A.

Host A is member of multiple LSAN zones.

B.

Host A is not logged into the edge fabric.

C.

Storage B is logged into the backbone fabric.

D.

Host A's PWWN is a member of a TI zone.

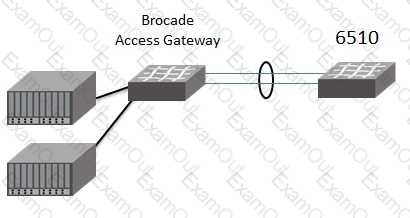

Refer to the exhibit.

In the exhibit, what is required to configure the trunk?

A.

On the 6510, you must statically assign an Area_ID to the trunk group.

B.

On the Access Gateway, statically assign an Area_ID to the trunk group.

C.

Ensure that F_Port trunking is enabled on both devices.

D.

Ensure all ports on the Access Gateway reside in the same quad.

Which two statements are true about Access Gateway N_Port failover? (Choose two.)

A.

It changes the F_Port to N_Port mapping in the event of an F_Port link failure.

B.

It changes the F_Port to N_Port mapping in the event of an N_Port link failure.

C.

It changes the N_Port FC address to match the F_Port address to allow non-disruptive failover.

D.

It changes the F_Port FC address based on the new N_Port.

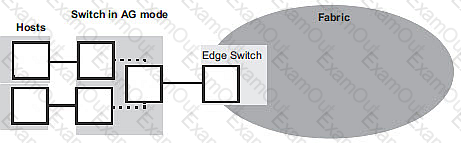

Refer to the exhibit.

In the exhibit, which two port types are used? (Choose two.)

A.

E

B.

N

C.

F

D.

EX

Which feature is used when connecting a Brocade 6510 in Access Gateway mode to different fabrics while maintaining device-to-fabric consistency?

A.

Advanced Device Security

B.

port grouping

C.

failover

D.

port mapping

You have just run SAN Health Diagnostics Capture and SAN Health Professional.

Which three critical tasks can you perform based on this report? (Choose three.)

A.

Take inventory of devices, directors, and switches.

B.

Display flows identified by Top Talkers.

C.

Display end-to-end monitor results.

D.

Capture and display historical performance data.

E.

Assess performance statistics and error conditions.

As a SAN administrator, you are asked to proactively monitor your fabric and fence ports when specified error conditions are met.

Which two features satisfy both these requirements? (Choose two.)

A.

Ingress Rate Limiting

B.

Fabric Watch

C.

Flow Vision

D.

Monitoring and Alerting Policy Suite (MAPS)
