The Model Element Table and LOD matrix define the required progression of geometry and information at the element level. They establish which party is responsible for each model element, the stage at which it must be developed, the required geometric maturity, and the associated non-graphical data needed for coordination, procurement, construction, and asset handover.

This element-specific structure is essential when the owner’s facilities-management system requires defined asset fields and consistent information formats. It prevents teams from assuming that visual completeness automatically means data completeness. For example, an equipment object may appear adequately modelled but still lack classification, manufacturer, serial-number, maintainability, warranty, or commissioning information.

A Master Information Delivery Plan is useful for scheduling broader information exchanges, but it normally operates at the deliverable or task-team level rather than defining detailed information requirements for individual model-element categories. Naming protocols and authoring standards govern production consistency but do not specify who develops each asset and to what information level. A quantity-takeoff checklist is too narrow.

The Model Element Table and LOD matrix therefore provide the clearest mechanism for assigning element ownership and defining required geometry and information through handover.

Reference topics: Model Element Table; LOD matrix; level of information need; asset-data requirements; element responsibility; facilities-management handover.

===============

Copy/Monitor is designed to support both the initial creation and continuing coordination of critical datum elements between linked Revit models. Participating disciplines can copy the approved Levels and Grids from the authoritative architectural or structural model into their own models and establish monitored relationships to the source elements.

If the structural framing decision later changes floor-to-floor elevations or grid positions, Revit generates coordination-review notifications when the linked source model is reloaded. The receiving teams can then assess each change, postpone it where necessary, reject it, or update their corresponding datum elements through a controlled coordination process.

Shared Coordinates ensure that models occupy the correct common spatial position, but they do not monitor changes to individual Levels or Grids. Establishing a primary model in a collaboration platform supports information exchange but does not create element-level coordination relationships. Exporting reports and property information provides only a static record and would require manual comparison after every design revision.

The project must also establish which discipline owns the master datum elements and define how proposed changes are reviewed and approved before dependent teams modify their models.

Reference topics: Copy/Monitor; coordination review; Levels and Grids; datum ownership; linked-model change management; multidisciplinary Revit coordination.

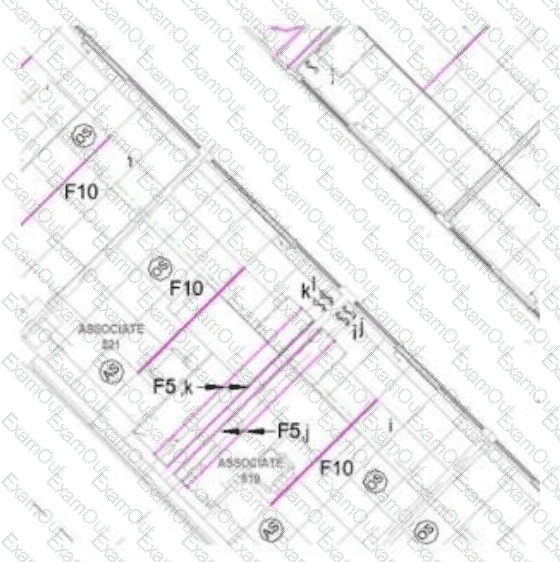

A view filter can be configured to act only on ceilings meeting specific criteria, such as family name, type name, material, height, or another parameter. Because the missing ceiling is a 2x4 type while the visible ceilings are 2x2 types, a filter targeting the 2x4 ceiling could hide it or override its graphics without affecting the other ceilings.

A Plan Region can also impose a localized View Range that differs from the parent Reflected Ceiling Plan. If the hallway contains a Plan Region with a higher cut plane or an otherwise incompatible view range, the ceiling can fall outside the region’s visible range even though it remains present and visible in a 3D view.

The ceiling was not deleted because it is still visible in 3D. Turning off the Ceilings category through a View Template would ordinarily hide all ceilings governed by that category in the view, contradicting the fact that the 2x2 ceilings remain visible. Similarly, Hide in View by Category affects the entire Ceilings category within that view rather than one ceiling type or a single hallway element.

Reference topics: Reflected Ceiling Plans; View Range; Plan Regions; view filters; category visibility; view-template troubleshooting.

===============

A mandatory multidisciplinary review session is the strongest method for ensuring that contributors understand the BEP rather than merely receive it. The session allows the BIM manager to explain model ownership, coordination procedures, file structures, software requirements, information exchanges, quality-control responsibilities, naming conventions, issue workflows, and escalation processes. It also enables each discipline to identify ambiguities and confirm acceptance before implementation begins.

Following review and approval, the BEP should be retained as the official controlled project document in the Common Data Environment. This provides an accessible reference and establishes the approved baseline against which later revisions can be tracked.

Uploading a live copy to a shared folder is necessary for accessibility, but distribution alone does not demonstrate that participants understand their obligations. Including the BEP in the contract provides formal status but does not replace operational onboarding. Email signatures confirm receipt or acknowledgment, not comprehension, and can lead to disconnected copies outside the controlled document environment.

The best process combines formal review, multidisciplinary approval, controlled publication, and ongoing accessibility. Among the available choices, option B most completely addresses understanding, agreement, and official document control.

Reference topics: BIM Execution Plan onboarding; multidisciplinary review; roles and responsibilities; controlled documentation; Common Data Environment; approval and revision management.

A defensible technology business case must address both implementation risk and measurable organizational value. Option D evaluates the reliability of the developer and the internal effort required to install, validate, document, support, and train users on the add-on. This is critical because a third-party tool that modifies or suppresses model warnings can affect model-health reporting, software stability, upgrade compatibility, and quality-control procedures. The BIM manager must understand those operational risks before approving enterprise deployment.

Option E identifies the actual user population and compares the cost of supplying that group against quantifiable benefits such as reduced review time, more consistent warning triage, lower coordination risk, and improved model-health oversight. Limiting the calculation to relevant users produces a credible return-on-investment assessment.

Option A incorrectly assumes that every employee requires a licence and training, which can substantially overstate deployment costs. Competitor adoption may provide market context, but it does not establish technical suitability or financial value for the firm. The language of training materials is a secondary deployment consideration rather than a primary business-case metric.

Together, D and E provide the necessary technical-risk, implementation-effort, cost, user-demand, productivity, and risk-reduction evidence for an informed approval decision.

Reference topics: Project technology assessment; add-on governance; business-case development; software validation; deployment planning; training requirements; return on investment; model-risk management.

The source models must contain a consistent shared-coordinate relationship before they are issued to the construction coordinator. The lead BIM manager should identify the primary design model or approved site model as the authoritative coordinate source, instruct each consultant to acquire the agreed coordinates, verify the resulting placement, and resubmit the corrected models.

This approach keeps coordinate ownership with the respective model authors and produces deliverables that align automatically when the coordinator uses shared positioning. It also creates a repeatable process for future submissions rather than requiring the recipient to reconstruct model placement during every coordination cycle.

Linking by Internal Origin to Internal Origin is appropriate only when all models were deliberately authored around the same internal origin and orientation. Resetting established coordinates would discard valid project positioning. Sending numerical coordinate reports and asking the coordinator to reposition models manually transfers responsibility to the receiving party and introduces translation, rotation, and elevation errors. Publishing directly into every consultant file may also be inappropriate where the files are externally controlled, consumed through cloud workflows, or subject to separate ownership permissions.

Reference topics: Shared coordinates; Acquire Coordinates; authoritative coordinate model; consultant model responsibility; federated-model positioning; model-exchange validation.

===============

The BIM manager should perform a formal compliance review against the BIM Execution Plan, model-content standard, information requirements, and applicable element or classification matrix. Each nonconforming condition should be documented clearly, including incorrect category assignments, inconsistent object styles, excessive geometric detail, missing parameters, invalid naming, and unsuitable data structures.

The subcontractor should then receive a controlled revision request identifying the required corrections and resubmission criteria. Geometry should be simplified to the level needed for coordination and downstream use, but required metadata, classifications, connection points, clearances, and asset information must be retained. Optimization and information compliance are parallel requirements, not competing alternatives.

Approving the model unchanged would introduce performance and data-quality defects into the federation and could cause unreliable clash results, scheduling errors, or handover deficiencies. Hiding excessive detail with view filters changes only its visibility; the underlying geometry and data remain noncompliant and continue to affect model processing. Instructing the subcontractor to reduce file size regardless of information loss also fails the project’s deliverable requirements.

Acceptance should occur only after the revised model passes the defined quality-control checks.

Reference topics: Content standards; subcontractor deliverables; model acceptance criteria; geometry optimization; classification and metadata; BEP compliance; quality-control reporting.

The clash matrix is the project’s approved framework for determining which model combinations, object categories, zones, and tolerances require coordination. The BIM manager should configure clash tests to reflect that matrix rather than distribute an unfiltered list of every geometric intersection generated by the software.

Low-value results should be removed through controlled rule selection, object-category filtering, zone-based scoping, and technically justified tolerance settings. Reports can then be organized according to each discipline’s responsibility and focused on clashes that materially affect constructability, design intent, access, maintenance clearances, or code compliance.

Sending all 3,000 results to project teams transfers the BIM manager’s triage responsibility to designers and creates substantial coordination noise. Manual spreadsheet sorting separates the results from model context and is inefficient for repeated review cycles. Arbitrarily relaxing clash rules merely to reduce totals is also unacceptable; tolerances must correspond to documented project requirements rather than a desired numerical result.

Applying the clash matrix creates a repeatable, auditable process and ensures that coordination meetings address consequential issues instead of irrelevant geometric contacts.

Reference topics: Clash matrices; clash-test configuration; tolerance management; discipline-based reporting; coordination prioritization; Model Coordination.

===============

The training programme should focus on the technologies directly supporting iterative option generation, environmental evaluation, and cloud-based stakeholder review. Generative-design methods allow the team to systematically explore multiple façade or planning alternatives using defined goals, constraints, and measurable outcomes. This is more appropriate than manually producing disconnected options under a compressed schedule.

Autodesk Forma and its site-design capabilities support early-stage design development, option comparison, contextual review, and environmental analysis. These workflows are particularly valuable for a geographically distributed team because design alternatives and analysis results can be prepared consistently for recurring client meetings. Training should include option creation, analysis interpretation, naming and version conventions, presentation workflows, and the method for documenting decisions against the client’s sustainability criteria.

AutoCAD and Civil 3D are not the principal tools required for the stated façade-option and energy-analysis workflow. Sustainability certification training may be beneficial at an organizational level, but it does not replace practical project-specific instruction in the applications and computational methods the team must operate each week.

Reference topics: Project technology assessment; Autodesk Forma; Forma Site Design; generative design; environmental analysis; distributed-team training; design-option evaluation.

===============
