Free Practice Questions for Amazon Web Services DOP-C02 Exam

Comprehensive and Detailed Explanation From Exact Extract:

ALB natively supportsWebSocket protocolsandsticky sessionsvia target group session affinity. Deploying ALBs in multiple regions with cross-zone load balancing ensures high availability and fault tolerance.

UsingRoute 53 latency-based routingallows users worldwide to connect to the lowest latency region, minimizing delay.

NLBs do not support sticky sessions and WebSocket protocol as well as ALBs do. Combining ALBs and NLBs (Option D) increases complexity. CloudFront (Option C) does not natively support WebSocket sticky sessions.

Option A is the simplest, most effective solution meeting all requirements with least operational overhead.

This solution will meet the requirements because it will use a rolling restart to gradually replace the EC2 instances in the green environment with new instances that have the new software version installed. A rolling restart is a process that terminates and launches instances in batches, ensuring that there is always a minimum number of healthy instances in service. This way, the green environment can be updated without affecting the availability or performance of the application. When the rolling restart is complete, the DevOps engineer can use an AWS CLI command to modify the listener rules of the ALB and change the default action to forward traffic to the green environment’s target group. This will switch the traffic from the blue environment to the green environment all at once, as required by the question.

The following are the steps that the company can take to change the log level dynamically when the deployment occurs:

Create a script that uses the CodeDeploy environment variable DEPLOYMENT_GROUP_NAME to identify which deployment group the instance is part of.

Use this information to configure the log level settings.

Reference this script as part of the BeforeInstall lifecycle hook in the appspec.yml file.

The DEPLOYMENT_GROUP_NAME environment variable is automatically set by CodeDeploy when the deployment is triggered. This means that the script does not need to call the metadata service or the EC2 API to identify the deployment group.

This solution is the least complex and requires the least management overhead. It also does not require different script versions for each deployment group.

The following are the reasons why the other options are not correct:

Option A is incorrect because it would require tagging the Amazon EC2 instances, which would be a manual and time-consuming process.

Option C is incorrect because it would require creating a custom environment variable for each environment. This would be a complex and error-prone process.

Option D is incorrect because it would use the DEPLOYMENT_GROUP_ID environment variable. However, this variable is not automatically set by CodeDeploy, so the script would need to call the metadata service or the EC2 API to get the deployment group ID. This would add complexity and overhead to the solution.

A- https://docs.aws.amazon.com/codedeploy/latest/userguide/codedeploy-agent.html D - This option correctly utilizes AWS CodePipeline to invoke the CodeBuild job and create CloudFormation change sets. It adds a manual approval step before executing the change sets and starting the AWS CodeDeploy deployment. This ensures that the deployment process is automated while retaining the final manual approval step.

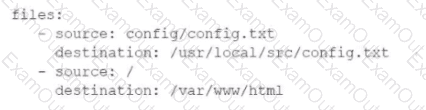

Deployment of config.txt file based on the appspec.yml:

The appspec.yml file specifies that config/config.txt should be copied to /usr/local/src/config.txt.

The source: / directive in the appspec.yml indicates that the entire directory structure starting from the root of the application source should be copied to the specified destination, which is /var/www/html.

Result of the Deployment:

The config.txt file will be specifically deployed to /usr/local/src/config.txt as per the explicit file mapping.

The entire directory structure including application/web will be copied to /var/www/html, but this does not include config/config.txt since it has a specific destination defined.

Thus, the config.txt file will be deployed only to /usr/local/src/config.txt.

Therefore, the correct answer is:

C. The config.txt file will be deployed to only /usr/local/src/config.txt.

https://docs.aws.amazon.com/singlesignon/latest/userguide/configure-abac.html

A comprehensive and detailed explanation is:

Option A is incorrect because EventBridge rules cannot filter events based on the message body or attributes of the target service. Therefore, configuring an SNS subscription filter policy to match the CloudFormation stack will not work. The SNS topic will receive all events from the EventBridge rule, regardless of the stack name or drift status.

Option B is incorrect because it introduces unnecessary complexity and cost. Creating a second Lambda function to query the CloudFormation API for the drift detection results is redundant, since CloudFormation already publishes drift detection events to EventBridge. Moreover, invoking two Lambda functions every hour will incur more charges than invoking one.

Option C is incorrect because GuardDuty does not provide drift detection for CloudFormation stacks. GuardDuty is a threat detection service that monitors for malicious activity and unauthorized behavior in AWS accounts and workloads. It does not monitor or report on configuration changes or drifts in CloudFormation stacks.

Option D is correct because it leverages AWS Config and its managed rule for drift detection. AWS Config is a service that enables you to assess, audit, and evaluate the configurations of your AWS resources. It can detect configuration changes and drifts in CloudFormation stacks using the cloudformation-stack-drift-detection-check managed rule. This rule triggers an AWS Config event when a stack drifts from its expected template configuration. By creating a second EventBridge rule that reacts to this event for the specific stack, the DevOps engineer can configure the SNS topic as a target and receive a notification as soon as possible when drift is detected.

To implement a more reliable deployment solution, a DevOps engineer should take the following actions:

Create a pipeline in AWS CodePipeline that uses the CodeCommit repository as a source provider. Configure pipeline stages that run the CodeBuild project in parallel to build and test the application. In the pipeline, pass the CodeBuild project output artifact to an AWS CodeDeploy action. This action will improve the deployment reliability by automating the entire process from code commit to deployment, reducing human errors and inconsistencies. By running the build and test stages in parallel, the pipeline can also speed up the delivery time and provide faster feedback. By using CodeDeploy as the deployment action, the pipeline can leverage the features of CodeDeploy, such as traffic shifting, health checks, rollback, and deployment configuration123

Create an AWS CodeDeploy application and a deployment group to deploy the packaged code to the EC2 instances. Configure the ALB for the deployment group. This action will improve the deployment reliability by using CodeDeploy to orchestrate the deployment across multiple EC2 instances behind an ALB. CodeDeploy can perform blue/green deployments or in-place deployments with traffic shifting, which can minimize downtime and reduce risks. CodeDeploy can also monitor the health of the instances during and after the deployment, and automatically roll back if any issues are detected. By configuring the ALB for the deployment group, CodeDeploy can register and deregister instances from the load balancer as needed, ensuring that only healthy instances receive traffic45

The other options are not correct because they do not improve the deployment reliability or follow best practices. Creating separate pipeline stages that run a CodeBuild project to build and then test the application is not a good option because it will increase the pipeline execution time and delay the feedback loop. Creating individual Lambda functions that use CodeDeploy instead of Systems Manager to run build, test, and deploy actions is not a valid option because it will add unnecessary complexity and cost to the solution. Lambda functions are not designed for long-running tasks such as building or deploying applications. Creating an Amazon S3 bucket and modifying the CodeBuild project to store the packages in the S3 bucket instead of in CodeArtifact is not a necessary option because it will not affect the deployment reliability. CodeArtifact is a secure, scalable, and cost-effective package management service that can store and share software packages for application development67

1: What is AWS CodePipeline? - AWS CodePipeline

2: Create a pipeline in AWS CodePipeline - AWS CodePipeline

3: Deploy an application with AWS CodeDeploy - AWS CodePipeline

4: What is AWS CodeDeploy? - AWS CodeDeploy

5: Configure an Application Load Balancer for your blue/green deployments - AWS CodeDeploy

6: What is AWS Lambda? - AWS Lambda

7: What is AWS CodeArtifact? - AWS CodeArtifact
