Free Practice Questions for AVIXA CTS Exam

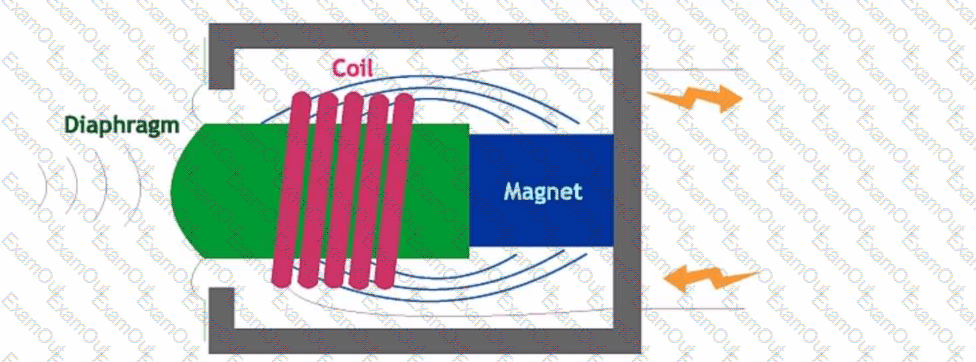

The image shows a dynamic microphone, which works through electromagnetic induction. In a dynamic microphone, sound waves cause the diaphragm to move, which in turn moves a coil of wire within the magnetic field of a magnet. This movement generates an electrical signal that corresponds to the sound. The visible components, such as the diaphragm, coil, and magnet, are characteristic of a dynamic microphone’s internal structure.

CTS Technology Specialist Reference

The CTS curriculum details the workings of various microphone types, explaining that dynamic microphones are durable and suitable for live sound due to their ability to handle high sound pressure levels.

Safety is paramount in rigging and flying equipment. A compromised mount (such as one with stripped bolts) must not be used. The proper procedure is to remove the projector and repair or replace the mounting hardware. AVIXA guidelines and industry safety codes emphasize that rigged equipment must be structurally sound.

A 49 RU rack is approximately 7 feet tall. If the elevator is also 7 feet or less, there won’t be sufficient clearance to transport the pre-assembled rack. Therefore, it must be assembled onsite.

“Site constraints, such as doorway and elevator clearances, must be reviewed. Racks over 49 RU often require onsite assembly due to height limitations.”

— CTS Exam Guide, Equipment Installation and Logistics Planning

AV integrators should provide construction drawings to a general contractor. These drawings contain detailed information about the AV system layout, including locations of equipment, wiring paths, and installation requirements. Construction drawings ensure that all supporting trades, such as electrical and carpentry, have the necessary details to accommodate AV system installations. They coordinate the work of different trades to avoid conflicts and ensure proper implementation. Construction drawings are essential for aligning the AV system installation with the overall building construction process, ensuring accuracy and efficiency.

Maintaining AV operations involves ensuring that all system components are up to date and functioning correctly. One critical aspect is updating the control system firmware. Firmware updates often include performance improvements, security patches, and new features that can enhance the reliability and functionality of AV systems.

The best immediate workaround is to patch the input directly to the output, bypassing the switcher. This allows the system to continue functioning while a more permanent solution is found. It ensures that the client experiences minimal downtime and disruption. Changing the power supply or replacing the switcher are also viable options, but they may take more time and resources. Calling the manufacturer for support can also be part of the solution process, but it doesn't provide an immediate workaround.

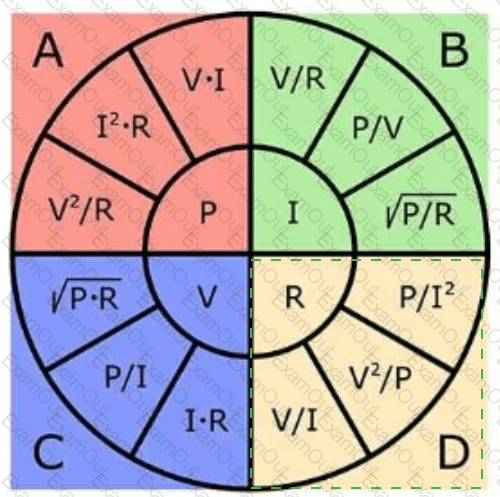

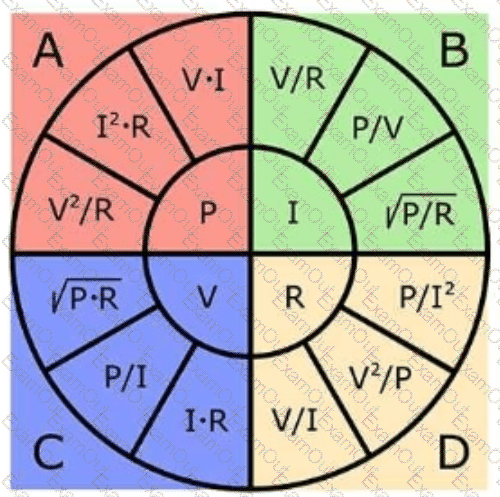

Ohm's Law is a fundamental principle used in electrical engineering and physics to describe the relationship between voltage (V), current (I), resistance (R), and power (P). The Ohm's Law chart is divided into four quadrants, each representing different formulas and relationships among these quantities.

To calculate values expressed in Ohms (which represent resistance, R), you should use Quadrant D. This quadrant contains formulas that solve for resistance (R), using various combinations of voltage (V), current (I), and power (P):

R=VIR = \frac{V}{I}R=IV​

R=V2PR = \frac{V^2}{P}R=PV2​

R=PI2R = \frac{P}{I^2}R=I2P​

These formulas are derived from Ohm's Law and the power equations, providing different ways to calculate resistance based on the available information.

A client setting terms for "tire protection of existing conditions" would most likely apply to an expansion of an existing building. This is because protecting existing conditions is crucial when construction activities are taking place adjacent to or within parts of a structure that will remain in use. Ensuring that existing elements of the building are not damaged during expansion work is a key concern.

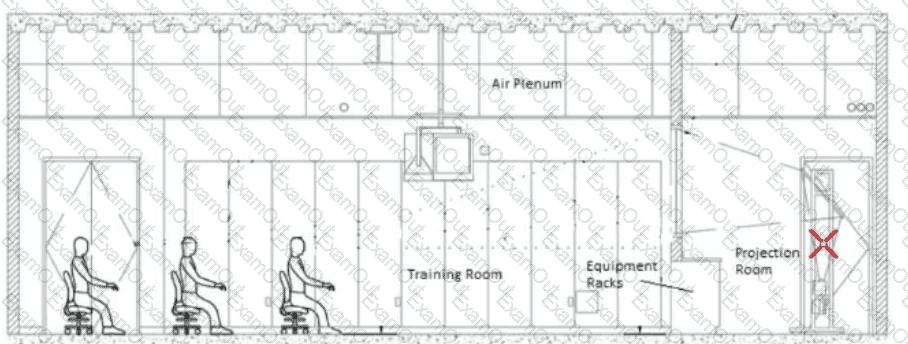

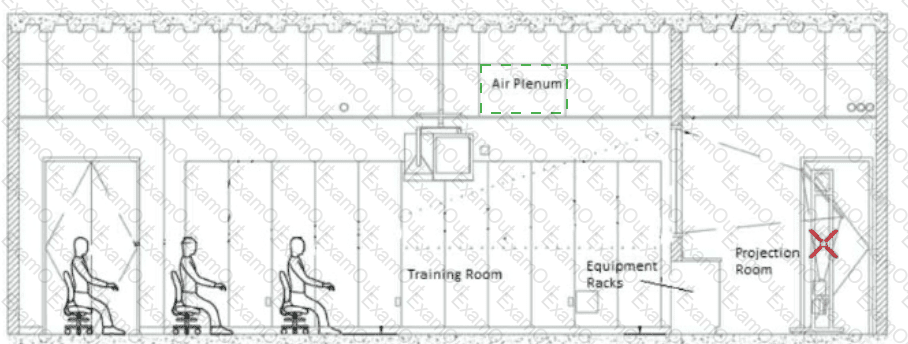

The correct answer is the Air Plenum area — the space above the ceiling tiles used for air circulation in HVAC systems.

According to NFPA 70: National Electrical Code (NEC) and referenced in the AVIXA CTS Exam Guide, cabling run through plenum spaces must meet stringent fire and smoke safety standards. This is because if a fire occurs, the plenum area can rapidly spread smoke and toxic fumes throughout a building.

From the CTS Exam Guide (5th Edition), under Chapter 2: Infrastructure, it states:

“Plenum-rated cable is required in spaces used for environmental air (plenum spaces), as these cables are designed with fire-retardant jackets that emit low smoke. Non-plenum cable cannot be used unless it is enclosed in a conduit rated for plenum use.”

— AVIXA CTS Exam Guide, Chapter 2, p. 42–44

When installing a projector, it is essential to account for ventilation ducts as they affect where a projector can be suspended. Ventilation ducts influence airflow and can affect the cooling requirements of AV equipment. Positioning near ducts may cause issues like vibration, interference with airflow, and temperature inconsistencies.

CTS Technology Specialist Reference

The CTS materials emphasize checking ventilation, HVAC placement, and airflow during site surveys to determine optimal equipment placement and avoid interference with cooling and sound.
