Free Practice Questions for AVIXA CTS Exam

Foam microphone wind screens should be cleaned using warm water. This method effectively removes dirt and oils without damaging the foam material. Using harsh chemicals, like bleach or alcohol, can deteriorate the foam and potentially affect sound quality.

CTS Technology Specialist Reference

CTS materials on equipment maintenance recommend gentle cleaning methods for foam components, as using harsh solvents can degrade the material and reduce the lifespan of equipment.

The AVIXA PISCR (Projected Image System Contrast Ratio) standard specifies that the minimum acceptable contrast ratio for "basic decision-making" environments is 15:1, with higher ratios required for analytical and full-motion video content.

“For basic viewing tasks, AVIXA recommends a minimum contrast ratio of 15:1 between full white and full black.”

— ANSI/INFOCOMM 3M-2011 Standard: Projected Image System Contrast Ratio (PISCR)

In an audiovisual system where a touch panel is to be connected to the control system via the LAN, the designer typically chooses to use a static IP address. A static IP address ensures that the touch panel always has the same IP address, making it easier to locate and communicate with within the network. This is crucial in a control system where consistent and reliable communication is necessary. Using a static IP address avoids the potential issues that can arise with dynamic IP addresses, which can change and cause disruptions in communication.

Knowing the technical comfort level of end users helps determine the complexity or simplicity of interfaces, control systems, and training needed. It ensures the system is user-friendly and not over- or under-engineered.

“Understanding user experience and comfort with technology allows integrators to appropriately design interfaces and training procedures.”

— CTS Exam Guide, User Experience and Needs Evaluation

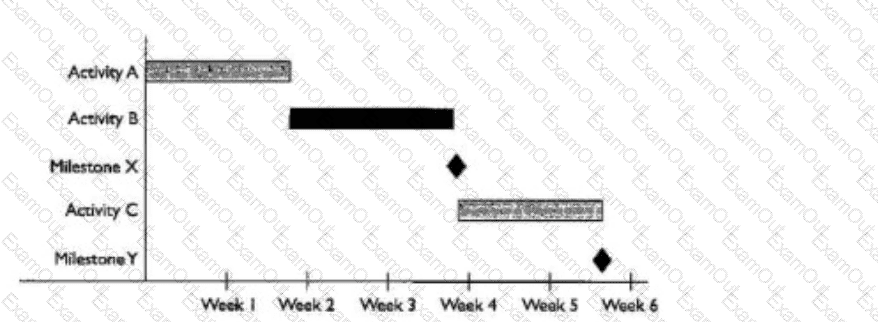

In the provided Gantt chart, Activity C is scheduled to start after the completion of Milestone X. This is evident as the milestone symbol (diamond) for Milestone X appears right before the beginning of Activity C, indicating that Activity C is dependent on the completion of Milestone X.

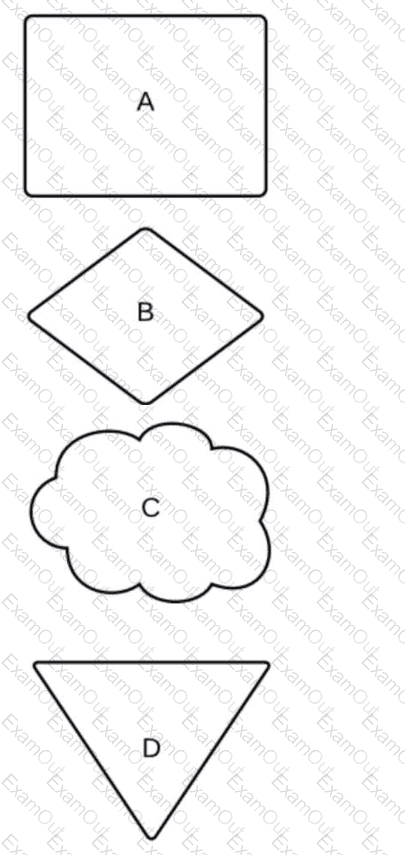

The cloud symbol (Option C) is commonly used to represent a network, particularly in diagrams to signify a network or cloud-based resources. This symbol has become a universal representation of network connections and internet-based services.

CTS Technology Specialist Reference

The CTS materials include standard AV and IT symbols, where the cloud symbol is used to denote networks and internet connections, aiding in clear communication within technical diagrams.

Comprehensive Detailed Explanation with all Technology Specialist References:

The unique identifier assigned to a network interface card (NIC) is known as the Media Access Control (MAC) address. A MAC address is a hardware address that is permanently embedded into the network interface of a device, such as a DSP, and is used to uniquely identify it on a local network.

When DHCP fails, the control programmer may need the MAC address to reassign the same IP address, as DHCP reservations are often based on MAC addresses. This ensures that devices receive a consistent IP address each time they connect, which is crucial for network devices in an AV system that rely on static IPs for control purposes.

Option B, "internet protocol address," refers to the IP address, which is assigned to a device but not unique to the hardware, as it can change over time. Option C, "network address translation," is a method for modifying IP address information as it passes through a router. Option D, "digital multiplex exchange address," is not relevant in this context and does not pertain to IP networking or AV control systems.

CTS References: AVIXA CTS Exam Guide, Chapter on Networking Fundamentals; CTS Handbook, Section on Network Addressing and IP Allocation.

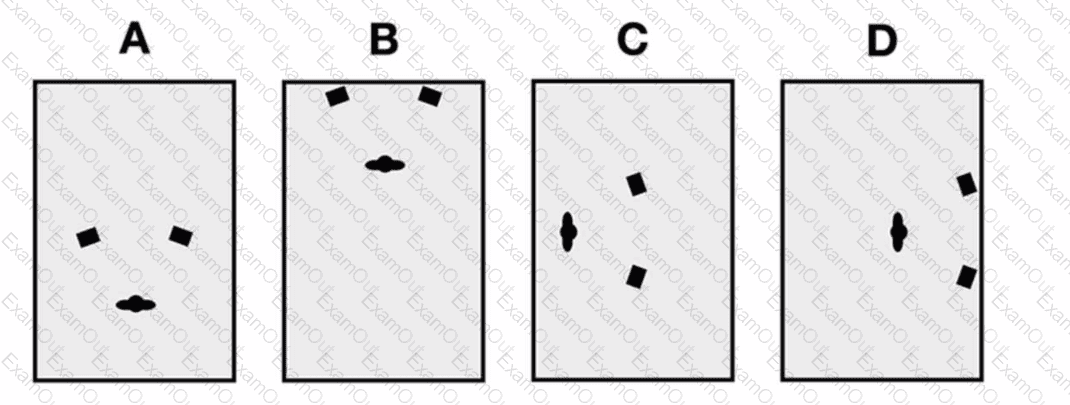

In Setup B, the speakers are positioned symmetrically at ear level and angled towards the listener, which is the optimal configuration for achieving accurate sound reproduction and a balanced stereo image. In a small studio or listening environment, placing the speakers near the front wall and aimed directly at the listener minimizes acoustic issues such as reflections and standing waves. This setup maximizes direct sound while reducing unwanted room interactions.

CTS Technology Specialist Reference

According to CTS guidelines on sound reinforcement and speaker placement, monitor speakers should be positioned symmetrically and at ear level to ensure the best listening experience. Proper speaker placement enhances audio clarity and accuracy, which is essential for environments like studios and classrooms where sound quality is paramount.

This logistical detail should be planned during the site survey, which is when all site constraints (e.g., power, loading dock access, storage, waste handling) are assessed. Waiting until install day is too late.

“Site surveys must assess disposal options, material storage, and access constraints to avoid delays during installation.”

— CTS Exam Guide, Site Readiness and Installation Planning

Plosives and breath noise occur when air hits the mic capsule directly. This can be mitigated by adjusting the mic’s position slightly off-center from the mouth and adding a windscreen to diffuse breath impact.

“Correct mic placement and windscreen use significantly reduce plosives and breath noise, especially with headworn microphones.”

— CTS Exam Guide, Microphone Placement and Audio Optimization
