Free Practice Questions for ARDMS AE-Adult-Echocardiography Exam

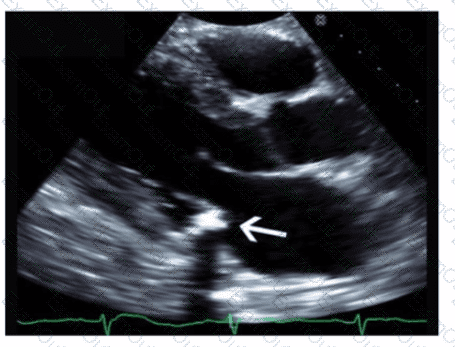

The image is a parasternal long-axis echocardiographic view focusing on the mitral valve annulus with a highly echogenic, dense, and well-defined structure located at the base of the posterior mitral leaflet. This appearance is characteristic of mitral annular calcification (MAC), a degenerative process resulting in calcium deposition along the mitral valve annulus.

Vegetations appear as irregular, mobile masses attached to valve leaflets and are less dense. Tumors and thrombi have different echogenicity and locations (tumors often in atria, thrombi in atrial appendages). MAC is usually more echogenic and localized to the annulus.

This description and differentiation are found in adult echocardiography textbooks and ASE guidelines on cardiac masses and valvular calcifications【16:Textbook of Clinical Echocardiography, 6e†p.460-465】【12:ASE Guidelines on Cardiac Masses†p.150-160】.

Comprehensive and Detailed Explanation From Exact Extract:

Three-dimensional echocardiography (3D echo) primarily uses volume rendering to provide a realistic and spatially accurate representation of cardiac structures. Volume rendering processes a full dataset of voxels (3D pixels) to produce detailed images, allowing clinicians to visualize complex anatomical relationships in real time.

Surface rendering is another technique but primarily used in post-processing to create a solid surface model; it is less used in live 3D echocardiography.

Planar and external rendering are not standard terms in 3D echocardiography.

This information is presented in the "Textbook of Clinical Echocardiography, 6e", Chapter on Advanced Echocardiographic Imaging Techniques【20:400-405†Textbook of Clinical Echocardiography】.

A heterograft (also called xenograft) cardiac valve is derived from an animal species, commonly porcine or bovine, and implanted into a human. These bioprosthetic valves are treated to reduce immunogenicity.

Option A describes an allograft (homograft). Option B refers to bioprosthetic valves but does not specify species. Option C describes an autograft, such as the Ross procedure.

This classification is standard in cardiac surgery and echocardiography literature【16:Textbook of Clinical Echocardiography, 6e†p.450-455】【12:ASE Valve Prosthesis Guidelines†p.200-205】.

To obtain the apical five-chamber view from the apical four-chamber, the transducer is angled anteriorly (towards the patient’s chest). This brings the left ventricular outflow tract and aortic valve into the imaging plane anterior to the left ventricle and mitral valve seen in the four-chamber view.

Posterior, medial, or lateral angulations do not adequately visualize the aortic valve in this context.

This technique is described in adult echocardiography imaging protocols and ASE chamber quantification guidelines【12:ASE Imaging Protocols†p.30-35】【16:Textbook of Clinical Echocardiography, 6e†p.70-75】.

The echocardiographic image is a parasternal long axis or apical view showing the left ventricle. The arrow points to the wall segment located inferiorly, corresponding to the inferior wall of the left ventricle. The inferior wall is typically visualized in parasternal long axis and apical views as the posterior aspect of the ventricle.

Other options correspond to different walls: anterior is anterior septal wall, anterolateral and inferolateral refer to the lateral wall regions. Accurate wall identification is critical for regional wall motion analysis and coronary artery territory correlation.

This segmental wall identification is detailed in adult echocardiography and ASE chamber quantification guidelines【12:ASE Chamber Quantification Guidelines†p.90-95】【16:Textbook of Clinical Echocardiography, 6e†p.140-145】.

Peak tricuspid regurgitant velocity (TRV) allows estimation of right ventricular systolic pressure (RVSP) using the simplified Bernoulli equation: RVSP = 4 × (TRV)^2 + estimated right atrial pressure.

This measurement is important for assessing pulmonary hypertension indirectly.

Right atrial pressure is estimated separately, pulmonary artery diastolic pressure and mean pressure require additional measurements.

This application is discussed in the "Textbook of Clinical Echocardiography, 6e", Chapter on Right Heart Pressure Estimation【20:335-340†Textbook of Clinical Echocardiography】.

Rupture of a papillary muscle leads to acute mitral regurgitation, producing a holosystolic murmur heard throughout systole. This murmur results from backward flow of blood from the left ventricle to the left atrium during systole.

Ejection systolic murmurs are typically due to outflow obstruction like aortic stenosis. Early or late systolic murmurs occur in specific valve lesions but not with papillary muscle rupture.

This is covered in the "Textbook of Clinical Echocardiography, 6e", Chapter on Mitral Valve Disease and Mechanical Complications of Myocardial Infarction【20:430-435†Textbook of Clinical Echocardiography】.

The structure indicated by the arrow in the right ventricle is the moderator band. The moderator band is a muscular band of tissue that crosses the right ventricular cavity from the interventricular septum to the anterior papillary muscle. It contains part of the right bundle branch of the conduction system and is a normal anatomical structure identifiable on echocardiography.

False tendons are fibrous or muscular strands within the left ventricle, not the right. The Chiari network is a mobile, net-like structure in the right atrium near the inferior vena cava and atrial septum. The Eustachian valve is a crescent-shaped ridge at the entrance of the inferior vena cava into the right atrium.

The moderator band is important to recognize to avoid misinterpretation as a pathological mass or thrombus.

This is detailed in the "Textbook of Clinical Echocardiography, 6e", Chapter on Right Ventricular Anatomy and Echocardiographic Landmarks【20:150-155†Textbook of Clinical Echocardiography】.

In the calculation of the shunt ratio Qp/Qs, Qp represents pulmonary blood flow, which is calculated as the stroke volume of the right ventricular outflow tract (RVOT). Stroke volume is obtained by measuring the RVOT cross-sectional area and the RVOT time velocity integral (VTI).

Qp (pulmonary flow) divided by Qs (systemic flow) quantifies the magnitude of left-to-right shunting in atrial septal defects and other congenital heart diseases.

This method is described in the "Textbook of Clinical Echocardiography, 6e", Chapter on Shunt Quantification and Flow Calculations【20:360-365†Textbook of Clinical Echocardiography】.

Takotsubo cardiomyopathy, also known as stress-induced cardiomyopathy or "broken heart syndrome," predominantly affects postmenopausal women (usually older than 50 years) and often presents with acute chest pain and ST-segment elevation on the ECG mimicking acute myocardial infarction. However, coronary angiography reveals normal or non-obstructive coronary arteries.

Echocardiographically, Takotsubo cardiomyopathy is characterized by transient left ventricular systolic dysfunction with a typical pattern of apical ballooning and basal hyperkinesis. The wall motion abnormality extends beyond a single coronary artery territory, differentiating it from ischemic cardiomyopathy.

The diagnosis is supported by the clinical presentation, typical echocardiographic findings, and exclusion of obstructive coronary artery disease. The condition is usually reversible over days to weeks.

This is extensively described in the "Textbook of Clinical Echocardiography, 6e" (Chapter 8: Coronary Artery Disease and Takotsubo Syndrome), which highlights the typical patient demographics, presentation, echocardiographic features, and prognosis .
