The answer is A. SR is instantiated and automatically connected with DR.

SR stands for Service Router and DR stands for Distributed Router. They are components of the NSX Edge node that provide different functions1

The SR is responsible for providing stateful services such as NAT, firewall, load balancing, VPN, and DHCP. The DR is responsible for providing distributed routing and switching between logical segments and the physical network1

When a stateful service is enabled for the first time on a Tier-0 Gateway, the NSX Edge node automatically creates an SR instance and connects it with the existing DR instance. This allows the stateful service to be applied to the traffic that passes through the SR before reaching the DR2

According to the VMware NSX 4.x Professional Exam Guide, understanding the SR and DR components and their functions is one of the exam objectives3

To learn more about the SR and DR components and how they work on the NSX Edge node, you can refer to the following resources:

VMware NSX Documentation: NSX Edge Components 1

VMware NSX 4.x Professional: NSX Edge Architecture

VMware NSX 4.x Professional: NSX Edge Routing

According to the VMware NSX Documentation, these are three of the capabilities of Network Topology, which is a graphical representation of your network infrastructure in NSX:

Display how the different NSX components are interconnected: You can use Network Topology to view how your segments, gateways, routers, firewalls, load balancers, VPNs, and other NSX components are connected and configured in your network.

Display the uplink configured on the Tier-0 Gateways: You can use Network Topology to view the uplink interface and segment that connect your tier-0 gateways to your physical network. You can also view the VLAN ID and IP address of the uplink interface.

Display the VMs connected to Segments: You can use Network Topology to view the VMs that are attached to your segments. You can also view the IP address and MAC address of each VM.

https://docs.vmware.com/en/VMware-NSX/4.0/administration/GUID-A75B2553-7595-40B9-A902-854941BB06FD.html

The service interface is a special-purpose port to enable services for mainly VLAN-based networks. North-south service insertion is another use case that requires a service interface to connect a partner appliance and redirect north-south traffic for partner services. Service interfaces are supported on both active-standby Tier-0 logical routers and Tier-1 routers. Firewall, NAT, and VPNs are supported on this interface. The service interface is also a downlink

The minimum MTU size for the UPLINK profile is 1700 bytes. This is because the UPLINK profile is used to configure the physical NICs that connect to the NSX-T overlay network. The overlay network uses geneve encapsulation, which adds an overhead of 54 bytes to the original packet. Therefore, to support a standard MTU of 1500 bytes for the inner packet, the outer packet must have an MTU of at least 1554 bytes. However, VMware recommends adding an extra buffer of 146 bytes to account for possible additional headers or VLAN tags. Therefore, the minimum MTU size for the UPLINK profile is 1700 bytes (1554 + 146). References: : VMware NSX-T Data Center Installation Guide, page 23. : VMware NSX-T Data Center Administration Guide, page 102. : VMware NSX-T Data Center Installation Guide, page 24.

https://nsx.techzone.vmware.com/resource/nsx-reference-design-guide#a-31-the-nsx-virtual-switch

An overlay segment is a layer 2 broadcast domain that is implemented as a logical construct in the NSX-T Data Center software. Overlay segments do not require any configuration on the physical switches, and they allow for optimal east/west communication between workloads on different ESXi hosts. Overlay segments use the Geneve protocol to encapsulate and decapsulate traffic between the hosts. Overlay segments are created and managed by the NSX Manager.

https://docs.vmware.com/en/VMware-NSX-T-Data-Center/3.2/administration/GUID-316E5027-E588-455C-88AD-A7DA930A4F0B.html

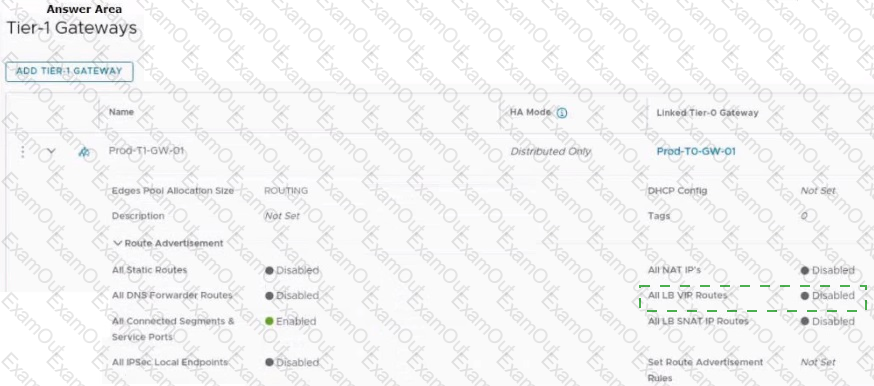

The correct answer is to enable the option All LB VIP Routes on the Tier-1 gateway route advertisement settings. This option allows the Tier-1 gateway to advertise the NSX Advanced Load Balancer LB VIP routes to the Tier-0 gateway and other peer routers, so that the end users can reach the production website by using the VIP address1. The other options are not relevant for this scenario.

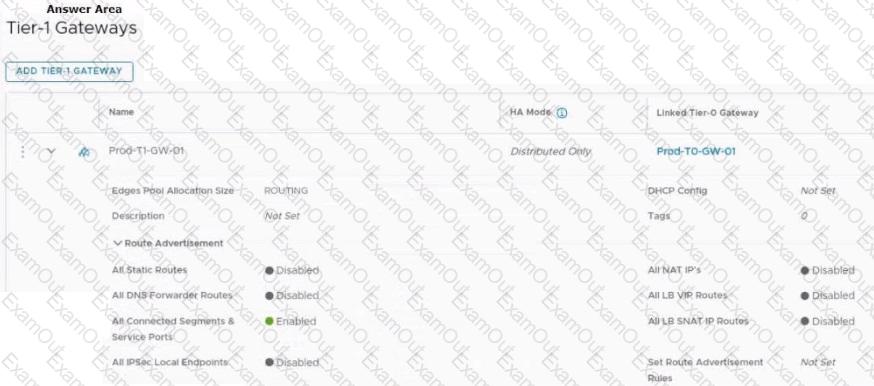

To mark the correct answer by clicking on the image, you can click on the toggle switch next to All LB VIP Routes to turn it on. The switch should change from gray to blue, indicating that the option is enabled. See the image below for reference:

 According to the VMware NSX Documentation1, core files and audit logs can contain sensitive information and should be excluded from the support bundle unless requested by VMware technical support. Controller files and management files are not mentioned as containing sensitive information.

According to the VMware NSX Documentation1, Packet Capture and Traceflow are two built-in VMware tools that can help identify the cause of packet loss on VLAN segments.

Packet Capture allows you to capture packets on a specific interface or segment and analyze them using tools such as Wireshark or tcpdump. Packet Capture can help you diagnose network issues such as misconfigured MTU, incorrect VLAN tags, or firewall drops.

Traceflow allows you to inject synthetic packets into the network and trace their path from source to destination. Traceflow can help you verify connectivity, routing, and firewall rules between virtual machines or segments. Traceflow can also show you where packets are dropped or modified along the way.

 Unicast is the traffic type that an NSX administrator should use for validating connectivity between App and DB virtual machines that reside on different segments. According to the VMware documentation1, unicast traffic is the traffic type that is used to send a packet from one source to one destination. Unicast traffic is the most common type of traffic in a network, and it is used for applications such as web browsing, email, file transfer, and so on2. To perform a traceflow with unicast traffic, the NSX administrator needs to specify the source and destination IP addresses, and optionally the protocol and related parameters1. The traceflow will show the path of the packet across the network and any observations or errors along the way3. The other options are incorrect because they are not suitable for validating connectivity between two specific virtual machines. Multicast traffic is the traffic type that is used to send a packet from one source to multiple destinations simultaneously2. Multicast traffic is used for applications such as video streaming, online gaming, and group communication4. To perform a traceflow with multicast traffic, the NSX administrator needs to specify the source IP address and the destination multicast IP address1. Broadcast traffic is the traffic type that is used to send a packet from one source to all devices on the same subnet2. Broadcast traffic is used for applications such as ARP, DHCP, and network discovery. To perform a traceflow with broadcast traffic, the NSX administrator needs to specify the source IP address and the destination MAC address as FF:FF:FF:FF:FF:FF1. Anycast traffic is not a valid option, as it is not supported by NSX Traceflow. Anycast traffic is a traffic type that is used to send a packet from one source to the nearest or best destination among a group of devices that share the same IP address. Anycast traffic is used for applications such as DNS, CDN, and load balancing.
