A new VLAN has been configured on your Nexus 1000V for VM data traffic on VLAN 202 using the following commands.

vlan 202

name datavlan-202

port-profile type vethernet VM-DATA-202

vmware port-group

switchport mode access

switchport access vlan 202

no shutdown

max-ports 512

state enabled

After deploying a virtual machine on the new VLAN, connectivity outside of this network does not appear to work.

Which action will resolve the problem?

A.

Apply the system VLAN attribute.

B.

Use the switchport mode trunk command.

C.

Add VLAN to the uplink port-profile configuration.

D.

Increase default port count.

What is the default URL for VMware Web services?

A.

httpslocalhost9443

B.

httpslocalhost4443

C.

httpslocalhost8443

D.

httplocalhost8444

Which three configurable settings are available directly through the DCUI? (Choose three.)

A.

IP address

B.

date

C.

firewall ports

D.

hostname

E.

VLAN ID

Which statement is correct about using VMware Inventory Services?

A.

It tracks virtual machine locations in the data center.

B.

It improves administrative user performance and reduces traffic with the vCenter.

C.

It tracks data center objects and performs reports.

D.

It improves virtual machine responsiveness.

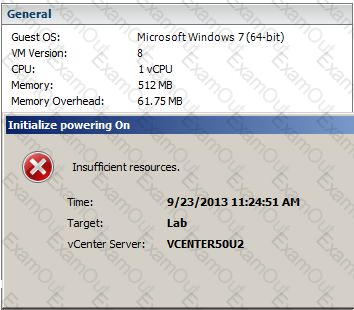

Click the Exhibit button.

Referring to the exhibit, which two actions would allow powering on the virtual machine? (Choose two.)

A.

Increase the memory reservation on the virtual machine.

B.

Decrease the memory reservation on the virtual machine.

C.

Add more memory to the ESXi host.

D.

Increase the amount of memory allocated to the virtual machine.

During Vblock System 320 testing, one of your ESXi 5.1 servers has lost connectivity with vCenter.

Which log file would first be used to troubleshoot this problem?

A.

varlogmessages

B.

varlogvmkernel.log

C.

varlogvmkwarning.log

D.

varlogvmksummary.log

You want to reset hardware sensors in the vSphere client connected to vCenter.

Which statement describes how to accomplish this task?

A.

From the Hosts and Clusters view select a host, select the Hardware Status tab, and select the Reset sensors button.

B.

From the Hosts and Clusters view select a host, select the Summary tab, select the Reset sensors button.

C.

Select a virtual machine on the host, install the VMware tools, and reboot the host.

D.

Hardware status can only be reset from the command line.

The ESXi 5.0 servers appear to have hardware problems after you have powered up the Vblock System 320. You want to view the log files for the ESXi servers.

What are two ways to accomplish this task? (Choose two.)

A.

Use the Technical Support Mode CLI.

B.

Use the vSphere Client.

C.

Use Powershell.

D.

Use the Service Console.

Your vSphere environment has two virtual machines configured to use the same VLAN and subnet. The hosts in the cluster are set up to use one DV switch. You want to ensure that the VMs communicate properly on the network and with each other regardless which host they use.

Which action will accomplish this task?

A.

Consult with your network team to ensure that the ESXi hosts use common routers and switches in your data center environment.

B.

Ensure the ESXi hosts load balancing policy is configured to route based on source mac hash.

C.

Ensure the ESXi hosts load balancing policy is configured to route based on the originating virtual port ID.

D.

The vNic DVPort group must be configured to be the correct setting on both virtual machines for the VLAN they are using.

When cloning or creating a virtual machine, storage DRS generates the fault Operation not allowed in the current state.

What will resolve this problem?

A.

Increase IO latency in the storage DRS cluster settings.

B.

Set storage DRS automation mode to manual.

C.

Increase the storage DRS utilization space.

D.

Temporarily disable affinity rules while the operation is running.
