Free Practice Questions for SAP C_ABAPD_2309 Exam

Based on the following code, the variable type of connection_full is a structure. A structure is a complex data type that consists of a group of related data objects, called components, that have their own data types and names. A structure can be defined using the TYPES statement or based on an existing structure type, such as a CDS view entity or a CDS DDIC-based view. In this case, the variable connection_full is declared using the TYPE addition, which means that it has the same structure type as the CDS view entity /DMO/I_Connection. The CDS view entity /DMO/I_Connection is a data model view that defines a data model based on the database table /DMO/Connection. The CDS view entity /DMO/I_Connection has the following components: carrid, connid, airpfrom, airpto, distance, and fltime. Therefore, the variable connection_full has the same components as the CDS view entity /DMO/I_Connection, and each component has the same data type and length as the corresponding field in the database table /DMO/Connection.

References: CDS Data Model Views - ABAP Keyword Documentation, DATA - ABAP Keyword Documentation, Structure Types - ABAP Keyword Documentation

In a RESTful Application Programming (RAP) application, you can bind a CDS view to create a value help in the following objects:

Data model view: A data model view is a CDS view that defines the data structure and the associations of an entity in the RAP application. You can use the annotation @Consumption.valueHelpDefinition to bind a value help provider CDS view to an element of the data model view. The value help provider CDS view must contain the key fields of the value help entity and the fields that are displayed in the value help dialog. The value help annotation specifies the entity name, the element name, and optionally the additional binding conditions for the value help provider1.

Metadata Extension: A metadata extension is a CDS view that extends the metadata of another CDS view without changing its data structure. You can use the annotation @MetadataExtension.extendView to specify the target CDS view that you want to extend. You can then use the same annotation @Consumption.valueHelpDefinition to bind a value help provider CDS view to an element of the target CDS view. The metadata extension allows you to add value help definitions to existing CDS views without modifying them2.

Projection View: A projection view is a CDS view that defines the projection of another CDS view. You can use the annotation @AbapCatalog.sqlViewType: #PROJECTION to specify that the CDS view is a projection view. You can then use the same annotation @Consumption.valueHelpDefinition to bind a value help provider CDS view to an element of the projection view. The projection view allows you to add value help definitions to projected elements of another CDS view3.

You cannot bind a value help provider CDS view to a behavior definition or a service definition, because these objects do not define the data structure or the metadata of an entity in the RAP application. A behavior definition defines the behavior and the validation rules of an entity, such as the create, read, update, and delete (CRUD) operations, the draft handling, the authorization checks, and the side effects4. A service definition defines the service exposure and the service binding of an entity, such as the protocol, the version, the namespace, and the service name5.

References: 1: Value Help with Additional Binding | SAP Help Portal 2: Metadata Extensions - ABAP Keyword Documentation 3: Projection Views - ABAP Keyword Documentation 4: Behavior Definition - ABAP Keyword Documentation 5: Service Definition - ABAP Keyword Documentation

The following are the explanations for each ABAP SQL statement:

A: This statement is valid. It selects the fields carrid, airpfrom, and the aggregate functions MAX(distance) and MIN(distance) from the table /dmo/connection, and groups the results by carrid and airpfrom. The aggregate functions are aliased as dist_max and dist_min. The results are stored in an internal table named It_hits, which is created using the inline declaration operator @DATA.

B: This statement is valid. It is similar to statement A, except that it does not specify the GROUP BY clause. This means that the aggregate functions are applied to the entire table, and the results are stored in an internal table named It_hits, which is created using the inline declaration operator @DATA.

C: This statement is invalid. It selects the aggregate functions MAX(distance) and MIN(distance) from the table /dmo/connection, but it does not specify any grouping or non-aggregate fields. This is not allowed in ABAP SQL, as the SELECT list must contain at least one non-aggregate field or a GROUP BY clause. The statement will cause a syntax error.

D: This statement is invalid. It selects the fields carrid and airpfrom from the table /dmo/connection, and groups the results by carrid and connid. However, the field connid is not included in the SELECT list, which is not allowed in ABAP SQL, as the GROUP BY clause must contain only fields that are also in the SELECT list. The statement will cause a syntax error.

References: SELECT - ABAP Keyword Documentation, GROUP BY - ABAP Keyword Documentation

The possible replacements for “???” in the CDS view entity definition with an input parameter are A. built-in ABAP type and C. A data element. These are the valid types that can be used to specify the data type of an input parameter in a CDS view entity. A built-in ABAP type is a predefined elementary type in the ABAP language, such as abap.char, abap.numc, abap.dec, etc. A data element is a reusable semantic element in the ABAP Dictionary that defines the technical attributes and the meaning of a field12. For example:

The following code snippet defines a CDS view entity with an input parameter currency of type abap.cuky, which is a built-in ABAP type for currency key:

Define view entity Z_CONVERT With parameters currency : abap.cuky as select from … { … }

The following code snippet defines a CDS view entity with an input parameter currency of type waers, which is a data element for currency key:

Define view entity Z_CONVERT With parameters currency : waers as select from … { … }

You cannot do any of the following:

B. A built-in ABAP Dictionary type: This is not a valid type for an input parameter in a CDS view entity. A built-in ABAP Dictionary type is a predefined elementary type in the ABAP Dictionary, such as CHAR, NUMC, DEC, etc. However, these types cannot be used directly in a CDS view entity definition. Instead, they have to be prefixed with abap. to form a built-in ABAP type, as explained above12.

D. A component of an ABAP Dictionary structure: This is not a valid type for an input parameter in a CDS view entity. A component of an ABAP Dictionary structure is a field that belongs to a structure type, which is a complex type that consists of multiple fields. However, an input parameter in a CDS view entity can only be typed with an elementary type, which is a simple type that has no internal structure12.

References: 1: ABAP CDS - SELECT, parameter_list - ABAP Keyword Documentation - SAP Online Help 2: ABAP Data Types - ABAP Keyword Documentation - SAP Online Help

Both statements are valid in ABAP, but they have different effects on the program.

##NEEDED is a pragma that can be used to hide warnings from the ABAP compiler syntax check. It tells the check tools that a variable or a parameter is needed for further processing, even if it is not used in the current statement. For example, if you declare a variable without assigning any value to it, you can use ##NEEDED to suppress the warning about unused variables12.

The pragma is not checked by the syntax checker means that you can use any pragma to hide any warning from the ABAP compiler syntax check, regardless of its effect on the program logic or performance. For example, if you use ##SHADOW to hide a warning about an obscured function, you can also use it to hide a warning about an invalid character in a string12.

You cannot do any of the following:

#EC_NEEDED is not checked by the syntax checker: This is not a valid statement in ABAP. There is no pseudo-comment with #EC_NEEDED in ABAP3.

The pseudo-comment is checked by the syntax checker: This is false. Pseudo-comments are obsolete and should no longer be used in ABAP. They were replaced by pragmas since SAP NW 7.0 EhP2 (Enhancement Package)4.

References: 1: Pragmas - ABAP Keyword Documentation - SAP Online Help 2: [What are pragmas and pseudo comments in ABAP? | SAP Blogs - SAP Community] 3: ABAP Keyword Documentation - SAP Online Help 4: What are PRAGMAS and Pseudo comments in SAP ABAP

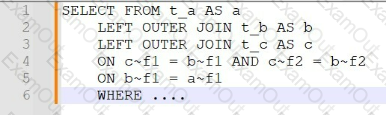

The nested join is evaluated from the top to the bottom in the order of the ON conditions. This means that the join expression is formed by assigning each ON condition to the directly preceding JOIN from left to right. The join expression can be parenthesized implicitly or explicitly to show the order of evaluation. In this case, the implicit parentheses are as follows:

SELECT * FROM (a INNER JOIN (b INNER JOIN c ON b~c = c~c) ON a~b = b~b)

This means that the first join expression is b INNER JOIN c ON b~c = c~c, which joins the columns of tables b and c based on the condition that b~c equals c~c. The second join expression is a INNER JOIN (b INNER JOIN c ON b~c = c~c) ON a~b = b~b, which joins the columns of table a and the result of the first join expression based on the condition that a~b equals b~b. The final result set contains all combinations of rows from tables a, b, and c that satisfy both join conditions.

References: 1: SELECT, FROM JOIN - ABAP Keyword Documentation - SAP Online Help

String functions are expressions that can be used to manipulate character-like data in ABAP. String functions can be either predicate functions or non-predicate functions. Predicate functions are string functions that return a truth value (true or false) for a condition of the argument text. Non-predicate functions are string functions that return a character-like result for an operation on the argument text1.

The following string functions are predicate functions:

B. contains_any_of(): This function returns true if the argument text contains at least one of the characters specified in the character set. For example, the following expression returns true, because the text ‘ABAP’ contains at least one of the characters ‘A’, ‘B’, or ‘C’:

contains_any_of( val = ‘ABAP’ set = ‘ABC’ ).

D. matches(): This function returns true if the argument text matches the pattern specified in the regular expression. For example, the following expression returns true, because the text ‘ABAP’ matches the pattern that consists of four uppercase letters:

matches( val = ‘ABAP’ regex = ‘[A-Z]{4}’ ).

The following string functions are not predicate functions, because they return a character-like result, not a truth value:

A. find_any_not_of(): This function returns the position of the first character in the argument text that is not contained in the character set. If no such character is found, the function returns 0. For example, the following expression returns 3, because the third character of the text ‘ABAP’ is not contained in the character set ‘ABC’:

find_any_not_of( val = ‘ABAP’ set = ‘ABC’ ).

C. count_any_of(): This function returns the number of characters in the argument text that are contained in the character set. For example, the following expression returns 2, because there are two characters in the text ‘ABAP’ that are contained in the character set ‘ABC’:

count_any_of( val = ‘ABAP’ set = ‘ABC’ ).

References: 1: String Functions - ABAP Keyword Documentation

An Access Control Object (ACO) is a CDS annotation that defines the access control rules for a CDS view entity. An ACO consists of one or more clauses that specify the role name, the data source, the access conditions, and the return code of the authority check12. Some of the clauses that are used in an ACO are:

Where (to specify the access conditions): This clause is used to define the logical expression that determines whether a user has access to the data source or not. The expression can use the fields of the data source, the parameters of the CDS view entity, or the predefined variables $user and $session. The expression can also use the functions check_authorization and check_role to perform additional authority checks12.

Define role (to specify the role name): This clause is used to assign a name to the role that is defined by the ACO. The role name must be unique within the namespace of the CDS view entity and must not contain any special characters. The role name can be used to reference the ACO in other annotations, such as @AccessControl.authorizationCheck or @AccessControl.grant12.

Revoke (to remove access to the data source): This clause is used to explicitly deny access to the data source for a user who meets the conditions of the where clause. The revoke clause overrides any grant clause that might grant access to the same user. The revoke clause can be used to implement the principle of least privilege or to enforce data segregation12.

You cannot do any of the following:

Grant (to identify the data source): This is not a valid clause in an ACO. The grant clause is a separate annotation that is used to grant access to a CDS view entity or a data source for a user who has a specific role. The grant clause can reference an ACO by its role name to apply the access conditions defined by the ACO12.

Return code (to assign the return code of the authority check): This is not a valid clause in an ACO. The return code of the authority check is a predefined variable that is set by the system after performing the access control check. The return code can be used in the where clause of the ACO to specify different access conditions based on the outcome of the check12.

References: 1: Access Control Objects - ABAP Keyword Documentation - SAP Online Help 2: Access Control in Core Data Services (CDS) | SAP Help Portal

The order in which the join statements will be executed is:

scarr will be joined with scounter first and the result will be joined with sairport.

This is because the join statements are nested from left to right, meaning that the leftmost data source is joined with the next data source, and the result is joined with the next data source, and so on. The join condition for each pair of data sources is specified by the ON clause that follows the data source name. The join type for each pair of data sources is specified by the join operator that precedes the data source name. In this case, the join operator is LEFT OUTER JOIN, which means that all the rows from the left data source are included in the result, and only the matching rows from the right data source are included. If there is no matching row from the right data source, the corresponding fields are filled with initial values1.

Therefore, the join statements will be executed as follows:

First, scarr AS a will be joined with scounter AS c using the join condition a.carrid = c.carrid. This means that all the rows from scarr will be included in the result, and only the rows from scounter that have the same value for the carrid field will be included. If there is no matching row from scounter, the countnum field will be filled with an initial value.

Second, the result of the first join will be joined with sairport AS p using the join condition p.id = c.airport. This means that all the rows from the first join will be included in the result, and only the rows from sairport that have the same value for the id field as the airport field from the first join will be included. If there is no matching row from sairport, the id field will be filled with an initial value.

References: 1: Join - ABAP Keyword Documentation
