Free Practice Questions for Nutanix NCP-MCI-6.5 Exam

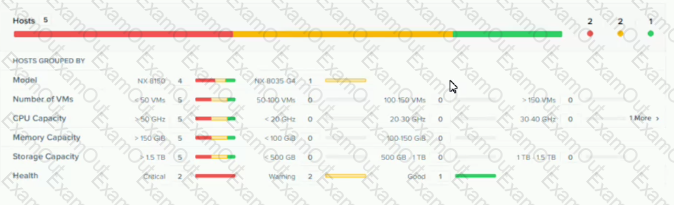

Prism Element is a graphical user interface that allows you to manage Nutanix clusters1. You can use Prism Element charts to understand Nutanix cluster workloads and troubleshoot performance related issues2.

memory optimized virtual machine sizes offer the best performance for SQL Server workloads on Azure VMs. Adding more RAM to the user VM can help reduce paging and improve query execution times.

SQL Server performance can be affected by disk latency and throughput. By creating separate virtual disks for data and logs, you can spread activity across multiple spindles and reduce disk contention.

https://next.nutanix.com/how-it-works-22/differences-between-prism-element-prism-central-and-prism-pro-37137

According to the Nutanix Support & Insights web search result1, the administrator can change the frequency of checks and alerts for the System Non-Root Partition Usage in Prism Element by going to the Health Dashboard > Manage Checks > Schedule. The administrator can select the check name, such as disk_usage_check, and click on Edit Schedule. The administrator can then choose the desired frequency, such as every 15 minutes, every hour, or every day, and click on Save. This will change how often the check runs and alerts are generated.

According to the Dell Unity: Data Reduction Technical White Paper1, snapshots and clones on Dell Unity use the Copy-on-Write (CoW) algorithm to maximize efficiency and effectiveness. CoW is a technique that defers the copying of data until it is modified. This means that snapshots and clones only consume space when changes are made to the source or the clone, respectively. CoW also preserves the original data in case of a rollback or recovery operation.

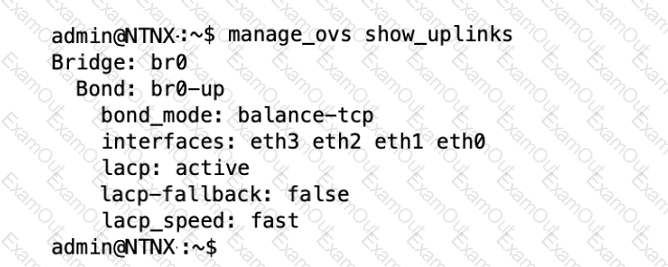

The output in the exhibit indicates that the node's network interfaces (eth0-eth3) are bonded together using LACP (Link Aggregation Control Protocol) with 'balance-tcp' as the bonding mode and LACP speed set to 'fast'. For LACP to function correctly, the switch ports to which the node is connected must also be configured to support LACP. If the ports on the upstream switch are not configured for LACP, the bond will not be able to establish properly, and the node will not communicate effectively on the network, making it undiscoverable when attempting to expand the cluster.

The absence of an operational LACP configuration could prevent the new node from joining the existing cluster as the node's network interfaces would not be able to pass traffic correctly. This can be verified by checking the switch configuration to ensure that the ports are set to participate in an LACP bond.

The other options, such as a firewall blocking discovery traffic (Option A) or the node being on different VLANs (Option C), are possible causes for a node not being discovered, but given the specific command output provided, the most likely cause is related to the switch port configuration for LACP. Option D, regarding completing LACP configuration after cluster expansion, is not correct because LACP needs to be operational for the node to communicate with the cluster during the expansion process.

Proper LACP configuration is critical for network communication in a Nutanix AHV cluster, and this is covered in detail in the Nutanix AHV and Networking documentation. It outlines the steps for configuring network bonds and LACP on both the AHV hosts and the connecting network infrastructure.

"Playbook allows you to define a trigger that results in the execution of an action or a series of actions. A trigger may be an event that occurs in the system, such as an alert or a request made by you. The resultant actions that you configure can be VM actions, communication actions, alert actions, or report actions." https://portal.nutanix.com/page/documents/details?targetId=Intelligent-Operations-Guide-vpc_2023_3:ssp-report-management-ssp-pc-c.html#:~:text=The%20environment%20summary%20report%20provides,is%20registered%20to%20Prism%20Central.

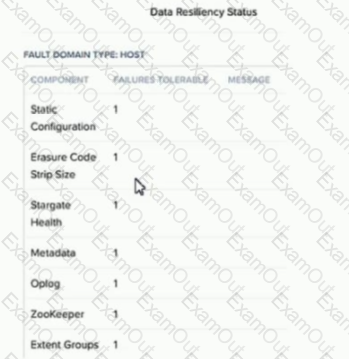

According to the web search results, the cluster redundancy factor (RF) determines how many copies of the cluster metadata and configuration data are stored on different nodes. By default, the cluster RF is 2, which means that there are three copies of the Zookeeper and Cassandra data on the cluster. If the cluster RF is increased to 3, then there will be five copies of the Zookeeper and Cassandra data on the cluster12. This means that the Zookeeper component can tolerate two failures, as it can still operate with a quorum of three nodes out of five3.

However, the container replication factor (RF) determines how many copies of the VM data and oplog are stored on different nodes. The container RF can be set independently for each container, and it can be different from the cluster RF. For example, a container can have RF 2 even if the cluster has RF 34. In this case, the container will only have two copies of the VM data and oplog on the cluster, regardless of the cluster RF. This means that the Extent Groups component can only tolerate one failure, as it needs at least one copy of the VM data and oplog to be available5.

Therefore, if the administrator increases the cluster RF to 3, but does not modify the containers, then the new values in the data resiliency dashboard will be Zookeeper = 2 and Extent Groups = 1.

Stargate is the AOS process that handles all I/O operations for the cluster. It is responsible for determining whether an I/O from a user will be written to the OpLog or to the Extent Store, based on the type and size of the I/O. Stargate also performs data tiering, compression, deduplication, and erasure coding1. Stargate runs on every CVM and communicates with other Stargates to ensure data locality and redundancy2.
