Free Practice Questions for Nutanix NCP-CI-AWS Exam

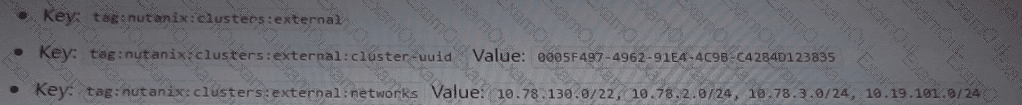

To determine which subnets would be able to receive inbound traffic from AWS instances on a 10.0.0.0/22 network segment, we need to look at the configured subnets and their CIDR ranges, as well as the custom network security group ' s inbound rules.

Available CIDR ranges in VPC:

70.73.0.0/16

10.79.107.0/24

10.0.0.0/22

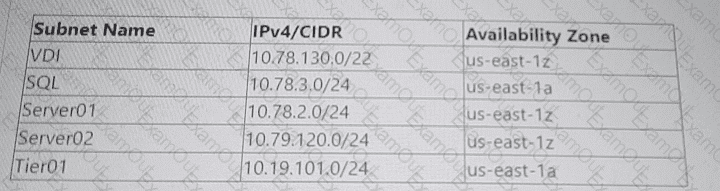

Configured Subnets in NC2 AWS VPC:

VDI: 10.78.130.0/22

SQL: 10.78.3.0/24

Server01: 10.78.2.0/24

Server02: 10.79.120.0/24

Tier01: 10.19.101.0/24

Custom Network Security Group Inbound Rule:

Allows all inbound traffic from 10.0.0.0/22.

Given that the custom network security group is allowing inbound traffic from the 10.0.0.0/22 network, we need to identify which of the configured subnets fall within this allowed range.

Analysis:

The subnets 10.78.130.0/22, 10.78.3.0/24, 10.78.2.0/24, 10.79.120.0/24, and 10.19.101.0/24 do not overlap with 10.0.0.0/22. Therefore, none of these subnets would naturally fall within the 10.0.0.0/22 range directly.

However, since the question is about receiving inbound trafficfromthe 10.0.0.0/22 network and considering security group rules, all subnets mentioned can technically receive traffic if the inbound rules are configured correctly, but since we are strictly asked about the configuration from the image and the overlap in the ranges:

Server01 (10.78.2.0/24)andTier01 (10.19.101.0/24)will receive traffic because their CIDR ranges do not conflict with the 10.0.0.0/22 range, thus allowing traffic without additional restrictions.

Nutanix Clusters on AWS Administration Guide

AWS VPC and Subnet documentation

Network Security Group rules configuration in Nutanix documentation

When creating user VM subnets for multiple NC2 clusters in AWS, the best approach is to create guest-VM subnets for each cluster. This ensures that each cluster has its own dedicated subnets, which simplifies network management and avoids potential IP conflicts.

Advantages of Dedicated Subnets:

Isolation: Each cluster operates in its own subnet, providing better isolation and security.

Management: Easier to manage and troubleshoot network issues when each cluster has its own subnets.

Scalability: More scalable as each subnet can be managed and expanded independently.

Steps to Create Guest-VM Subnets:

Identify the IP range for each subnet.

In the AWS VPC console, create a new subnet for each cluster using the identified IP ranges.

Associate the new subnets with the respective clusters during or after the cluster deployment process.

Why Not Shared Subnets:

Shared subnetscould lead to IP conflicts and make network management more complex, especially as the number of clusters grows.

Nutanix Cloud Clusters on AWS Administration Guide

AWS VPC Subnet Creation Documentation

Successful onboarding of an AWS environment into the Nutanix Cloud Clusters ecosystem requires a precise set of administrative permissions to be present on the account used for initial configuration. Specifically, the AWS user must haveCreateRoleFullAccessto allow the automated scripts to generate the necessary service-linked roles. Additionally, the user must possessIAMFullAccessto manage identity policies andAWSCloudFormationFullAccessto execute the deployment templates. This specific combination ensures that the NC2 portal can correctly configure the " Cross-Account Role " which serves as the primary communication bridge between the Nutanix management plane and the AWS infrastructure APIs. Failing to provide any of these three core permissions will result in an " Insufficient Permissions " alert during the cloud account registration process.

Cross Cluster Live Migration allows for the movement of running virtual machines between different Nutanix clusters with zero downtime.

For this feature to be supported in an NC2 on AWS environment, the deployment must utilizeFlow Virtual Networking (FVN). FVN provides the advanced software-defined networking overlay required to maintain consistent network state and connectivity for the VM as it moves between different physical bare-metal hosts in separate clusters. Standard AWS networking lacks the specific overlay capabilities necessary to handle the seamless IP mobility and session persistence required for a live migration between cloud clusters. Therefore, ensuring FVN is correctly configured is a prerequisite for achieving live mobility within the AWS NC2 ecosystem.

The Nutanix Create Cluster wizard may not support selecting subnets that have both IPv4 and IPv6 CIDR blocks due to compatibility or configuration constraints.

When a subnet with both CIDR blocks is present, it can cause issues in the selection process during cluster creation, as the system might not be able to properly handle or recognize the dual-stack configuration.

Ensuring that the management subnet has only an IPv4 CIDR block, without an IPv6 CIDR block, could resolve this issue and allow for successful selection in the cluster creation wizard.

Refer to the Nutanix and AWS documentation on subnet configuration and requirements for NC2 cluster deployments, specifically addressing IPv4 and IPv6 compatibility and constraints.

AVTEP (VXLAN Tunnel Endpoint) Gatewayshowing a status of " Down " indicates a connectivity or configuration failure within the control plane. In an NC2 environment, the gateway relies on consistent communication withPrism Central (PC)for management and synchronization, as well asNTP and DNSfor time-sync and name resolution. If the route tables in the AWS VPC are missing the necessary entries to reach these management services, the VTEP gateway will fail to initialize or maintain its heartbeat, resulting in a " Down " status. While on-premises reachability is important for traffic flow, the failure to create the extension entirely usually points to these missing internal routes that prevent the Nutanix software components from coordinating correctly within the cloud environment.

Monitoring the health and connectivity of stretched Layer 2 networks is vital for maintaining seamless hybrid cloud operations.

In a Nutanix environment managed via Prism Central, the specific location to verify the operational status of these extensions is underNetwork and Security, specifically within theNetwork Servicessection labeledSubnet Extensions. This dashboard provides visibility into the VTEP (VXLAN Tunnel Endpoint) gateways and the specific subnets that have been extended from the on-premises environment to NC2 on AWS. Administrators can check if the tunnel is " Up " or " Down " and view performance metrics associated with the stretched segment. Ensuring the status is monitored here allows for rapid troubleshooting of connectivity issues that might prevent virtual machines from communicating across the hybrid link.

To ensure that the newly created NC2 organization named Finance can only deploy clusters into certain cloud regions, the administrator should specify the allowed regions during the cloud account configuration.

This action restricts the regions available for cluster deployment, ensuring compliance with organizational policies or regulatory requirements.

The allowed regions can be set in the cloud account settings associated with the Finance NC2 organization, defining the geographical scope of operations.

Refer to the Nutanix documentation on NC2 cloud account configuration and region restrictions.

When deploying Windows Server workloads on NC2 on AWS without existing licenses, administrators must carefully choose the tenancy and licensing model to remain compliant with Microsoft ' s cloud mobility rules. For a new deployment where " Bring Your Own License " (BYOL) is not an option due to the lack of existing licenses with Software Assurance, the administrator should select Shared Tenancy with License-included instances. This configuration ensures that the cost of the Windows OS is included in the hourly rate of the bare-metal instances provisioned by AWS. Although the question ' s source Answer (A) lists " BYOL, " standard Nutanix/AWS best practices for unlicensed environments dictate using License-included options on Shared Tenancy to provide the most cost-effective and compliant path for Windows-based virtual machines in the cloud.

The Nutanix disaster recovery capabilities include recovery plans that define how entities are recovered in the event of a failure. There is a limit to the number of entities that can be managed within a single recovery plan.

Entity Limit:

According to Nutanix documentation, the maximum number of entities that can be recovered using a single recovery plan is 300. Exceeding this limit will cause issues during the execution of the recovery plan.

Impact of Exceeding the Limit:

If the number of entities in a recovery plan exceeds the supported limit, the recovery process may fail or not execute correctly, as observed in the scenario.

Nutanix Cloud Clusters on AWS Administration Guide

Nutanix Disaster Recovery Best Practices Documentation
