Free Practice Questions for MuleSoft MCD-Level-1 Exam

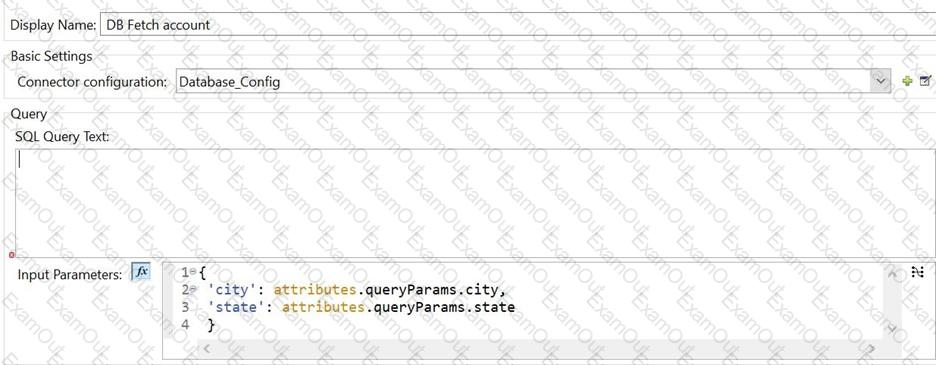

Correct syntax to use where clause is WHERE city = :city AND state = :state

This question validates knowledge on using dynamic queries in DB select operation.

Configure Dynamic Queries in the Select Operation

When you need to parameterize not only the WHERE clause but also parts of the query itself (for example, queries that compare tables that depend on a condition, or complex queries for which the project table columns need to vary), you can configure dynamic queries.

In the following example, you configure a dynamic query by using a full expression with a string in which the table depends on a variable $(vars.table). Although some of the query text is dynamic ("SELECT * FROM $(vars.table)), the WHERE clause still defines the WHERE condition using input parameters: in this case, WHERE name = :name.

In your Studio flow, select the Select operation.

In the operation configuration screen, set the SQL Query Text field to SELECT * FROM $(vars.table) WHERE name = :name.

Set the Input Parameters field to {'name' : payload}.

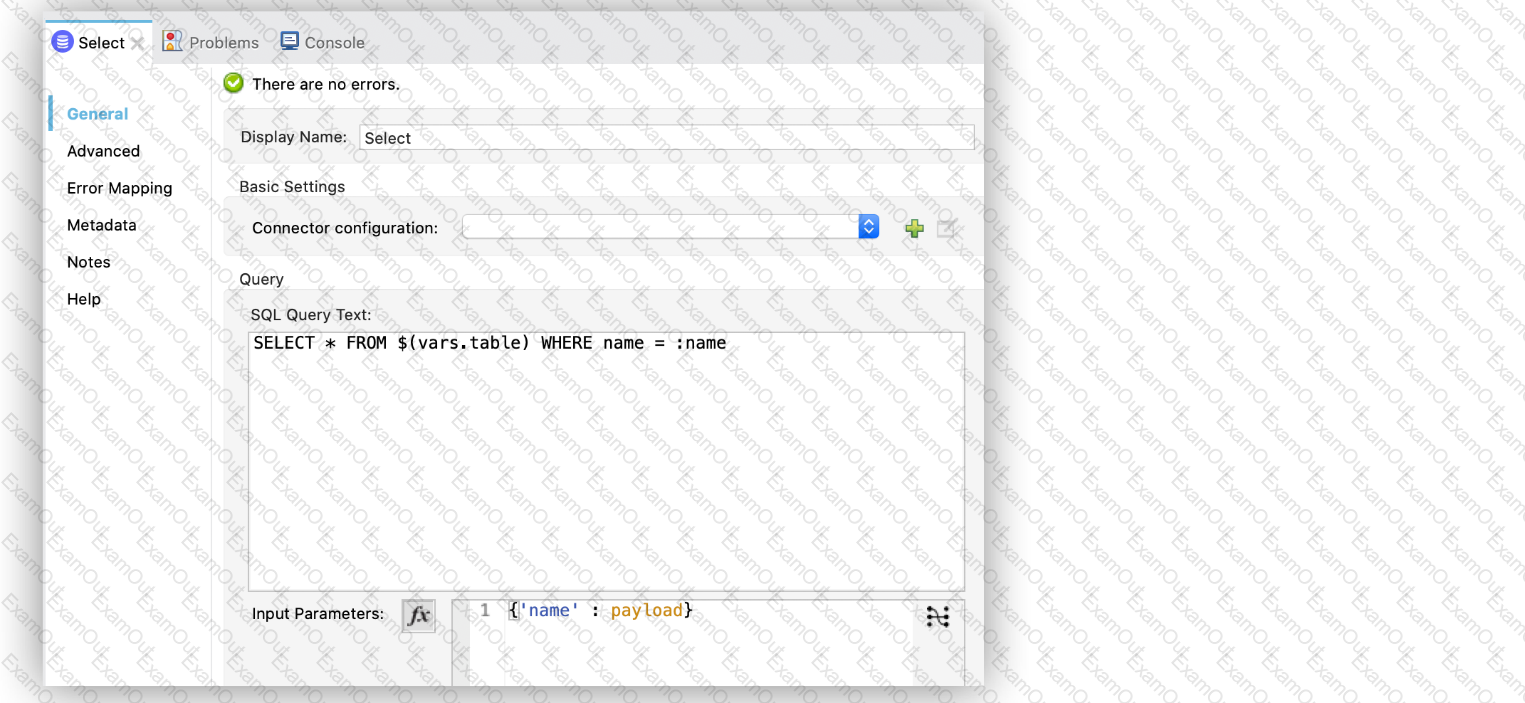

The following screenshot shows the configuration in Studio:

Graphical user interface, application Description automatically generated

Figure 3. Dynamic query configuration

In the XML editor, the  configuration looks like this:

#["SELECT * FROM $(vars.table) WHERE name = :name"]

#[{'name' : payload}]

You can apply input parameters only to parameters in a WHERE clause. To modify any other part of the query, use the DataWeave interpolation operator.

Mule Ref Doc: Query a Database Examples - Mule 4 | MuleSoft Documentation

MuleSoft Doc Ref : https://docs.mulesoft.com/api-manager/2.x/policy-mule3-tutorial-manage-an-api#to-add-the-tier

Steps to create SLA Tier are as follows:

1) In API Manager, in API Administration, click a version.

2) Check that the API supports resource-level policies: On the API version details page, in Status, click Configure Endpoint, and check that Type is RAML.

3) Choose the SLA Tiers, and click Add SLA Tier. Set up limit on SLA tier

Lets revise few concepts RAML which can help us to find the answer of this question.

URI Parameters

Lets have a look at below example.

/foos:

/{id}:

/name/{name}:

Here, the braces { } around property names define URI parameters. They represent placeholders in each URI and do not reference root-level RAML file properties as we saw above in the baseUri declaration. The added lines represent the resources /foos/{id} and /foos/name/{name}.

Query Parameters

Now we'll define a way to query the foos collection using query parameters. Note that query parameters are defined using the same syntax that we used above for data types:

/foos:

get:

description: List all Foos matching query criteria, if provided;

otherwise list all Foos

queryParameters:

name?: string

ownerName?: string

Based on the above information , below is the only option which defines storeid as uri parameter and department as query parameter.

/{storeId}:

get:

queryParameter:

department:

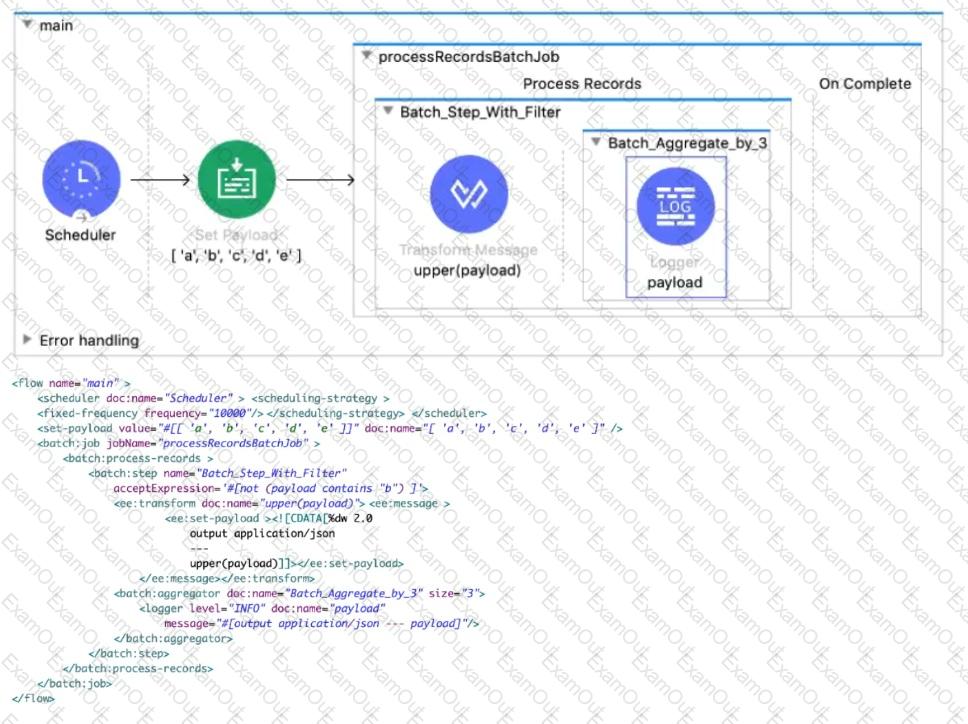

Logs would look like:

INFO 2021-06-09 19:14:56,039 [[MuleRuntime].uber.06: [validationtest].batch-job-validationtestBatch_Job-work-manager @6de10f3e] [processor: validationtestFlow/processors/1/route/0/route/0/aggregator/processors/0; event: bfb751e1-9939-11eb-9f69-02053763653a] org.mule.runtime.core.internal.processor.LoggerMessageProcessor:

[

“\”A\””,

“\”C\””,

“\”D\””

]

—-

INFO 2021-06-09 19:15:02,486 [[MuleRuntime].uber.06: [validationtest].batch-job-validationtestBatch_Job-work-manager @6de10f3e] [processor: validationtestFlow/processors/1/route/0/route/0/aggregator/processors/0; event: bfb751e1-9939-11eb-9f69-02053763653a] org.mule.runtime.core.internal.processor.LoggerMessageProcessor: [

“\”E\””

]

Batch aggregator value is 3. Hence in first time it will print [“A”, “C”, “D”] and in next iteration it will print [ “E” ]

--------------------------------------------------------------------------------------------------------------------------------------------------

Correct answer is [ “E” ]
