Free Practice Questions for Microsoft AZ-400 Exam

Task 6: Create a Service Connection for Resource Group Deployment using Managed Identity and Workload Identity Federation

Step 1: Understand the Requirements

You want to deploy resources in the RGHod489Q1628 resource group.

The service connection must:

Use the ManagedJd1 managed identity.

Use workload identity federation (OIDC-based authentication for enhanced security).

Step 2: Verify Prerequisites

You need to ensure:

The ManagedJd1 managed identity exists in your Azure subscription.

Your Azure DevOps project (Project1) is linked to an Azure Active Directory tenant (for OIDC support).

You have the Owner or User Access Administrator role on the RGHod489Q1628 resource group.

Step 3: Assign Role to Managed Identity

Go to the Azure Portal.

In the search bar, type Managed Identities and select Managed Identities.

Locate and click on the ManagedJd1 identity.

In the left menu, click Azure role assignments.

Click + Add role assignment.

Set the following:

Scope: Resource Group

Subscription: Your subscription

Resource Group: RGHod489Q1628

Role: Contributor (or appropriate role)

Click Save.

This step ensures ManagedJd1 has permissions to deploy resources to RGHod489Q1628.

Step 4: Create a Federated Credential for Workload Identity Federation

In the Azure Portal, navigate to the ManagedJd1 managed identity.

In the left menu, click Workload identity federation (preview).

Click + Add a federated credential.

Configure as follows:

Federated credential name: devops-oidc

Issuer: https://vstoken.actions.githubusercontent.com (or use the default https://pipelines.actions.githubusercontent.com for Azure DevOps)

Subject identifier: Use the following format for Azure DevOps:

css

Copy

system:azuredevops:{organizationName}:{projectName}

For example:

css

Copy

system:azuredevops:{YourOrganizationName}:{Project1}

Audience: api://AzureADTokenExchange

Click Add.

This federated credential establishes trust between your Azure DevOps project and the managed identity.

Step 5: Create a Service Connection in Azure DevOps

Go to your Azure DevOps project (Project1) in the browser.

In the left menu, click Project settings.

Under Pipelines, click Service connections.

Click New service connection.

Choose Azure Resource Manager.

Choose the authentication method:

Select Workload identity federation.

Configure the service connection:

Scope level: Resource Group.

Resource Group: RGHod489Q1628.

Subscription: Your subscription.

Authentication method: Managed Identity with workload identity federation.

Managed Identity: Enter the client ID or select ManagedJd1.

Service connection name: e.g., Project1-RGHod489Q1628-Conn.

Grant access permission to all pipelines (recommended).

Click Save.

Step 6: Validate the Service Connection

After creation, click on the new service connection to Verify it.

Ensure the connection test is successful.

You can now use this service connection in your pipelines for deploying resources to RGHod489Q1628.

Step 1: Log in to the Azure Portal

Go to https://portal.azure.com .

Log in with your Azure account.

Step 2: Create an Azure App Configuration Instance

In the search bar at the top, type “App Configuration” and select App Configuration from the search results.

Click + Create.

Fill in the required fields:

Subscription: Your Azure subscription.

Resource Group: Create a new one or select an existing one.

Name: Provide a globally unique name (for example, myappconfig-instance).

Location: Choose a region close to your application.

Click Review + Create, then Create.

The instance will take a few seconds to deploy.

Step 3: Access the App Configuration Instance

Once the deployment is complete, click Go to resource.

You are now in the App Configuration resource.

Step 4: Enable Feature Management

In the left menu, click on Feature Manager (Preview).

Click + Add to create a new feature flag.

Step 5: Create the Feature Flag

Provide the following details:

Feature flag name: feature1

Label: (optional)

Description: (optional)

State: Set to Enabled.

Click on the Add filters link if you want to add targeting filters (optional).

Click Save to create the feature flag.

Step 6: Set the Expiration Date for the Feature Flag

In the Feature Manager list, find the newly created feature1 flag.

Click on the three dots (context menu) next to feature1 and select Edit.

In the Edit feature pane, look for the Expiration date setting.If there is no direct UI for expiration date, you can store it as a custom key-value (metadata).

Here’s how to store expiration as metadata:

In the App Configuration left menu, click on Configuration Explorer.

Locate the key: .appconfig.featureflag/feature1.

Click on the key to edit.

Add a new label or add a custom key in the Content type or tags section to store expiration metadata:

Key: expiration

Value: yyyy-MM-dd (set to today + 7 days)

For example, if today is June 4, 2025, set the expiration as 2025-06-11.

1. Open Microsoft Azure Portal

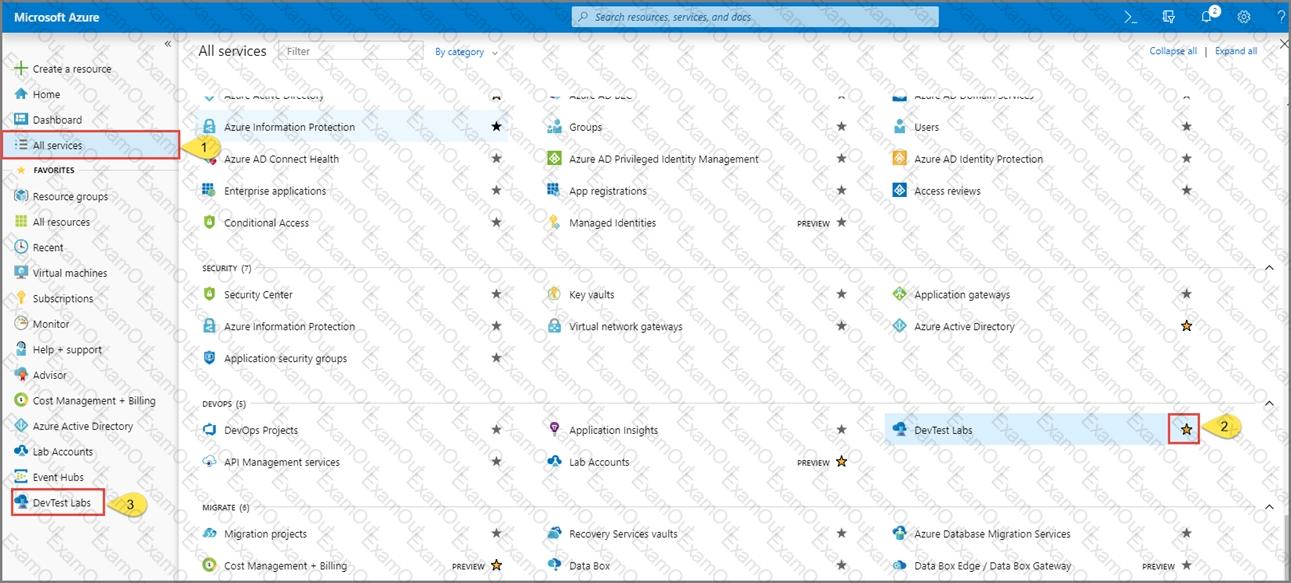

2. Select All Services, and then select DevTest Labs in the DEVOPS section.

3. From the list of labs, select the az400-9940427-dtl1 lab

4. On the home page for your lab, select + Add on the toolbar.

5. Select the Windows Server 2016 Datacenter base image for the VM.

6. Select automation options at the bottom of the page above the Submit button.

7. You see the Azure Resource Manager template for creating thevirtual machine.

8. The JSON segment in the resources section has the definition for the image type you selected earlier.

Step 1: To create a general-purpose v2 storage account in the Azure portal, follow these steps:

On the Azure portal menu, select All services. In the list of resources, type Storage Accounts. As you begin typing, the list filters based on your input. Select Storage Accounts.

On the Storage Accounts window that appears, choose Add.

Select the subscription in which to create thestorage account.

Under the Resource group field, select RG1lod11566895

Next, enter a name for your storage account named: az400lod11566895stor

Select Create.

Step 2: Enable boot diagnostics on existing virtual machine

To enable Boot diagnostics on an existing virtual machine, follow these steps:

Sign in to the Azure portal, and then select the virtual machine VM1.

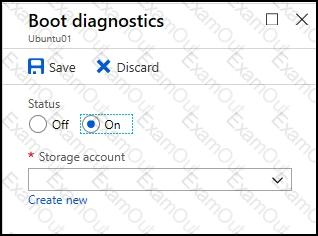

In the Support + troubleshooting section, select Boot diagnostics, then select the Settings tab.

In Boot diagnostics settings, change the statusto On, and from the Storage account drop-down list, select the storage account az400lod11566895stor.

Save the change.

You must restart the virtual machine for the change to take effect.

Task 7: Create a Pipeline to Deploy a Docker Image in a New Branch

Step 1: Create a New Branch

In your Azure DevOps Project (Project1), navigate to Repos.

In the left menu, click on Branches.

Click New branch.

Enter:

Branch name: azure-pipelines

Based on: main (or your default branch)

Click Create.

This creates a new branch named azure-pipelines.

Step 2: Switch to the New Branch

In Repos, click on Files.

In the top-left branch selector, choose azure-pipelines.

Step 3: Use the Predefined Docker Pipeline Template

Azure Pipelines has predefined YAML templates for common tasks, including Docker.

Here’s how to add it:

In the azure-pipelines branch, click New file.

Name the file: azure-pipelines.yml.

Click the Show templates button in the YAML editor (if available).

Search for the Docker template in the list of predefined templates.

Select the Docker template to auto-populate the YAML file.

If the editor doesn’t show the template picker, you can manually add the following basic Docker pipeline template:

yaml

Copy

# Predefined Docker pipeline template

trigger:

- main

resources:

- repo: self

variables:

imageName: 'mydockerimage'

stages:

- stage: Build

displayName: Build and push stage

jobs:

- job: Build

pool:

vmImage: 'ubuntu-latest'

steps:

- task: Docker@2

displayName: Build and push an image to container registry

inputs:

command: buildAndPush

repository: $(imageName)

dockerfile: '**/Dockerfile'

containerRegistry: ''

tags: |

latest

Replace with your actual Azure Container Registry (ACR) or DockerHub service connection name.

Step 4: Commit the Pipeline to the New Branch

In the YAML editor, review and adjust if needed (like setting the correct container registry service connection).

In the bottom commit message box:

Message: e.g., Add Docker deployment pipeline

Ensure the branch is set to azure-pipelines.

Click Commit (not commit to main).

This creates the pipeline YAML file in the new azure-pipelines branch.

Step 5: Create the Pipeline in Azure DevOps

In the left menu, click Pipelines.

Click New pipeline.

Choose:

Azure Repos Git.

Select your repo.

Select Existing Azure Pipelines YAML file.

In the branch selector, choose the azure-pipelines branch.

Select the YAML file path (azure-pipelines.yml).

Click Continue and then Run to validate the pipeline.

Task 10: Create a Variable Group in Azure DevOps

Step 1: Navigate to Library

In your Azure DevOps Project (Project1), click on the Pipelines section in the left menu.

In the Pipelines submenu, click on Library.

Step 2: Create a New Variable Group

Click on the + Variable group button.

Enter the Name:

nginx

Copy

varGroup1

Step 3: Add Variables

Add the first variable:

Click Add.

In the Name field, enter:

nginx

Copy

username

In the Value field, enter:

Copy

Userl-48901628

Add the second variable:

Click Add again.

In the Name field, enter:

nginx

Copy

password

In the Value field, enter:

Copy

aFpJ2j+6M!

Check the box Keep this value secret.

Step 4: Save the Variable Group

Click Save at the top to save the variable group.

To prepare a Network Security Group (NSG) namedaz400-38443478-nsg1for hosting an Azure DevOps pipeline agent, while allowing only the required outbound port for Azure DevOps and denying all other inbound and outbound access to the Internet, follow these steps:

Create the NSG:

Navigate to the Azure Portal.

Go toNetwork Security Groupsand click on+ Create.

Fill in the details, including the nameaz400-38443478-nsg1, and create the NSG.

ConfigureOutbound Security Rules:

Once the NSG is created, go to its settings.

Navigate toOutbound security rules.

Click on+ Addto create a new rule.

Set theDestination port rangesto443, which is the required port for Azure DevOps12.

Set theProtocoltoTCP.

Set theActiontoAllow.

Assign aPrioritynumber (e.g.,100) that does not conflict with existing rules.

Provide a meaningfulNamefor the rule (e.g.,AllowAzureDevOps).

Configure Default Rules to Deny All Other Traffic:

In the sameOutbound security rulessection, edit the default rule to deny alltraffic.

Change theActiontoDenyfor the rule with the lowest priority (highest number).

Ensure that this rule applies to all protocols, source and destination IP ranges, and port ranges.

Associate the NSG with the Appropriate Resource:

Associate the NSGwith the subnet or network interface of the virtual machine or resource where the Azure DevOps pipeline agent will be hosted.

By following these steps, you will ensure that the Azure DevOps pipeline agent can communicate with Azure DevOps services over the required port while blocking all other inbound and outbound Internet access, adhering to the principle of least privilege and security best practices.

Step 1: Navigate to Project Settings

Navigate to Azure DevOps:

Go to Azure DevOps and sign in with your credentials.

Select Your Project:

Choose Project1 from your list of projects.

Access Project Settings:

In the left-hand menu, scroll down and select Project settings.

Step 2: Configure Retention Policies

Navigate to Pipelines Settings:

Under Pipelines, select Settings.

Set Retention Policies:

In the Retention section, set the number of days to keep artifacts, symbols, and attachments to 60 days.

Ensurethat the retention policy is applied to all relevant pipelines and branches.

Save Changes:

Click on Save to apply the retention policy1.

By following these steps, you will have successfully configured theretention policy to retain artifacts, symbols, and attachments for 60 days in Project1

To configure your Azure Functionaz400-38443478-functto automatically update whenever new code is committed to the main branch of the specified GitHub repository, you can use GitHub Actions for continuous deployment. Here’s how to set it up:

Create a GitHub Actions Workflow:

In your GitHub repository, navigate to the.github/workflows/directory.

Create a new file for your workflow (e.g.,azure-function-cd.yml).

Define the Workflow:

In the workflow file, define the steps for the build and deployment process.

Use theAzure/functions-actionto deploy to your Azure Function App.

Set up triggers for themainbranch to initiate the workflow on every commit.

Generate Deployment Credentials:

In the Azure Portal, navigate to your Function Appaz400-38443478-funct.

Download the publish profile from theOverviewsection by clicking onGet publish profile.

Store the Publish Profile as a GitHub Secret:

In your GitHub repository, go toSettings>Secrets and variables>Actions.

Create a new secret (e.g.,AZURE_FUNCTIONAPP_PUBLISH_PROFILE) and paste the content of the publish profile.

Configure the Workflow to Use the Secret:

In the workflow file, reference the secret to authenticate the deployment to Azure.

Here’s a sample GitHub Actions workflow snippet:

name: Deploy Azure Function

on:

push:

branches:

- main

jobs:

build-and-deploy:

runs-on: ubuntu-latest

steps:

- uses: actions/checkout@v2

- name: Set up Python version

uses: actions/setup-python@v2

with:

python-version: '3.x'

- name: Install dependencies

run: |

pip install -r requirements.txt

- name: Deploy to Azure Functions

uses: Azure/functions-action@v1

with:

app-name: az400-38443478-funct

publish-profile: ${{ secrets.AZURE_FUNCTIONAPP_PUBLISH_PROFILE }}

package: .

Replace theapp-namewith the name of your Azure Function App and ensure the Python version and dependencies match your application’s requirements.

By following these steps, yourAzure Function will automatically update whenever new code is pushed to the main branch of the GitHub repository. This setup minimizes manual effort and ensures that your function app is always running the latest code.

Azure Automation now ships with the Azure PowerShell module of version 0.8.6, which introduced the ability to non-interactively authenticate to Azure using OrgId (Azure Active Directory user) credential-based authentication. Using the steps below, you can set up Azure Automation to talk to Azure using this authentication type.

Step 1: Find the Azure Active Directory associated with the Azure subscription to manage:

1. Log in to the Azure portal as the service administrator for the Azure subscription you want to manage using Azure Automation. You can find this user by logging in to the Azure portal as any user with access to this Azure subscription, then clicking Settings, then Administrators.

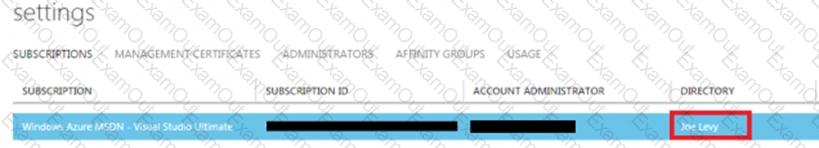

2. Note the name of the directory associated with the Azure subscription you want to manage. You can find this directory by clicking Settings, then Subscriptions.

Step 2: Create an Azure Active Directory user in the directory associated with the Azure subscription to manage:

You can skip this step if you already have an Azure Active Directory user in this directory. and plan to use this OrgId to manage Azure.

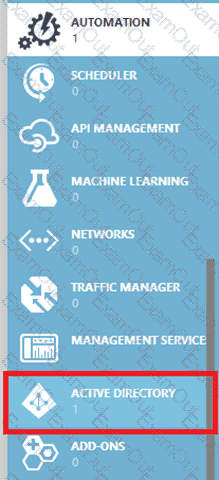

1. In the Azure portal click on Active Directory service.

2. Click the directory name that is associated with this Azure subscription.

3. Click on the Users tab and then click the Add User button.

4. For type of user, select “New user in yourorganization.” Enter a username for the user to create.

5. Fill out the user’s profile. For role, pick “User.” Don’t enable multi-factor authentication. Multi-factor accounts cannot be used with Azure Automation.

6. Click Create.

7. Jot down the full username (including part after @ symbol) and temporary password.

Step 3: Allow this Azure Active Directory user to manage this Azure subscription.

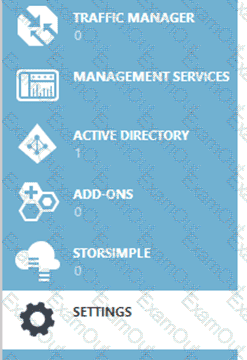

1. Click on Settings (bottom Azure tab under StorSimple)

2. Click Administrators

3. Click the Add button. Type the full user name (including part after @ symbol) of the Azure Active Directory user you want to set up to manage Azure. For subscriptions, choose the Azure subscriptions you want this user to be able to manage. Click the check mark.

Step 4: ConfigureAzure Automation to use this Azure Active Directory user to manage this Azure subscription

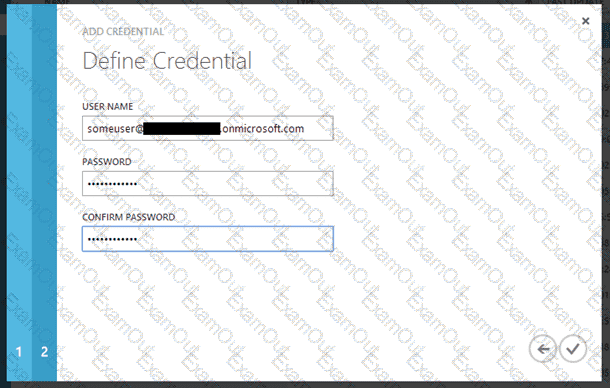

Create an Azure Automation credential asset containing the username and password of the Azure Active Directory user that you have just created. You can create a credential asset in Azure Automation by clicking into an Automation Account and then clicking the Assets tab, then the Add Setting button.

Note: Once you have set up the Azure Active Directory credential in Azure and Azure Automation, you can now manage Azure from Azure Automation runbooks using this credential.
