Free Practice Questions for Microsoft AZ-400 Exam

Step 1: To create a general-purpose v2 storage account in the Azure portal, follow these steps:

On the Azure portal menu, select All services. In the list of resources,type Storage Accounts. As you begin typing, the list filters based on your input. Select Storage Accounts.

On the Storage Accounts window that appears, choose Add.

Select the subscription in which to create the storage account.

Under the Resource group field, select RG1lod11566895

Next, enter a name for your storage account named: az400lod11566895stor

Select Create.

Step 2: Enable boot diagnostics on existing virtual machine

To enable Boot diagnostics on an existing virtual machine, follow these steps:

1.Sign in to the Azure portal, and then select the virtual machine VM1.

2. In the Support + troubleshooting section, select Boot diagnostics, then select the Settings tab.

3. In Boot diagnostics settings, change the status to On, and from the Storage account drop-down list, select the storage account az400lod11566895stor.

4. Save the change.

You must restart the virtual machine for the change to take effect.

Step 1: Understand the Requirements

You need to create a self-hosted agent for Azure Pipelines.

It will be hosted in a pod (for example, in Kubernetes).

All pipelines in Project1 should be able to use this agent pool named Pool1.

Step 2: Create the Agent Pool in Azure DevOps

Go to your Azure DevOps organization:https://dev.azure.com/{YourOrganizationName}

In the bottom-left corner, click on the Organization settings gear icon.

In the left menu, click on Agent pools.

Click on Add pool.

Provide the following:

Pool name: Pool1

Pool type: Self-hosted

Grant access permission to all pipelines: Checked (so that all Project1 pipelines can use this pool)

Click Create.

Now you have an empty agent pool named Pool1.

Step 3: Prepare the Self-hosted Agent as a Pod

You need to deploy an Azure Pipelines agent container as a pod. Here’s how to do it:

Option 1: Using Kubernetes directly (YAML deployment)

Create a Kubernetes deployment YAML file for the agent pod:

apiVersion: apps/v1

kind: Deployment

metadata:

name: azure-pipelines-agent

labels:

app: azure-pipelines-agent

spec:

replicas: 1

selector:

matchLabels:

app: azure-pipelines-agent

template:

metadata:

labels:

app: azure-pipelines-agent

spec:

containers:

- name: agent

image: mcr.microsoft.com/azure-pipelines/vsts-agent:latest

env:

- name: AZP_URL

value: "https://dev.azure.com/{YourOrganizationName} "

- name: AZP_TOKEN

valueFrom:

secretKeyRef:

name: azure-pipelines-token

key: token

- name: AZP_POOL

value: "Pool1"

- name: AZP_AGENT_NAME

value: "agent-pod"

Create a Kubernetes secret for the personal access token (PAT):

kubectl create secret generic azure-pipelines-token --from-literal=token=

Note:

Replace with a PAT that has “Agent Pools (Read & manage)” scope.

Replace {YourOrganizationName} with your actual Azure DevOps organization.

Deploy the pod:

bash

Copy

kubectl apply -f azure-pipelines-agent.yaml

Step 4: Validate the Agent Connection

Go back to Organization Settings > Agent pools > Pool1 in Azure DevOps.

You should see the agent pod connected and listed as online.

Step 5: Use the Pool in Pipelines

By default, all pipelines in Project1 will now have access to the Pool1 agent pool because you granted access during the pool creation.

In your pipeline YAML files, specify the pool name to use the self-hosted agent:

yaml

Copy

pool:

name: Pool1

Step 1: Understand the Requirements

You want to ensure that audit events (such as user actions, project changes, security settings, etc.) from your Azure DevOps organization are logged and available in a Log Analytics workspace in Azure.

This enables centralized monitoring and security compliance.

Step 2: Prerequisites

Before starting, make sure:

You have an Azure subscription.

You have permission to create or use a Log Analytics workspace in the Azure portal.

You are a Project Collection Administrator or Organization Owner in Azure DevOps.

Step 3: Create or Identify a Log Analytics Workspace

Go to the Azure portal.

In the search bar, type Log Analytics workspaces and click the service.

Click + Create to create a new workspace (or select an existing workspace if you have one).

Provide the following:

Subscription: your Azure subscription.

Resource Group: create a new or use an existing one.

Name: a unique name for the workspace (like DevOpsAuditWorkspace).

Region: choose the same region as your Azure DevOps organization if possible.

Click Review + Create, then Create to deploy the workspace.

Step 4: Configure Azure DevOps to Stream Audit Logs

Azure DevOps can stream audit logs to your Log Analytics workspace using the Azure DevOps Audit Stream feature.

In your browser, go to your Azure DevOps organization:https://dev.azure.com/{YourOrganizationName}

In the bottom-left corner, click on the Organization Settings gear icon.

In the left menu, click on Audit logs.

In the top-right, click on Audit streams.

Click on + Add stream to create a new stream.

In the New audit stream pane, do the following:

Stream type: select Azure Monitor Logs (Log Analytics).

Azure subscription: select the subscription containing your Log Analytics workspace.

Resource group: select the resource group.

Log Analytics workspace: select the workspace created in Step 3.

Click Save.

Step 5: Validate the Audit Stream Connection

Go back to the Audit streams page in Azure DevOps to confirm the stream shows as Connected.

To validate logs:

In the Azure portal, go to your Log Analytics workspace.

In the left menu, click on Logs.

Use the query:

kusto

Copy

AzureDevOpsAuditing

| sort by TimeGenerated desc

You should see audit events from your Azure DevOps organization appear in the results.

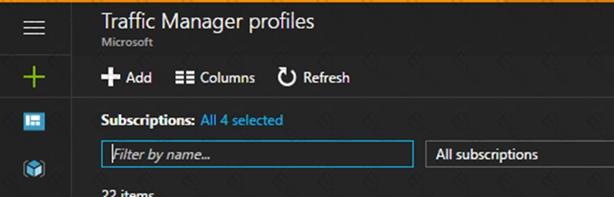

1.Go to the Azure portal, navigate to Traffic Manager profiles and click on the Add button to create a routing profile.

2. In the Create Traffic Manager profile, enter, or select these settings:

Name: az40011566895n1-tm

Routing method: Geographic

Resource group: RG1lod11566895

Note: Traffic Manager profiles can be configured to use the Geographic routing method so that users are directed to specific endpoints (Azure, External or Nested) based on which geographic location their DNS query originates from. This empowers Traffic Manager customers to enable scenarios where knowing a user’s geographic region and routing them based on that is important.

1. Open Microsoft Azure Portal and Log into your Azure account.

2. Select network security group (NSG) named az400-9940427-nsg1

3. Select Settings, Outbound security rules, and click Add

4. Click Advanced

5. Change the following settings:

Destination Port range: 8080

Protocol. TCP

Action: Allow

Note: Bydefault, Azure DevOps Server uses TCP Port 8080.

Step 1: To create a general-purpose v2 storage account in the Azure portal, follow these steps:

On the Azure portal menu, select All services. In the list of resources, type Storage Accounts. As you begin typing, the list filters based on your input. Select Storage Accounts.

On the Storage Accounts window that appears, choose Add.

Select the subscription in which to create thestorage account.

Under the Resource group field, select RG1lod11566895

Next, enter a name for your storage account named: az400lod11566895stor

Select Create.

Step 2: Enable boot diagnostics on existing virtual machine

To enable Boot diagnostics on an existing virtual machine, follow these steps:

Sign in to the Azure portal, and then select the virtual machine VM1.

In the Support + troubleshooting section, select Boot diagnostics, then select the Settings tab.

In Boot diagnostics settings, change the statusto On, and from the Storage account drop-down list, select the storage account az400lod11566895stor.

Save the change.

You must restart the virtual machine for the change to take effect.
