Understanding MPLS Forwarding Mechanism

MPLS (Multiprotocol Label Switching) is a high-performance forwarding mechanism that operates on two planes:

1️⃣ Control Plane:

Establishes Label Switched Paths (LSPs) using protocols like LDP (Label Distribution Protocol), RSVP-TE (Resource Reservation Protocol - Traffic Engineering), or BGP-LU (BGP Label Unicast).

Assigns labels to packets based on routing policies.

2️⃣ Data Plane (Forwarding Plane):

Uses a Label Forwarding Information Base (LFIB) instead of traditional IP routing.

Packets are forwarded based on labels, not IP addresses.

Analysis of the Answer Choices

✅ C. The system automatically assigns an ID to the upper-layer application that uses a tunnel. This ID is also called the tunnel ID.

Correct: MPLS assigns a Tunnel ID to applications that utilize tunnels (e.g., VPNs, MPLS-TE, or L2/L3 services).

This ID helps differentiate between various tunnel applications, ensuring traffic follows the correct LSP.

❌ A. After an IP packet enters an MPLS domain, the MPLS device forwards the packet based on FIB table queries.

Incorrect: MPLS routers do NOT use the FIB (Forwarding Information Base) for forwarding once labels are assigned.

Instead, they use LFIB (Label Forwarding Information Base) to switch packets based on labels.

❌ B. If the tunnel ID is 0x0, the MPLS forwarding process starts.

Incorrect: If the Tunnel ID is 0x0, MPLS does NOT start; it means no label is assigned, and traditional IP forwarding occurs.

❌ D. If the tunnel ID is not 0x0, the normal IP forwarding process starts.

Incorrect: If the Tunnel ID is not 0x0, MPLS forwards traffic using label switching, not IP forwarding.

The command port-isolate enable is used on Huawei switches to completely isolate traffic at both Layer 2 and Layer 3 between different interfaces within the same VLAN. This isolation prevents any communication between isolated ports—even if they belong to the same subnet or VLAN—making it a critical security feature in multi-tenant environments.

Usage Context:

Often used in shared service or hotel network scenarios.

Can be applied in access port configurations.

Does not require additional VLAN creation or private VLAN features.

Huawei Datacom Reference:

" To completely isolate Layer 2 and Layer 3 communication between interfaces in the same VLAN, run the port-isolate enable command under the interface view. "

(Source: HCIE-Datacom Study Guide V3.0 – Chapter: VLAN & Security Technologies, Section: Port Isolation)

SSH Public Key Authentication

In public key authentication mode, the SSH client must generate a key pair (public and private keys) before connecting to an SSH server.

✅ C. ssh-keygen -t dsa (Correct Answer)

DSA (Digital Signature Algorithm) key generation for SSH authentication.

Generates a private key (id_dsa) and a public key (id_dsa.pub).

In OSPFv3 (used for IPv6), Link LSAs (Type 8) are not advertised throughout the entire area. Instead, they are only advertised on a specific link (i.e., the local link). This differs from OSPFv2, where LSAs like Type 1 or Type 2 are advertised across the area.

Exact Extract - Huawei HCIE-Datacom V1.0 Courseware - Chapter: OSPFv3 Operation

“Link LSAs are generated by routers for each attached link and sent only on that link, not flooded throughout the area.”

To determine R3’s role (Level-1, Level-2, or Level-1-2) based on the provided output of the display ipv6 routing-table protocol isis command on R3, we need to analyze the IS-IS routing information and understand IS-IS hierarchy and behavior, particularly in the context of IPv6 routing. Let’s break it down step by step:

Understanding the IS-IS Levels and Hierarchy:

IS-IS (Intermediate System to Intermediate System) is a link-state routing protocol that supports a two-level hierarchy:

Level-1: Routers within the same area, responsible for intra-area routing. Level-1 routers only maintain routing information for their area and rely on Level-1-2 routers to reach other areas.

Level-2: Routers that form the backbone, connecting different areas for inter-area routing. Level-2 routers maintain routing information across areas.

Level-1-2: Routers that operate both at Level-1 (within their area) and Level-2 (to connect to other areas). These routers act as boundary routers between Level-1 areas and the Level-2 backbone.

A router’s role (Level-1, Level-2, or Level-1-2) determines which types of adjacencies it can form and what routing information it advertises or receives.

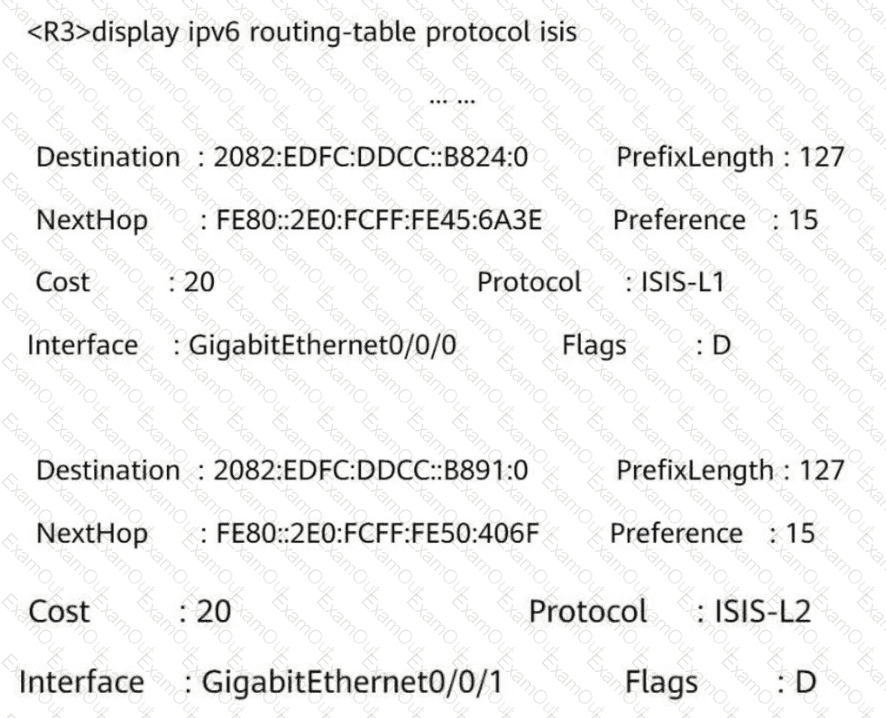

Analyzing the Output:

The output shows R3’s IPv6 routing table with routes learned via IS-IS, specifically:

Destination: 2082:EDFC:DDCC::B824:0/127, Protocol: ISIS-L1

This route is learned via IS-IS Level-1 (ISIS-L1), indicating that R3 has a Level-1 adjacency and is receiving or advertising routes within its area.

The next hop (FE80::2E0:FCFF:FE45:6A3E) and interface (GigabitEthernet0/0/0) suggest this route is intra-area.

Destination: 2082:EDFC:DDCC::B891:0/127, Protocol: ISIS-L2

This route is learned via IS-IS Level-2 (ISIS-L2), indicating that R3 has a Level-2 adjacency and is receiving or advertising routes for inter-area or backbone routing.

The next hop (FE80::2E0:FCFF:FE50:406F) and interface (GigabitEthernet0/0/1) suggest this route is for a different area or the backbone.

Both Level-1 and Level-2 routes are present in R3’s routing table, which provides critical insight into R3’s role.

Determining R3’s Role:

Level-1 Routers:

Level-1 routers only participate in Level-1 adjacencies and maintain routing information for their area. They do not have Level-2 routes or adjacencies unless connected to a Level-1-2 router. Since R3 has a Level-2 route (ISIS-L2), it cannot be exclusively a Level-1 router.

Level-2 Routers:

Level-2 routers focus on inter-area routing and typically do not maintain Level-1 routes unless they are also configured as Level-1-2. Since R3 has a Level-1 route (ISIS-L1), it cannot be exclusively a Level-2 router.

Level-1-2 Routers:

Level-1-2 routers operate both at Level-1 (for intra-area routing) and Level-2 (for inter-area routing). They can form adjacencies with both Level-1 and Level-2 neighbors and maintain both types of routes. The presence of both ISIS-L1 and ISIS-L2 routes in R3’s routing table indicates that R3 is participating in both Level-1 and Level-2 adjacencies, making it a Level-1-2 router.

Evaluating Each Option:

A. R3 must be a Level-2 device.

This is incorrect because R3 has ISIS-L1 routes, indicating it is also participating in Level-1 adjacencies, which Level-2-only devices do not do. Level-2 devices focus solely on inter-area routing and do not maintain Level-1 routes.

B. The device role of R3 cannot be determined.

This is incorrect because the presence of both ISIS-L1 and ISIS-L2 routes in the routing table clearly indicates R3’s role. The combination of Level-1 and Level-2 routes confirms R3 is a Level-1-2 router.

C. R3 must be a Level-1-2 device.

This is correct. The routing table shows both ISIS-L1 (Level-1) and ISIS-L2 (Level-2) routes, meaning R3 is operating as both a Level-1 and Level-2 router, which defines a Level-1-2 device.

D. R3 must be a Level-1 device.

This is incorrect because R3 has ISIS-L2 routes, indicating it is also participating in Level-2 adjacencies, which Level-1-only devices do not do. Level-1 devices only maintain intra-area routes and rely on Level-1-2 routers for inter-area reachability.

Additional Considerations:

The Flags: D in the output typically indicates a directly connected route or a route downloaded to the forwarding table, but it does not affect the determination of R3’s IS-IS level.

The preference (15) and cost (20) are standard for IS-IS routes and do not impact the level determination.

In Huawei’s IS-IS implementation, routers can be configured explicitly as Level-1, Level-2, or Level-1-2 using commands like isis level-1-2 under the IS-IS process. The presence of both Level-1 and Level-2 routes confirms R3’s configuration as Level-1-2.

Huawei HCIE-Datacom Context:

According to Huawei HCIE-Datacom documentation, IS-IS routers can operate at different levels, and the routing table’s protocol type (ISIS-L1 or ISIS-L2) indicates the level of adjacency. A router with both Level-1 and Level-2 routes is necessarily a Level-1-2 device, as it participates in both intra-area and inter-area routing.

The display ipv6 routing-table protocol isis command on Huawei devices shows routes learned via IS-IS, and the protocol type (L1 or L2) directly reflects the router’s role in the IS-IS hierarchy.

Conclusion:

Based on the presence of both ISIS-L1 and ISIS-L2 routes in R3’s IPv6 routing table, R3 must be a Level-1-2 device, as it is participating in both Level-1 (intra-area) and Level-2 (inter-area) adjacencies. Therefore, the correct answer is C.

References to Huawei HCIE-Datacom Documents:

Huawei HCIE-Datacom V1.0 Training Material, Chapter on IS-IS Configuration and Hierarchy.

Huawei NE Series Router Configuration Guide, IS-IS Section (Level-1, Level-2, and Level-1-2 Operations).

Huawei Technical Whitepaper on IS-IS Protocol, discussing IPv6 Routing and Level Determination.

The Loopback interface is not advertised by default in IS-IS, unless a specific command is used (like network entity with loopback settings or enabling it manually). In this case, the GE0/0/0 and GE0/0/1 interfaces are both UP, and have IS-IS L1/L2 enabled. These two interfaces qualify to advertise IS-IS routes.

Exact Extract - Huawei HCIE-Datacom V1.0 IS-IS Chapter

“By default, only physical interfaces in UP state and configured with IS-IS (L1, L2, or L1/L2) participate in IS-IS. Loopback interfaces must be explicitly advertised using route import policies.”

Huawei iMaster NCE-Campus Wi-Fi Location-Based Services (LBS) use HTTP/HTTPS to send location data (such as AP association, signal strength, timestamp, etc.) to an external LBS platform.

The standard format for such data exchange is JSON (JavaScript Object Notation).

JSON is lightweight, readable, and widely supported by modern web APIs and platforms.

Other options:

XML: Used in legacy systems, heavier format.

HTML: Used for page rendering, not data transfer.

YAML: Used mainly in configurations, not standard for HTTP APIs.

Correct answer: C. JSON

Understanding MPLS Label Retention Modes

In MPLS (Multiprotocol Label Switching), a Label Switching Router (LSR) can operate in one of two label retention modes:

1️⃣ Liberal Label Retention Mode (LLRM)

Stores all labels received from neighbors, even if they are not immediately used.

Advantage: Fast convergence during link failures.

Disadvantage: Consumes more memory & label space.

2️⃣ Conservative Label Retention Mode (CLRM)

Only keeps labels for the best next-hop path.

Advantage: Saves memory & label space.

Disadvantage: Slower convergence when topology changes.

Why are C and D Correct?

✅ C. An LSR reserves all labels distributed by its neighbor.

Correct: In Liberal Mode, the router accepts and stores all labels received, even for non-best paths.

✅ D. The liberal mode requires more memory and label space.

Correct: Since the router keeps all labels, it requires higher memory & storage.

Why are A and B Incorrect?

❌ A. An LSR retains labels from a neighboring LSR only when the neighbor is its next hop.

Incorrect: This describes Conservative Mode, not Liberal Mode.

❌ B. This label retention mode saves memory and label space.

Incorrect: Liberal Mode consumes more memory, not less.

Real-World Application

Liberal Mode is used in large-scale MPLS networks where fast failover is critical.

Conservative Mode is preferred in memory-constrained environments.

✅ Reference: Huawei HCIE-Datacom Study Guide – MPLS Label Retention Modes

The MPLS header consists of:

Label (20 bits) – Label value used for forwarding.

EXP (3 bits) – QoS field (Class of Service).

S bit (1 bit) – Bottom-of-Stack indicator.

TTL (8 bits) – Time-to-Live, similar to the TTL field in the IP header.

Function of TTL in MPLS:

It is used to prevent infinite loops.

Every LSR decrements the TTL by 1.

When TTL reaches 0, the packet is discarded.

This mirrors the behavior of IP TTL and ensures loop prevention in MPLS networks.

Correct answer: D. This field is used to prevent packet forwarding loops, similar to the TTL field in an IP header.

✅ Hypertext Transfer Protocol (HTTP) is an application-layer protocol used for:

Accessing web pages and hypermedia content.

Client-server communication over the internet.

Stateless communication with request-response architecture.

Key Features of HTTP:

Application Layer Protocol in the TCP/IP model.

Uses TCP (Port 80) and HTTPS (Port 443) for secure communication.

Supports REST APIs, web applications, and cloud services.

Reference from Huawei HCIE-Datacom Documentation:

Huawei Network Protocol Guide – HTTP and Web Services

HCIE-Datacom Study Material – Application Layer Protocols in TCP/IP Model
