Free Practice Questions for Huawei H12-821_V1.0 Exam

The MED (Multi-Exit Discriminator) is an optional, non-transitive attribute used to influence the exit path. MED is considered after attributes such as Local-Preference, AS-Path, and Origin during route selection. By default, if a MED value is missing, it is treated as 0 unless thebestroute med-none-as-maximumcommand is configured to treat it as 4294967295 ​.

Secure access channels include protocols that encrypt the transmitted data to protect against interception or unauthorized access. HTTPS (HyperText Transfer Protocol Secure) ensures data encryption over web communications, while SFTP (Secure File Transfer Protocol) provides secure file transfer by utilizing SSH for data encryption. Telnet and SNMPv2, on the other hand, lack robust encryption and are considered insecure. Huawei security standards highlight the importance of encrypted communication to prevent data leaks ​.

Comprehensive and Detailed in-depth Step-by-Step Explanation:

To establish an OSPF neighbor relationship, the following conditions must be met:

The routers must share a common network segment.

Their Hello and Dead intervals must match.

Their OSPF network types must be compatible.

The IP subnet masks must match.

If two OSPF routers are ondifferent network segmentsand havedifferent subnet masks, one solution is to change the OSPFnetwork typetoPoint-to-Point (P2P)on both interfaces.

Point-to-Point (P2P):

In a P2P network type, OSPF ignores the subnet mask mismatch and establishes the neighbor relationship regardless of the network mask.

This is ideal for directly connected links between two routers.

NBMA (Non-Broadcast Multi-Access):

This network type is used for networks like Frame Relay or ATM, where a single physical interface connects to multiple neighbors.

It is not applicable to solving subnet mask mismatches for a single link.

P2MP (Point-to-Multipoint):

This type treats the link as multiple P2P links. It is mainly used in hub-and-spoke topologies.

While it can be configured to solve subnet mask mismatches, it is more complex and less commonly used compared to the P2P type.

Broadcast:

This type requires all routers on the same segment to agree on subnet masks, so it cannot resolve the subnet mask mismatch issue.

Therefore, the correct answer isA. Point-to-point.

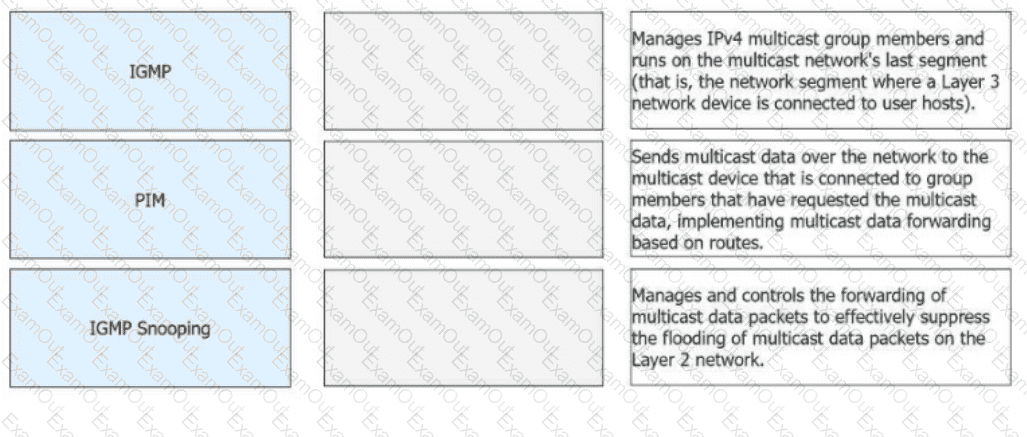

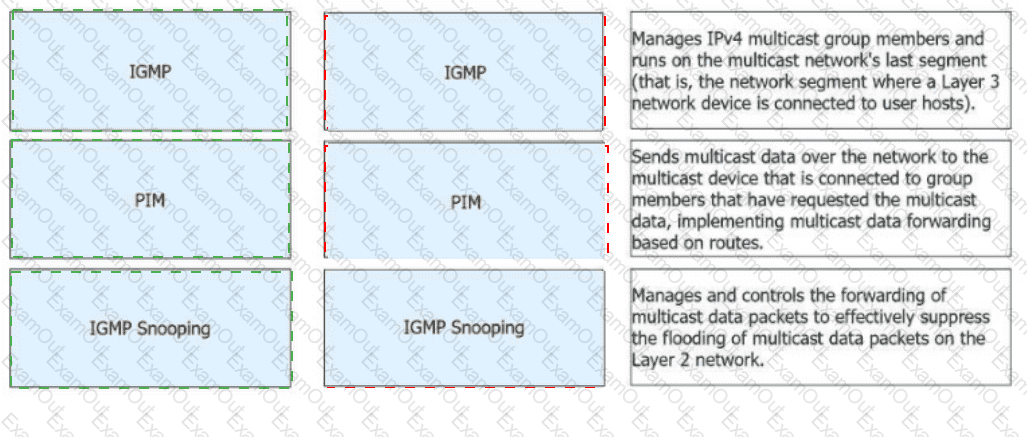

 IGMP:Manages IPv4 multicast group members and runs on the multicast network's last segment (that is, the network segment where a Layer 3 network device is connected to user hosts).

 PIM:Sends multicast data over the network to the multicast device that is connected to group members that have requested the multicast data, implementing multicast data forwarding based on routes.

 IGMP Snooping:Manages and controls the forwarding of multicast data packets to effectively suppress the flooding of multicast data packets on the Layer 2 network.

 IGMP (Internet Group Management Protocol):

IGMP is used by hosts and adjacent multicast routers to establish and maintain multicast group memberships on a local subnet.

It allows a host to inform a multicast router of its desire to receive multicast traffic for a specific group.

It operates at Layer 3 and runs on the last segment of the network.

HCIP-Datacom-Core Technology Training Material (Multicast Fundamentals)​.

 PIM (Protocol Independent Multicast):

PIM is a routing protocol designed for efficient routing of IP multicast traffic. It determines the paths over which multicast packets should be forwarded.

PIM is "protocol-independent" because it uses the underlying unicast routing table for RPF (Reverse Path Forwarding) checks.

It is responsible for distributing multicast data throughout the network.

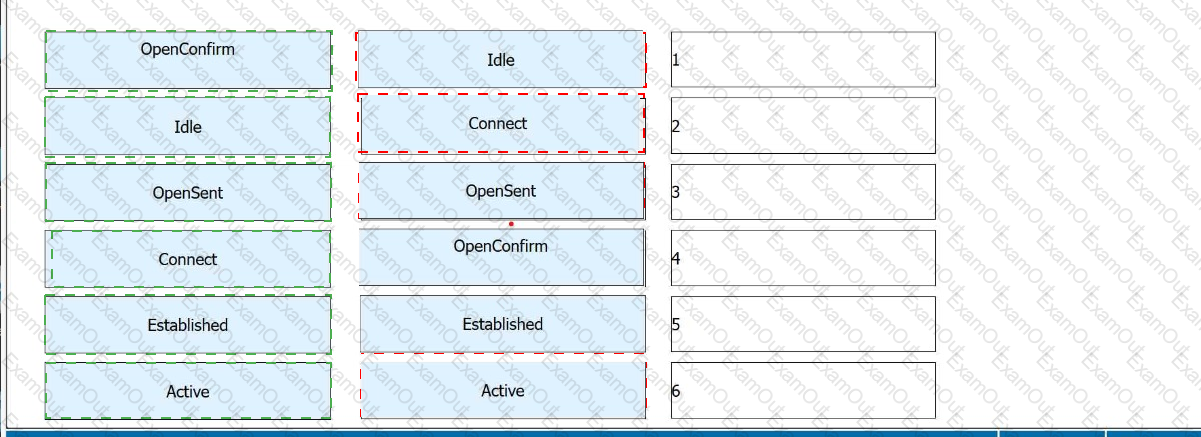

1 – Idle

2 – Connect

3 – OpenSent

4 – OpenConfirm

5 – Established

6 – Active

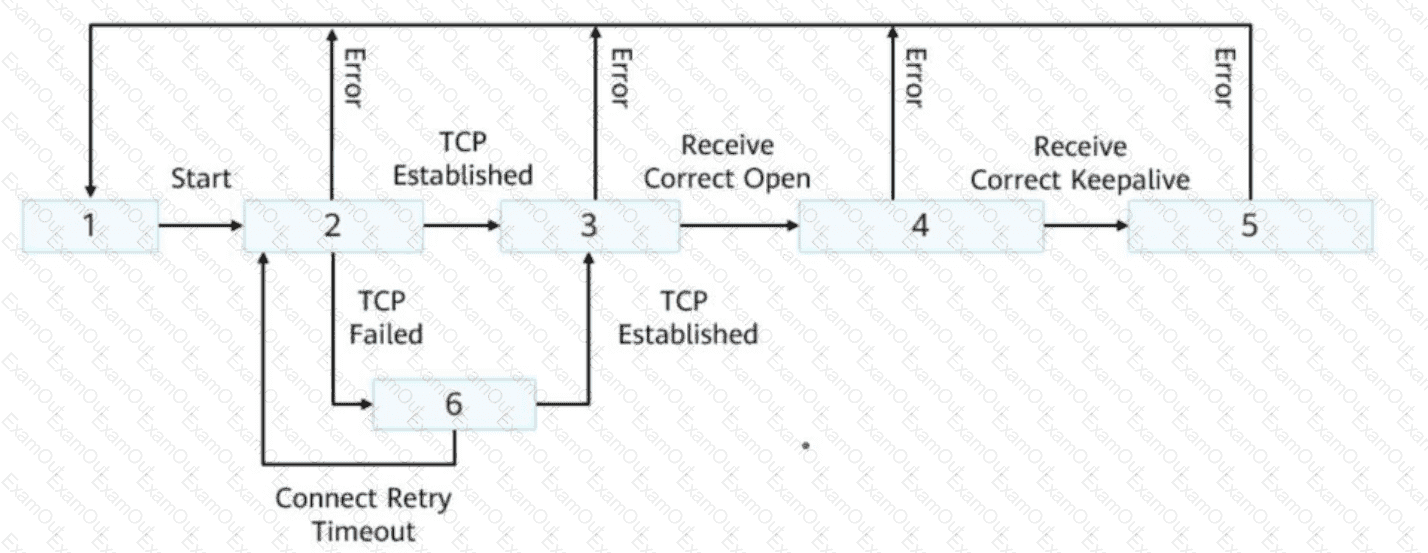

TheBGP finite state machinedefines how a BGP speaker transitions through various states when establishing and maintaining a BGP session. Below is the role of each state:

Idle (1)– BGP is waiting to start a connection. Initial state of the BGP process.

Connect (2)– BGP initiates a TCP connection to the peer.

OpenSent (3)– TCP connection is established; BGP sends an OPEN message and waits for one from the peer.

OpenConfirm (4)– BGP has received a valid OPEN message and is now expecting a KEEPALIVE.

Established (5)– BGP session is fully established; UPDATE messages can now be exchanged.

Active (6)– If the TCP connection fails in Connect state, BGP transitions to Active and will retry connection.

Reference from Huawei HCIP-Datacom-Core Technology Study Guide:

“BGP goes through the following states in order: Idle → Connect → Active → OpenSent → OpenConfirm → Established. The transition depends on the success or failure of TCP connection setup and BGP message exchanges.”

(Chapter: BGP Principles – Section: BGP State Machine)

Comprehensive and Detailed in-depth Step-by-Step Explanation:

AnArea Border Router (ABR)is an OSPF router that connects multiple areas, including the backbone area (Area 0). It plays a critical role in summarizing and propagating routing information between areas. The types of LSAs that an ABR can generate include:

Network Summary LSA (Type 3):

ABRs generate Type 3 LSAs to summarize and propagate routes from one area into another.

For example, an ABR generates a Type 3 LSA to inform other areas about the networks in the area it is connected to.

ASBR Summary LSA (Type 4):

If an ASBR exists in one of the OSPF areas connected to the ABR, the ABR generates Type 4 LSAs.

These LSAs provide information about how to reach the ASBR.

NSSA LSA (Type 7):

If the ABR is connected to a Not-So-Stubby Area (NSSA), it can generate Type 7 LSAs.

These LSAs are used to describe external routes imported into the NSSA.

AS External LSA (Type 5):

These LSAs are not typically generated by an ABR unless the ABR is also functioning as an ASBR. Type 5 LSAs are used to describe external routes imported into OSPF from other autonomous systems.

Therefore,NSSA LSA (A),Network Summary LSA (C), andASBR Summary LSA (D)are valid answers.AS External LSA (B)would only be correct if the ABR were also functioning as an ASBR, but that is not explicitly stated in the question.
