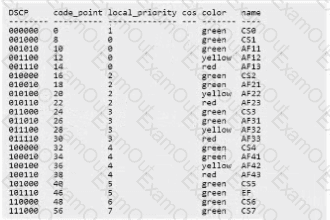

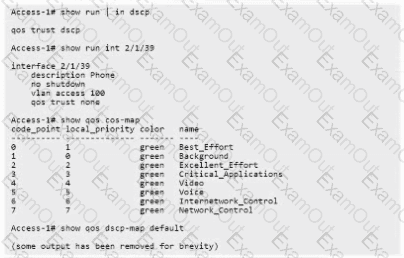

The Local Priority (LP) applied to an incoming packet marked with DSCP 46 and CoS 7 depends on the configured QoS mapping.

DSCP 46 corresponds to Expedited Forwarding (EF), which is typically mapped to the highest priority.

CoS 7 also indicates high priority.

According to the QoS policy shown, the LP assigned is 1, indicating the highest priority level.

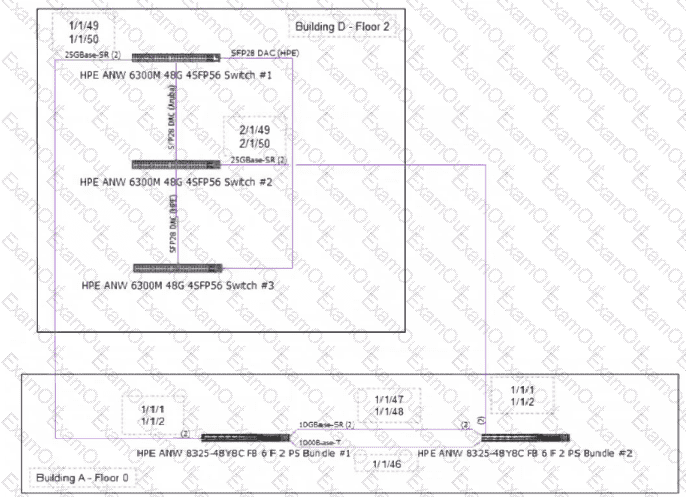

In a Virtual Switching Framework (VSF) stack, high availability and control plane redundancy depend on the designation of specific roles among the stack members.

Conductor and Secondary Roles:

Conductor: The " brain " of the stack that manages the control plane and synchronization. By default, the first switch configured (Member 1) becomes the Conductor.

Secondary: This is the " Standby Conductor. " It maintains a synchronized state of the management and control planes. If the Conductor fails, the Secondary immediately takes over the Conductor role to keep the stack operational.

Analyzing the Exhibit:

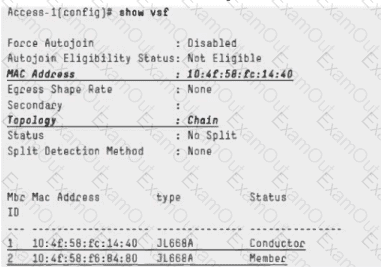

Looking at the output of show vsf, the Secondary field is currently empty (blank).

While Member 2 is seen as a " Member, " it has not been officially promoted to the Secondary role.

In the current state, if Member 1 (the Conductor) fails, there is no designated standby to take over. The stack would lose its control plane, and Member 2 would not be able to function as a standalone manager for the stack configuration.

The Solution: To ensure the stack survives a failure of either member, you must explicitly configure a secondary member. On a 2-member 6300 stack, the command vsf secondary-member 2 is used to designate Member 2 as the standby. This populates the " Secondary " field seen in the exhibit and enables redundancy.

Evaluating Other Options:

Option A: Split-detection is a separate mechanism used to prevent " split-brain " scenarios (where both members think they are the conductor after a link failure), but it requires a secondary member to be defined first to even function as a redundant pair.

Option B: Auto-stacking is a deployment method used to automatically number and link members during initial setup; it does not configure high-availability roles.

Option D: There is no command vsf conductor-member 2. The conductor role is assigned dynamically or via the secondary role promotion.

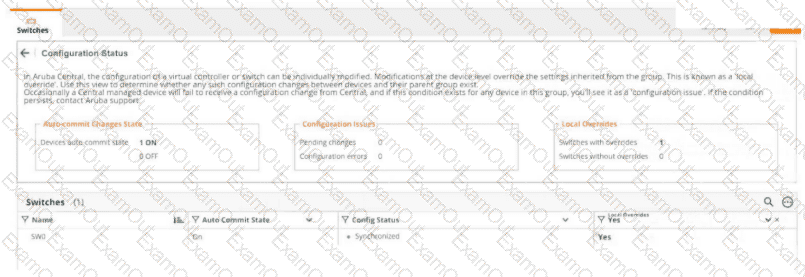

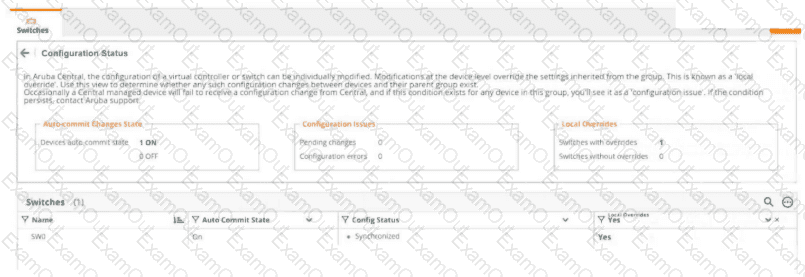

This exhibit displays the Configuration Status dashboard within HPE Aruba Networking Central for a specific switch (SW0).

Interpreting " Local Overrides " : In the Central management model, switches are typically assigned to a Group , and they inherit the configuration of that group (the " inherited settings " ). A Local Override (as explicitly defined in the exhibit ' s header text) occurs when an administrator makes a configuration change at the individual device level within Central. This device-specific configuration takes precedence over the group-level settings.

Analysis of SW0:

The table shows Local Overrides: Yes . This confirms that SW0 has unique configuration parameters applied to it that differ from the baseline configuration of its assigned group.

The Config Status is Synchronized , meaning these device-level changes have already been successfully pushed to the switch.

Evaluating the Options:

Option B (Correct): Having a " Local Override " means that a configuration has been pushed to the switch which deviates from the " default " (inherited group) settings.

Option A: " Local Overrides " in Central refers to the Central UI device-level settings , not changes made directly on the local physical CLI of the switch.

Option C: While Central does track configuration health, this specific screen is showing override and commit status, not the detailed logic for auto-checkpoints.

Option D: The exhibit shows Auto-commit Changes State: ON . This means any change made in Central is automatically committed and pushed to the device; no manual commit action is required by the administrator.

After enabling ARP protection, many users lose network access because ARP protection relies on DHCP snooping to build IP-to-MAC binding tables. Without DHCP snooping enabled and correctly configured, ARP inspection cannot verify ARP packets, causing legitimate traffic to be dropped.

Enabling DHCP snooping allows ARP inspection to validate ARP requests and responses.

Other options like dynamic IP lockdown, IGMP snooping, or DHCP reservations are unrelated or secondary.

In a network management environment like Aruba Central , alerts are used to provide proactive notification of infrastructure degradation. When dealing specifically with physical cabling issues (Layer 1), we look for symptoms of signal degradation or negotiation failures.

Switch Port Input Errors (Option A): This is the most direct indicator of a cabling problem. Physical issues—such as a bad crimp, a cable exceeded its maximum length, electromagnetic interference (EMI), or a damaged pin—typically manifest as CRC errors , runts , or giants . Monitoring for input errors allows Central to flag a port as unhealthy due to physical data corruption.

Switch Port Duplex Mode (Option E): While most modern devices use Auto-Negotiation, physical layer issues or faulty older hardware can lead to a Duplex Mismatch (e.g., one side is Half-Duplex, the other is Full-Duplex). This results in late collisions and extreme performance degradation. An alert for Duplex Mode changes or mismatches is a standard part of physical layer troubleshooting.

Why other options are incorrect:

Option B: Rx Rate monitors the volume of traffic. High or low traffic doesn ' t inherently mean the cable is bad; it just means the link is busy or idle.

Option C: Hardware failure refers to the internal components of the switch (ASICs, Fans, Power Supplies), not the external cabling.

Option D: Uplink Port Usage is a capacity planning metric (Layer 2/3) rather than a physical integrity metric.

In AOS-CX QoS architecture, the switch uses a scheduler to determine which hardware queues receive service. A common best practice is to use a Hybrid Queuing Model .

Strict Priority (SP) and Starvation: By default, if a queue is set to Strict Priority (usually Queue 7 for voice), the switch will service that queue exclusively as long as it has data. If the high-priority traffic is sustained (due to a burst or a misconfiguration/attack), the lower-priority queues (Queues 0–5) will never be serviced. This is known as starvation .

The Role of Shaping: To prevent an SP queue from monopolizing the entire link bandwidth, you can apply a shaper to that specific high-priority queue. A shaper sets a maximum bandwidth limit (in kbps or as a percentage) that the queue is allowed to consume.

Mechanism: By shaping Queue 7, even if it has a constant stream of traffic, it will be " throttled " once it hits the shaper limit. This forced " quiet time " allows the scheduler to move down and service the lower-priority queues using DWRR (Deficit Weighted Round Robin) logic, ensuring that data traffic (like web or email) is not completely dropped.

Evaluating Other Options:

Option A: You can only apply one queuing profile per interface in AOS-CX.

Option B: Replacing SP with DWRR entirely would solve starvation, but it would remove the low-latency guarantee required for Voice traffic.

Option D: " Weight " applies only to DWRR/WFQ queues. SP queues do not have a weight because they are always " first in line " by definition.

When establishing eBGP peering between devices that are not directly connected, the TTL (Time To Live) value of the BGP packets must be increased to allow them to traverse multiple hops. This is achieved by configuring ebgp-multihop, which increases the TTL beyond the default value of 1.

next-hop-self changes the BGP next-hop attribute but is not required for multihop eBGP.

route-reflector is a BGP design feature unrelated to multihop.

address-family ipv4 external is not a standard command on Aruba CX switches.

Therefore, to successfully peer eBGP sessions across multiple hops, ebgp-multihop must be configured.

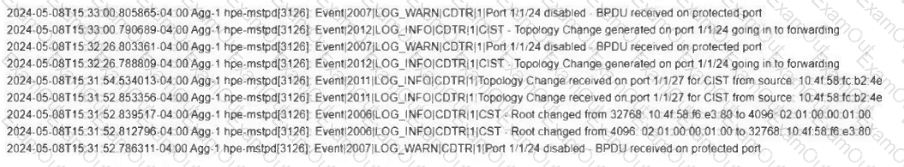

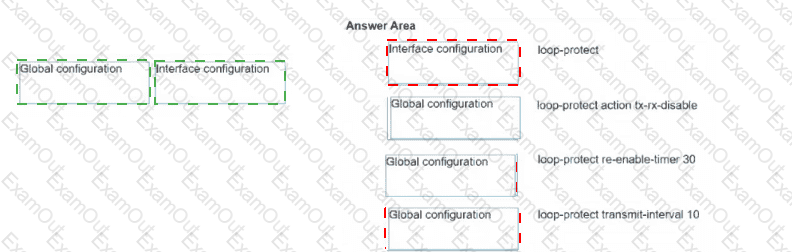

In complex network designs involving different administrative domains (like a Campus and a Data Center), it is often desirable to prevent Spanning Tree Protocol (STP) from merging the two environments into a single, massive logical tree.

The Goal of Isolation: " Isolated spanning tree topology " means that the Campus and the Data Center should each have their own independent Root Bridge and calculate their own loop-free paths without being influenced by one another.

BPDU Filter (The Solution): When you apply BPDU Filter to an interface, the switch stops sending BPDUs out of that port and, more importantly, ignores any incoming BPDUs. Because the Campus switch no longer " sees " the BPDUs coming from the Data Center core, it will stop recognizing the DC as the Root Bridge and will instead elect a local Root Bridge (or remain as the Root itself). This effectively breaks the STP connection between the two domains while still allowing Layer 2 data traffic to flow.

Evaluating Other Options:

Option A (Root Guard): This is used to prevent a specific port from becoming a Root Port. If a superior BPDU is received, the port is placed into a " root-inconsistent " state (blocked). While this protects the local Root role, it does not " isolate " the topology; the switches still participate in the same overall STP domain.

Option C (BPDU Guard): This is intended for edge ports (connected to PCs/Printers). If it receives a BPDU, it shuts down the port entirely (rxtx-disable). Applying this to a core-to-core link would cause a total loss of connectivity as soon as the DC core sends a BPDU.

Option D (Admin Edge): This simply tells the switch to skip the Listening/Learning states and go straight to Forwarding. It does not provide topology isolation.

This is a classic troubleshooting scenario in AOS-CX multicast environments. IGMP Snooping is designed to be " quiet " and efficient, but it has a specific dependency.

The Need for a Querier: IGMP Snooping works by listening for IGMP Join messages. However, for hosts to keep sending Join messages, there must be an IGMP Querier on the network that periodically asks, " Is anyone still listening to this multicast group? "

The Problem: If you enable IGMP Snooping on a VLAN but there is no L3 device acting as a Querier, the initial Join messages will eventually time out. The switch will then stop forwarding the multicast traffic to those ports because it assumes no one is listening anymore.

The Solution: By enabling IGMP on the Layer 3 interface (SVI) for that VLAN, the switch becomes the IGMP Querier for that subnet. It will send out periodic queries, the hosts will respond with " Reports, " and the IGMP Snooping table will remain populated, allowing the multicast application to continue functioning.

Why other options are incorrect:

Option A: IGMP Snooping is a Layer 2 function and is not configured " on " the L3 interface (SVI).

Options C and D: While PIM (Protocol Independent Multicast) is used for routing multicast between subnets, the immediate failure described (local applications not working on a VLAN after snooping is turned on) is almost always a lack of an IGMP Querier on that local segment.

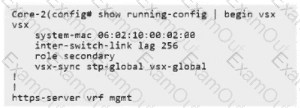

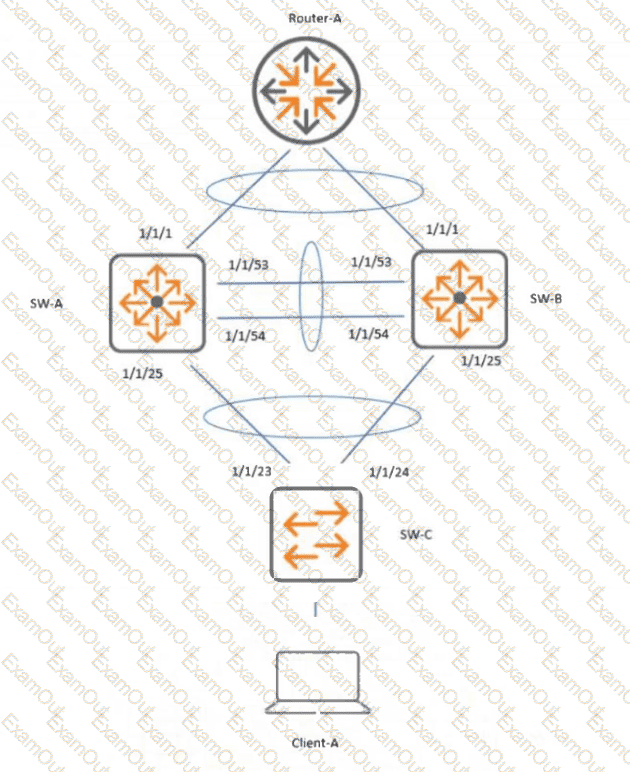

In an AOS-CX Virtual Switching Extension (VSX) environment, the Configuration Synchronization (vsx-sync) feature simplifies management by allowing the Primary switch to automatically push configuration settings to the Secondary switch.

Primary-Only Configuration: A fundamental rule of vsx-sync is that all synchronization commands must be configured on the Primary VSX node . The Secondary node simply receives and applies the configuration; it does not initiate the sync.

The time Synchronization Module: In AOS-CX, the command used to synchronize all time-related parameters—including NTP servers , authentication keys, and time zone settings—is vsx-sync time.

Command Logic: By adding vsx-sync time under the vsx context on the Primary switch, the NTP configuration currently present on the Primary will be replicated to the Secondary switch ' s running configuration.

Why other options are incorrect:

Options B and C: These are incorrect because they suggest configuring the sync on the Secondary switch.

Option A: While it specifies the Primary switch, vsx-sync ntp is not the correct command syntax in AOS-CX; the feature is consolidated under the broader vsx-sync time module.
