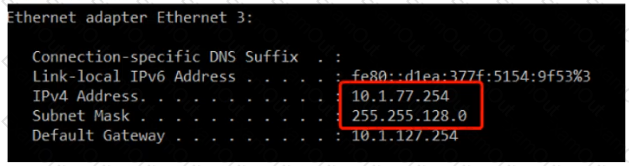

Refer to the exhibit.

What subnet does the IP address above belong to?

A.

10.177.0/17

B.

10.1.77.0/25

C.

10.1.0.0 255.255.0.0

D.

10.1.0.0/17

Refer to the exhibit

Which command on Access-2 port 1/1/4 will enable connectivity between PC-1 and Server-1 without any routing enabled in the network?

A.

Access-2 (config-if-1/1/4)# vlan access 1, 10, 20, 255

B.

Access-2 (config-if-1/1/4)# vlan access 20

C.

Access-2 (config-if-1/1/4)# vlan 20 untag 1/1/4

D.

Access-2 (config-if-1/1/4)# vlan trunk allow 1, 10, 255

Which two statements are true about the state of a new HPE Aruba Networking CX 6300 Series switch on factory defaults? (Select two.)

A.

The CX 6300M has support for IP addressing applied to switched virtual interfaces (SVIs) but not on routed ports.

B.

LLDP is not enabled but is supported on all AOS-CX switches.

C.

The CX 6300M up-link ports only support routed mode. All other ports only support access mode.

D.

For the CX 6300M switch, all up-link ports and switchports are configured as access mode.

E.

LLDP is enabled on up-link ports and switchports for the CX 6300M.

What does link aggregation provide? (Select two.)

A.

improved bandwidth between switches

B.

faster convergence than spanning-tree

C.

support for up to 2 active ports to be bundled together

D.

disables spanning-tree between switches

E.

no load balancing

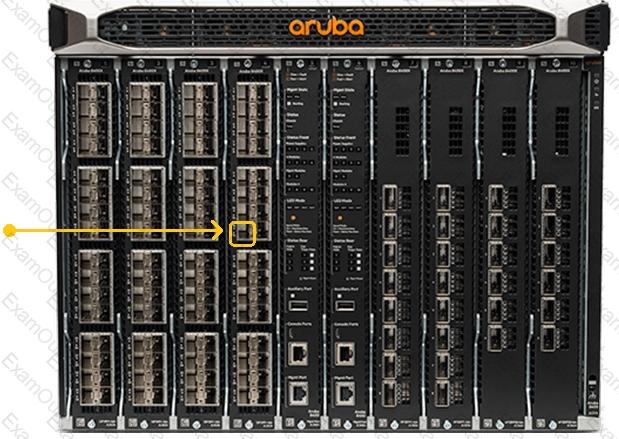

Refer to the exhibit.

The Aruba 8400 in the exhibit is member 2 of a VSX stack.

Which command will enter the interface sub configuration mode for the port, indicated by the orange square?

A.

8400(config)# interface 2/4/15

B.

8400(config)# interface 1/7/16

C.

8400(config)# interface 1/4/15

D.

8400(config)# interface 2/3/17

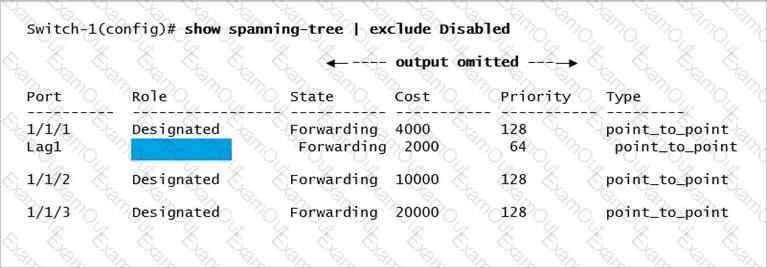

Refer to the exhibit.

Switch-1 is not the root bridge. The ports shown are all the connected pointtopoint interfaces. What Role (hidden by the blue rectangle) will be assigned to theLag 1interface?

A.

Alternate

B.

Backup

C.

Root

D.

Designated

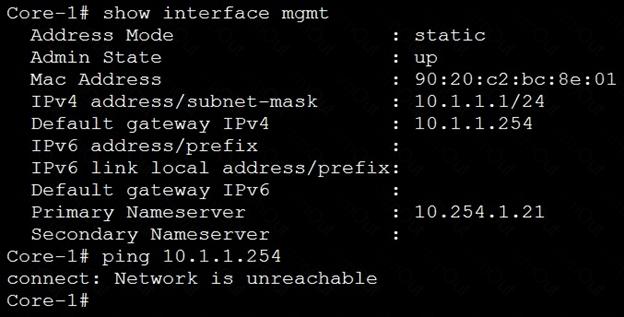

Refer to the exhibit.

What change on Core-1 will result in a successful ping to 10.1.1.254 from the management interface?

A.

Use the command ping 10.1.1.254 vrf mgmt

B.

Use the command ping 10.1.1.254/24

C.

Change the Core-1 management address to 10.1.1.1/25 first

D.

The destination 10.1.1.254 requires configuring a static route

Which two options are the Layer 2 protocols? (Choose two.)

A.

802.1Q

B.

IPSec

C.

STP

D.

RIP

E.

802.11af

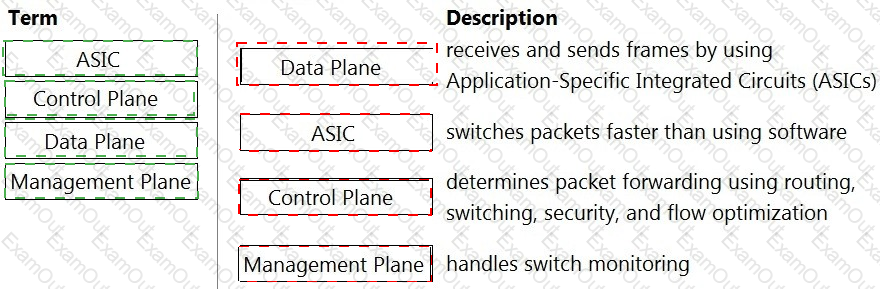

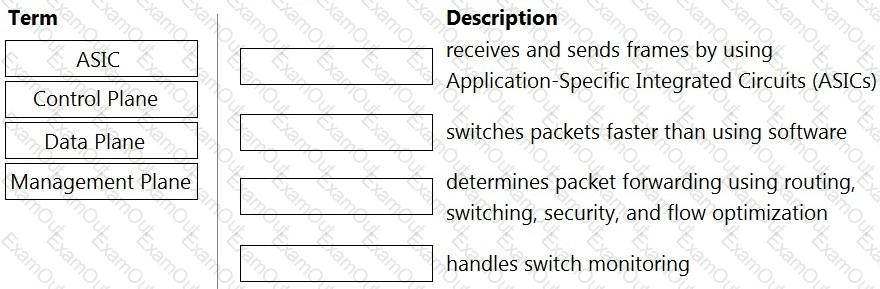

Match each description to the correct term.

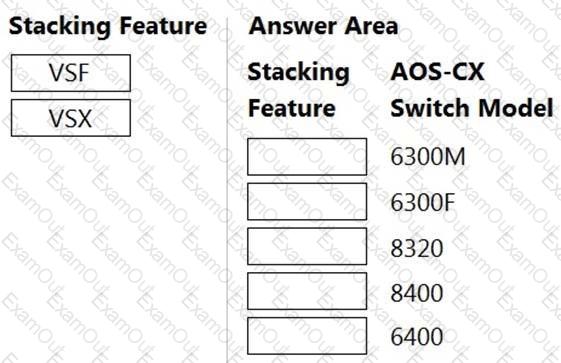

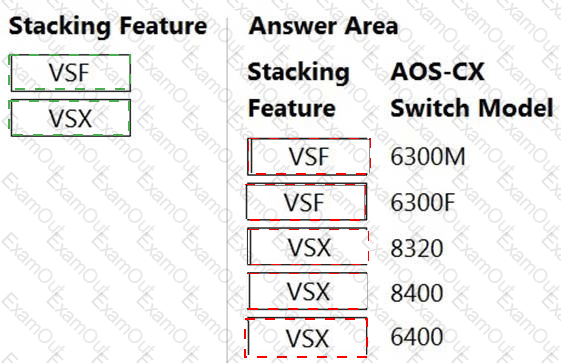

Match the available stacking feature to the correct AOS-CX switch model. Stacking features may be used more than once.
