Free Practice Questions for HP HPE0-S59 Exam

This scenario tests your knowledge of HPE Synergy Master/Satellite architecture and Management Ring requirements. Based on the requirements provided, the design has two primary issues that must be addressed:

Management Redundancy (HPE Composer 2):

The requirement states that all frames must formulate a single management entity. In a Synergy environment, this is achieved by linking the Frame Link Modules (FLM) of the three frames together to form a management ring.

Within a single management ring (one Logical Enclosure), only two (2) HPE Synergy Composer 2 modules are required to provide a highly available, redundant management cluster.

The architect ' s proposal included 6 Composers (2 per frame). This is incorrect for a single management entity design; therefore, 4 Composers are unnecessary and should be removed (Option C).

Fibre Channel Connectivity Licensing:

The HPE Virtual Connect SE 100Gb F32 Module is a converged interconnect. While it physically supports Fibre Channel (FC) and FCoE, the Fibre Channel uplink functionality is not enabled by default.

According to HPE QuickSpecs, a specific FC Upgrade License must be purchased and applied via HPE OneView to enable the use of the QSFP28 ports as native Fibre Channel uplinks to a SAN. Without these licenses, the customer cannot meet the requirement for connectivity to an FC array (Option A).

Analysis of other options:

Option B is incorrect: In a 3-frame setup, you only need one pair of " Master " modules (the F32s). The other frames are correctly equipped with Interconnect Link Modules (ILMs) which act as satellites to extend the Master ' s fabric.

Option D is incorrect: Virtual Connect technology is explicitly designed to provide MAC and WWN virtualization (often called " Server-Side Networking " ), allowing identities to be assigned to server profiles rather than being hardcoded to hardware.

Option E is incorrect: A 3-frame Synergy setup provides a total of 36 half-height slots (12 per frame). Since the HPE Synergy 480 Gen10 Plus is a half-height module, the physical infrastructure can support up to 36 modules, easily meeting the " at least 30 " requirement. There is no architectural limitation in this specific F32/ILM combination that restricts it to only 18 modules.

When compute nodes cannot access the D3940 Storage Module in an HPE Synergy environment, the first thing to check is whether a logical interconnect has been created based on the 12Gb SAS switches. Logical interconnects are essential for defining the connection and communication pathways between the compute nodes and the storage module. Without a proper logical interconnect configuration, the compute nodes will not be able to access the storage module.

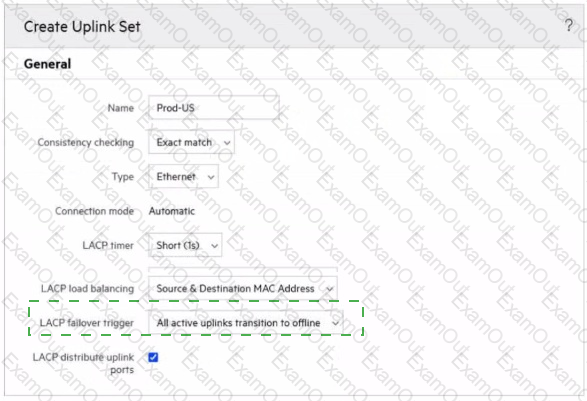

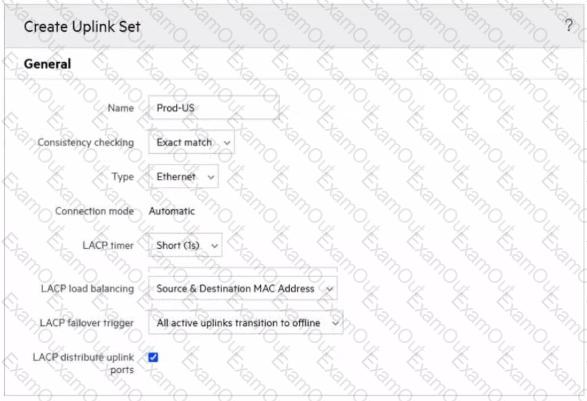

To prevent a timeout and loss of communication during an external switch firmware upgrade, the customer should configure the LACP failover trigger within the uplink set. By setting the LACP failover trigger to " All active uplinks transition to offline, " the configuration ensures that the traffic will be redirected to available uplinks in the event of an uplink failure or during the upgrade process, maintaining communication and preventing timeouts.

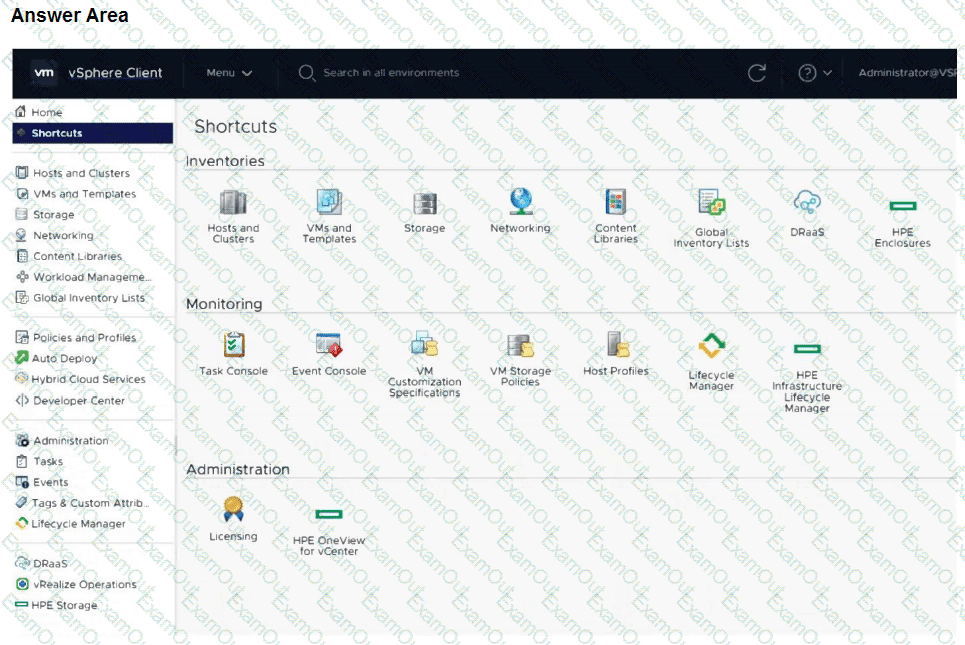

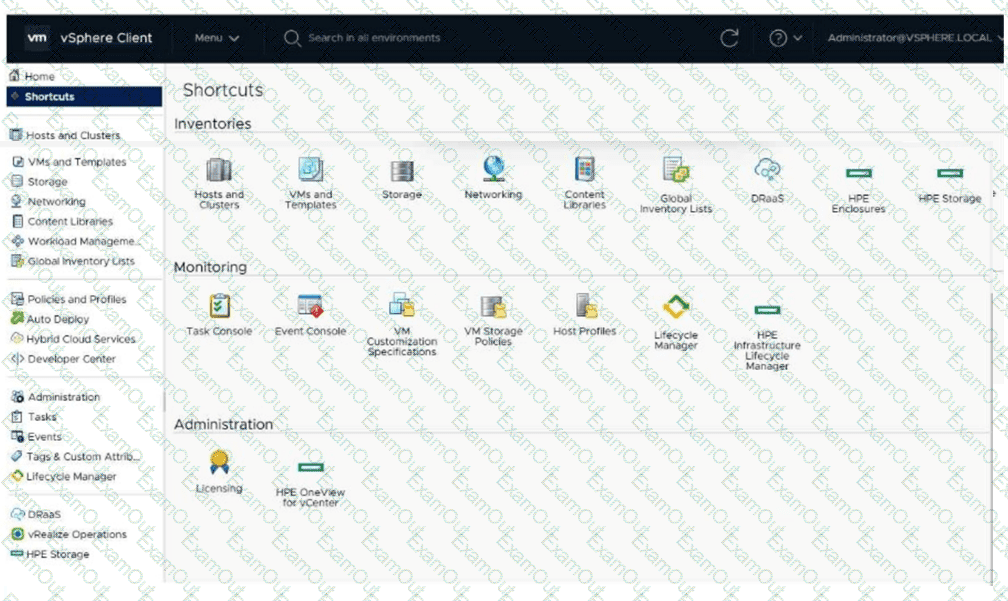

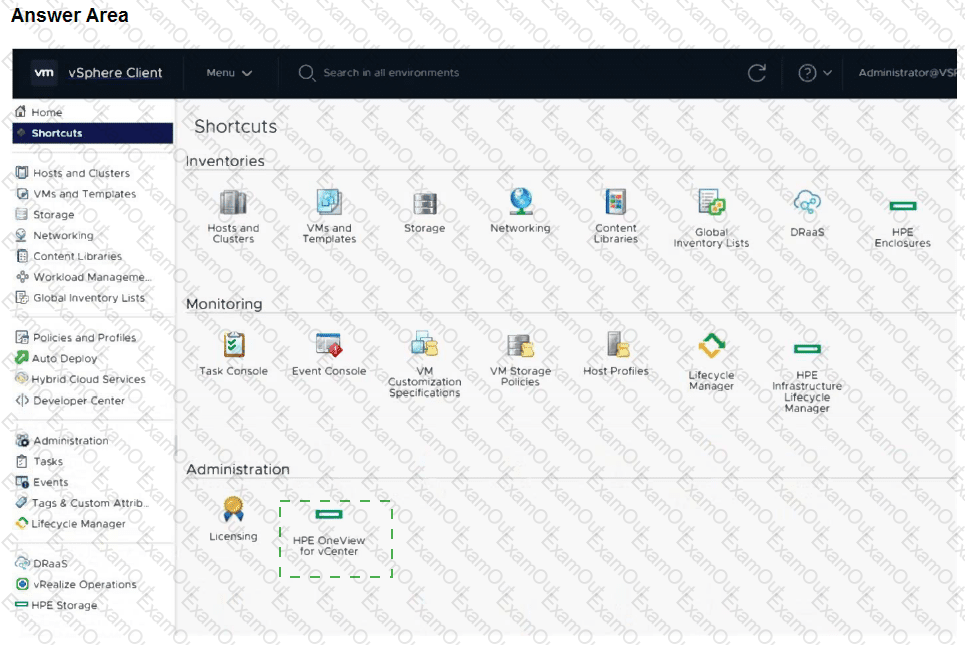

When encountering an error while growing a VMware cluster using HPE OneView for VMware vCenter Server, it is crucial to verify that the server profile template is properly imported and registered in HPE OneView. This ensures that the necessary configurations and settings are correctly applied to the new compute nodes being added to the cluster.

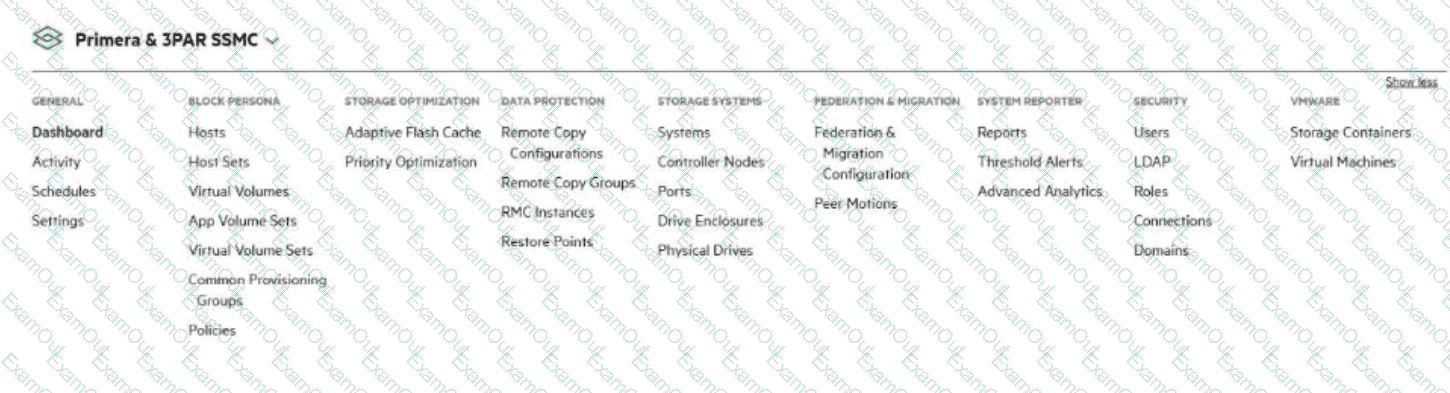

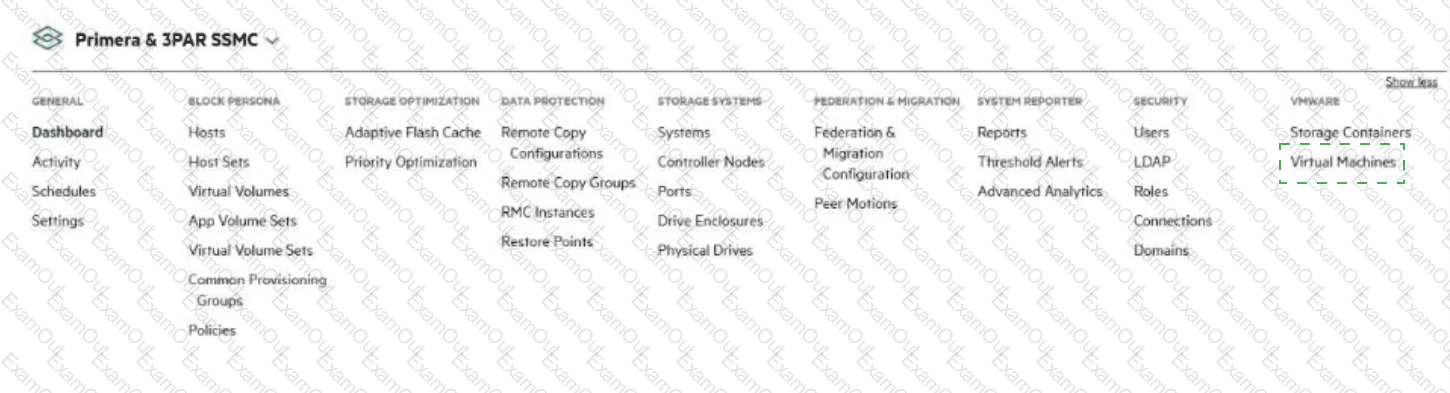

To verify whether a virtual storage operation is properly created on HPE Primera or 3PAR using the HPE Storage Integration Pack for VMware vCenter, you would click on the " Virtualization " option in the SSMC (StoreServ Management Console) main menu. This option allows you to manage and monitor storage operations related to virtual environments, including VMware integration.

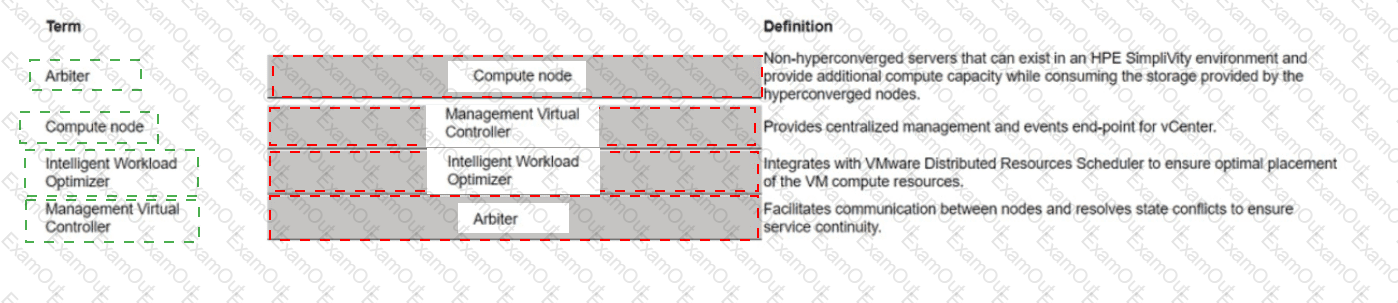

Here are the correct matches for each HPE SimpliVity term with their respective definitions:

Arbiter Definition: Facilitates communication between nodes and resolves state conflicts to ensure service continuity.

Compute node Definition: Non-hyperconverged servers that can exist in an HPE SimpliVity environment and provide additional compute capacity while consuming the storage provided by the hyperconverged nodes.

Intelligent Workload Optimizer Definition: Integrates with VMware Distributed Resources Scheduler to ensure optimal placement of the VM compute resources.

Management Virtual Controller Definition: Provides centralized management and events end-point for vCenter.

Arbiter: The Arbiter in an HPE SimpliVity environment is responsible for ensuring communication between nodes and resolving any state conflicts, which is crucial for maintaining service continuity.

Compute node: In an HPE SimpliVity environment, a compute node refers to non-hyperconverged servers that provide additional compute capacity while utilizing the storage from hyperconverged nodes.

Intelligent Workload Optimizer: This component integrates with VMware ' s Distributed Resources Scheduler (DRS) to optimize the placement of virtual machine (VM) compute resources, ensuring they are efficiently distributed across the environment.

Management Virtual Controller: This controller provides centralized management and serves as the events end-point for vCenter, allowing for streamlined management and monitoring of the SimpliVity environment.
